User Manual for Theatrixx Technologies HDMI to SDI Video Converter Click to enlarge the picture
Contents of the user manual for the Theatrixx Technologies HDMI to SDI Video
- Product category: Signal Converters Theatrixx Technologies
- Brand: Theatrixx Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Theatrixx Technologies Signal Converters
 |
User manual for the Theatrixx Technologies HDMI to SDI Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Theatrixx Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Theatrixx Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Theatrixx Technologies product will considerably shorten its lifespan!
|

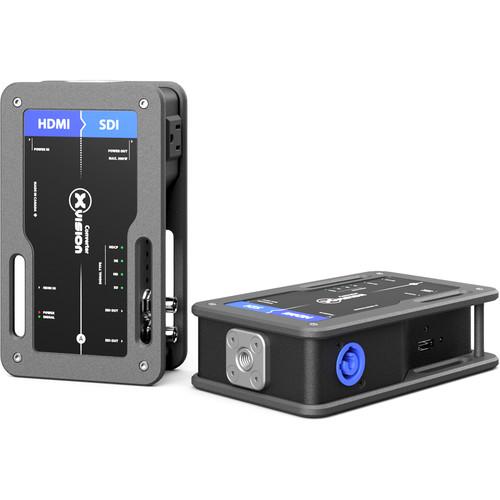

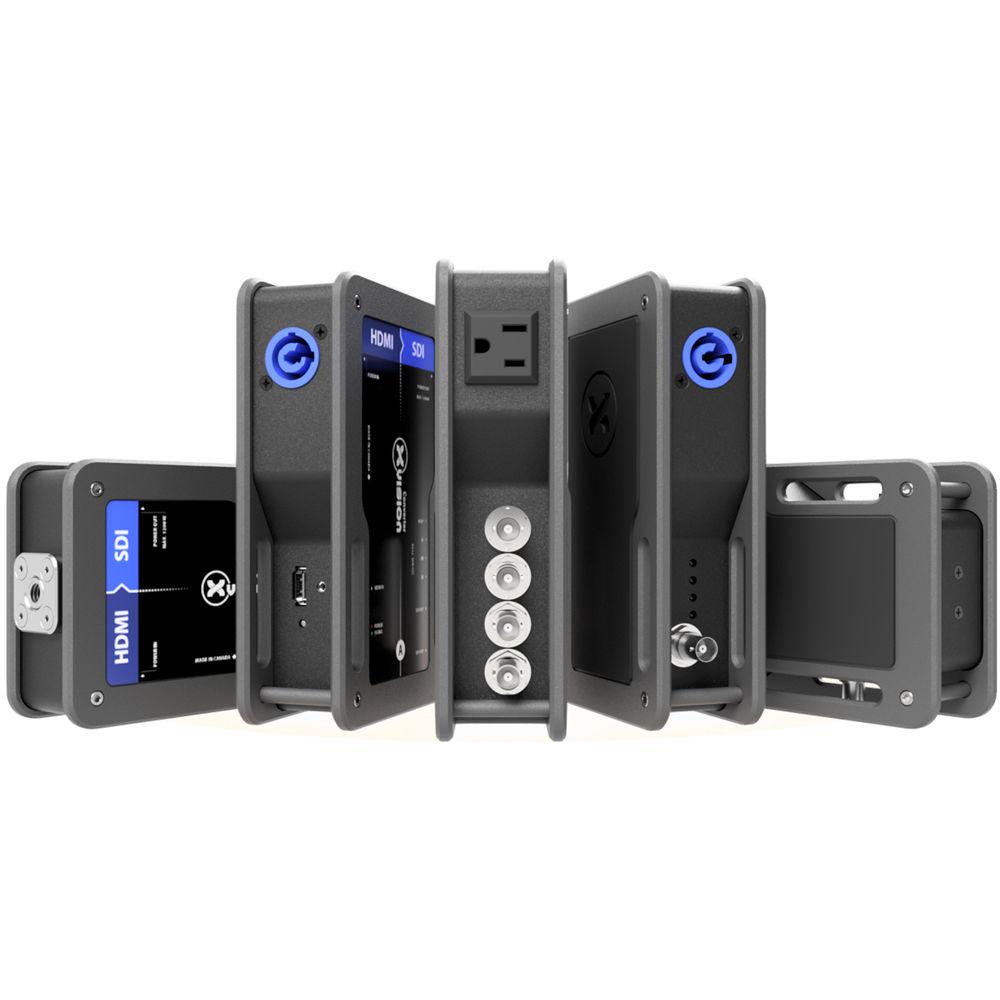

Product description The HDMI to SDI Video Converter from xVision converts a HDMI signal to SDI and features an integrated power supply with locking PowerCON connector. This converter is equipped with a built-in convenience 120V outlet to power a nearby projector, TV, laptop, and more, while eliminating the need of a power bar to power both the converter and device. The HDMI input was tested and is compatible with Mac computers and iPads. It is ideal for use in professional A/V events, presentations, live shows, and tours. -
- Integrated power supply with locking PowerCON connector
- Built-in convenience 120V outlet to power a nearby projector, TV, laptop, and more; eliminates need of a power bar to power both the converter and device

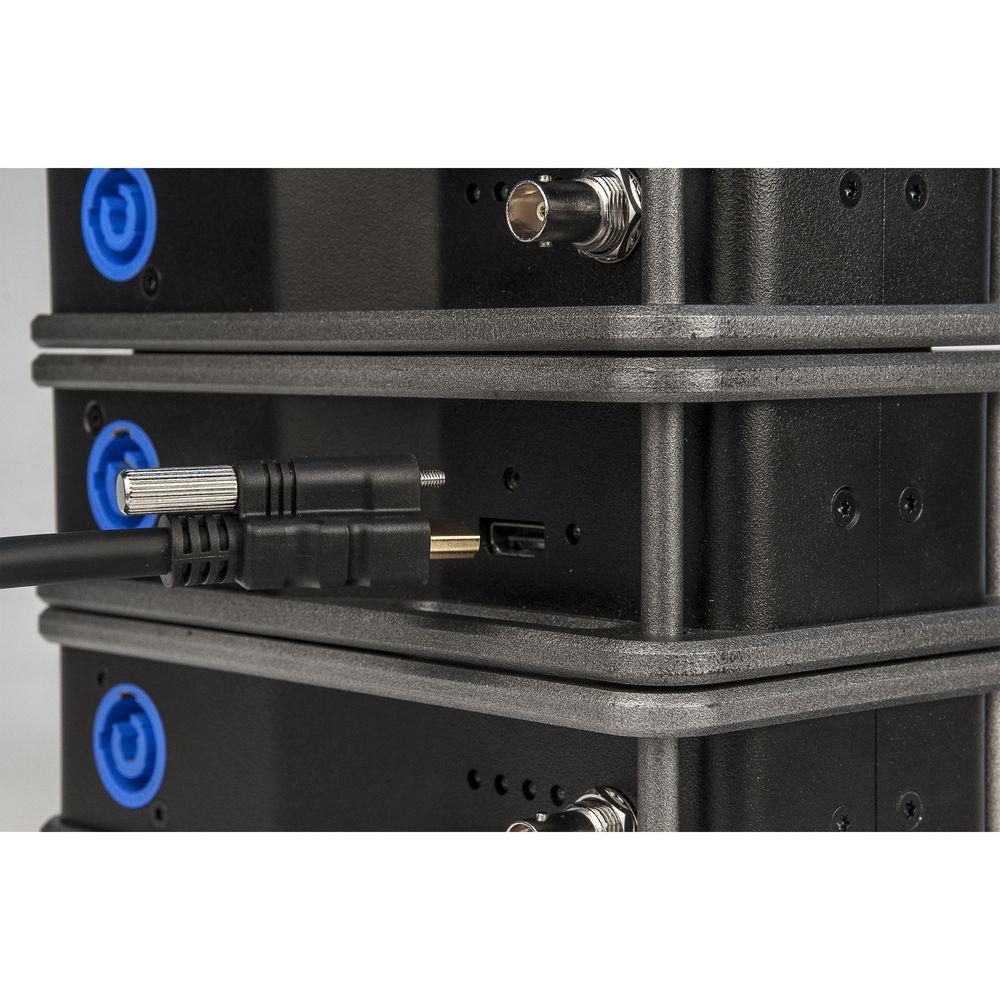

- Magnetic stacking system and non-skid rubber pad

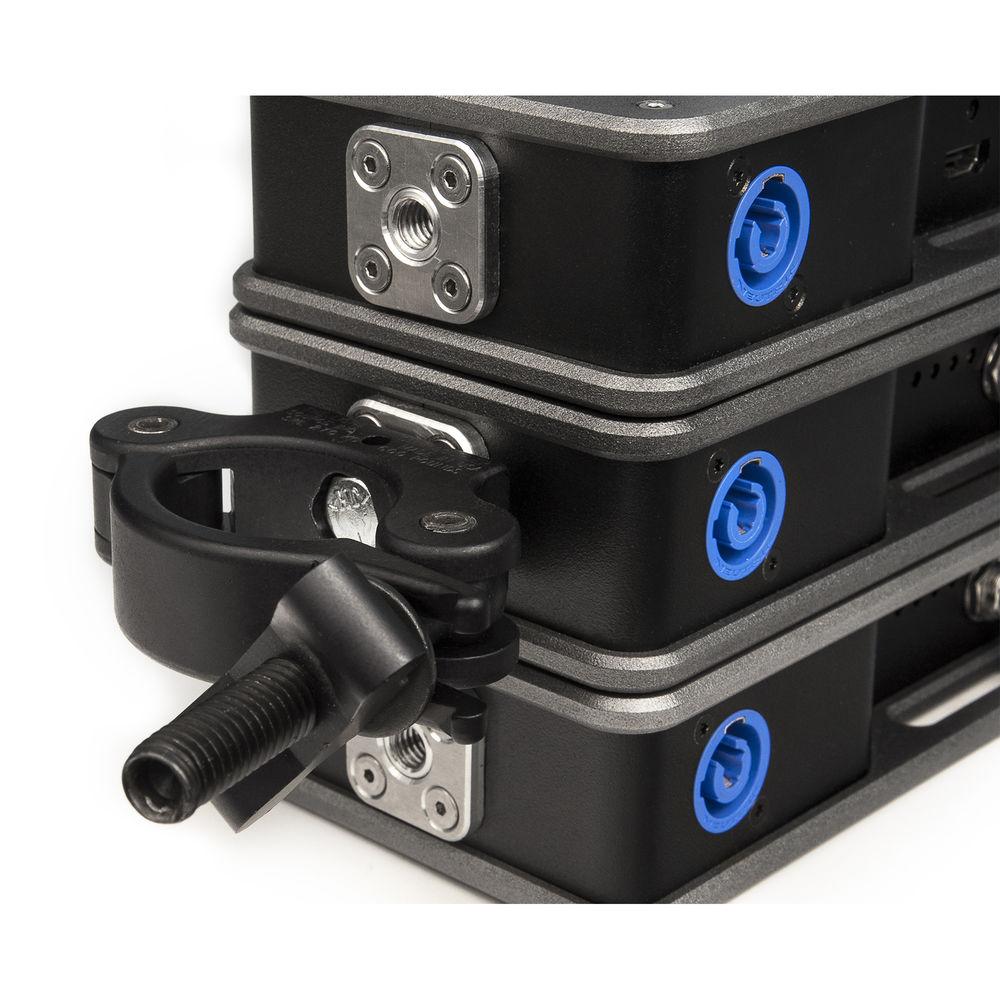

- Multiple mounting options include C-clamp, wallmount adapter, LCD mount adapter, and belt adapter
- Rugged, tour-ready, and durable enclosure
- Plug-n-play operation avoids dip switches, buttons, or menus
- Clear and ample status LED indicators for quick troubleshooting
- HDMI input tested and compatible with Mac computers and iPads
- Easy on-the-field identification with unique color and alphabetic coding system
- Locking HDMI port prevents accidental disconnection
- Integrated SDI splitter dual SDI outputs
UPC: 670996000027 In the Box Theatrixx Technologies HDMI to SDI Video Converter Locking HDMI Male to DVI Male Cable (3.3') Edison NEMA 5-15P to PowerCON Cable (3.3') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Theatrixx Technologies HDMI to SDI Video Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTheatrixx Technologies XVV-HDMI2SDI Specs | Video Input | HDMI 1.2 type A with lock system | | Video Output | 2 x 3G/HD/SD SDI BNC | | Format Support | 3G: 1080p50, 1080p59.94, 1080p60
HD: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
SD: 525/23.98 NTSC, 525/29.97 NTSC, 625/25 PAL | | SDI Video Sampling | 4:2:2 and 4:4:4 | | SDI Audio Sampling | Sample rate of 48 kHz and 24-bit | | SDI Color Space | YUV and RGB | | SDI Auto Switching | Automatically detects incoming signal format | | Power Supply | Built-in power supply
PowerCON input
Edison Nema 5 to 15 output | | Power Consumption | 25 W | | Operational Voltage Range | 90 to 125 VAC
90 to 250 V also available (with PowerCON True1) | | Relative Humidity | 0 to 90% non-condensing | | Overall Dimensions (H x D x W) | 2.0 x 7.1 x 4.2" (5.0 x 18 x 11 cm) | | Weight | 2.2 lb (1.0 kg) | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 8.9 x 6.5 x 5.9" |
