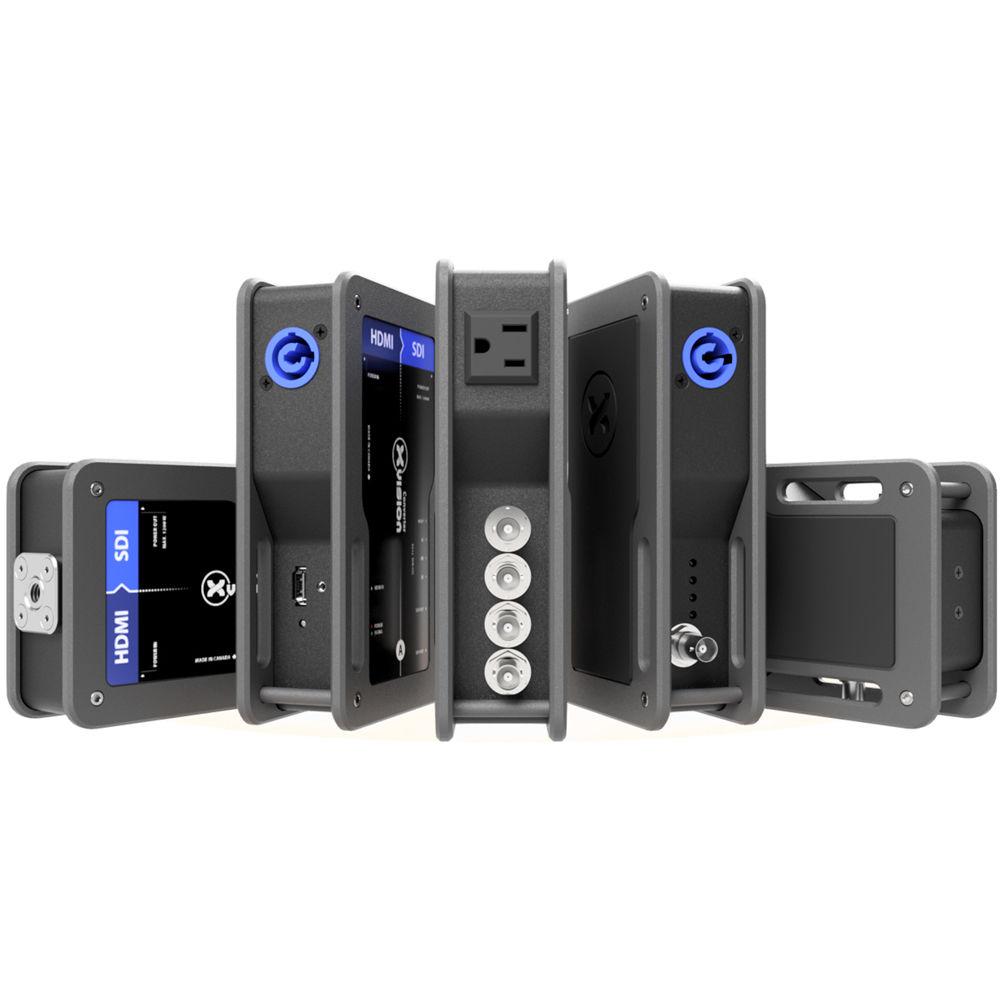

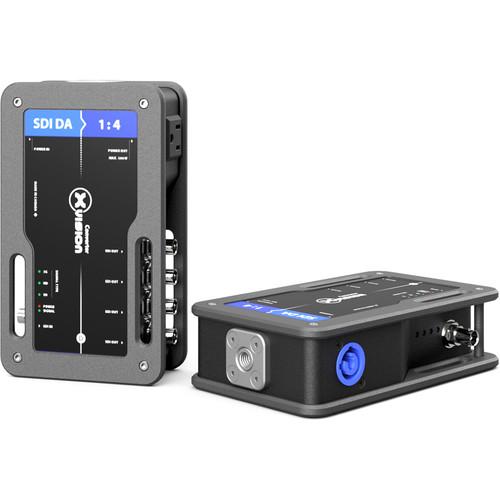

Product description The SDI 1x4 Distribution Amplifier from xVision splits a single 1080p SDI signal source to up to four outputs, and features an integrated power supply with locking PowerCON connector. This converter is equipped with a built-in convenience 120V outlet to power a nearby projector, TV, laptop, and more, thereby eliminating the need of a power bar to power both the converter and device. With all outputs fully reclocked and amplified, this converter is ideal for use in professional A/V events, presentations, live shows, and tours. -
- Integrated power supply with locking PowerCON connector
- Built-in convenience 120V outlet to power nearby projector, TV, laptop, small video projector, and more, eliminates need of a power bar to power both the converter and device

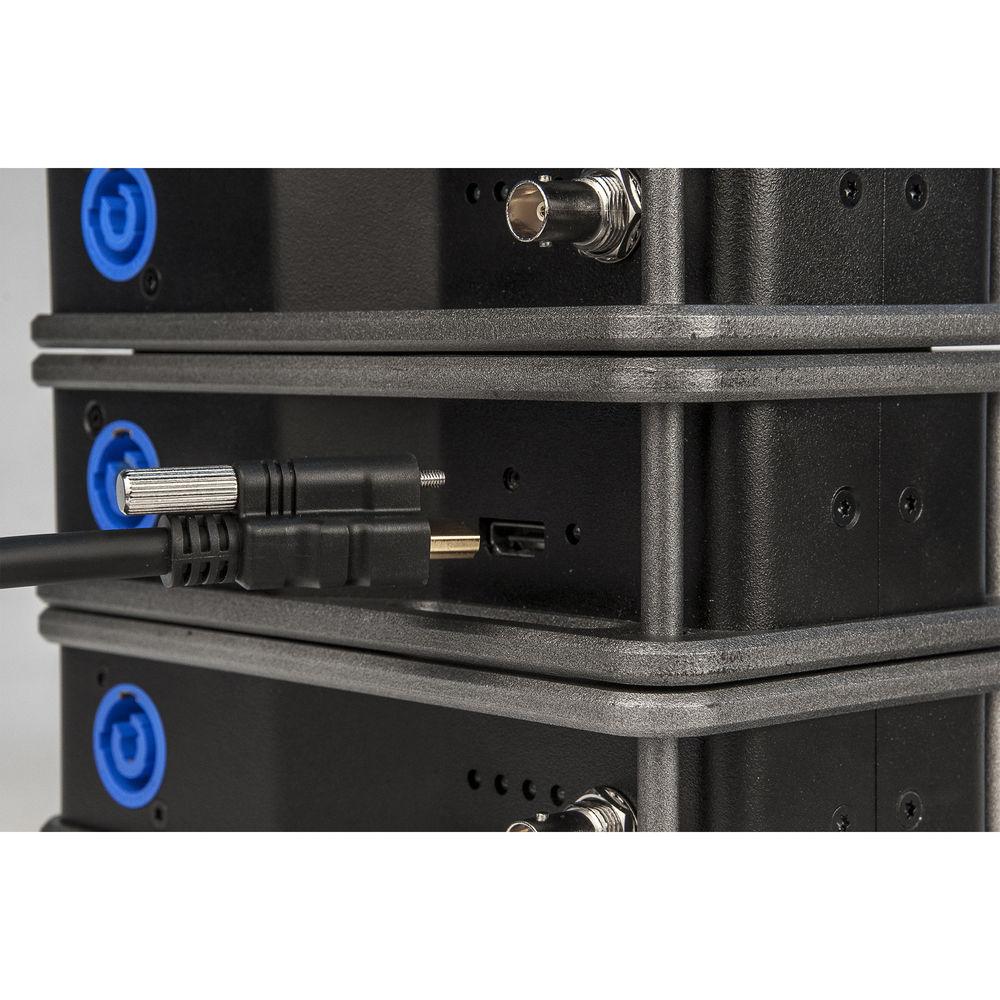

- Magnetic stacking system and non-skid rubber pad saves at least gaffer tape

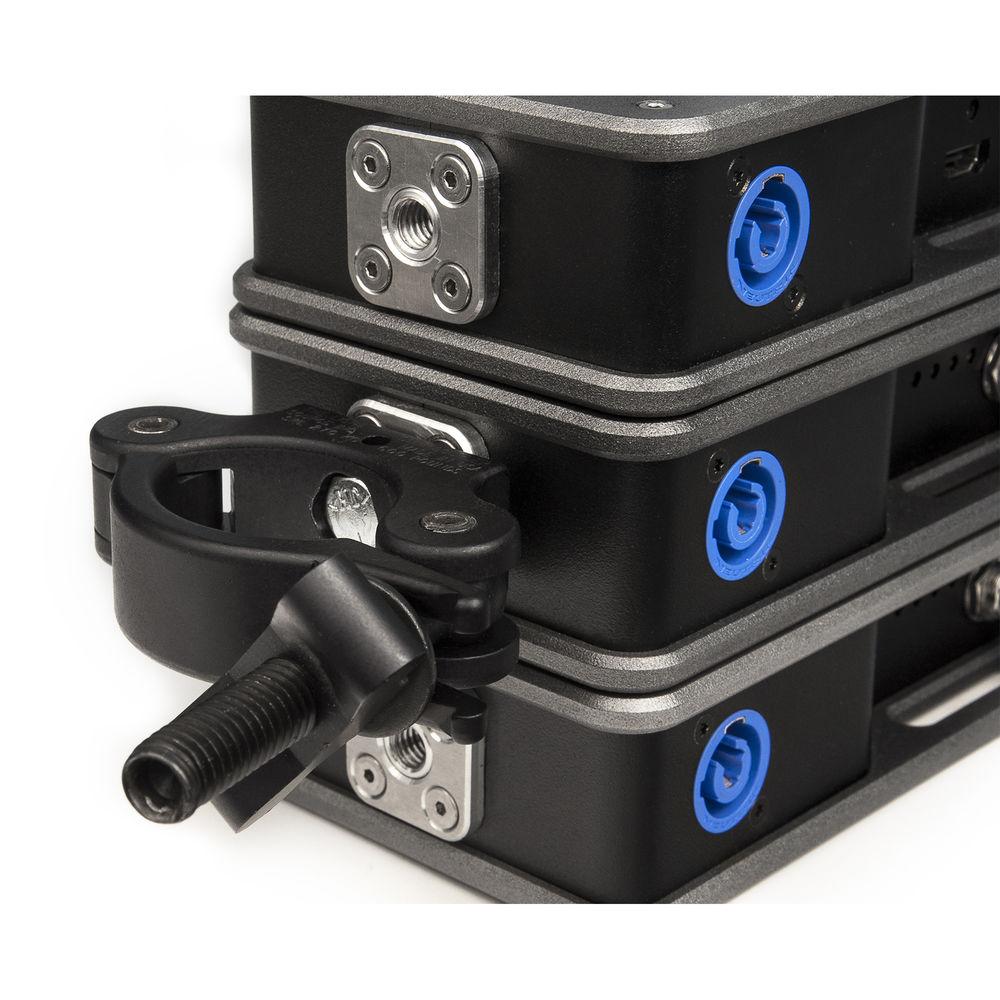

- Multiple mounting options include C-clamp, wall-mount adapter, LCD mount adapter, and belt adapter
- Rugged, tour-ready, and durable enclosure
- Plug-n-play operation avoids dipswitches, buttons, or menus
- Clear and ample status LED indicators for quick troubleshooting
- HDMI input tested and compatible with MacBook and iPad
- Easy on-the-field identification with unique color and alphabetic coding system
- All outputs are fully re-clocked and amplified
UPC: 670996000034 In the Box Theatrixx Technologies SDI 1x4 Distribution Amplifier Locking HDMI Male to DVI Male Cable (3.3') Edison NEMA 5-15P to PowerCON Cable (3.3') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Theatrixx Technologies SDI 1x4 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTheatrixx Technologies XVV-SDIDA Specs | Video Input | 1 x 3G/HD/SD-SDI BNC | | Video Output | 4 x 3G/HD/SD-SDI BNC | | Format Support | 3G:
1080p60 / 59.94 / 50
HD:
720p60 / 59.94 / 50
1080i60 / 59.94 / 50
1080p30 / 29.97 / 25 / 24 / 23.98
1080PsF30 / PsF29.97 / PsF25 / PsF24 / PsF23.98
SD:
NTSC 525/23.98 / 525/29.97
PAL 625/25 | | SDI Video Sampling | 4:2:2 and 4:4:4 | | SDI Audio Sampling | Sample rate of 48 kHz and 24-bit | | SDI Color Space | YUV and RGB | | SDI Auto Switching | Automatically detects incoming signal format | | Power Supply | Built-in power supply
PowerCON input
Edison NEMA 5 to 15 output | | Power Consumption | 25 W | | Operational Voltage Range | 90 to 125 V
90 to 250 V also available (with PowerCON True1) | | Relative Humidity | 0 to 90% Non-condensing | | Overall Dimensions (H x D x W) | 2.0 x 7.1 x 4.2" (5 x 18 x 11 cm) | | Weight | 2.2 lb (1 kg) | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 8.8 x 6.4 x 6.0" |
