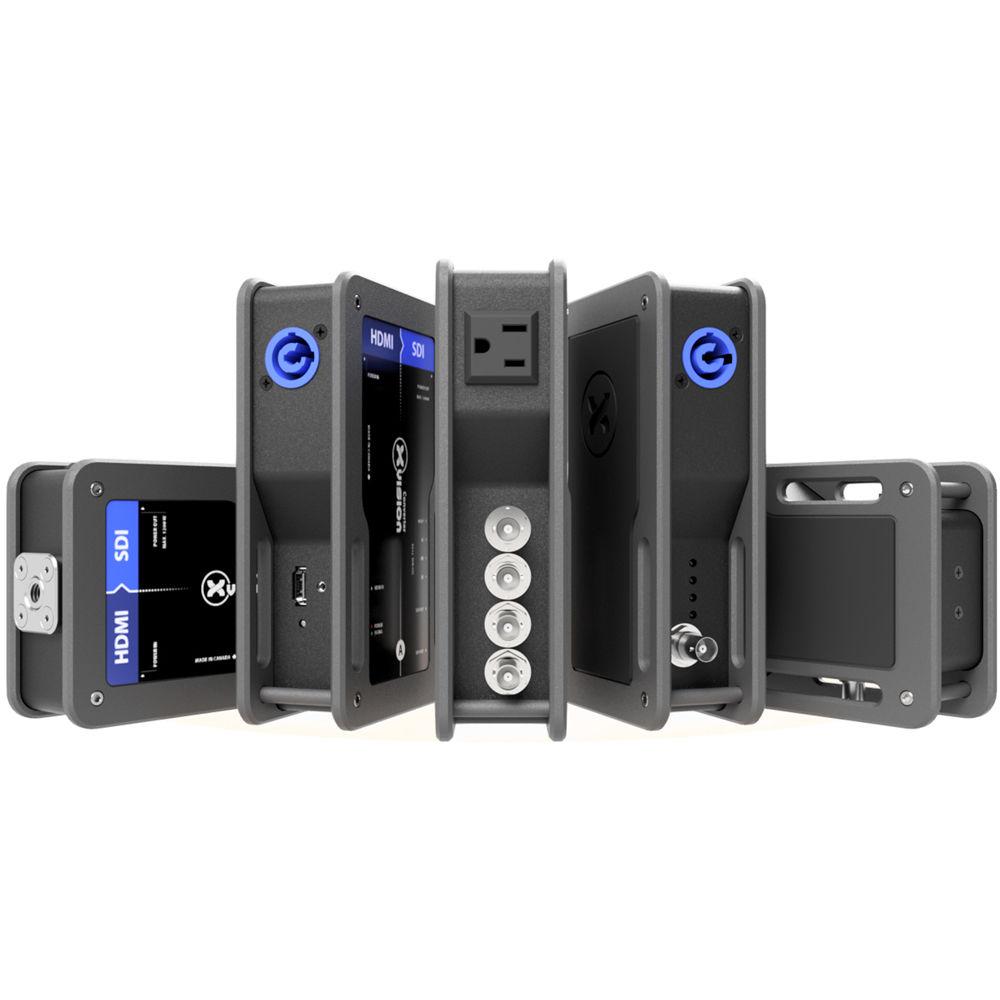

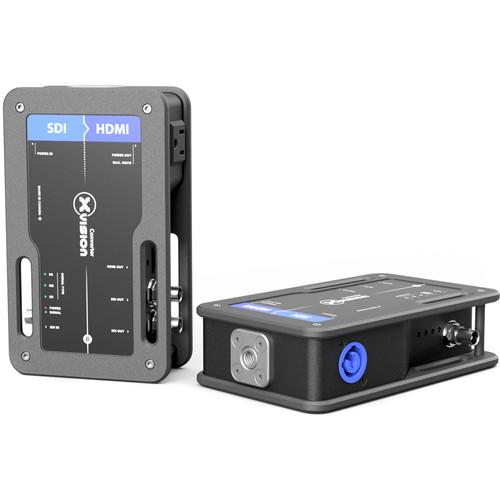

Product description The xVision SDI to HDMI Video Converter from Theatrixx Technologies converts an SDI signal to HDMI, and features an integrated power supply with locking PowerCON connector. This converter is equipped with a built-in 120V outlet to power nearby projector, monitor, laptop, and more, while eliminating the need for a power bar to power both the converter and the device. For added convenience, the converter supports reclocked and amplified SDI loop-through output. A locking HDMI port prevents accidental disconnection. The xVision SDI to HDMI converter is ideal for use in professional A/V events, presentations, live shows, and tours. -
- Integrated power supply with locking PowerCON connector
- Built-in 120V outlet to power nearby device eliminates the need for a power bar

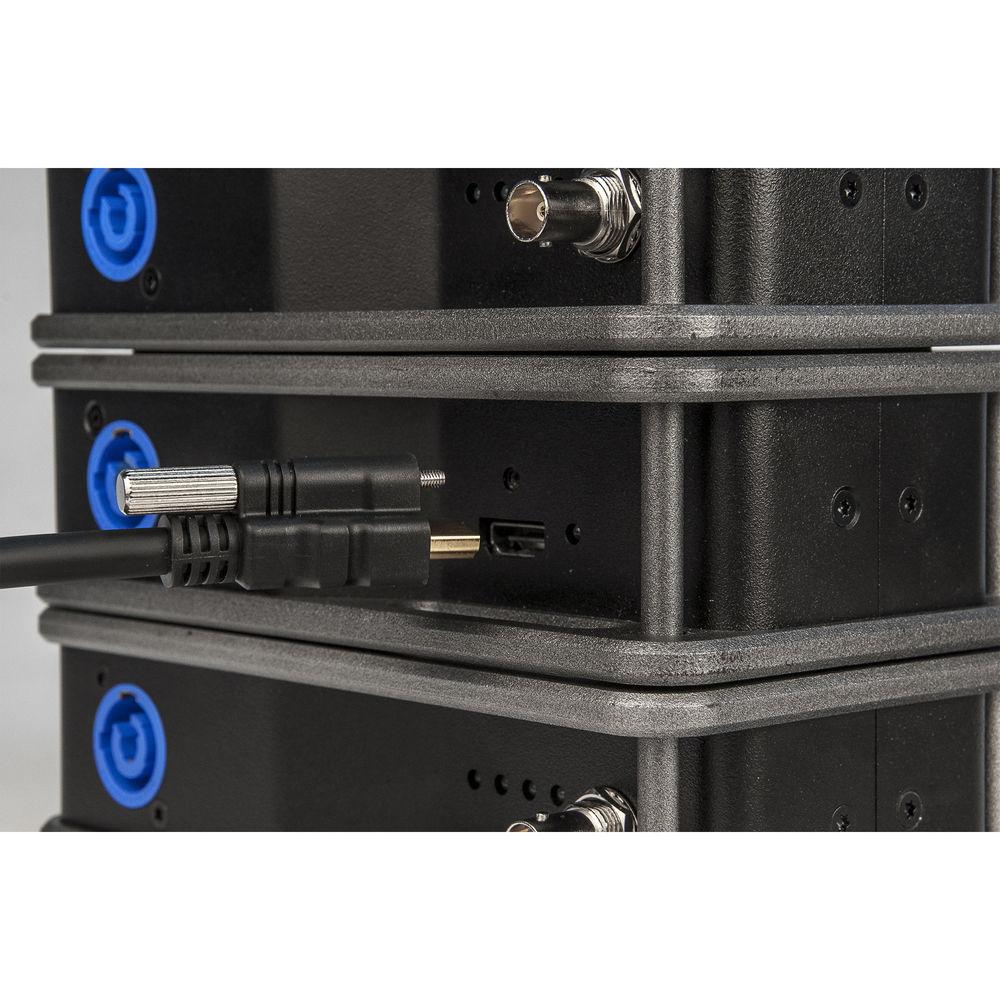

- Magnetic stacking system and non-skid rubber pad saves on gaffer tape rolls

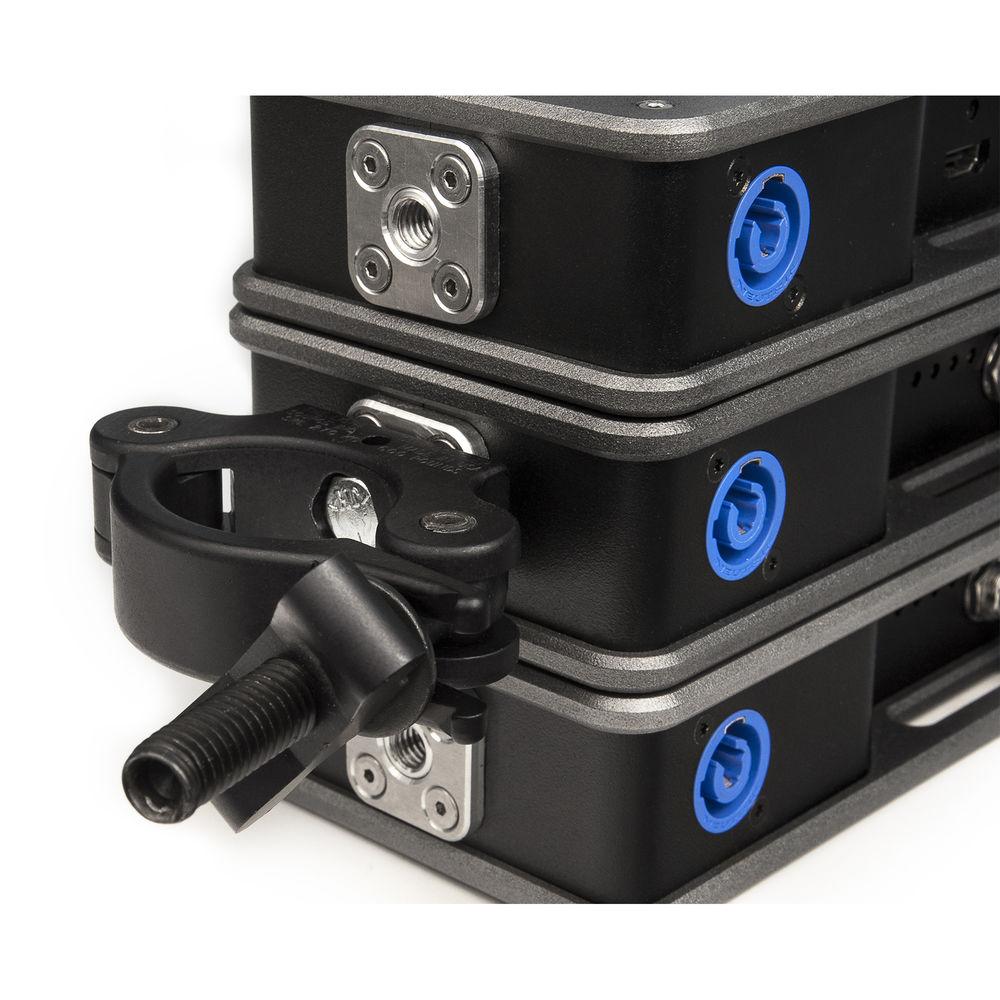

- Multiple mounting options include C-clamp, wall mount adapter, LCD mount adapter, and belt adapter
- Rugged, tour-ready, and durable enclosure
- Plug-and-play operation avoids DIP switches, buttons, or menus
- Clear and ample status LED indicators for quick troubleshooting
- HDMI input tested and compatible with MacBook and iPad
- Easy on-the-field identification with unique color and alphabetical coding system
- Locking HDMI port prevents accidental disconnection
- Reclocked and amplified SDI loop-through
UPC: 670996000010 In the Box Theatrixx Technologies xVision SDI to HDMI Video Converter Locking HDMI Male to DVI Male Cable (3.3') Edison NEMA 5-15P to PowerCON Cable (3.3') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Theatrixx Technologies xVision SDI to HDMI Video Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTheatrixx Technologies XVV-SDI2HDMI Specs | Video Input | 1 x 3G/HD/SD-SDI, BNC | | Video Output | 1 x HDMI 1.2 type A with lock system
2 x 3G/HD/SD-SDI, BNC | | Format Support | 3G:
1080p: 60/59.94/50
HD:
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SD:
625: 25 (PAL)
525: 29.97/23.98 (NTSC) | | SDI Video Sampling | 4:2:2 and 4:4:4 | | SDI Audio Sampling | Sample rate of 48 kHz, 24-bit | | SDI Color Space | YUV and RGB | | SDI Auto Switching | Automatically detects incoming signal format | | Power Supply | Built-in power supply
PowerCON input
Edison NEMA 5 to 15 output | | Power Consumption | 25 W | | Operational Voltage Range | 90 to 125 V
90 to 250 V also available (with PowerCON True1) | | Relative Humidity | 0 to 90%, non-condensing | | Overall Dimensions (H x D x W) | 2.0 x 7.1 x 4.2" / 5.0 x 18 x 11 cm | | Weight | 2.2 lb / 1.0 kg | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 8.8 x 6.3 x 6.1" |
