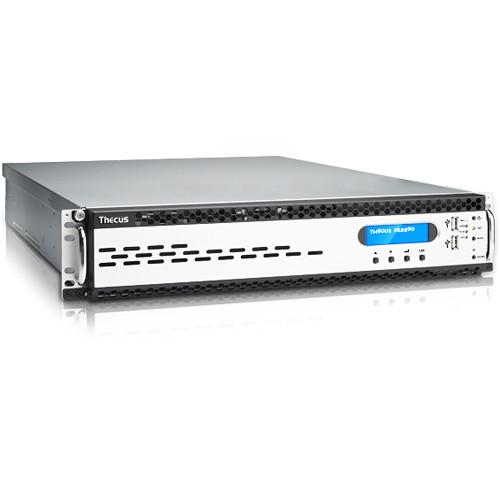

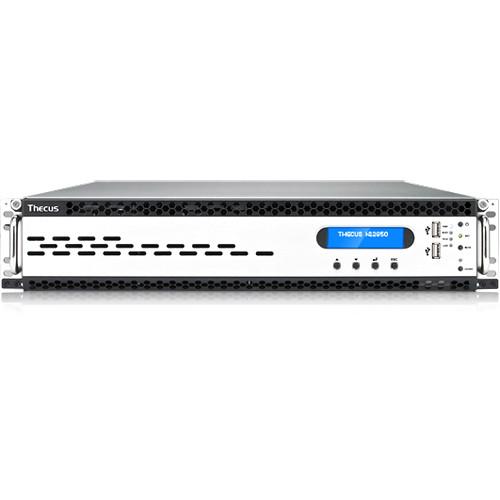

User Manual for Thecus N12850 12-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Thecus N12850 12-Bay NAS Enclosure
- Product category: NAS Enclosures Thecus
- Brand: Thecus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thecus NAS Enclosures
 |
User manual for the Thecus N12850 12-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thecus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thecus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thecus product will considerably shorten its lifespan!
|
Product description The Thecus N12850 12-Bay NAS Enclosure comes with twelve storage bays and four Ethernet ports to create a storage pool of data for networked systems. The twelve storage bays are designed to house storage drives that feature an SAS or SATA interface. To increase transfer performance and provide redundancy, the N12850 can configure your drives in RAID 0, 1, 5, 6, 10, 50, 60, and JBOD modes. Once drives are installed, an Intel Xeon E3-1231 v3 processor and 16GB of DDR3 ECC memory help manage apps and data. Other notable features include two USB 3.0 and four USB 2.0 ports as well as a 500W power supply. Furthermore, it comes with PCIe slots, so you can upgrade network connectivity with an optional 10GbE card. - High Availability
- Regardless of the situation, high availability actively keeps your data on two separate, identical NAS servers. If one needs maintenance, the other will automatically turn on without a disruption in service.
- Daisy Chaining
- With daisy chaining, users can cost effectively increase their storage volume while maintaining fast transfers. To set up a daisy chain, one master NAS unit is installed as a controller with up to four DAS linked as slaves. SAS cables are then used to link the units together to ensure rapid speeds. This feature provides you the ability to reach large capacities while saving nearly 30% on hardware costs (versus traditional storage architecture).
- SATA III and SAS 6G
- The Thecus NAS supports internal hard drives with SATA III and SAS interfaces, which feature transfers speeds of up to 6 Gb/s. They are also backwards-compatible with SATA II drives, so your old disks can still be swapped in and out.
- Plex Media Center
- The Plex Media Server is both the heart and brains for any digital media system. The free server is a module available on the Thecus App Center, which allows you to set up and manage your media. With the Plex Media Server installed on your Thecus NAS, various devices on your network (such as your Xbox 360 and mobile devices) can connect to and stream your local and online media.
- Snapshot Backup
- With BTRFS support, users can enjoy snapshot backups. Through BTRFS subvolumes, snapshots of data at various time points can be manually or automatically made and just as easily later restored to rollback files or folders to previous states.
- Disk Clone and Wipe
- Disk Clone allows users to copy the entire contents of a disk to one or many other disks, while Disk Wipe allows for permanent volume data destruction.
- VPN Server
- A VPN Server allows users to remotely access a secure network. With VPNs, businesses will be able to utilize a cost-effective, scalable, and secured network infrastructure for its client base.
- 10GbE Ready
- This Thecus NAS is 10Gb Ethernet ready by offering available PCIe slots.
- USB 3.0 Connectivity
- Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done with up to 5 Gb/s transfer speeds. Backwards compatibility adds support with USB 2.0 and USB 1.1 devices.
- Acronis True Image
- With Acronis's advanced backup software, back up all your data with One-click Protection or pick and choose only your most important files. Acronis sports a user-friendly design and comprehensive features to keep your data safe.
- Antivirus
- Adding an antivirus will provide the necessary software protection by scanning files on your NAS and defending it against possible threats. Thecus provides McAfee's software on the NAS for free.
- Multiple RAID
- Users can create multiple RAID volumes each supporting different RAID modes including RAID 0, 1, 5, 6, 10, 50, 60, and JBOD for your own balance of performance and data protection. Should a hard drive malfunction occur, changing one is simple thanks to online RAID migration and expansion, hot spare, and auto rebuild.
- Multiple File Systems
- Support for multiple file systems including Ext3, EXT4, Btrfs and XFS, gives the Thecus NAS flexibility to handle many different types of environments. Users can simultaneously use different file systems across multiple RAID volumes to get the best of each one.
- iSCSI Thin-Provisioning
- Users can connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning's flexible storage functionality.
- Mobile Device Connectivity
- With T-OnTheGo and the T-Dashboard, you can manage your NAS and upload to and download/stream from your NAS using an iOS or Android device on the go.
- Rsync
- Thecus's Rsync functionality gives users flexibility with remote backup capability, flexible scheduler, and stability of Linux-based transfer.
- User Quota
- Whether there are two users or 100, user quotas make it easy to divvy up and manage disk space.
- PCI-e Slot
- Through the built in PCI-e slots, business users can add 10G Ethernet and USB 3.0 adapter cards.
UPC: 884956004707 In the Box Thecus N12850 12-Bay NAS Enclosure Accessory Bag of Screws Ethernet Cable Power Cord Support CD Sliding Shelves Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thecus N12850 12-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThecus N12850 Specs | | | Processor | 3.4 GHz Intel Xeon E3-1231 v3 | | Chipset | Intel C224 | | Controller | LSI HBA card | | Memory | 16 GB DDR3 ECC RAM
Memory Module Pre-installed: 8 GB x 2
Total Memory Slots: 4
Max: 32 GB | | Networking Ports | 4 x Ethernet Auto MDI/MDI-X
WOL supported | | USB Ports | 4 x USB 2.0 Type-A (2 x front, 2 x back)
2 x USB 3.0 (back) | | Other Ports | Expansion, VGA, and PS/2 ports | | Display | LCM for system status and information | | Indicators | Power: blue
System Busy: yellow
System Alert: red (redundant power or system fan failure)
Drive Activity/Fail: white/red | | PCIe Slots | 1 x PCIe x8
1 x PCIe x4
1 x PCIe x1 | | Power Supply | 500 W redundant (80-Plus) | | Drive Interface | 12 x SATA/SAS | | | | RAID Mode Supported | RAID 0, 1, 5, 6, 10, 50, 60, and JBOD | | RAID | Auto-rebuild, hot-swap, hot-spare, RAID level migration, RAID expansion, RAID volume encryption | | Disk | Spin-down when idle power management, bad block scanning, SMART info, SMART test, disk roaming | | Network | Address: Fixed IP, dynamic IP
Transport Protocols: TCP/IP/AppleTalk
File Protocols: SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
Link Aggregation: Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB, Broadcast
TCP/IP: IPV6 and IPV4
Other: vlan, DDNS, SSH, UPnP, UPnP port forwarding, Bonjour, VPN client/server | | System Status | Monitoring CPU, memory, temperature, fan, network utilization, and protocols access user count
Syslog management | | Supported OS | Windows XP, 2003, 2008, 2012, Vista, 7, and 8
UNIX/Linux
Mac OS X | | Data Access | Built-in FTP server with bandwidth control
Built-in secure FTP server with bandwidth control
TFTP programs supported
Supports USB and IPP printers
Client can manage print tasks (list/delete) via web-user interface
WebDAV/WebDAV SSL support | | Data Backup | Client Incremental data backup and system disaster recovery via Acronis Server backup software
High availability
Mac OS X Time Machine
Snapshot | | Block Level Access | iSCSI target/initiator
iSCSI Thin Provisioning
MPIO
MCS
Clustering
SCSI3 persistent group reservation | | Power Management | Scheduled Power On/Off | | Volume Management | Multiple RAID
Multiple file system selectable | | User Authentication | Local user
Local group
Windows ADS
LDAP
Access guard | | File System | Journaling file system
Unicode support
Authorization (ACL) for Read, Write, or Deny privileges to individual users or groups in folders and sub-folders
User quota | | User Interface | English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish, and Portuguese | | Administration | Utility program
Email notifications
Thecus ID/DDNS
P2P connection
SNMP trap | | Capacity Expansion | Can extend for 5 additional iSCSI volumes from other Thecus NAS
Allowed to daisy chain to an additional 4 sets of Thecus D16000
Expand through SAS wide port Interface as multi-independent RAID volumes and join existing RAID volumes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Humidity | 0 to 80% | | Form Factor | 2 RU | | Dimensions | 3.5 x 17.3 x 26.1" / 89 x 440 x 662 mm | | | | Package Weight | 55.0 lb | | Box Dimensions (LxWxH) | 30.5 x 24.0 x 10.0" |
