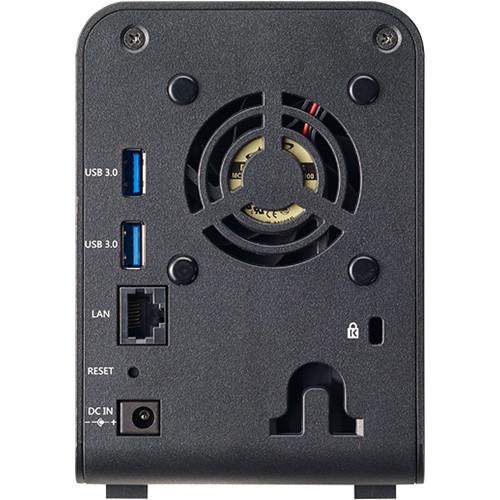

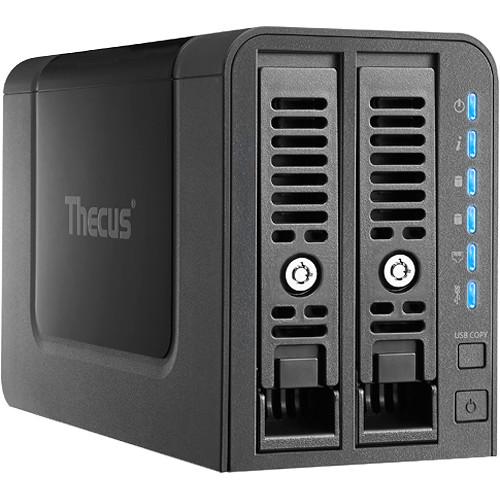

User Manual for Thecus N2350 2-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Thecus N2350 2-Bay NAS Enclosure
- Product category: NAS Enclosures Thecus
- Brand: Thecus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thecus NAS Enclosures
 |
User manual for the Thecus N2350 2-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thecus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thecus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thecus product will considerably shorten its lifespan!
|
Product description Store files and access them on the go with the N2350 2-Bay NAS Enclosure from Thecus. This storage enclosure works in conjunction with the Amazon S3 cloud storage application allowing you to drag and drop files onto your NAS and access them from virtually anywhere. The N2350 features dual SATA III drive bays capable of supporting RAID 0, 1, and JBOD making it easy to configure the drives to suit your specific storage needs. Inside the enclosure is a Marvell Armada dual-core CPU along with 1GB of DDR4 RAM to ensure the ThecusOS 7.0 operating system functions smoothly. Connecting the NAS to your network is simple as the N2350 comes equipped with a single Fast Ethernet LAN port while the dual USB 3.0 ports allow you to connect USB compatible peripherals directly to the unit. - Multiple RAID
- Create multiple RAID volumes, each supporting different RAID modes including RAID 0, 1, and JBOD for your own balance of performance and data protection. Should a hard drive malfunction occur, changing one is simple thanks to online RAID migration and expansion, hot spare, and auto rebuild.
- DDNS
- Have easy access to your NAS via Dynamic DNS (DDNS); this allows users to allocate and access their NAS files via the Internet remotely. Since IP digits are often difficult to remember, domain names are utilized to make NAS management much more convenient. When the IP address is changed, the DDNS server will automatically adjust the IP address to make sure that remote access is always available. In short, DDNS provides convenient remote Internet access to your Thecus N2350 by utilizing domain names instead of IP digits.
- Cloud Backup
- The private and public clouds meet with Thecus' Amazon S3 cloud backup functionality. Guard your data with RAID at home and an additional level of protection in the Cloud. Just drag and drop files into the folder on your NAS and access them on any computer or mobile device with Amazon S3.
- USB 3.0 Connectivity
- Take advantage of speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gb/s. Backwards compatibility adds the connectivity of a world full of USB 2.0 and USB 1.1 devices to get the best combination of speed and universal access.
- Multiple File Systems
- Support for multiple file systems including, EXT4 and XFS, gives Thecus NAS flexibility to handle many different types of environments. Users can simultaneously use different file systems across multiple RAID volumes to get the best of each one.
- iSCSI Thin-Provisioning
- Get the most out of your storage space with the extreme speed of iSCSI and the efficiency of iSCSI thin provisioning. Connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning's flexible storage functionality.
- User Quota
- Divide the massive storage of a Thecus NAS among multiple users. Whether there are two users or 100, User Quota make it easy to divvy up and manage disk space.
UPC: 884956004028 In the Box Thecus N2350 2-Bay NAS Enclosure Ethernet Cable Power Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thecus N2350 2-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThecus N2350 Specs | | | Processor | Marvell Armada 385 Dual Core 1.8 GHz SoC | | System Memory | 1 GB DDR4 on board
512 MB NAND flash | | LAN Interface | 1 x RJ45 100/1000 BASE-TX Auto MDI/MDI-X
WOL supported | | USB Interface | 2 x USB 3.0 Type-A | | Disk Interface | 2 x SATA for internal, support SATA II / SATA III hard disk | | Power Supply | 40 W external power adapter | | System Clock | Battery-backed up system clock | | Buttons | Power button
USB copy button
Reset button (Reset to factory default) | | Temperature & Humidity | Operating Temperature
41 to 104°F / 5 to 40°C
Humidity
0 to 80% RH non-condensing | | Chassis | 2-bays tower | | Certificates | CE/FCC/C-Tick/VCCI/BSMI
RoHS
WEEE | | Reliability | Power Consumption test
Noise dB test
Temp 32~104°F / 0~40°C test | | | | RAID | RAID Modes
RAID 0, 1, and JBOD
Auto-rebuild
Supported
Hot-swap
Supported
Hot Spare
Supported
Online RAID Expansion
Supported | | Disk | Power Management
Available spin-down on idle setting
Bad Block Scanning
Supported
SMART Info
Supported
SMART Test
Supported
Disk Roaming
Supports volume-based roaming to other Thecus NAS (Require ThecusOS 7)
Disk Wipe and Clone
Supported
Secure Disk
Supported | | Network | Configuration
Fixed IP address, dynamic IP address
Transport Protocols
TCP/IP/AppleTalk
File Protocols
SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
TCP/IP
IPV6 & IPV4
DDNS
Supported
SSH
Supported
UPnP
Supported
UPnP Port forwarding
Supported
Bonjour
Supported
VPN Server
Supported
vLan
Supported | | Data Access | Client OS Support
Windows XP and after
Windows Server 2003 and after
UNIX/Linux
Mac OS X
FTP
Built-in FTP server with bandwidth control
Secure FTP
Built-in secure FTP server with bandwidth control
TFTP
Users can download and upload files with TFTP programs
Download Manager
BT download (via Transmission module)
WebDAV/WebDAV SSL
Supported
Printer Server
(IPP)Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks (list/delete) via web user interface | | Data Backup | Mac OS X Time Machine
Supported
Local folder/iSCSI Backup
Supported
Remote folder/iSCSI Backup
Supported
System Failover
Supported | | Block Level Access | iSCSI Target/Initiator
Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets
iSCSI Thin Provisioning
Supported | | Power Management | Scheduled Power On/Off | | Volume Management | Multiple RAID
Multiple File System Selectable: EXT4/XFS/Btrfs | | Multimedia Support | iTunes Server
Supports AAC, MP3 w/ ID3 tag and WAV
Media Server
Supports UPnP AV streaming protocol (via Module) | | User Authentication | Local User
Supports built-in user accounts
Local Group
Supports built-in user groups
Windows ADS
Supported
LDAP
Supported
Access Guard
Supports Black & White list / IP Filter | | Profile | Photo Center
File Center
APP Center
Surveillance Center | | Cloud Backup | Amazon S3 | | File System | Type
Journaling File System
Language Support
Unicode Support
Authorization (ACL)
"Read", "write", or "deny" privileges to individual users or groups in folders and sub-folders
User Quota
Supported (exclude Btrfs) | | Administration | User Interface
Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, French, German, Italian, Spanish, Russian
Utility Program
MS Windows Setup Wizard
Supports Windows XP and after
Mac OS X Setup Wizard
Email Notifications
Sends system messages via email to the system administrator
SNMP Trap
System information trap out | | Mobile Applications (iOS/Android) | Thecus Connect (Android)
Provides live up-to-date information of your NAS
Thecus Wizard
Offers fast NAS Setup via your phone
T-OnTheGo
Upload, download and stream multimedia
Orbweb.me
Uploading, downloading, streaming multimedia and webcam via P2P connection | | Other Specifications | Recycle Bin
ISO Mount | | | | Dimensions | 5.3 x 3.8 x 8.1" (13.5 x 9.7 x 20.7 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 11.0 x 10.4 x 7.6" |
