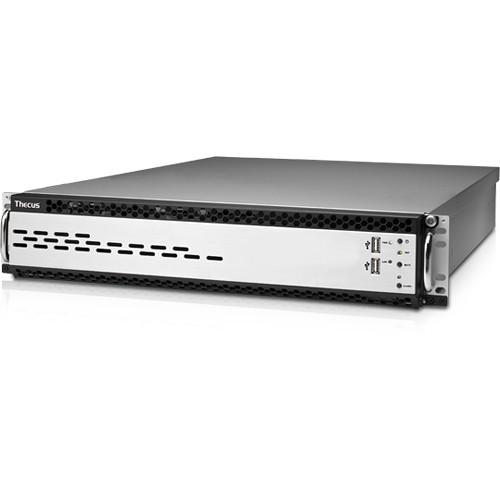

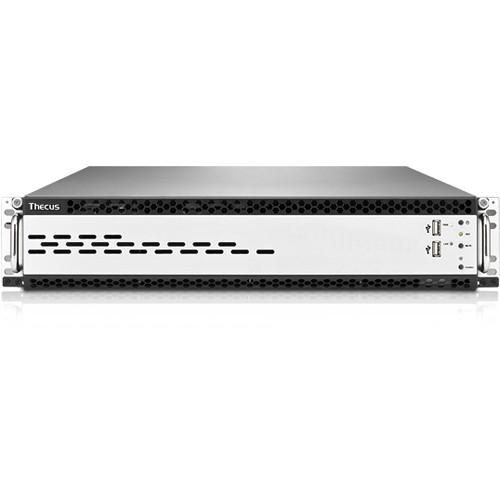

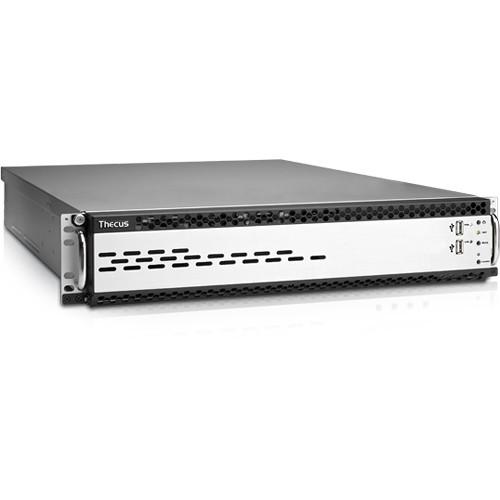

User Manual for Thecus W12000 12-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Thecus W12000 12-Bay NAS Enclosure
- Product category: Server Systems Thecus
- Brand: Thecus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thecus Server Systems
 |
User manual for the Thecus W12000 12-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thecus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thecus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thecus product will considerably shorten its lifespan!
|

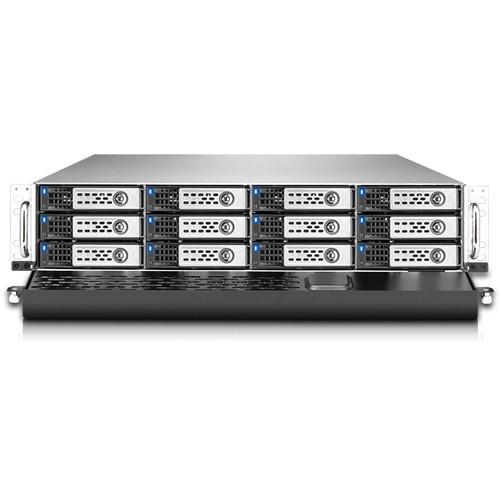

Product description The Thecus W12000 NAS Enclosure grants you access to twelve storage bays and three Gigabit Ethernet ports to create a storage pool of data for networked systems. The twelve bays support standard and enterprise-grade HDD and SSDs with a SATA or SAS interface, while an LSI SAS 2008 HBA card provides RAID support for increasing the drive's performance and redundancy capabilities. Thecus has outfitted the W12000 with a 320GB 2.5" SATA HDD that holds the Windows Storage Server 2016 operating system, which requires the purchase of a license to activate the software. To manage the OS, apps, and data, the W12000 is armed with a 3.1 GHz Intel Xeon E3-1225 quad-core processor along with 8GB of DDR3 memory.
Other notable connections include six USB 2.0 and two USB 3.0 ports as well as HDMI, audio, eSATA, and RS232 ports. Powering your drives and the W12000's components are done by a redundant 500W power supply. In addition, four hot-swappable fans are on board to cool the internal components and drives. - Windows Storage Server 2016 Standard (Optional)
- Windows Storage Server 2016 Standard provides a secure network infrastructure and reduces costs while increasing technological flexibility and value within your organization. The operating system is preinstalled on the 320GB HDD; however, a sold-separately license is required to activate the operating system.
Windows Storage Server 2016 Standard Features: - File sharing (SMB & NFS)
- Online Backup
- DFS-Replication
- File Classification Infrastructure (FCI)
- File Server Resource Manager (FSRM)
- Domain Join
- Shared block storage (iSCSI Target + Boot)
- OEM Customizable Out of Box Experience
- Storage Spaces
- Deduplication
- BranchCache - Hosted Cache
- Virtualization Host + 2 VM
- Clustering (including AD/DNS)
- Simplified Cluster Setup
- Networking Infra (DHCP, DNS & WINS)
- Performance with 10GbE Solution
- This Thecus NAS is 10Gb Ethernet ready by allowing you to install a 10Gb NIC into one of the available PCIe slots.
- Enterprise Capacity
- The twelve bays support enterprise-grade HDD and SSD models.
- SATA III and SAS 6G
- This NAS features support for internal hard drives with SATA III or SAS 6G. This connection transfers data at speeds up to 6 Gb/s. It is also backwards-compatible with SATA II, so your old disks can be swapped in and out without a hitch.
- HDMI Output
- An onboard HDMI output allows you to connect your NAS directly to your TV for media streaming and easy device management.
- USB 3.0 Connectivity
- Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will transfer data at up to 5 Gb/s. Backwards compatibility adds the connectivity of USB 2.0 and USB 1.1 devices to achieve universal access.
UPC: 884956002864 In the Box Thecus W12000 12-Bay NAS Enclosure Ethernet Cable Bag of Screws Set of Keys 2 x Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thecus W12000 12-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThecus W12000 Specs | Processor | 3.1 GHz Intel Xeon E3-1225 | | Memory | 8 GB of DDR3 | | Storage | 320 GB 2.5" SATA HDD | | Networking Ports | 3 x Intel 82574L Gigabit Ethernet Auto MDI/MDI-X
WOL supported | | USB Ports | 6 x USB 2.0 (two front, four back)
2 x USB 3.0 (back) | | Indicators | Power: blue | | Ports | 1 x HDMI
1 x Microphone
1 x Line input
1 x Audio output
1 x eSATA
1 x RS232 (for UPS) | | Controller | LSI 2008 6G SAS/SATA HBA card | | Drive Interface | 12 x SATA (internal)
1 x eSATA (external) | | Power Supply | 500 W redundant power supply | | PCIe Slots | 3 x PCIe x8 (one used by HBA card)
1 x PCIe x4
1 x PCIe x1 (used by CU30N USB 3.0) | | Cooling | 4 x Hot-swappable fans | | Controls | Power button (front, shutdown controlled by user interface)
System reset button
Locator button | | Temperature | 41 to 104°F / 5 to 40°C | | Humidity | 0 to 80% | | Form Factor | 2 RU | | Dimensions (H x W x D) | 3.5 x 17.3 x 26.1" / 89 x 440 x 662 mm | | Weight | 34.8 lb / 15.8 kg | | | | Package Weight | 60.0 lb | | Box Dimensions (LxWxH) | 30.0 x 24.0 x 10.0" |
