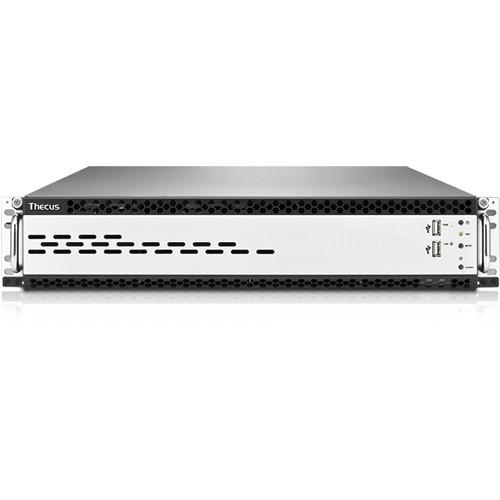

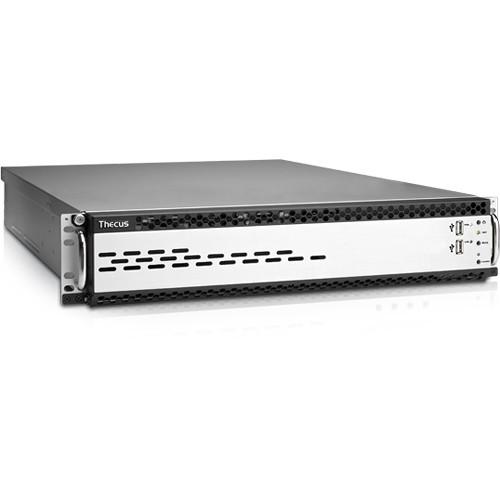

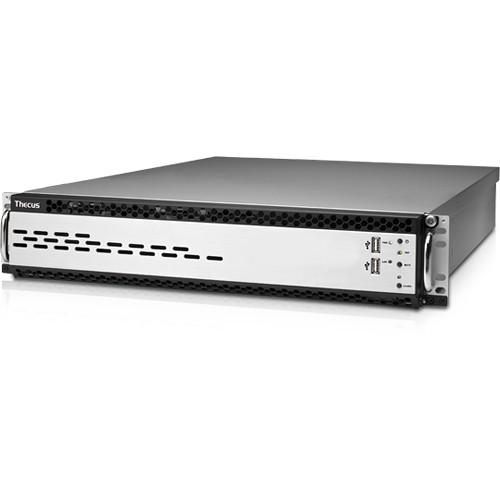

Product description The Thecus W12850 NAS Enclosure grants you access to twelve storage bays and four Gigabit Ethernet ports to create a storage pool of data for networked systems. The twelve bays support standard and enterprise-grade HDD and SSDs with a SATA or SAS interface, while a LSI HBA card provides RAID support for increasing the drive's performance and redundancy capabilities. You would need to purchase a license to activate the Windows Storage Server 2016 operating system. To manage the OS, apps, and data, the W12850 is armed with a 3.4 GHz Intel E3-1231 v3 processor along with 16GB of DDR3 ECC memory.
Other notable connections include four USB 2.0 and two USB 3.0 ports as well as VGA, PS/2, expansion, and RS232 ports. Powering your drives and the W12850's components are done by a redundant 500W power supply. In addition, four hot-swappable fans are on board to cool the internal components and drives. - Windows Storage Server 2016 Standard (Optional)
- Windows Storage Server 2016 Standard provides a secure network infrastructure and reduces costs while increasing technological flexibility and value within your organization. The operating system requires a sold-separately license to activate.
Windows Storage Server 2016 Standard Features: - File sharing (SMB & NFS)
- Online Backup
- DFS-Replication
- File Classification Infrastructure (FCI)
- File Server Resource Manager (FSRM)
- Domain Join
- Shared block storage (iSCSI Target + Boot)
- OEM Customizable Out of Box Experience
- Storage Spaces
- Deduplication
- BranchCache - Hosted Cache
- Virtualization Host + 2 VM
- Clustering (including AD/DNS)
- Simplified Cluster Setup
- Networking Infra (DHCP, DNS & WINS)
- Performance with 10GbE Solution
- This Thecus NAS is 10Gb Ethernet ready by allowing you to install a 10Gb NIC into one of the available PCIe slots.
- Enterprise Capacity
- The 12 bays support enterprise-grade HDD and SSD models.
- SATA III and SAS 12G
- This NAS features support for internal hard drives with SATA III or SAS 12G. The SATA connection transfers data at speeds up to 6 Gb/s. It is also backwards-compatible with SATA II, so your old disks can be swapped in and out without a hitch.
- USB 3.0 Connectivity
- Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will transfer data at up to 5 Gb/s. Backwards compatibility adds the connectivity of USB 2.0 and USB 1.1 devices to achieve universal access.
UPC: 884956004714 In the Box Thecus W12850 12-Bay NAS Enclosure Ethernet Cable Bag of Screws Set of Keys 2 x Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thecus W12850 12-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThecus W12850 Specs | Processor | 3.4 GHz Intel Haswell E3-1231 v3 | | Chipset | Intel C224 | | Memory | 16 GB of DDR3 ECC | | Controller | LSI HBA card 12G SAS/6G SATA | | Networking Ports | 4 x Ethernet Auto MDI/MDI-X
WOL supported | | USB Ports | 4 x USB 2.0 (two front, two back)
2 x USB 3.0 (back) | | Indicators | Power: blue
System alert (redundant power)
HDD 1 to 12 Activity: white | | Ports | VGA, RS232, expansion, and PS/2 | | Drive Interface | 12 x SATA | | PCIe Slots | 1 x PCIe x8
1 x PCIe x4
1 x PCIe x1 | | Power Supply | 500 W redundant power supply (80-Plus) | | Cooling | 4 x Hot-swappable fans | | Controls | Power button | | Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 0 to 80% | | Form Factor | 2 RU | | Dimensions (H x W x D) | 3.5 x 17.3 x 26.1" / 89 x 440 x 662 mm | | | | Package Weight | 55.0 lb | | Box Dimensions (LxWxH) | 30.5 x 24.0 x 10.0" |
