User Manual for Theia Technologies 1.28mm F1.8 M I 2.5", 1 3" IR-Transmitting C-Mount Lens Click to enlarge the picture
Contents of the user manual for the Theia Technologies 1.28mm F1.8 M I
- Product category: Lenses Theia Technologies
- Brand: Theia Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Theia Technologies Lenses
 |
User manual for the Theia Technologies 1.28mm F1.8 M I contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Theia Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Theia Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Theia Technologies product will considerably shorten its lifespan!
|

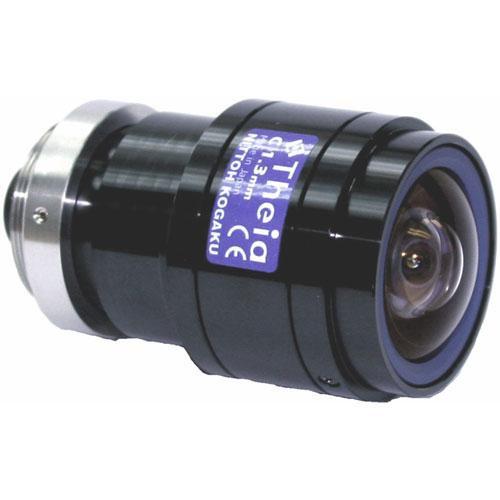

Product description Theia Technologies' 1.28mm F1.8 M/I 2.5", 1/3" IR-Transmitting C-Mount Lens has a fixed 1.28mm focal length and F1.8 aperture that capture images in an ultra-wide 135° field of view with less than 3% barrel distortion. This lens is designed for C-mount cameras with image resolutions up to 5MP, and its durable metal construction and anti-vibration locking screws make it ideal for machine vision applications in demanding environments. Furthermore, built-in IR-transmitting optics allow this lens to be paired with IR illuminators with a transmittance up to 950 manometers within the infrared spectrum. In addition to these features, this lens uses Theia's patented Linear Optical technology that correct barrel distortion optically, and thereby eliminating the need for developing a custom dewarping/image stitching algorithm that's generally needed with wide-angle lenses. - Patented Linear Optical Technology
- Unlike many fisheye lenses that suffer from image degradation for objects not immediately to the center of the lens, this Theia lens, through the use of patented optical technology, is able to maintain superb image sharpness even for objects situated around its edges. Its use of pan-focus technology also means that near and far objects will remain in focus without the need for a user to make manual adjustments. This lens can be used with both standard and multi-megapixel CCTV cameras.
In the Box Theia Technologies 1.28mm F1.8 M/I 2.5", 1/3" IR-Transmitting C-Mount Lens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Theia Technologies 1.28mm F1.8 M I 2.5", 1 3" IR-Transmitting C-Mount Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTheia Technologies MY125M Specs | Lens Mount | C | | Sensor Compatibility | 1/2.5", 1/3", 1/4" | | Focal Length | 1.3mm | | Aperture | f/1 to 8 | | Angle of View | 1/4" Sensor
Horizontal: 109°
Vertical: 93°
Diagonal: 122°
1/3" Sensor
Horizontal: 125°
Vertical: 109°
Diagonal: 137°
1/2.5" Sensor
Horizontal: 135°
Vertical: 119°
Diagonal: 141° | | Minimum Object Distance | 0.39" / 1 cm | | Focus Type | Fixed Focus | | Iris Type | Manual | | Dimensions (DxL) | 1.4 x 2.3" / 36 x 59 mm | | Weight | 4.6 oz / 130 g | | | | Package Weight | 0.295 lb | | Box Dimensions (LxWxH) | 4.0 x 2.25 x 2.15" |
