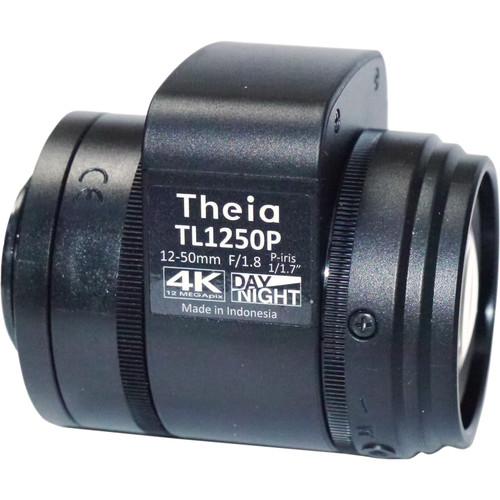

Product description The 12-50mm CS-Mount 4K Telephoto P-Iris Varifocal Lens from Theia Technologies is designed for image sensors from 1/1.7" up to 1/2.5". The compact design allows you to use this lens for cameras as small as 4" mini-dome size. This lens features motorized zoom, focus, and iris control. It also features an IR cut filter. - For use on 4K box cameras, 4" mini-dome cameras
In the Box Theia Technologies 12-50mm CS-Mount 4K Telephoto P-Iris Varifocal Lens with Motorized Zoom, Focus, Iris, and IR Cut Filter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Theia Technologies 12-50mm CS-Mount 4K Telephoto P-Iris Varifocal Lens with Motorized Zoom, Focus, Iris, and IR Cut Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTheia Technologies TL1250PR4 Specs | | | Focal Length | 12-50mm | | Image Circle | Up to 9.4 mm | | Resolution | 12.4 MP | | F-Number (f) | f/1.8 @ 12mm
f/2.4 @ 50mm to close | | IR Corrected | Yes | | Focus Range | 6.7' (2 m) to infinite | | Lens Length | Up to 2.5" (64 mm) TTL | | Back Focal Length | BFL 0.3" (8.2 mm) in air | | Angle | CRA: <7° | | Field of View | @ 1/1.7"
Horizontal: 36 to 8.6°
Vertical: 26 to 6.5°
Diagonal: 46 to 11°
@ 1/1.8"
Horizontal: 36 to 8.6°
Vertical: 23 to 5.8°
Diagonal: 44 to 10°
@ 1/1.8" 4K
Horizontal: 35 to 8.5°
Vertical: 17 to 4.3°
Diagonal: 40 to 9.5°
@ 1/1.2"
Horizontal: 30 to 7.4°
Vertical: 23 to 5.6°
Diagonal: 39 to 9.2°
@ 1/2.3"
Horizontal: 30 to 7.2°
Vertical: 22 to 5.5°
Diagonal: 38 to 9°
@ 1/2.5"
Horizontal: 27 to 6.7°
Vertical: 20 to 5°
Diagonal: 34 to 8.3° | | Distortion | <10% at 12mm
<2% at 50mm | | Relative Illumination | Up to 40% | | Transmission | Lens Transmission: Up to 80% | | Operating Conditions | Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 70%, non-condensing | | Storage Conditions | Temperature: -22 to 158°F (-30 to 70°C)
Humidity: 90%, non-condensing | | Dimensions | 2.4 x 2.0" (61.0 x 51.8 mm) maximum | | Weight | Not specified by the manufacturer | | | | Drive | Stepper motor
2 phase bipolar drive | | Operation Voltage | Zoom/Focus Motor: 3.3 V; 2.6 to 4.8 V
P-Iris Motor: 4 V ±1 | | Operation Time | @ 3.3 V:
60 sec @ 68°F (20°C)
35 sec @ 104°F (40°C)
20 sec @ 140°F (60°C)
@ 4 V:
12 sec @ 68°F (20°C)
9 sec @ 104°F (40°C)
6 sec @ 140°F (60°C)
@ 4.8 V:
6 sec @ 68°F (20°C)
5 sec @ 104°F (40°C)
4 sec @ 140°F (60°C) | | Coil Resistance | Zoom/Focus Motor: 28.5 Ohms ±7%
P-Iris Motor: 30 Ohms | | Gear Ratio | 1:1954 | | Speed | Zoom Speed:
4 sec @ 1000 pps
Focus Speed:
8.9 sec @ 600 pps | | Rotation | Zoom Cam: 75°
Focus Cam: 102° | | Connectors | Zoom/Focus Motor:
Housing: Molex 51021-0800
Terminal: Molex 50058-8000
P-Iris Motor:
Connector 1:
Housing: Molex 51021-0400
Terminal: Molex 50058-8000
Connector 2 (CCTV):
Housing: EYC 221 | | Cable | Zoom/Focus Motor: 5.9" (15 cm)
P-Iris Motor: 11.8" (30 cm) | | | | Type | IR cut filter | | Wavelength | Cut-On: 405 nm ±10 nm
Cut-Off: 650 nm ±10 nm
IR Transmission:
<5% 700 to 1000 nm maximum
<10% 1000 to 1100 nm average | | Transmission | Visible:
IR Filter: 430 to 610 nm
Clear Filter: 400 to 1050 nm | | Drive | DC | | Operating Voltage | 4 V | | Coil Resistance | 130 Ohms | | Connector Type | Housing: Molex 51021-0200
Terminal: Molex 50058-8000 | | Cable Length | 5.9" (15 cm) | | | | Cable Length | 5.9" (15 cm) | | | | Package Weight | 0.205 lb | | Box Dimensions (LxWxH) | 3.95 x 2.35 x 2.3" |
