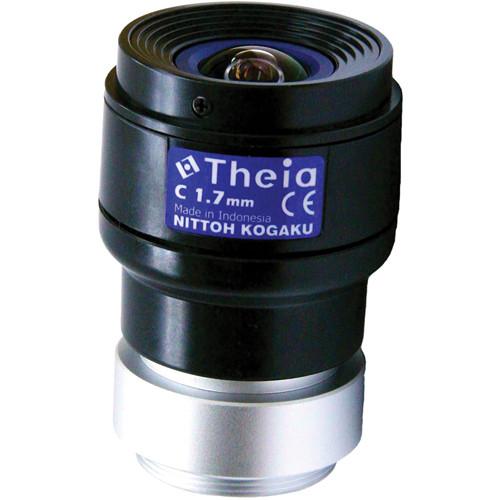

User Manual for Theia Technologies C-Mount 1.68mm Day Night Manual Iris Lens Click to enlarge the picture
Contents of the user manual for the Theia Technologies C-Mount 1.68mm Day Night
- Product category: Lenses Theia Technologies
- Brand: Theia Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Theia Technologies Lenses
|
User manual for the Theia Technologies C-Mount 1.68mm Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Theia Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Theia Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Theia Technologies product will considerably shorten its lifespan!
|
Product description The Theia Technologies C-Mount 1.68mm Day/Night Manual Iris Lens provides ultra wide field of view without distortion. The lens incorporates Theia's patented Linear Optical Technology, which allows an ultra wide field of view without barrel distortion. This rectilinear design allows increased resolution at the edges of the image thus increasing the probability of detection in security systems. The rectilinear design also eliminates the dewarping software requirement for many machine vision applications, improving MV system performance.
The lens is designed to allow you to take full advantage of the high resolution of HD and multi MP cameras. The lens can be used on cameras up to 3MP resolution giving a crisp image from edge to edge.
The lens is IR corrected for use with true Day/Night cameras. This IR correction focuses IR light from artificial illumination at the same plane as the visible light, allowing the image to remain in focus when the Day/Night camera switches to night mode. Unlike lenses without IR correction, the night image will not be out of focus when using IR illumination. - Ultra wide horizontal field of view up to 120° provides greater security
- Linear Optical Technology enables no barrel distortion for maximum resolution
- IR corrected for Day/Night cameras
- Supports multi MP resolution cameras for demanding applications
- Near and far objects continuously in focus without lens adjustment
In the Box Theia Technologies C-Mount 1.68mm Day/Night Manual Iris Lens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Theia Technologies C-Mount 1.68mm Day Night Manual Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTheia Technologies MY110M Specs | Lens Mount | C | | Sensor Compatibility | 1/2" (3 MP) | | Focal Length | 1.7mm | | Aperture | f/1 to 8 | | Angle of View | 1/4" Sensor
Horizontal: 94°
Vertical: 78°
Diagonal: 107°
1/3" Sensor
Horizontal: 110°
Vertical: 94°
Diagonal: 122°
1/2.5" Sensor
Horizontal: 120°
Vertical: 104°
Diagonal: 130° | | Minimum Focus Distance | 1.6' / 0.5 m | | Iris Type | Manual | | Distortion | 1/3": 1% | | IR Corrected | Yes | | Dimensions (D x L) | 1.4 x 2.2" / 36 x 56 mm | | Weight | 3.8 oz / 110 g | | | | Package Weight | 0.17 lb | | Box Dimensions (LxWxH) | 4.15 x 2.25 x 2.15" |
