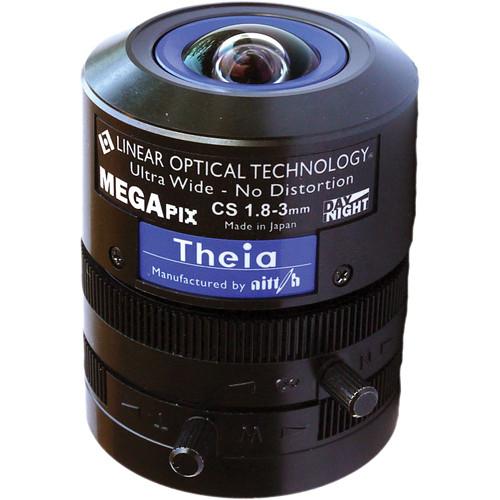

User Manual for Theia Technologies CS-Mount 1.8 to 3mm Varifocal DC Auto Iris Lens Click to enlarge the picture
Contents of the user manual for the Theia Technologies CS-Mount 1.8 to 3mm
- Product category: Lenses Theia Technologies
- Brand: Theia Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Theia Technologies Lenses
|
User manual for the Theia Technologies CS-Mount 1.8 to 3mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Theia Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Theia Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Theia Technologies product will considerably shorten its lifespan!
|
Product description The Theia Technologies CS-Mount 1.8 to 3mm Varifocal DC Auto Iris Lens provides ultra wide field of view without distortion. This varifocal lens allows you to optimize the field of view from wide angle to ultra wide. The lens incorporates patented Linear Optical Technology, which allows an ultra wide field of view without barrel distortion. This rectilinear design allows increased resolution at the edges of the image thus increasing the probability of detection.
The lens is designed to allow the installer to take full advantage of the high resolution of high-definition and multi megapixel cameras. The lens can be used on cameras at up to 5MP resolution, giving a crisp image from edge to edge.
In addition, the lens includes EasyZoom, which allows you to focus the lens once and then adjust zoom or magnification to give the optimized field of view. Only minor focus optimization is required after zooming.
The lens is IR corrected for use with true Day/Night cameras. This IR correction focuses IR light from artificial illumination at the same plane as the visible light, allowing the image to remain in focus when the Day/Night camera switches to night mode. Unlike lenses without IR correction, the night image will not be out of focus when using IR illumination. - Linear Optical Technology provides ultra wide field of view adjustable from 115 to 77° for greater coverage with fewer cameras
- EasyZoom allows the user to optimize the field of view with minimal need for refocusing
- IR corrected for true Day/Night cameras
- Supports multi MP resolution cameras for demanding applications
In the Box Theia Technologies CS-Mount 1.8 to 3mm Varifocal DC Auto Iris Lens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Theia Technologies CS-Mount 1.8 to 3mm Varifocal DC Auto Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTheia Technologies SL183A Specs | Lens Mount | CS | | Sensor Compatibility | 1/2" (5 MP) | | Focal Length | 1.8 to 3mm | | Aperture | f/1 to 8 | | Angle of View | 1/3" Sensor
Horizontal: 105 to 77°
Vertical: 90 to 62°
Diagonal: 117 to 90°
1/2.7" Sensor
Horizontal: 111 to 84°
Vertical: 95 to 68°
Diagonal: 123 to 96°
1/2.5" Sensor
Horizontal: 115 to 88°
Vertical: 99 to 71°
Diagonal: 126 to 100° | | Iris Type | DC Auto | | Distortion | 1% | | IR Corrected | Yes | | | | Package Weight | 0.21 lb | | Box Dimensions (LxWxH) | 4.0 x 2.25 x 2.2" |
