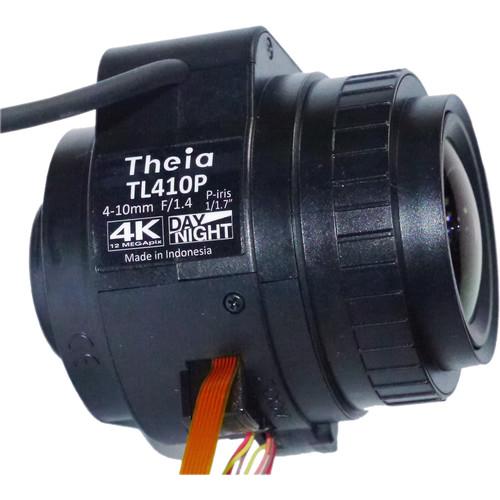

Product description The Theia Technologies CS-Mount 4-10mm f/1.4-Close 4K Motorized P-Iris Varifocal Lens is designed for use with up to 1/1.7” sensors and offers motorized zoom and focus. It features a limit switch for zoom and focus. Thanks to the compact design, it can easily fit into 4” domes. With an aperture range of f/1.4-close, the lens can be used for surveillance in low-light as well as bright light conditions. In the Box Theia Technologies CS-Mount 4-10mm f/1.4-Close 4K Motorized P-Iris Varifocal Lens with Zoom/Focus Limit Switch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Theia Technologies CS-Mount 4-10mm f 1.4-Close 4K Motorized P-Iris Varifocal Lens with Zoom Focus Limit Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTheia Technologies TL410PR5 Specs | Focal Length | 4-10mm | | Image Circle | Up to Ø9.4 mm | | Resolution | 12.4 MP | | Aperture | F/1.4 @ 4mm - F/2.4 @ 10mm to close | | Focus Range | 1.64' to infinity (0.5 m to infinity) | | Back Focal Length | 0.33" / 8.4 mm (in air) | | Angle | CRA: < 7° | | Distortion | < 61% at 4mm, < 8% at 10mm | | Relative Illumination | > 45% | | Transmission | Lens: > 80% | | Field of View | 1/1.7": 112 to 44° (horizontal), 81 to 33° (vertical), 149 to 55° (diagonal)
1/1.8": 110 to 43° (horizontal), 71 to 29° (vertical), 139 to 52° (diagonal)
1/1.8" 4K: 110 to 43° (horizontal), 52 to 21° (vertical), 126 to 48° (diagonal)
1/2": 93 to 37° (horizontal), 68 to 28° (vertical), 120 to 46° (diagonal)
1/2.3": 90 to 36° (horizontal), 67 to 27° (vertical), 117 to 45° (diagonal)
1/2.5": 83 to 33° (horizontal), 60 to 25° (vertical), 106 to 42° (diagonal) | | Zoom/Focus | Drive: Stepper motor
2 phase bipolar drive
Operation Voltage: 3.3 V
Operating Range: 2.6 to 4.8 V
Maximum Continuous Operation Time (seconds) for Operation Voltage and Ambient Temperature:
@ 68°F (20°C): 60 sec (3.3 V), 12 sec (4 V), 6 sec (4.8 V)
@ 104°F (40°C): 35 sec ((3.3 V), 9 sec (4 V), 5 sec (4.8 V)
@ 140°F (60°C): 20 sec (3.3 V), 6 sec (4 V), 4 sec (4.8 V)
Coil Resistance: 28.5 Ohms (±7%)
Gear Ratio: 1:2025
Zoom Speed: 4.1 sec (@ 1000 pps)
Zoom Cam Rotation: 85°
Focus Speed: 8.6 sec (@ 1000 pps)
Focus Cam Rotation: 75°
Focus/Zoom Connectors: Housing: Molex 51021-0800
Terminal: Molex 50058-8000
Cable Length: 5.9" (150 mm) | | Iris Control | Drive: Stepper motor
2 phase bipolar drive
Operation Voltage: 4 V (+/-1)
Number of Steps: 75
Basic Step Angle: 18°
Maximum Frequency Response: 1000 pps
Coil Resistance: 30 Ohms (each phase)
Connector Type 1 (Molex)
Connector Type: Housing: Molex 51021-0400, Terminal: Molex 50058-8000
Cable Length: 5.9" (150 mm)
Connector Type 2 (CCTV)
Connector Type: Housing: EYC 221
Cable Length: 11.8" (300 mm) | | Limit Switches | Zoom/Focus Limit Switch
Type: Photo interrupter, phototransistor
Part Model: Sharp GP1S396HCPSF
Operating Voltage: 3.3 V
Output level: >2.2 V HIGH, <0.6 V LOW
Connector Type: FPC cable
Board-side Mating Connector Type (not supplied): Molex 52746-0671, Molex 52745-0697, Molex 52559-0652
Cable Length: 5.9" (150 mm) | | Operating Temperature & Humidity | 4 to 140°F (-20 to 60°C)
Humidity: < 70%, non-condensing | | Storage Temperature & Humidity | -22 to 158°F (-30 to 70°C)
Humidity: < 90%, non-condensing | | Dimensions (Ø x L) | 2.32 x 2" (59 x 51.5 mm) | | Weight | 2.75 oz (78 g) |
