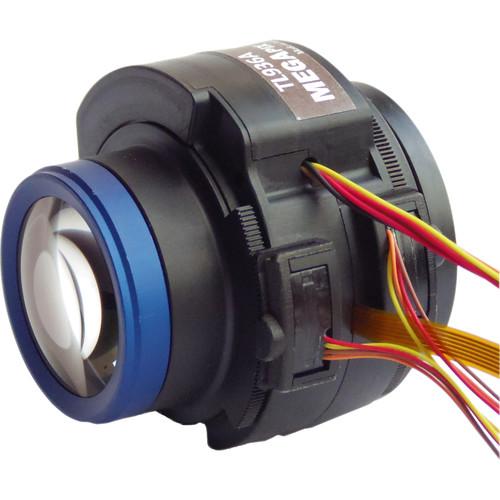

Product description The CS-Mount 9-36mm Motorized P-Iris Telephoto 4K Lens from Theia Technologies is designed of use with 1/3", 1/2.7" HD, 1/2.5", and 1/2.3" 4K sensors. It offers 4x zoom and focal length of 9-36mm for long reach and field of view optimization. - Compatible with 4K cameras
- 5MP resolution for demanding applications
- Compact design (<2" TTL) to fit into domes as small as 4" mini domes
- Motorized zoom, focus, and iris
In the Box Theia Technologies CS-Mount 9-36mm Motorized P-Iris Telephoto 4K Lens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Theia Technologies CS-Mount 9-36mm Motorized P-Iris Telephoto 4K Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTheia Technologies TL936 Specs | Focal Length | 9-36mm | | Resolution | 5 MP | | Aperture | f/1.5-close | | Lens Length | <2" (<50 mm) | | Focus Range | 8.2' to infinity (2.5 m to infinity) | | Range | CS Mount Slip Range: 320° | | Field of View | Sensor Size: 1/3"
30 to 7.1° (horizontal), 22 to 5.3° (vertical), 38 to 8.8° (diagonal)
Sensor Size: 1/2.7" HD
37 to 8.6° (horizontal), 20 to 4.8° (vertical), 42 to 9.9° (diagonal)
Sensor Size: 1/2.5"
36 to 8.5° (horizontal), 27 to 6.3° (vertical), 46 to 10.6° (diagonal)
Sensor Size: 1/2.3" 4K (4000 x 2000)
39 to 10° (horizontal), 19 to 5° (vertical), 44 to 11° (diagonal) | | Zoom/Focus | Drive: Stepper motor
2-phase bipolar drive
Operation Voltage: 3.3 V
Operating Range: 2.6 to 4.8 V
Continuous Operation: <10 sec at 3 v (at 140°f (60°c) ambient)
<3 sec at 5 v (at 140°f (60°c) ambient)
Coil Resistance: 28.5 Ohms ±7%
Gear Ratio: 1:2308
Zoom Speed: 3 sec at 1000 pps
Zoom Cam Rotation: 57°
Focus Speed: 8.5 sec at 600 pps
Focus Cam Rotation: 100°
Focus/Zoom Connectors: Housing is Molex 51021-0800, Terminal is Molex 50058-8000
Cable Length: 5.9" (150 mm) | | Iris Control | P-iris control
Drive: Stepper motor
2-phase bipolar drive
Operation Voltage: 4 V (2.5 to 5 V)
Number of Steps: Step 1: Stop
Step 2: Full open
Step 72: Full close
Step 75: Stop
Basic Step Angle: 18°
Maximum Response Frequency: 1000 pps
Coil Resistance: 30 Ohms ±10% (each phase)
Connectors
Connector Type 2: CCTV
Connector Type: Housing: EYC 221
Cable Length: 11.8" (300 mm) | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Operating Humidity | <70% (non-condensing) | | Dimensions | 2.12 x 1.9" (54 x 49.4 mm) | | Weight | 2.43 oz (69 g) |
