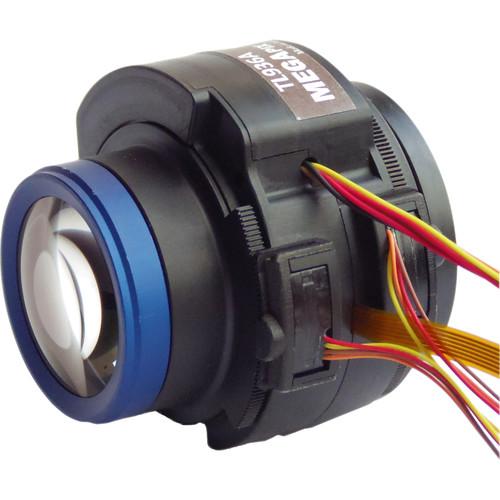

User Manual for Theia Technologies CS-Mount 9-36mm Motorized Telephoto 4K Lens with Zoom Focus Limit Switch Click to enlarge the picture
Contents of the user manual for the Theia Technologies CS-Mount 9-36mm Motorized Telephoto
- Product category: Lenses Theia Technologies
- Brand: Theia Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Theia Technologies Lenses
|
User manual for the Theia Technologies CS-Mount 9-36mm Motorized Telephoto contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Theia Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Theia Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Theia Technologies product will considerably shorten its lifespan!
|
Product description The CS-Mount 9-36mm Motorized Telephoto 4K Lens from Theia Technologies is designed for use with 1/3", 1/2.7" HD, 1/2.5", and 1/2.3" 4K sensors. It features 4x optical zoom and a focal length of 9-36mm for long reach and field of view optimization. In addition, this lens comes with a limit switch for zoom and focus. Note: Theia motorized lenses require motor drivers and controllers for proper integration into cameras. Typically, Theia works with the camera manufacturer to ensure that the camera motor controller matches the lens.
If you supply your own motor controller, Theia cannot guarantee that your motor controller will not damage the lens. Theia does not offer any warranty on the suitability of these motorized lenses for any particular camera. These motorized lenses are not intended for continuous use of the motors as in PTZ applications. - Compatible with 4K cameras
- 5MP resolution for demanding applications
- Compact design (<2" TTL) to fit domes as small as 4"
- Motorized zoom, focus, and iris
- Switch for zoom and focus limits
In the Box Theia Technologies CS-Mount 9-36mm Motorized Telephoto 4K Lens with Zoom/Focus Limit Switch Limited 2-Year Warranty User Manual PDF 924.8kbxssbssvucecwduvraruxadd Table of Contents
|
Upload User Manual
Have you got an user manual for the Theia Technologies CS-Mount 9-36mm Motorized Telephoto 4K Lens with Zoom Focus Limit Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTheia Technologies TL936 Specs | Focal Length | 9-36mm | | Resolution | 5 MP | | Aperture | f/1.5-close | | Lens Length | <2" / <50 mm | | Focus Range | 8.2' to infinity / 2.5 m to infinity | | Range | CS Mount Slip Range: 320° | | Field of View | Sensor Size: 1/3"
30 to 7.1° (horizontal), 22 to 5.3° (vertical), 38 to 8.8° (diagonal)
Sensor Size: 1/2.7" HD
37 to 8.6° (horizontal), 20 to 4.8° (vertical), 42 to 9.9° (diagonal)
Sensor Size: 1/2.5"
36 to 8.5° (horizontal), 27 to 6.3° (vertical), 46 to 10.6° (diagonal)
Sensor Size: 1/2.3" 4K (4000 x 2000)
39 to 10° (horizontal), 19 to 5° (vertical), 44 to 11° (diagonal) | | Zoom/Focus | Drive: Stepper motor
2-phase bipolar drive
Operation Voltage: 3.3 V
Operating Range: 2.6 to 4.8 V
Continuous Operation: <10 sec at 3 v (at 140°f > <3 sec at 5 v (at 140°f > Coil Resistance: 28.5 Ohms ±7%
Gear Ratio: 1:2308
Zoom Speed: 3 sec at 1000 pps
Zoom Cam Rotation: 57°
Focus Speed: 8.5 sec at 600 pps
Focus Cam Rotation: 100°
Focus/Zoom Connectors: Housing: Molex 51021-0800, Terminal: Molex 50058-8000
Cable Length: 5.9" / 150 mm | | Auto Iris Control | Drive: DC
Operation Voltage: 3 V (2.5 to 5 V)
Power Consumption: 26 mA (maximum)
Drive Coil Resistance: 190 Ohms ±10%
Damper Coil Resistance: 588 Ohms ±7%
Connectors
Connector Type 1: Molex
Connector Type: Housing: Molex 51021-0400, Terminal: Molex 50058-8000
Cable Length: 6" / 150 mm | | Limit Switches | Type: Photo interrupter phototransistor
Part Model: Sharp GP1S396HCPSF
Operating Voltage: 3.3 V
Output Level: >2.2 V (high), 0.6 V (low)
Connector Type: FPC cable
Board-Side Mating Connector Type (Sold Separately): Molex 52746-0671, Molex 52745-0697, Molex 52559-0652
Cable Length: 3.5" / 90 mm | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | <70% (non-condensing) | | Dimensions | 2.12 x 1.9" / 54 x 49.4 mm | | Weight | 2.43 oz / 69 g | | | | Package Weight | 0.21 lb | | Box Dimensions (LxWxH) | 4.0 x 2.3 x 2.25" |
