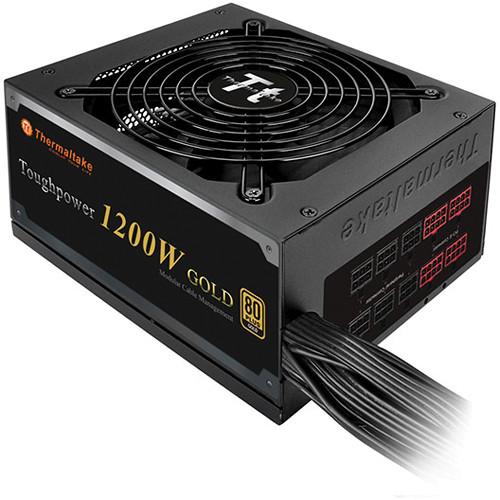

User Manual for Thermaltake 1200W Toughpower Computer Power Supply Click to enlarge the picture
Contents of the user manual for the Thermaltake 1200W Toughpower Computer Power Supply
- Product category: Power Supplies Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Power Supplies
|
User manual for the Thermaltake 1200W Toughpower Computer Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|
Product description The Toughpower Computer Power Supply from Thermaltake provides 1200 watts on a single +12V rail to offer stable and reliable power for all your PC components. The power distribution is handled by an Active PFC, which corrects the power factor to ensure the power supply operates at maximum efficiency. Thermaltake has equipped this power supply with a 135mm fan that spins up to 1500 rpms to provide maximum cooling or slows down for a quieter operation. To deliver reliability, Japanese capacitors are used to deliver stable operation with performance.
The Thermaltake Toughpower is an ATX power supply, which includes 8 x PCI-e, 12 x SATA, 1 x ATX 12 V, 1 x 24-pin, 1 x EPS 12 V, and 8 x Molex connectors. Some of the connectors are modular such as the SATA and PCI-e cables, so you have the option of not using them to reduce clutter and improve airflow. By offering these various connections and featuring 1200 watts of power, you can utilize multiple graphics cards and the Intel Haswell CPU or other CPU processors. - 80 PLUS Gold Certified and Haswell Ready
- The Toughpower saves energy through its high energy efficiency up to 90% and is certified for 80 PLUS Gold. In addition, the Toughpower Series is designed to meet the demands of Intel's Haswell processors.
- Flat Modular Cables
- Low-profile flat modular cables used in the design enhance airflow as well as improve the thermal performance of the chassis. Flat cables are inherently more flexible, making cable routing easier.
- Japanese Capacitors
- Japanese capacitors produce performance with low impedance characteristics. This delivers stable operation over extended periods of time as well as reliability.
UPC: 841163056288 In the Box Thermaltake 1200W Toughpower Computer Power Supply PATA to FDD Adapter Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake 1200W Toughpower Computer Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake PS-TPD-1200MPCGUS-1 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 8-Pin EPS
1 x 4+4-Pin ATX
8 x 6+2-Pin PCIe
12 x 15-Pin SATA
8 x 4-Pin Peripheral / Molex | | | | Total Wattage | 1200 W | | Combined Power for +12 V | 1200 W | | Max Load for +12 V | 100 A | | Combined Power for +3.3/+5 V | 150 W | | Max Load for +3.3 V | 25 A | | Max Load for +5 V | 25 A | | Max Power for +5 Vsb | 17.5 W | | Max Load for +5 Vsb | 3.5 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | Peak Power | 1250 W | | AC Input Power | 115 to 240 VAC, 50 / 60 Hz at 6 to 12 A | | | | Efficiency Rating | 80 PLUS Gold | | Efficiency | 87 to 92% at 20 to 100% Load | | Hold up Time | 16 ms at 75% Load | | Power-Good Signal | 100 to 500 ms | | | | Fan Size | 135 mm | | Fan Speed | 1500 rpm | | Bearing Type | Ball | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Storage Humidity | 5 to 95% | | | | Compliance | ATX 12 V v2.3, EPS 12 V | | Mean Time Between Failures (MTBF) | 120,000 Hours | | Dimensions | 7.0 x 5.9 x 3.3" / 180.0 x 150.0 x 86.0 mm | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 14.2 x 8.6 x 6.6" |
