User Manual for Thermaltake Core P3 SE Red Edition ATX Mid-Tower Open Frame PC Case Click to enlarge the picture
Contents of the user manual for the Thermaltake Core P3 SE Red Edition
- Product category: Desktop Computer Cases Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Desktop Computer Cases
 |
User manual for the Thermaltake Core P3 SE Red Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|

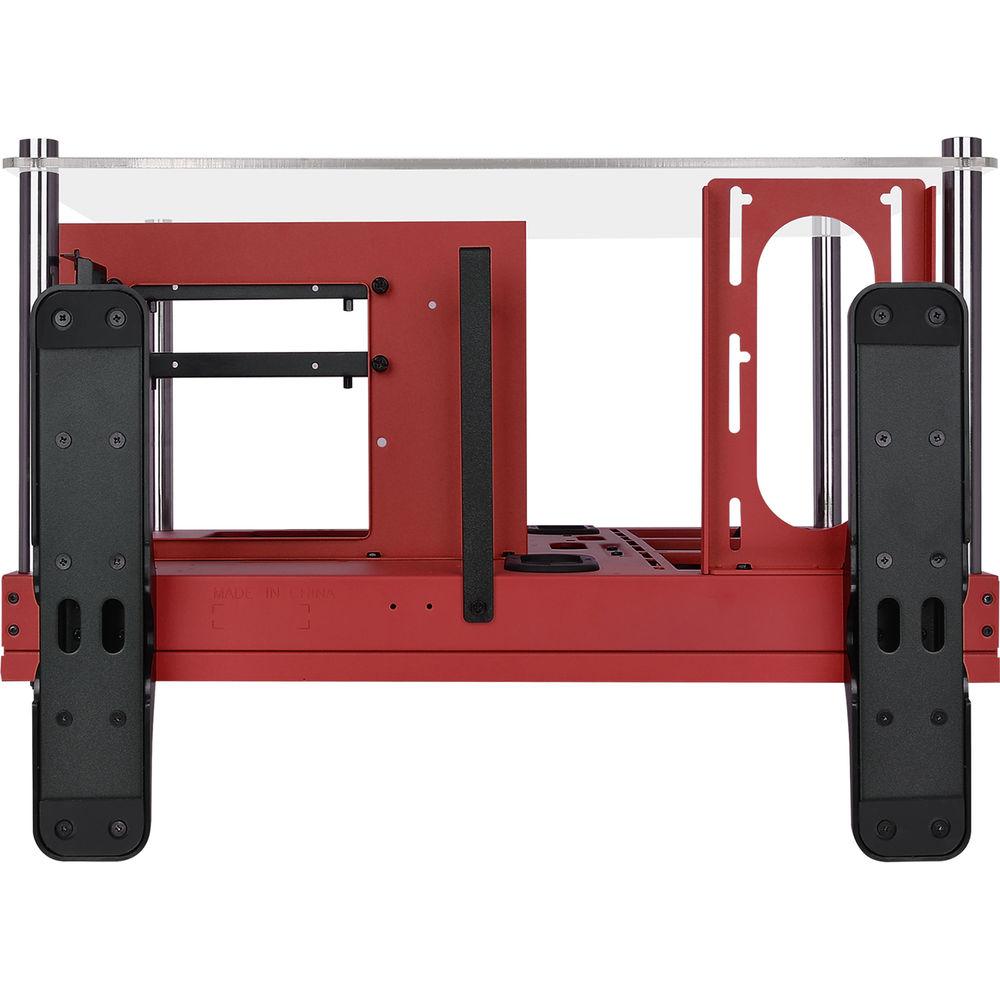

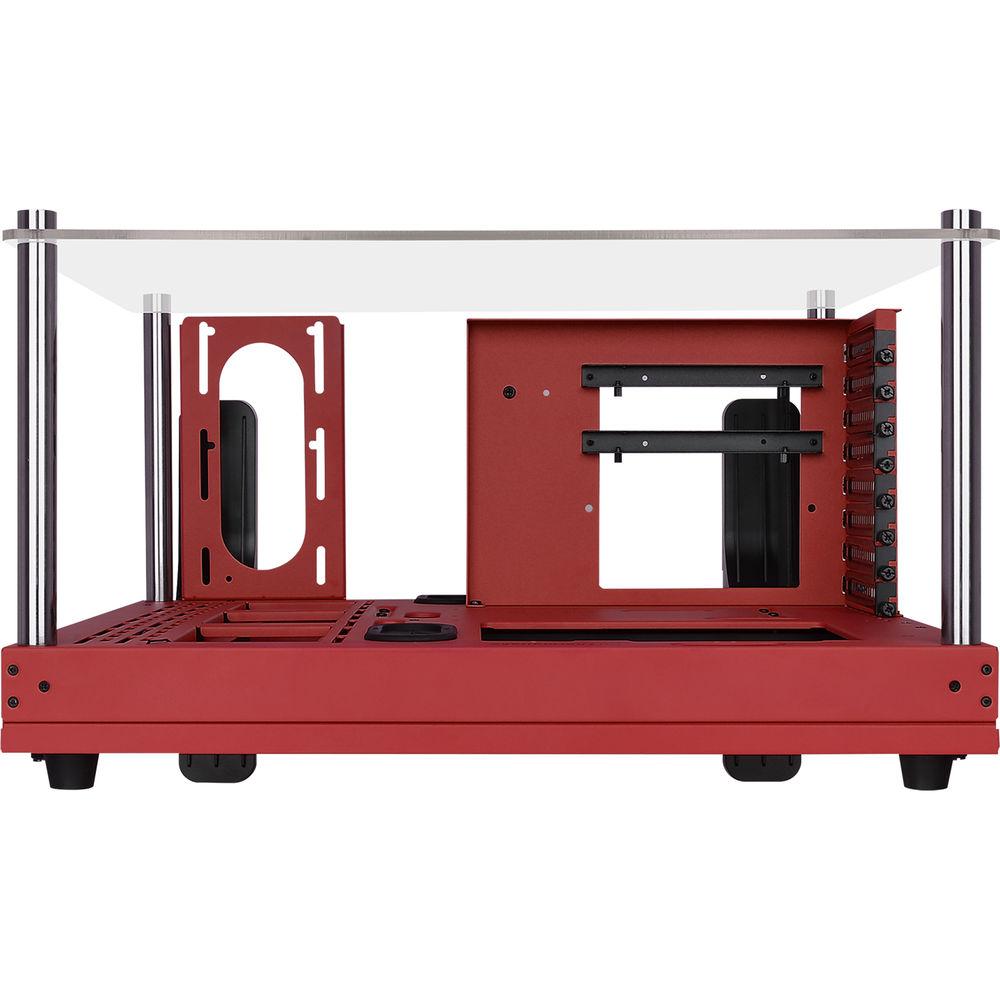

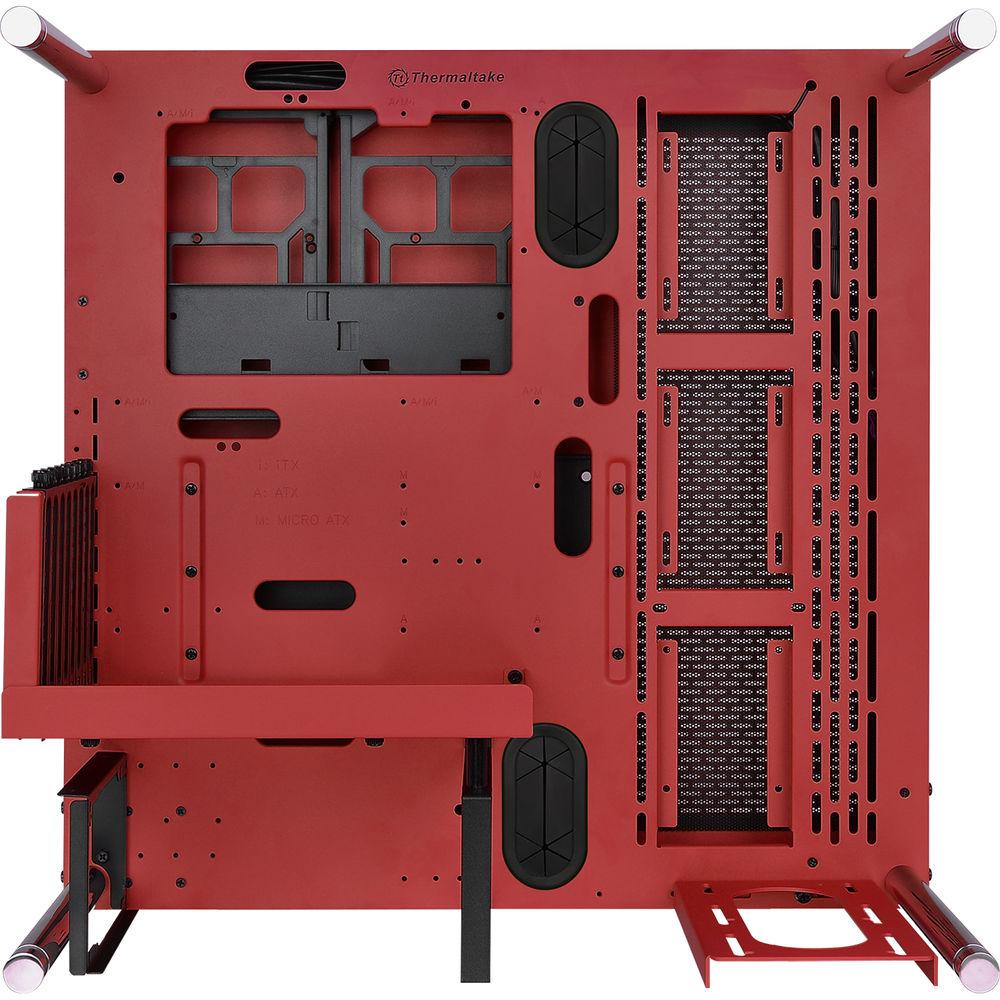

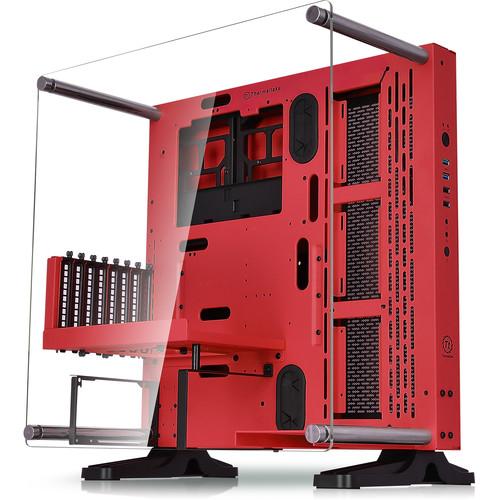

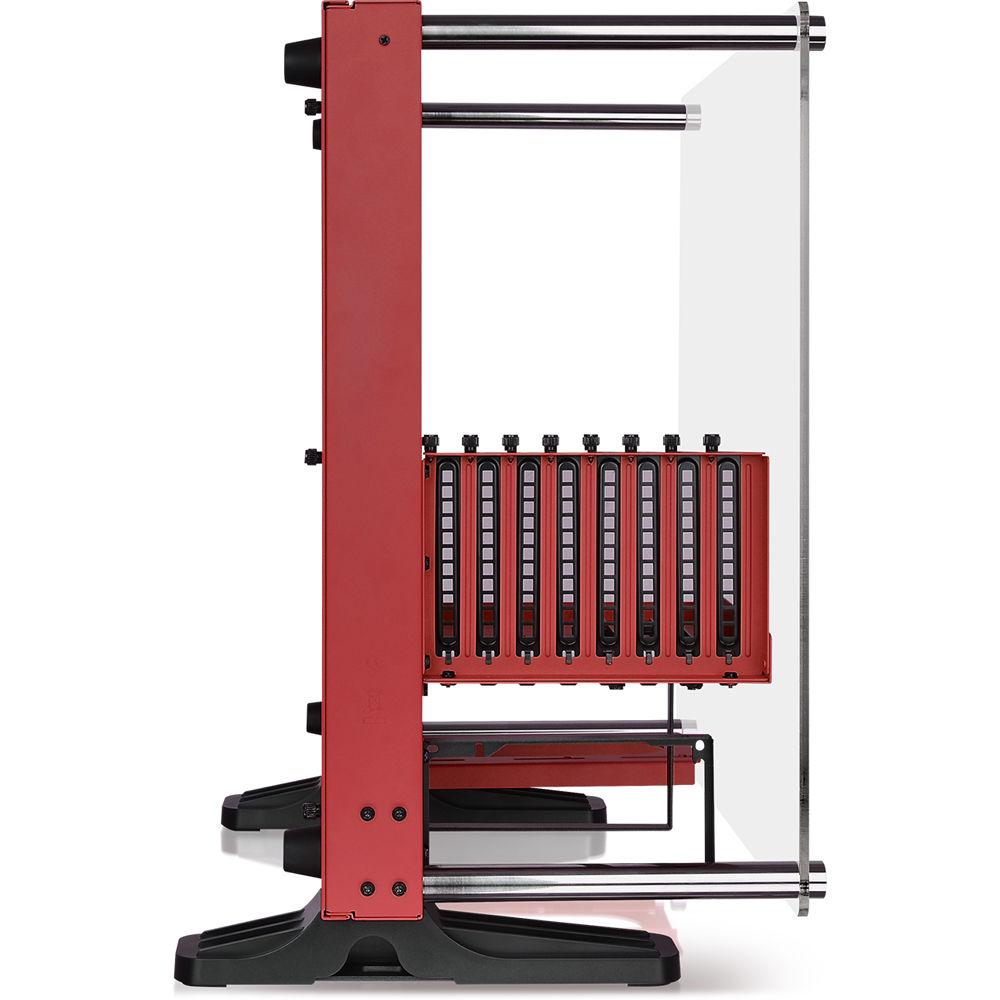

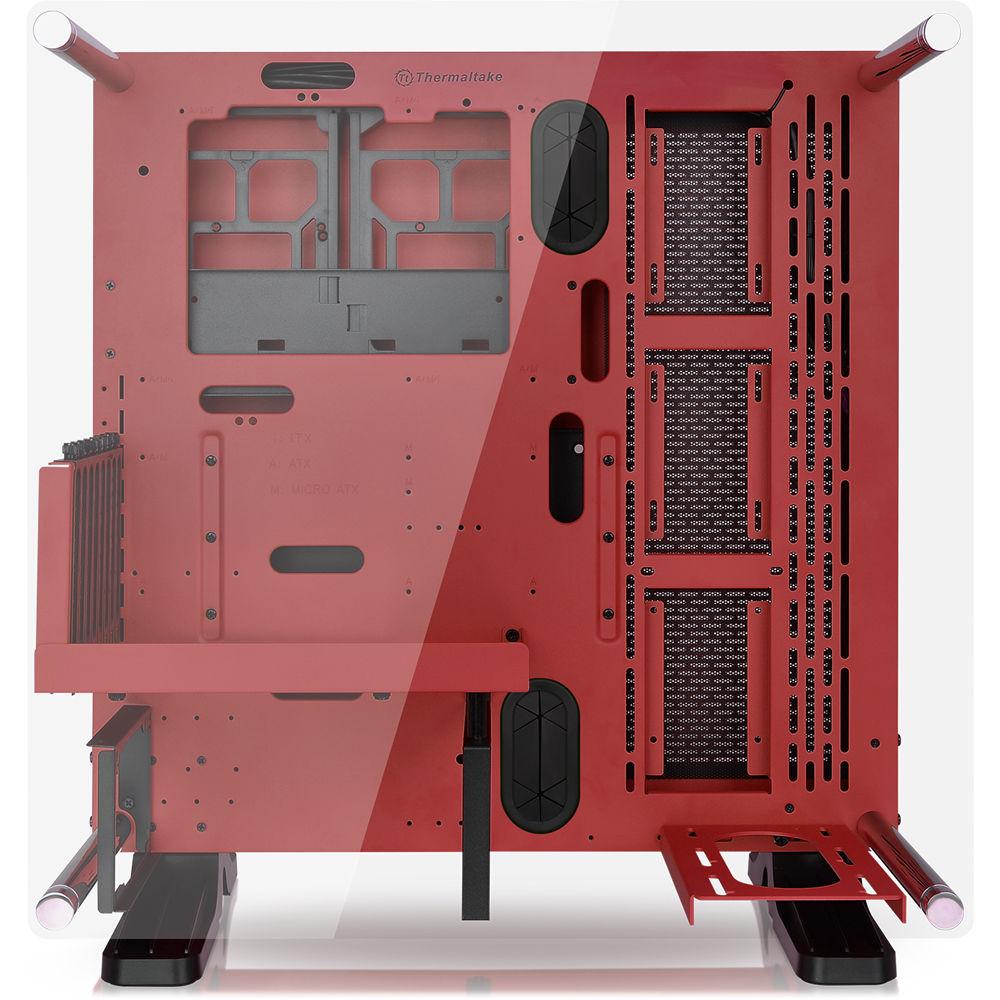

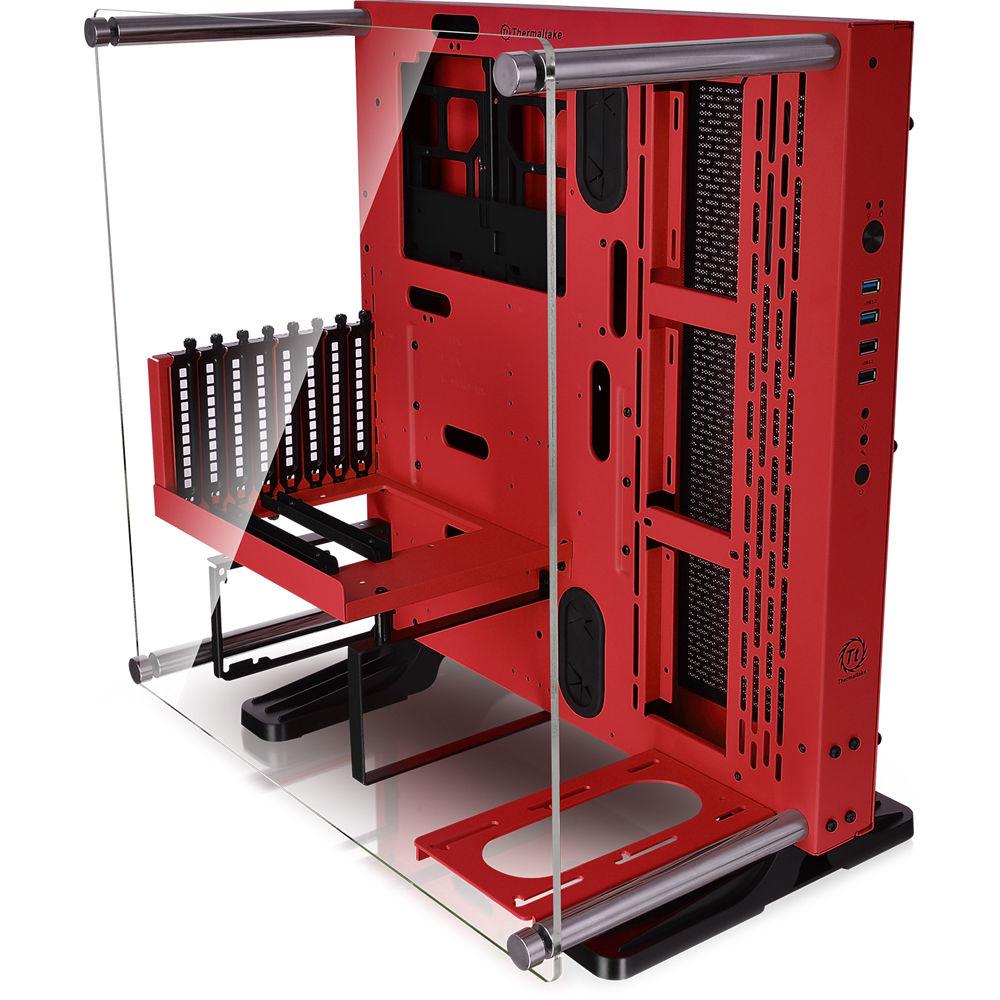

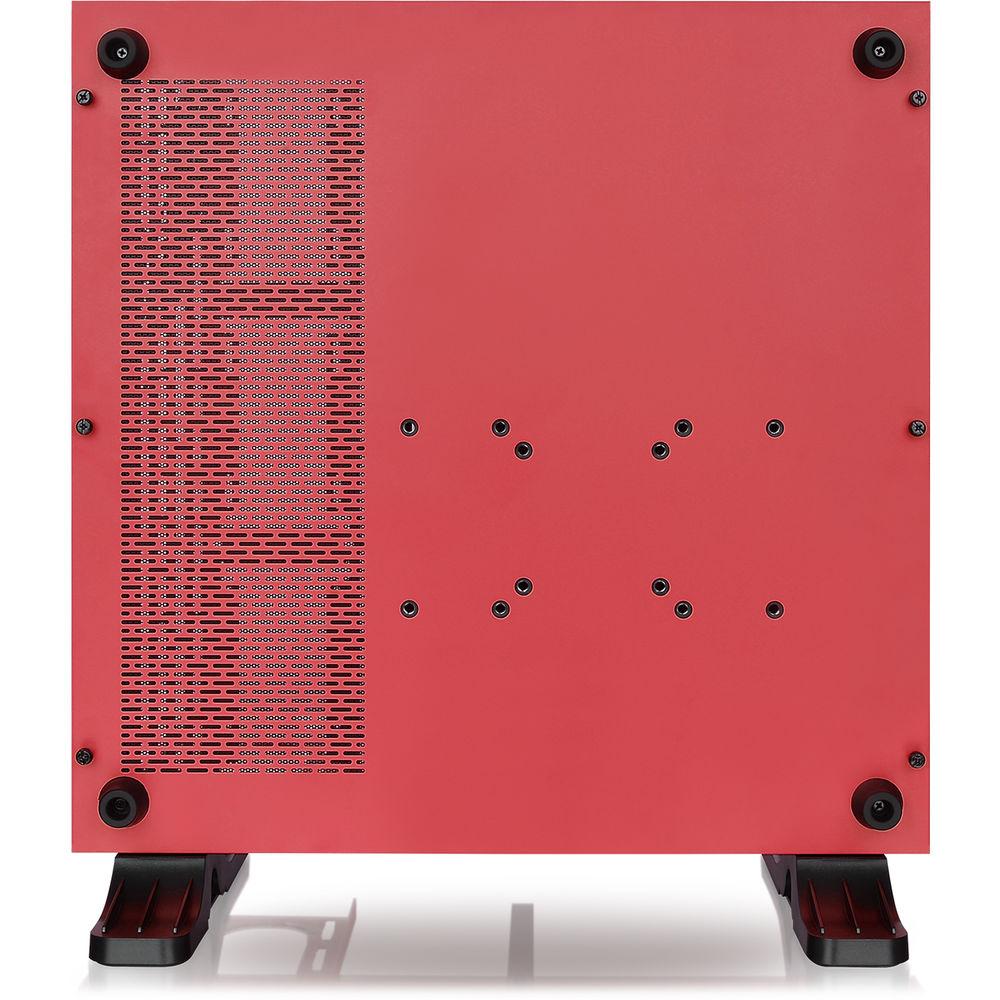

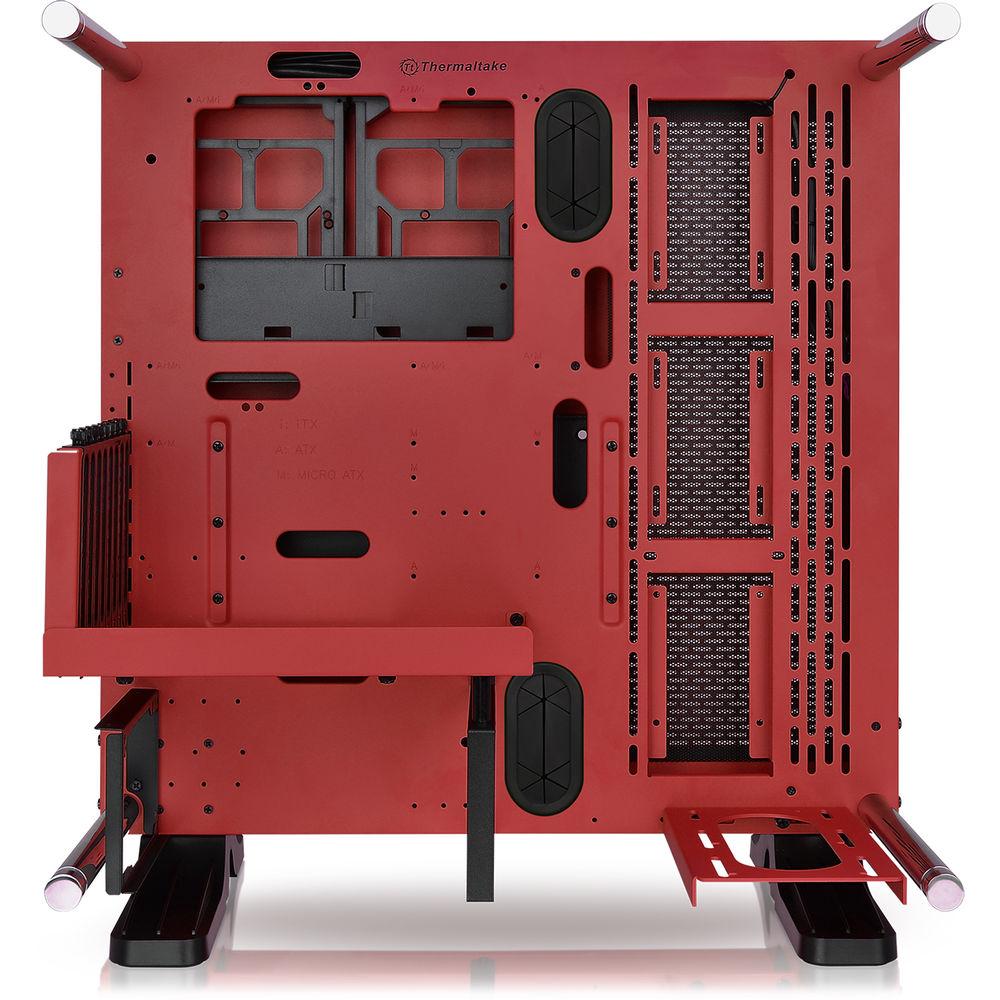

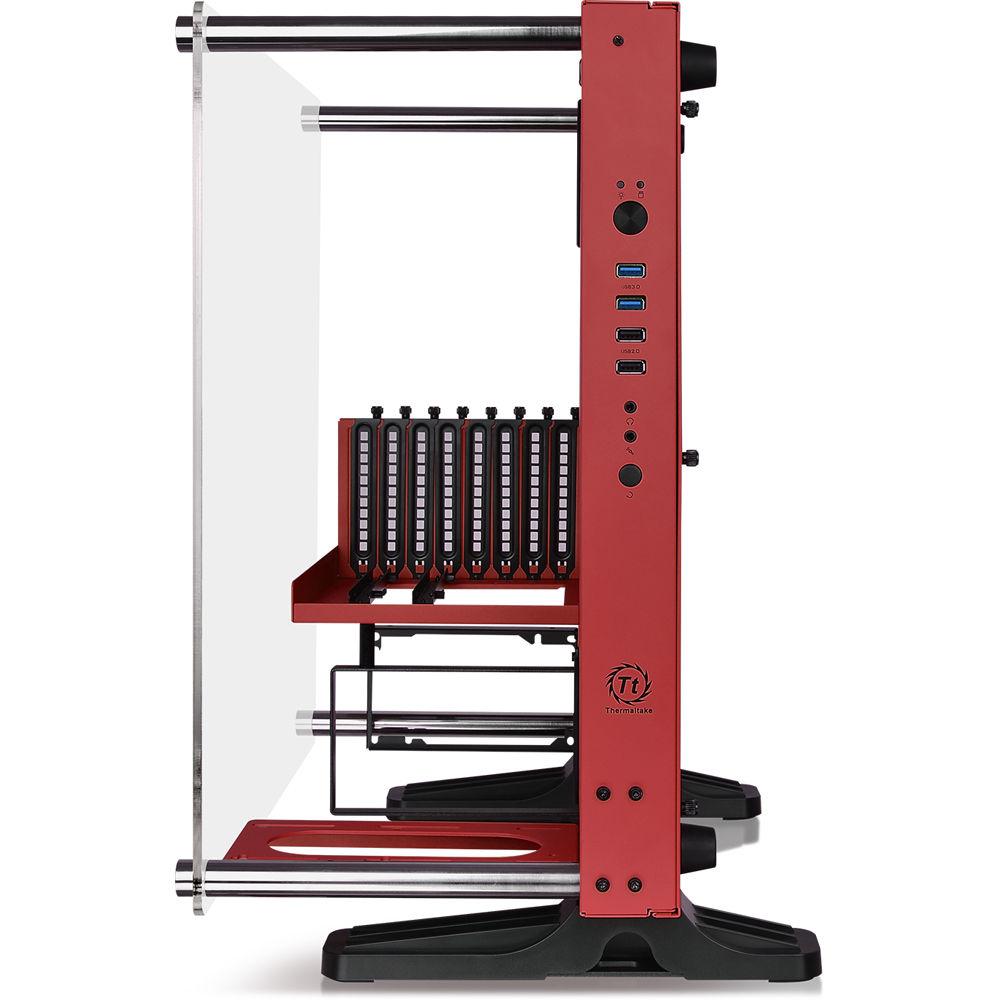

Product description The Core P3 SE Red Edition ATX Mid-Tower Open Frame PC Case from Thermaltake is an open frame chassis that is designed to be used with a Mini-ITX, Micro-ATX, or ATX motherboard. It features two 3.5" or three 2.5" accessible drive bays and two 3.5" or 2.5" hidden drive bays. Eight expansion slots, two USB 3.0 ports, two USB 2.0 ports, and an HD audio port are featured as well. It supports liquid cooling as well as a PCI-e X16 riser cable (sold separately). The open frame panel design is protected with a clear acrylic panel, behind which sits the chassis frame. It is designed for dual GPU and PSU layouts and supports wall mounting, horizontal laying, and vertical standing. - Tt LCS Certified
- This chassis has been tested to be compatible with extreme liquid cooling configurations.
- Built for Makers
- This open frame panoramic viewing chassis allows you to access and do your own mods as well as print out your own ideas using available liquid cooling components and manuals. You can download 3D printing accessory files on 3D Makers Microsite and print them out to do a special mod.
- Dismantlable Modular Design (DMD)
- The Core P3 open frame chassis enables you to build the system from the ground up with modular panels, racks, brackets, and pre-design mounting arrays.
- 3-Way Placement Layout
- The Core P3 is designed for use in wall mount, vertical, and horizontal placement (wall mounting parts sold separately). Built for customization, it allows for adjustments to the chassis for viewing presentation.
- Advanced Visual Presentation
- The open frame structure with unique Panoramic Viewing design supplies advanced visual presentation.
- Versatile GPU & PSU Orientation
- The Core P3 supports vertical PSU layout when an ITX motherboard is applied. A Thermaltake PCI-e X16 riser cable (sold separately) supports a wide range of GPU solutions.
- Native All-In-One Support
- The Core P3 is supported for all-in-one liquid cooling solutions without the need for an extra bracket.
- Supreme Hardware Support
- The Core P3 has flexible mounting options with a mounting array which supports up to four by 120mm or 140mm fans or radiators as well as the mounting of 3.5" and 2.5" storage devices. Two 3.5" or three 2.5" drive bays are featured on the outside of the chassis as well as two 3.5" or 2.5" drive bays which are hidden in the back panel that offers 1.77" of cable management space.
UPC: 841163065532 In the Box Thermaltake Core P3 SE Red Edition ATX Mid-Tower Open Frame PC Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Core P3 SE Red Edition ATX Mid-Tower Open Frame PC Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CA1G400M3WN01 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 2 x 2.5"/3.5" | | Internal Drive Bays | 2 x 2.5/3.5" | | Expansion Slots | 8 x Full Height | | CPU Cooler Height | 7.09" / 180 mm | | Maximum PSU Length | 7.87" / 200 mm | | | | Fan Mounting (Side) | 3 x 120 mm
3 x 140 mm
| | Fans Included (Front) | None | | Fans Included (Rear) | None | | Fans Included (Side) | None | | Fans Included (Top) | None | | Fans Included (Bottom) | None | | Maximum Radiator Size (Side) | 1 x 420 mm | | Fans Included (Internal) | None | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel | | Cable Management Space | 1.77" / 45 mm | | Dimensions (W x H x D) | 20.2 x 13.1 x 18.5" / 512.0 x 333.0 x 470.0 mm | | Weight | 22.7 lb / 10.3 kg | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 21.8 x 21.6 x 7.5" |
