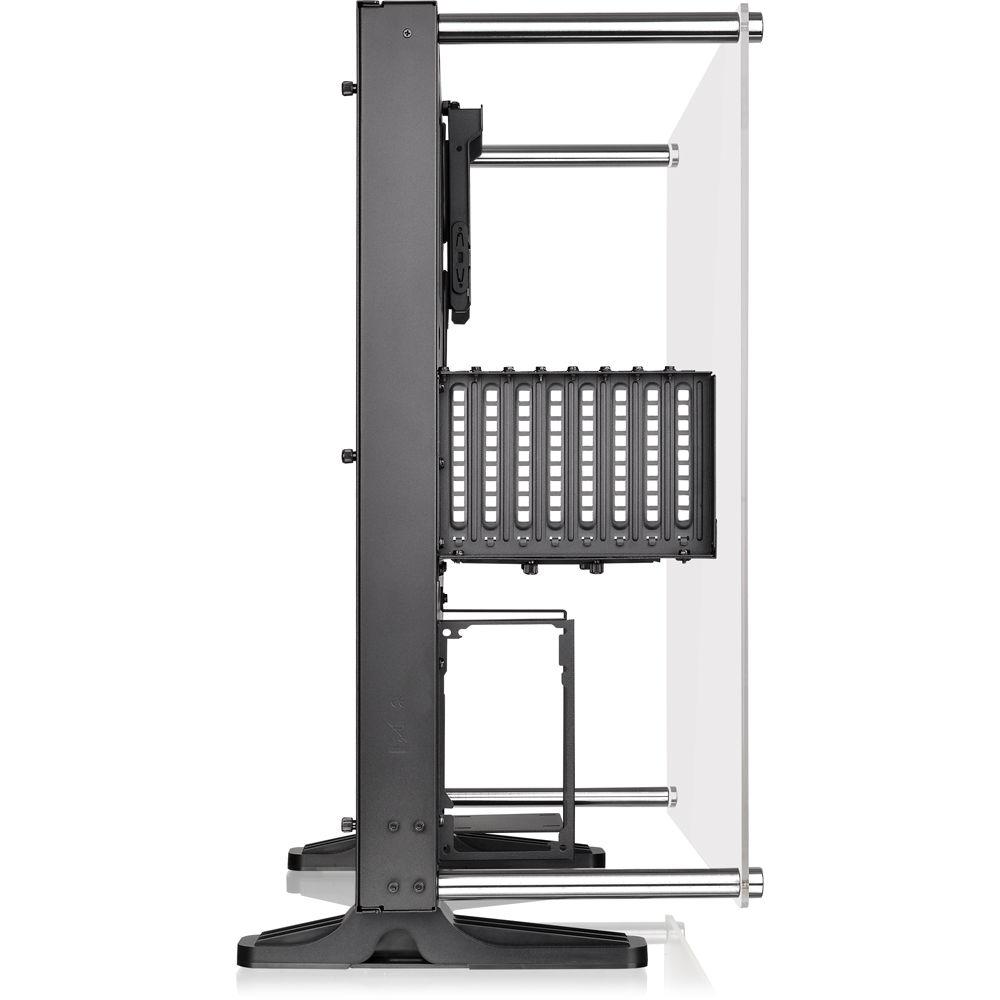

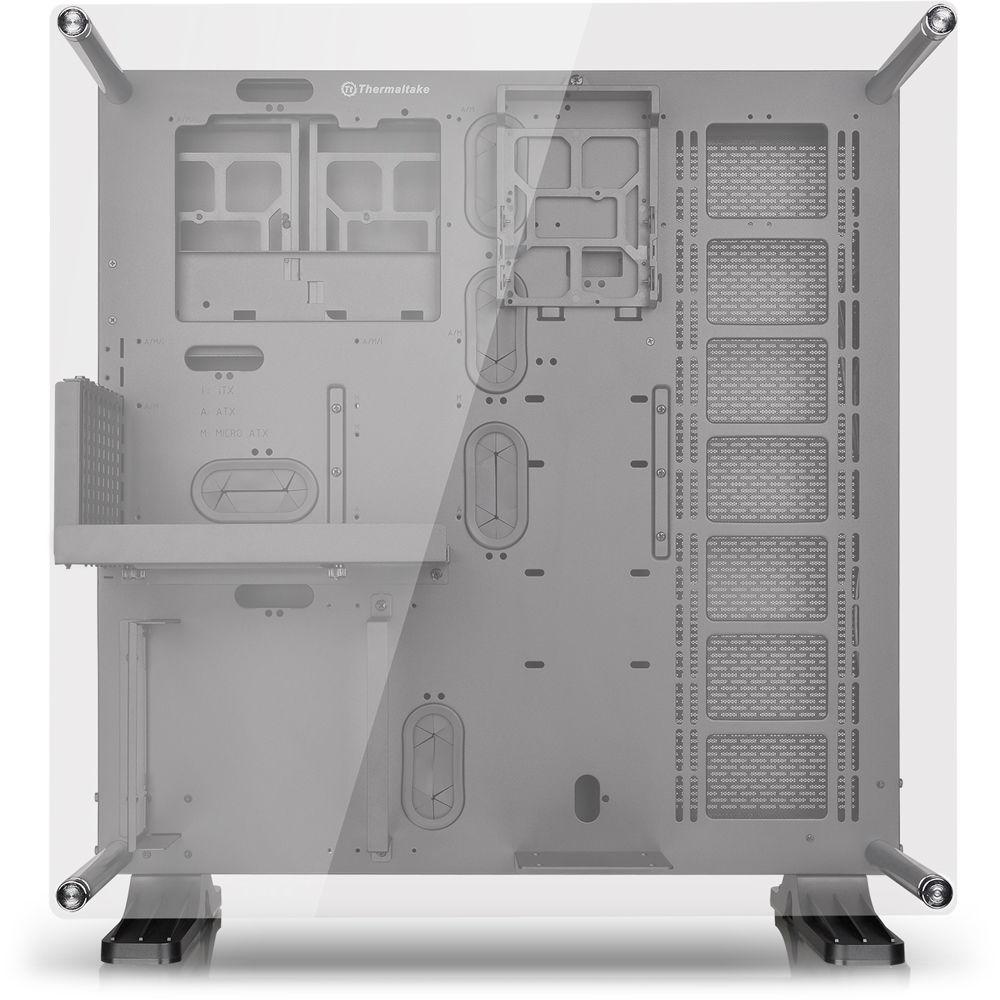

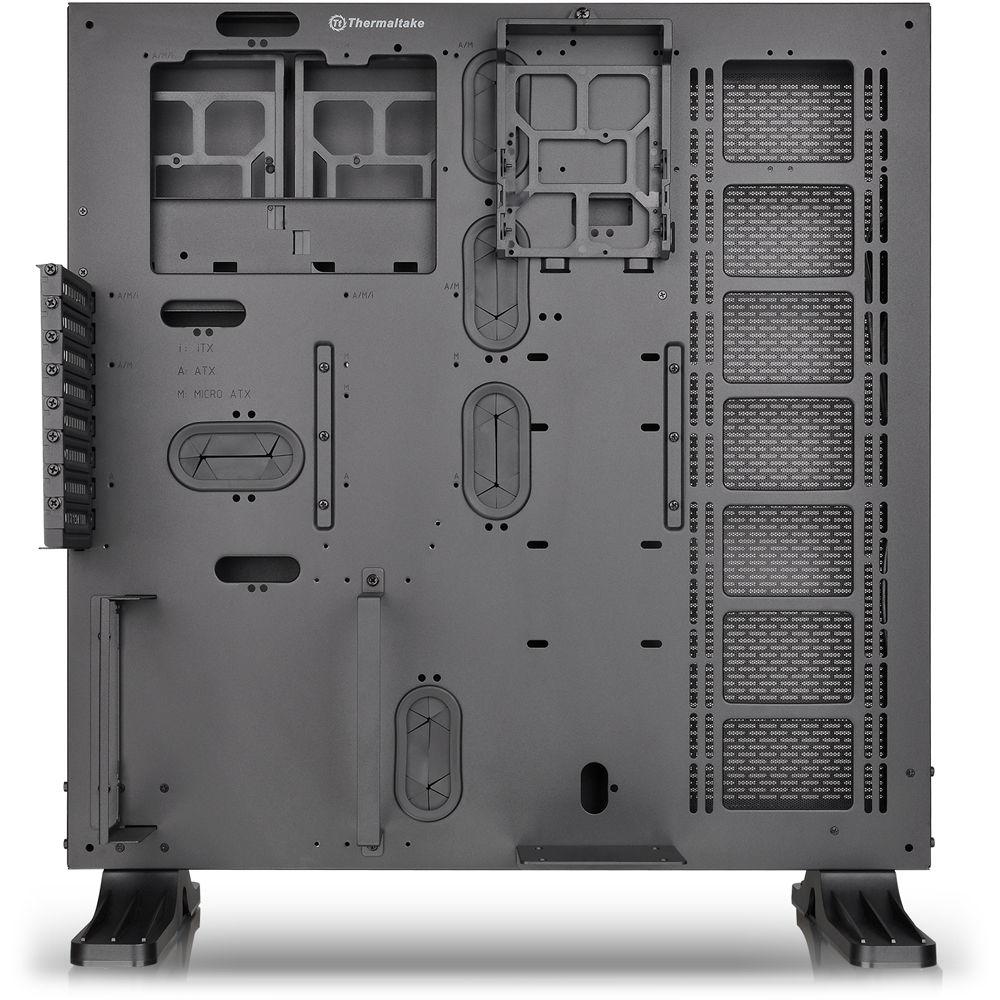

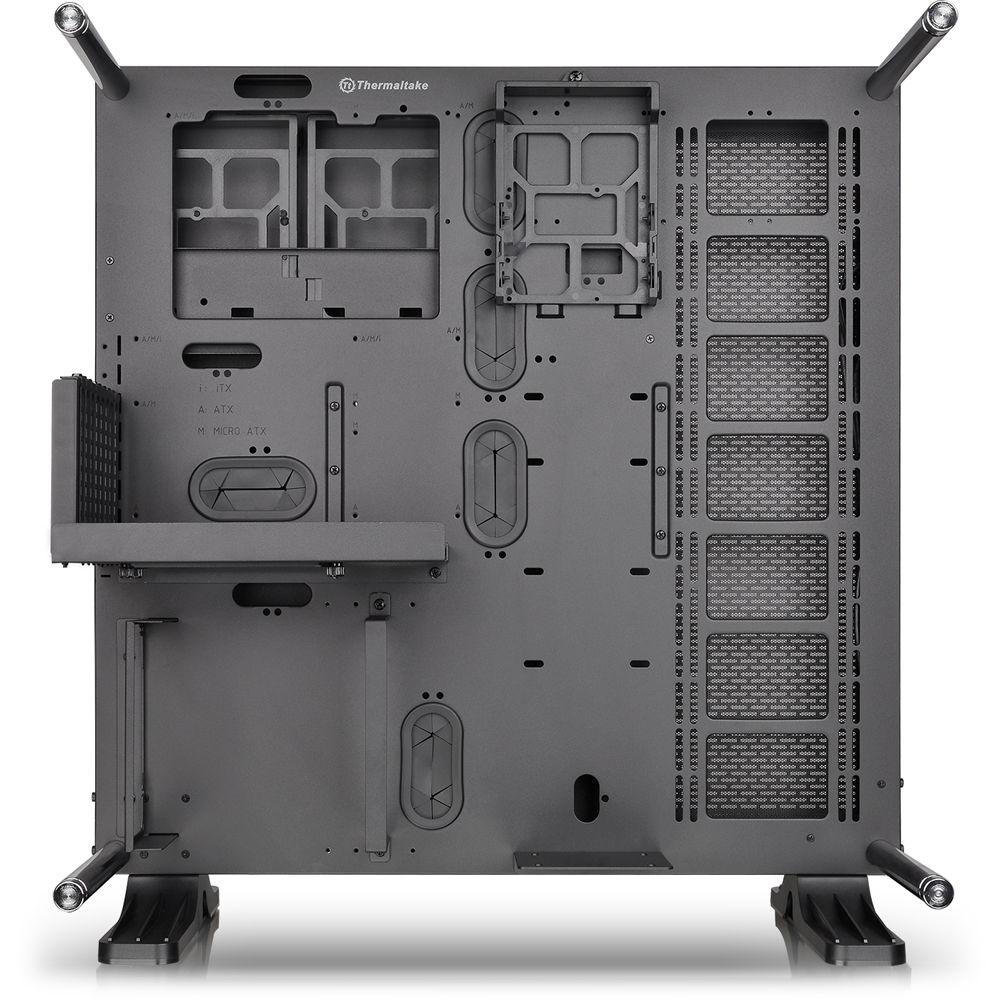

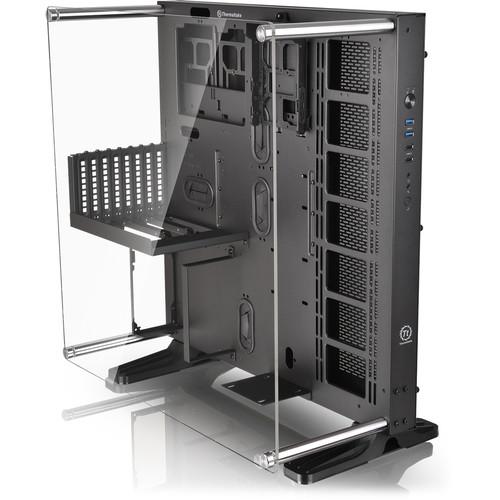

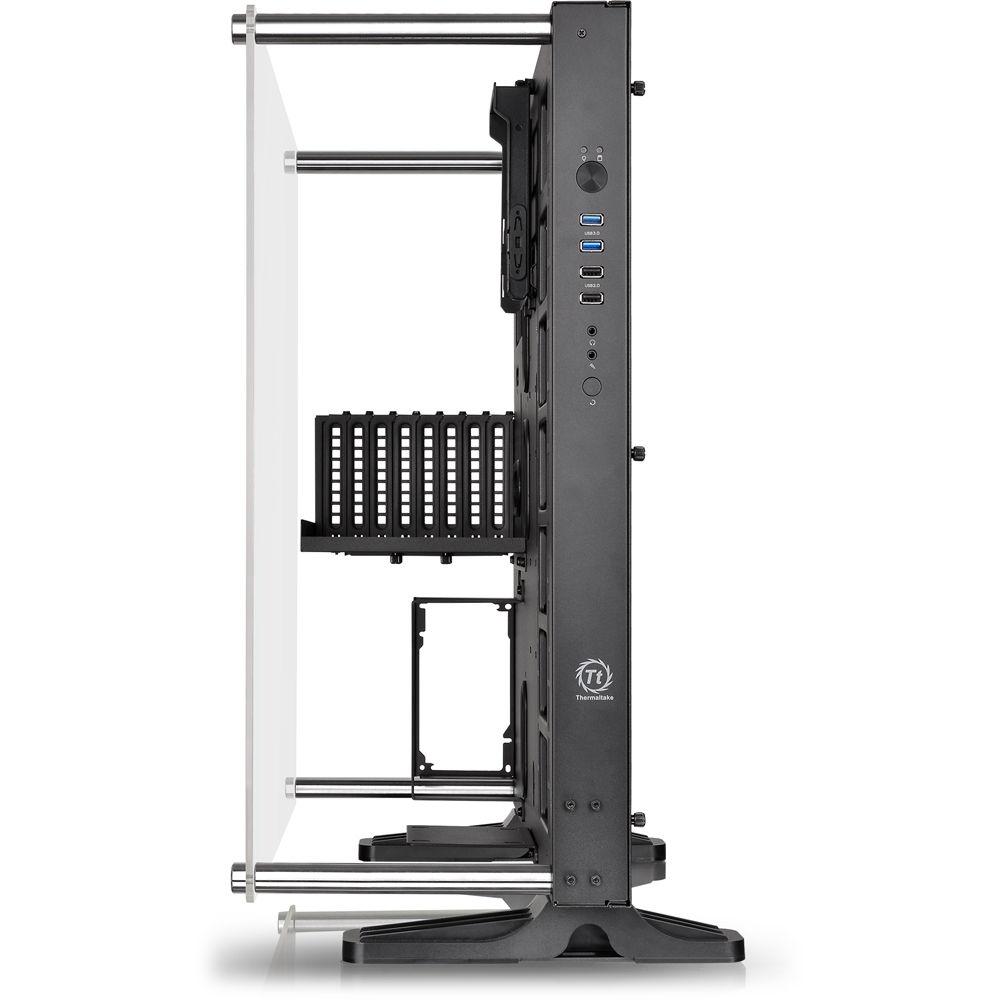

Product description Designed to be the center of attention, the black Core P5 Mid-Tower Case from Thermaltake features an open frame and a full-sized acrylic window for you to show off your build. It can be placed vertically, horizontally, or even mounted on your wall using optional mounting brackets. The Core P5 supports ATX, micro-ATX, and mini-ITX motherboards with ample room for long graphics cards up to 12.6".

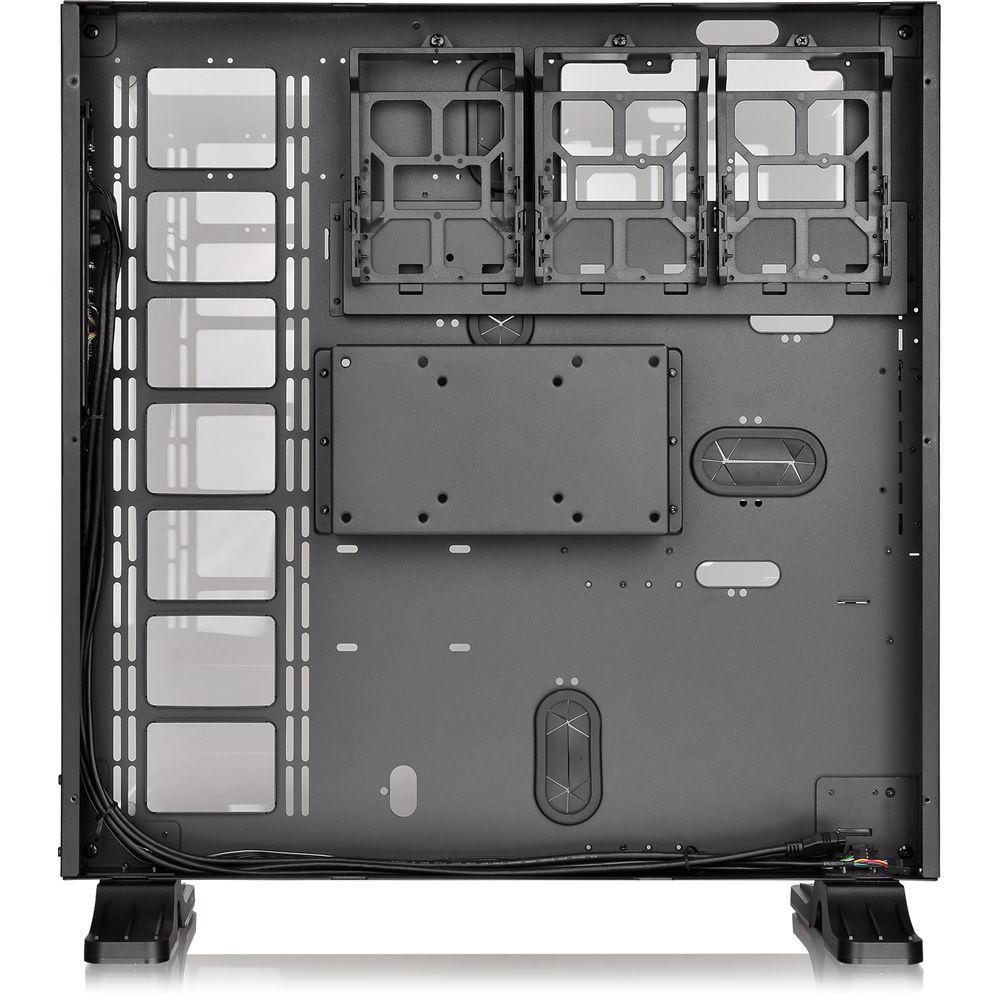

For storage, you can install up to four 2.5" or 3.5" drives in its modular drive cages. A visible drive bay is located on the left side, whereas the rest are hidden on the other side, behind the motherboard. The open frame design of the Core P5 allows unrestricted airflow across your components, providing maximum cooling. For the liquid cooling crowd, there is a spot for you to install a radiator that's up to 480mm long. - Built for Makers
- The Core P5 is an open-frame chassis that users can access to map out and design their own build, featuring whatever components they would like to use. Users can download design files for 3D printing on Thermaltake's micro-site, allowing them to customize their own mods.
- Modular Design
- Four customizable 3.5" & 2.5" drive bays enable you to freely interchange the hard-drive cages to suit your particular need. You can also remove the 3.5" & 2.5" drive bays to gain maximum space for cable management, up to 45mm. The PCI bracket can also be changed to your preference so that you can install your GPUs either vertically or horizontally.
- 3-Way Placement Layout

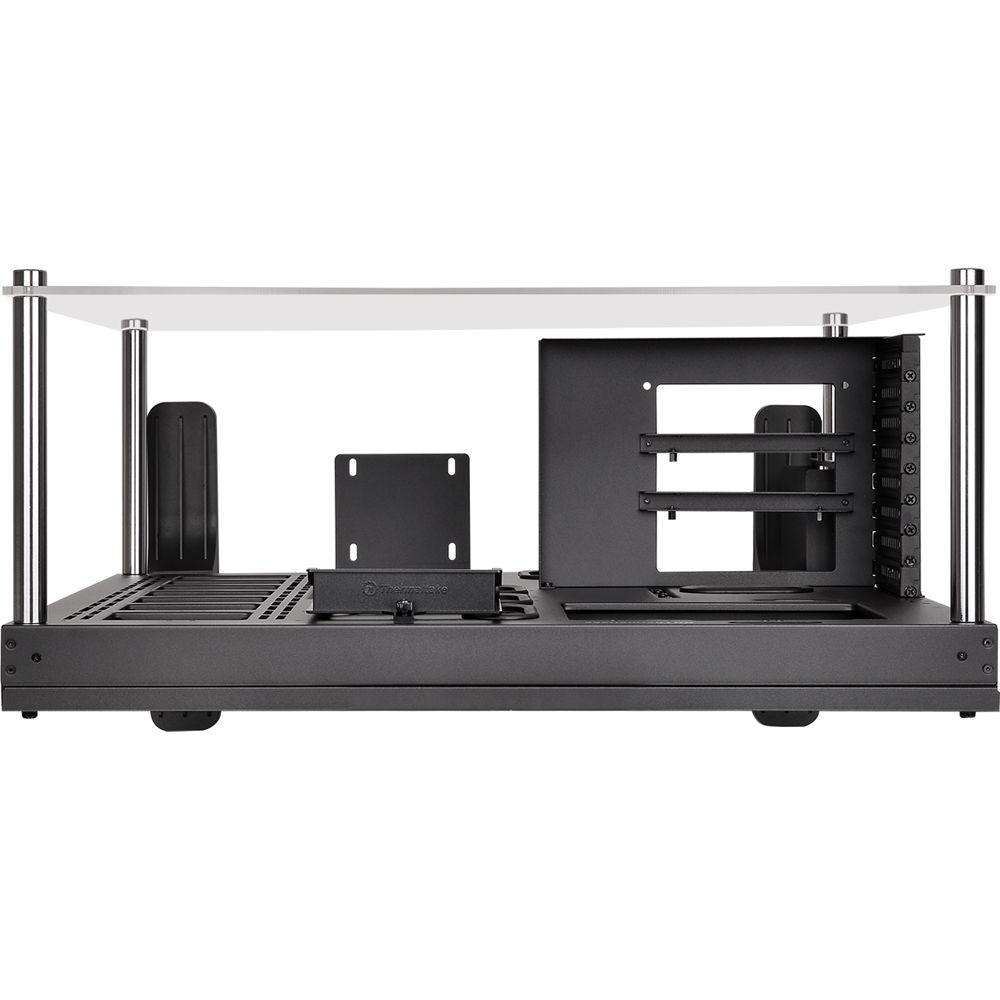

- The Core P5 is designed to be placed in three different positions: standing vertically, lying horizontally, or mounting onto a wall via an optional kit. Its open frame design allows air to travel freely across the components for maximum cooling.
- Liquid-Cooling Support
- Enabling users to build a complete high-end system, the Core P5 can support up to a 480mm radiator for liquid cooling or four 120 mm fans for air cooling. It also fits long graphic card with room to spare for all your liquid cooling accessories.
UPC: 841163062326 In the Box Thermaltake Core P5 Mid-Tower Case (Black) Screw Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Core P5 Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CA-1E7-00M1WN-00 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 1 x 3.5" | | Internal Drive Bays | 3 x 2.5" | | Maximum GPU Length | 12.6" / 32 cm | | CPU Cooler Height | 7" / 17.8 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.9" / 20 cm | | | | Fan Mounting (Side) | 4 x 120 mm
Or
3 x 140 mm
| | Maximum Radiator Size (Side) | 480 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Acrylic | | Cable Management Space | None | | Dimensions (W x H x D) | 23.9 x 13.1 x 22.4" / 608.0 x 333.0 x 570.0 mm | | Weight | 26.9 lb / 12.2 kg | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 25.25 x 23.3 x 7.1" |
