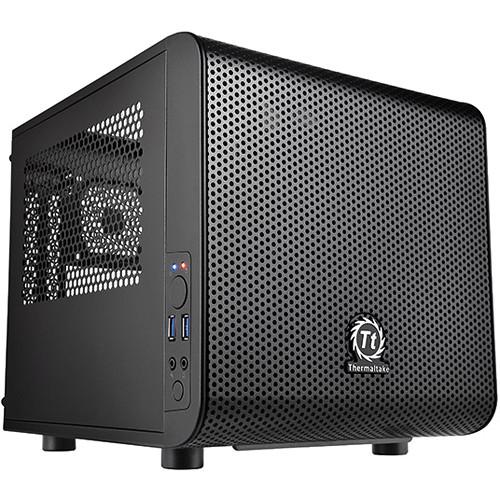

User Manual for Thermaltake Core V1 Mini Chassis Click to enlarge the picture
Contents of the user manual for the Thermaltake Core V1 Mini Chassis
- Product category: Desktop Computer Cases Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Desktop Computer Cases
|
User manual for the Thermaltake Core V1 Mini Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|
Product description The Thermaltake Core V1 Mini Chassis is a compact, ITX-based chassis with a 200 mm fan in the front panel. Smart interchangeable side panels allow users to flip it accordingly to showcase either for liquid cooling or good airflow, which allows you to make your own personal setup. You'll be able to build powerful mini system, with the ability to house various overclocking components to keep it cool. - Chambers Concept
- The Core V1 is divided into two main chambers: the upper chamber is made for cooling performance and efficiency and the lower chamber is made for the PSU and cable management. With the aid of the removable 2.5"/3.5" drive device racks, users can enjoy the maximum interior space for advance cooling performance or a liquid system build.
- Advanced Ventilation
- The Core V1 has various mounting points to supports all types of cooling systems that includes DIY/AIO liquid cooling systems and air cooling units. A large 200 mm fan is preinstalled in the front, along with two optional 80 mm turbo fans at the rear.
- Interchangeable Side Panel
- Symmetrical panels allow users to build the system with personality. Play around the panels accordingly for either the viewing presentation or cooling performance. A removable PSU dust filter and adjustable shockproof rubbers is built with the bottom panel of the chassis to prolong the PSU usage.
- Handy I/O Ports
- Design with convenience in mind, the Core V1 has built-in dual USB 3.0 and HD audio connectors together with the Power and Reset Button on the side of front panel, which not only keep the panel clean and simple, it also grants a direct access for external devices.
- Expansion in Compact Size
- Core V1 is designed with high-end gaming system compatibility, gamers can install up to 4 data storage devices with the modular drive racks, a dual expansion slot VGA with the length up to 260 mm, a tower CPU cooler with height up to 140 mm, together with a high wattage PSU of length up to 180 mm, and still offers a 80 mm cable management space.
UPC: 841163057179 In the Box Thermaltake Core V1 Mini Chassis 3-Year Limited Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Core V1 Mini Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CA-1B8-00S1WN-00 Specs | | | Motherboard Support | Mini-ITX | | Internal Drive Bays | 2 x 2.5" | | Maximum GPU Length | 11.2" / 28.5 cm | | CPU Cooler Height | 5.5" / 14 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.9" / 20 cm | | | | Fan Mounting (Rear) | 2 x 80 mm
| | Fans Included (Front) | 1 x 200 mm (800 rpm) | | Maximum Radiator Size (Front) | 140 mm | | Noise Level | 13 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 10.9 x 10.2 x 12.4" / 27.6 x 26.0 x 31.6 cm | | | | Package Weight | 9.55 lb | | Box Dimensions (LxWxH) | 15.0 x 13.0 x 13.0" |
