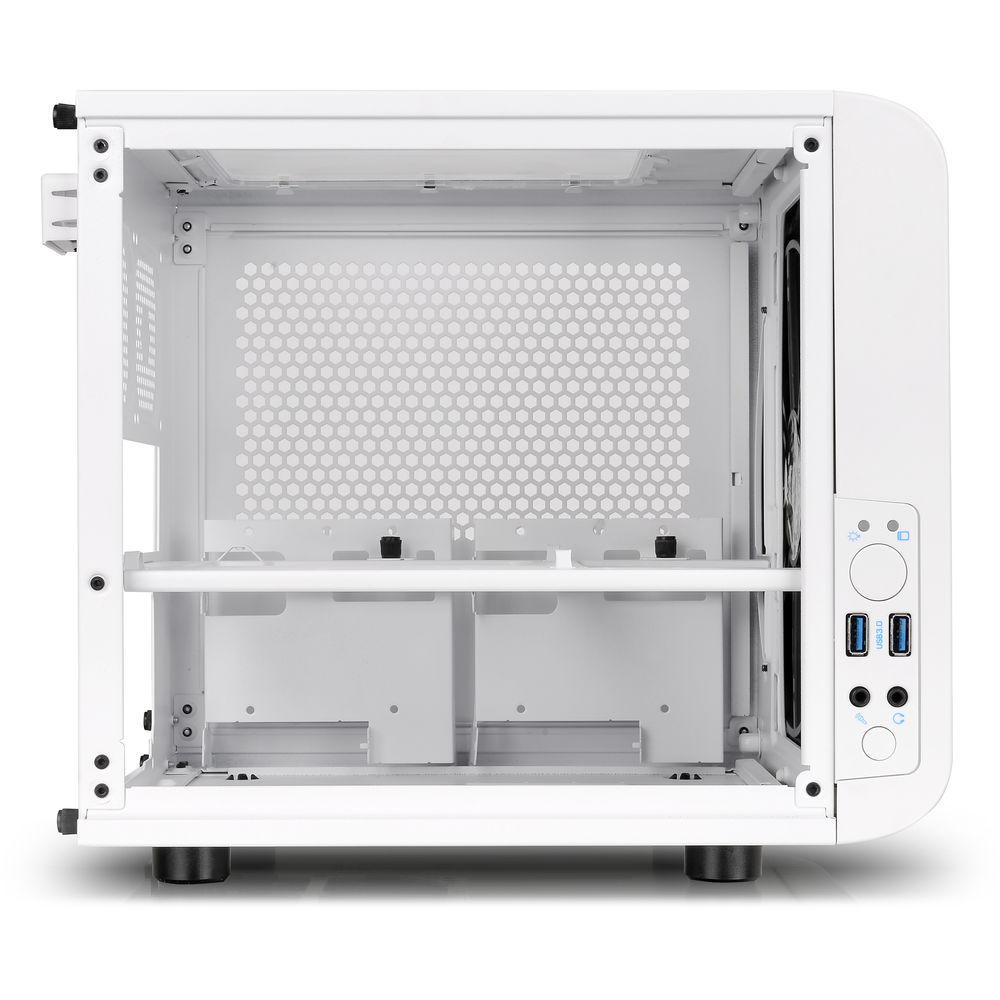

User Manual for Thermaltake Core V1 Mini-Tower Case Click to enlarge the picture
Contents of the user manual for the Thermaltake Core V1 Mini-Tower Case
- Product category: Desktop Computer Cases Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Desktop Computer Cases
 |
User manual for the Thermaltake Core V1 Mini-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|

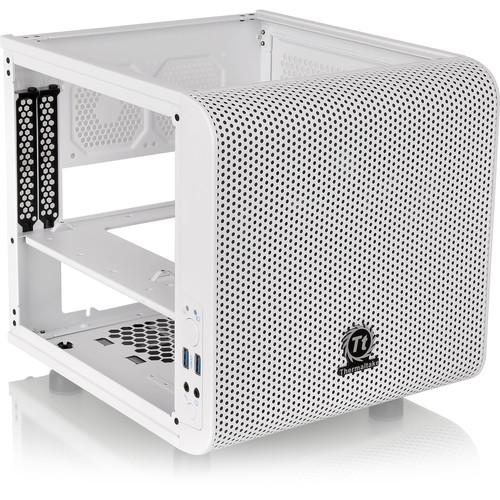

Product description Even with a small form factor, the Core V1 Mini-ITX Chassis (Snow Edition) from Thermaltake shouldn't be underestimated. This small case is designed with high-end gaming compatibility in mind and comes with a large 200mm fan in the front panel, which can be removed to accommodate a 120 or 140mm radiator. Additionally, at the rear of the case are two 80mm fan slots for additional cooling power. Its interchangeable panels allow you to configure your build for cooling performance or for aesthetic display. Use its side-mounted USB 3.0 ports and audio jacks to connect additional devices. - Ventilation Options

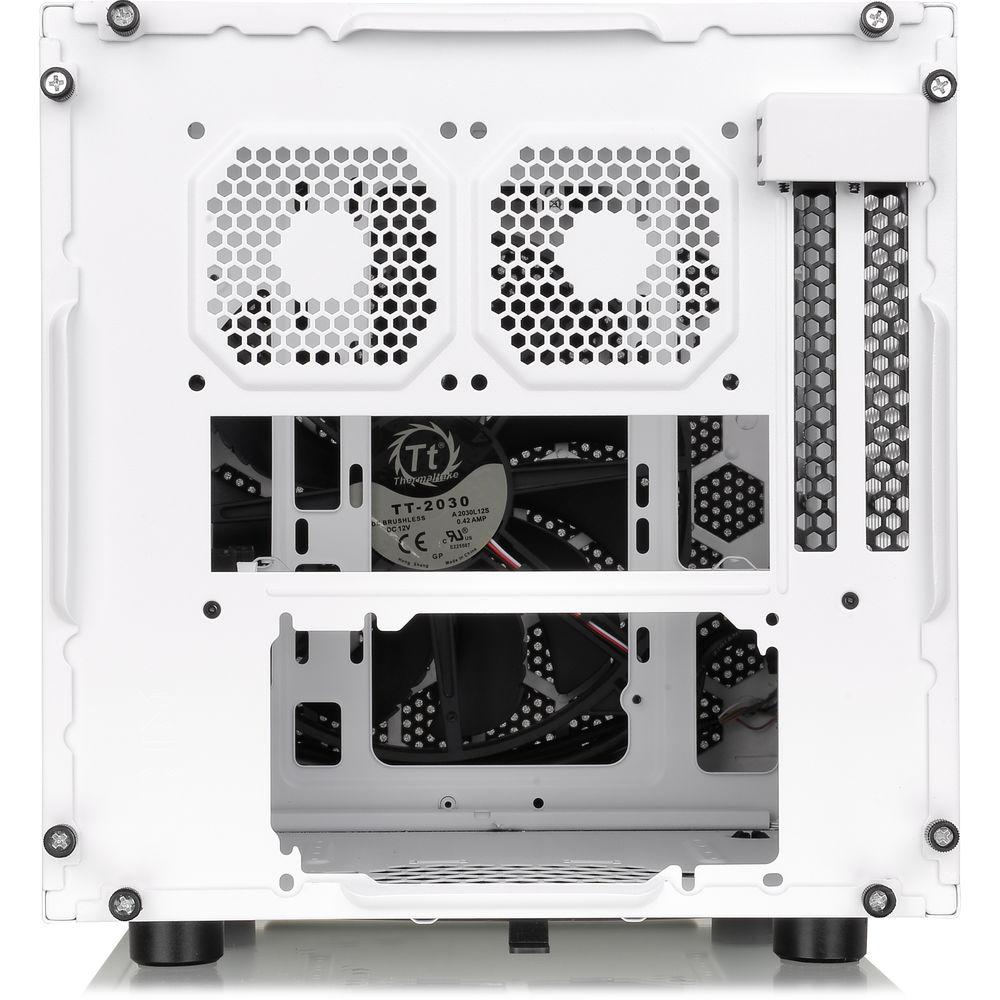

- The Core V1 comes with a large pre-installed 200mm fan in the front panel, which can be removed to accommodate a 120 or 140mm radiator. At the rear of the case are two 80mm fan slots for additional cooling power.
- Interchangeable Side Panels

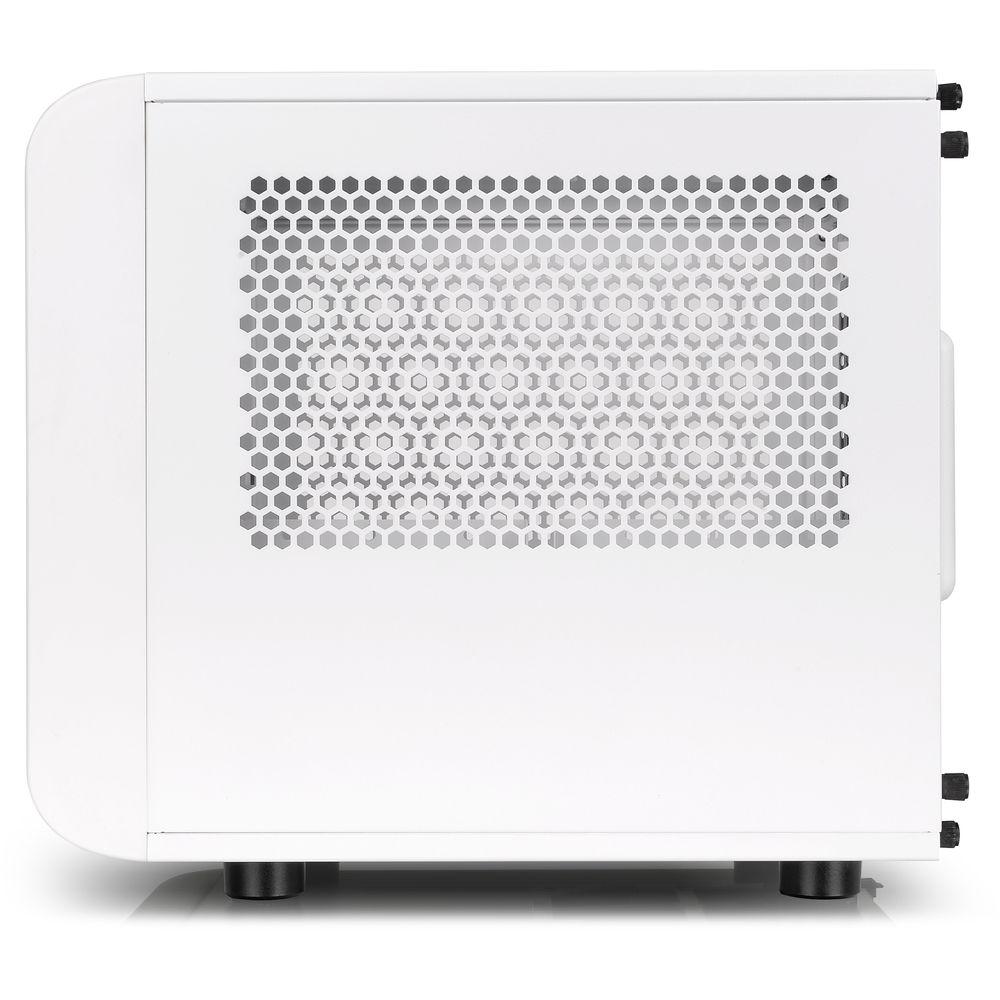

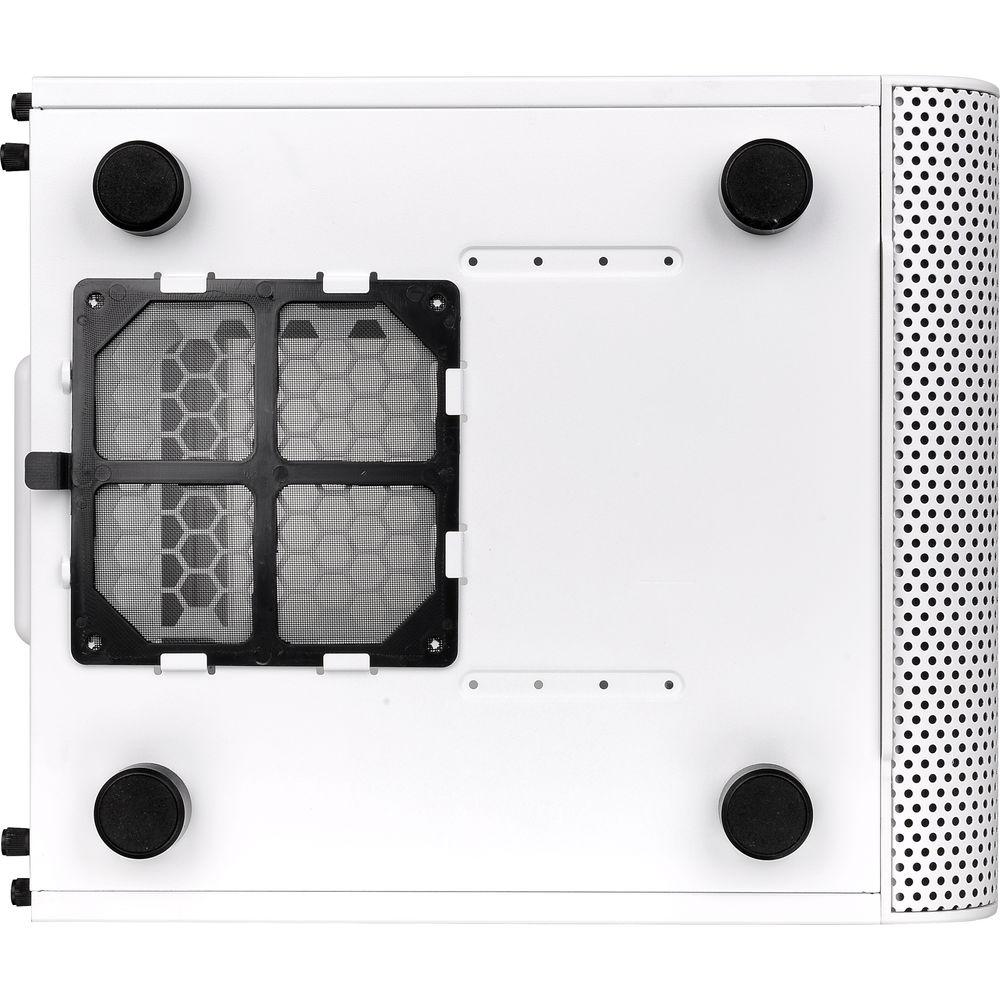

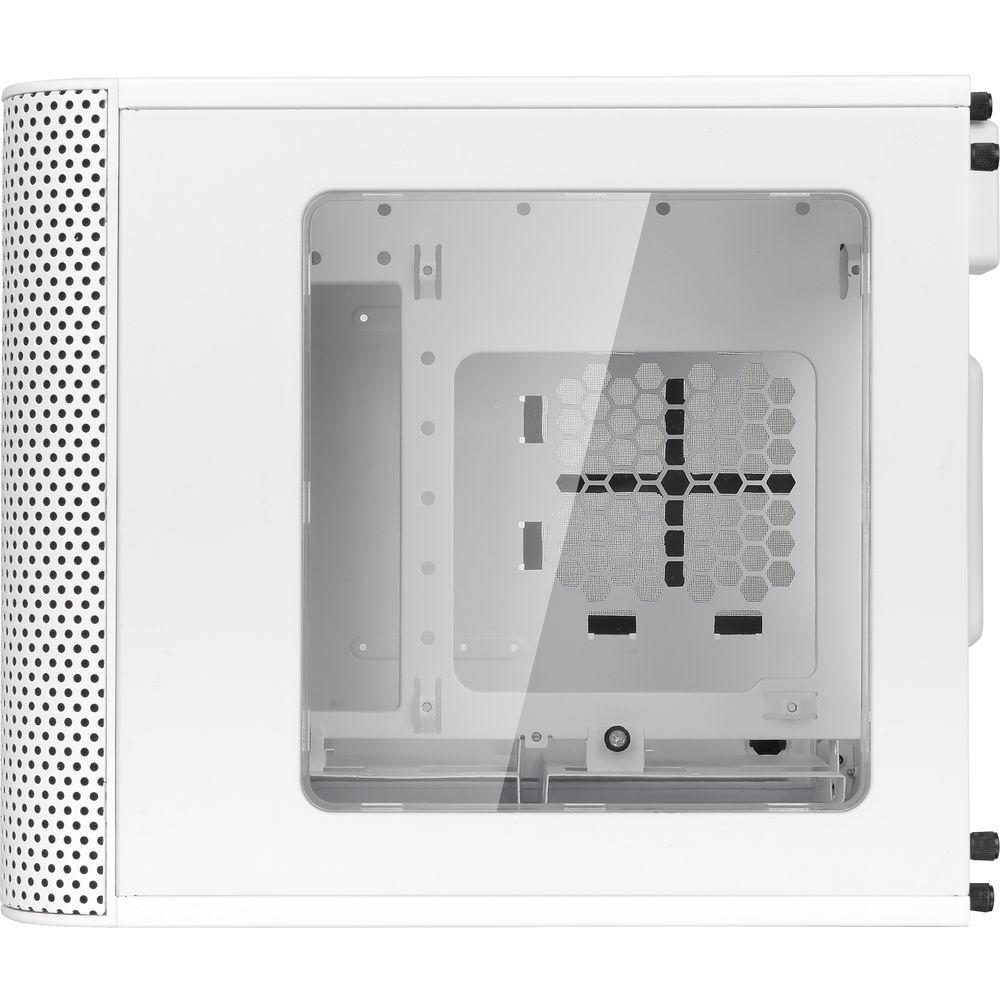

- The symmetrical panels allow you to configure the system for aesthetics or cooling performance. A removable dust filter and adjustable shockproof rubbers are located at the bottom of the case to prevent dust build-up.
- Expansion in a Compact Size

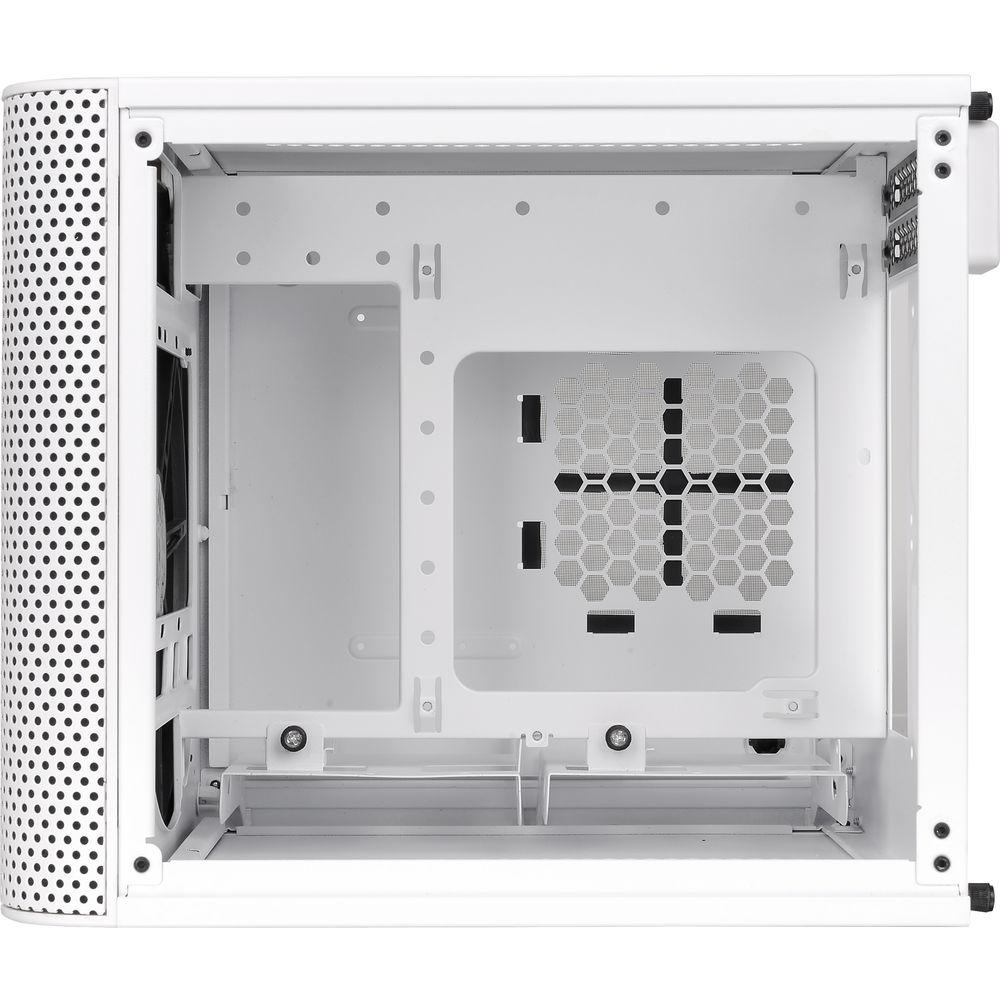

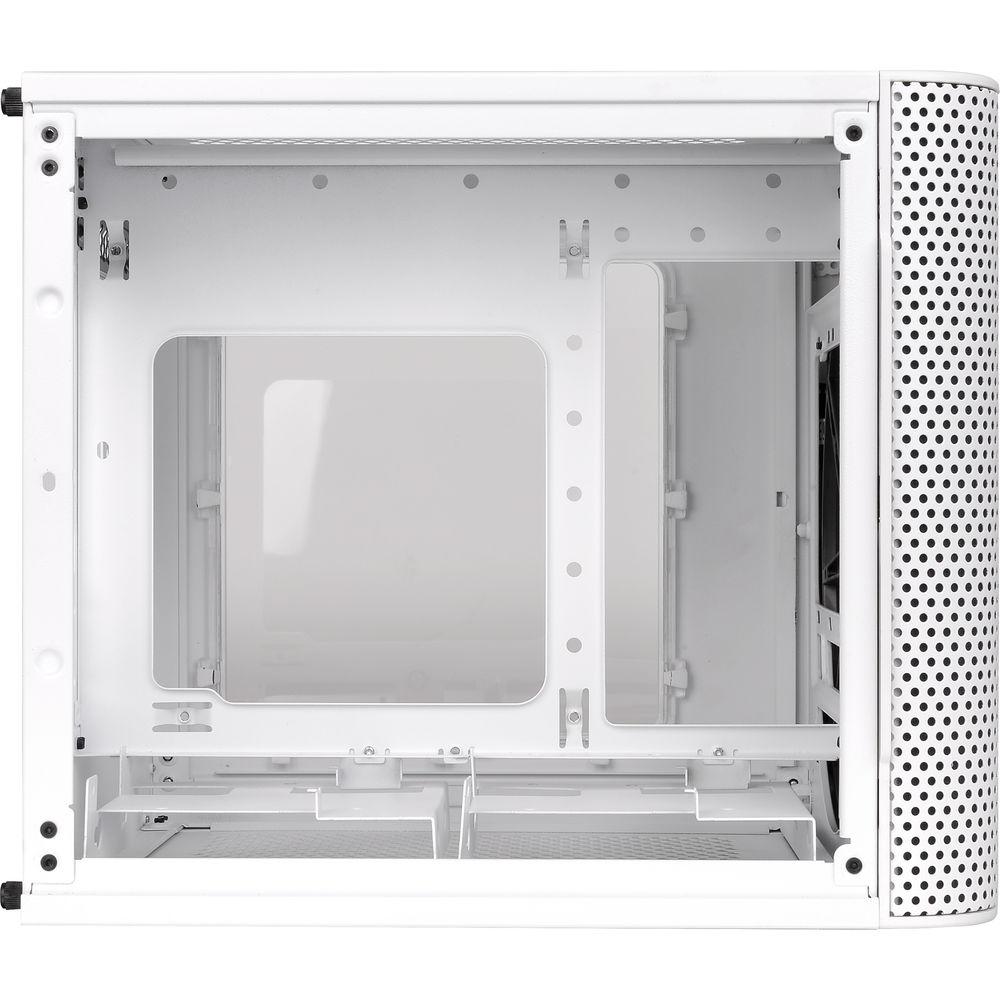

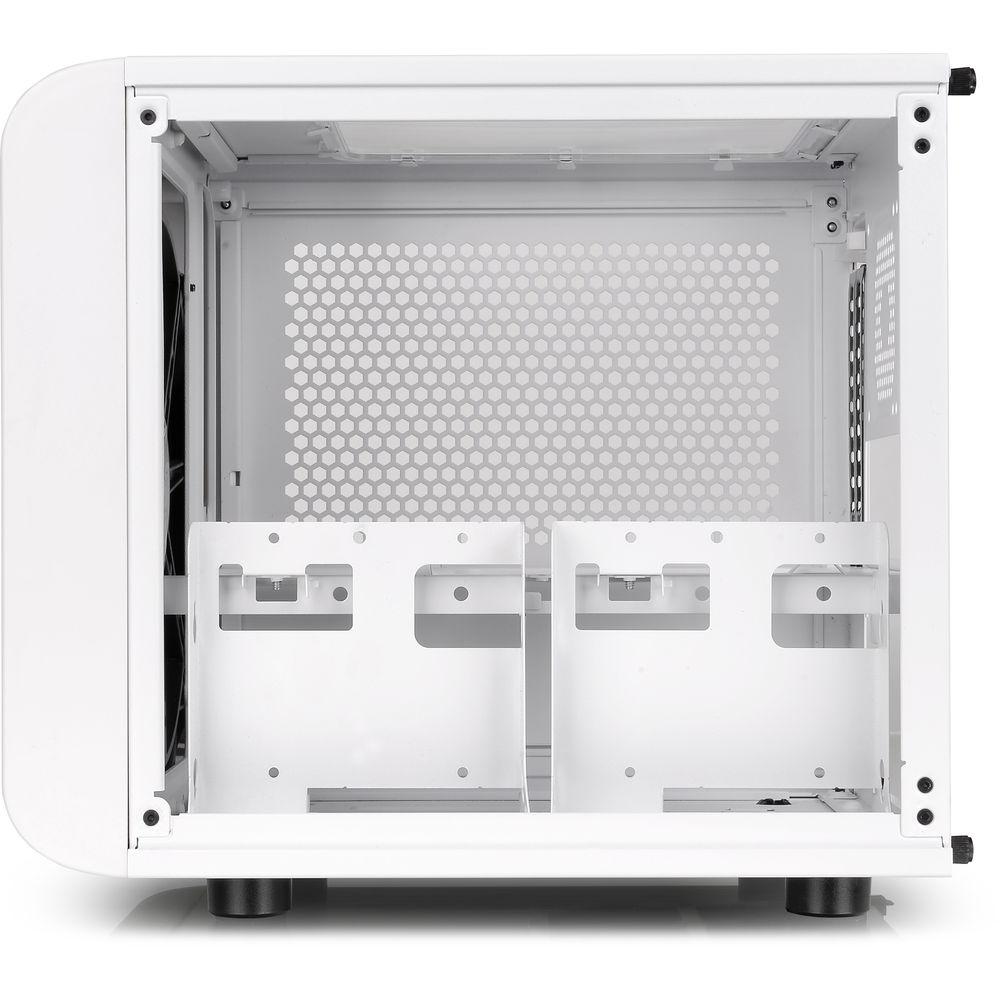

- Designed with a high-end system in mind, the Core V1 can fit four data storage drives, a dual-expansion slot graphics card up to 10.2" long, a CPU cooler up to 140mm tall, and a PSU up to 180mm long, while still offering 80mm of cable management space.
UPC: 841163062333 In the Box Thermaltake Core V1 Mini-Tower Case (Snow Edition) Screw Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Core V1 Mini-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CA-1B8-00S6WN-01 Specs | | | Motherboard Support | Mini-ITX | | Internal Drive Bays | 2 x 3.5"
2 x 2.5" | | Maximum GPU Length | 11.2" / 28.5 cm | | CPU Cooler Height | 5.5" / 14 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.9" / 20 cm | | | | Fan Mounting (Rear) | 2 x 80 mm
| | Fans Included (Front) | 1 x 200 mm (800 rpm) | | Maximum Radiator Size (Front) | 140 mm | | Noise Level | 13 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 10.9 x 10.2 x 12.4" / 276.0 x 260.0 x 316.0 mm | | Weight | 7.2 lb / 3.3 kg | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 14.9 x 12.9 x 12.8" |
