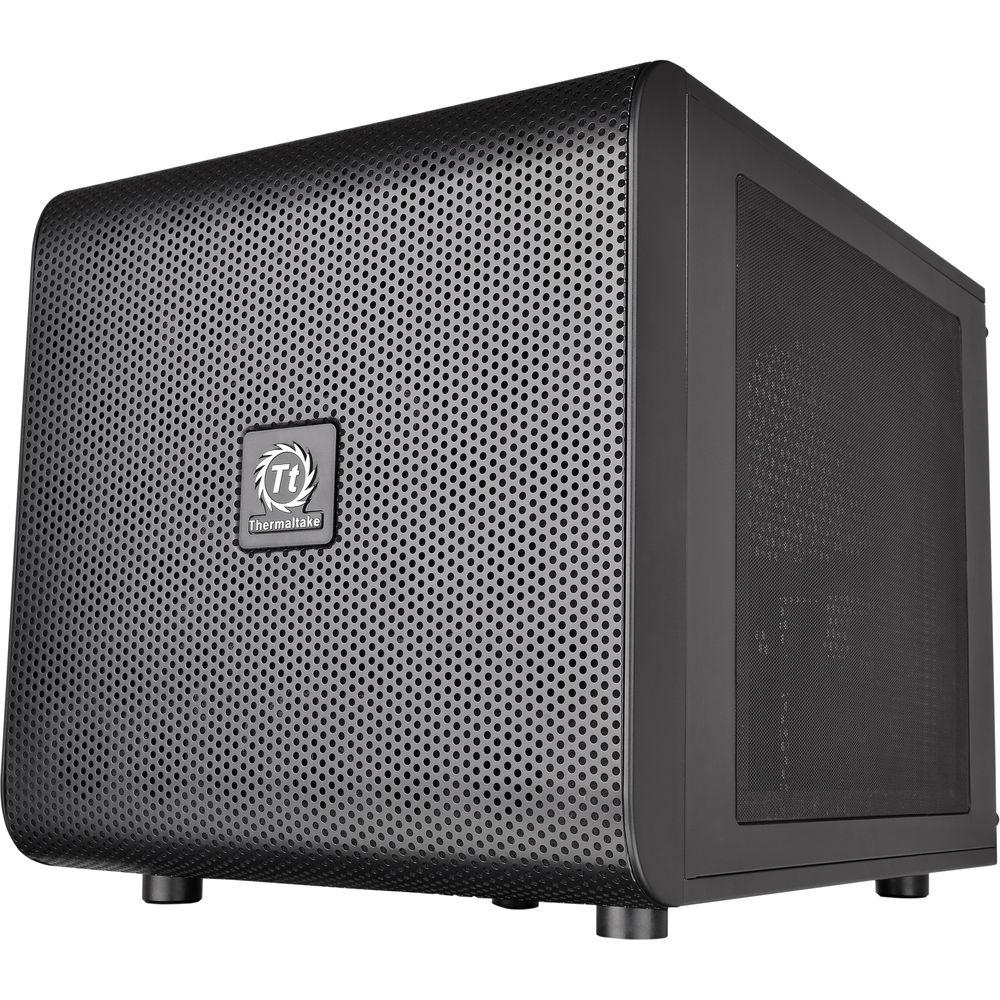

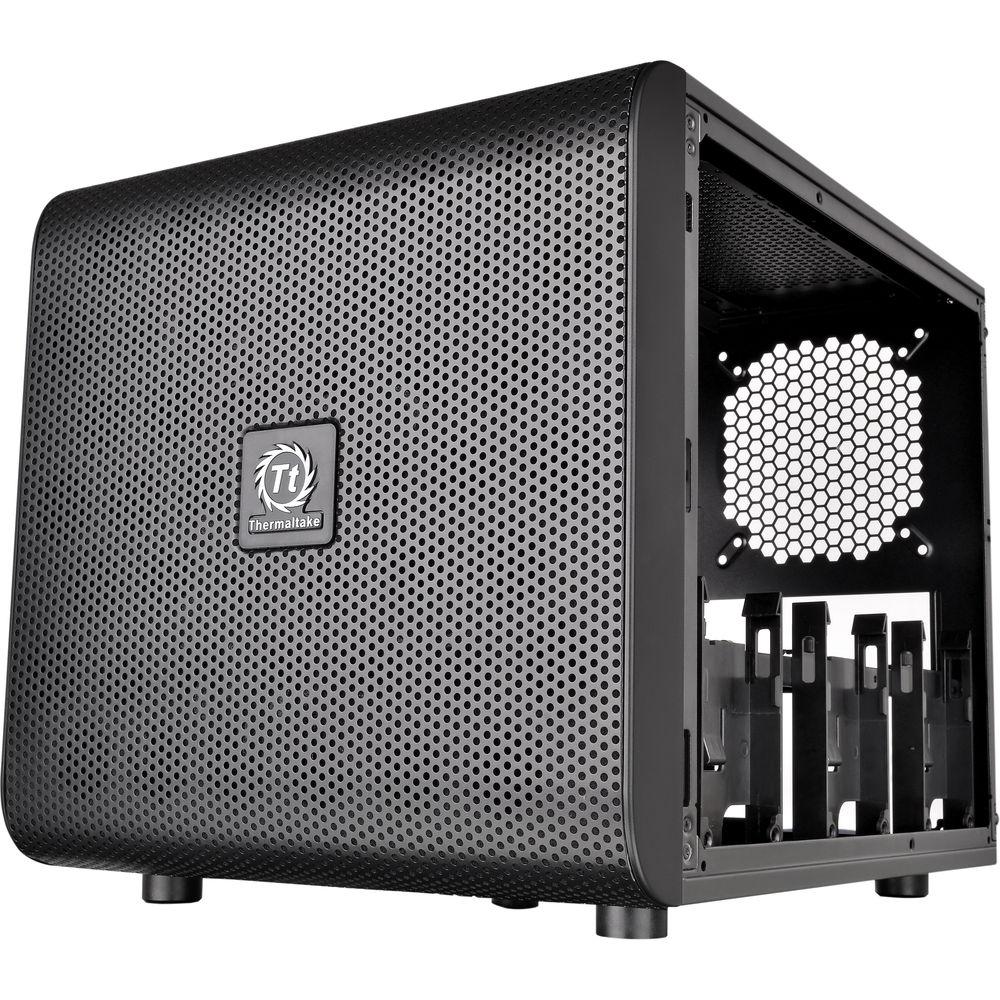

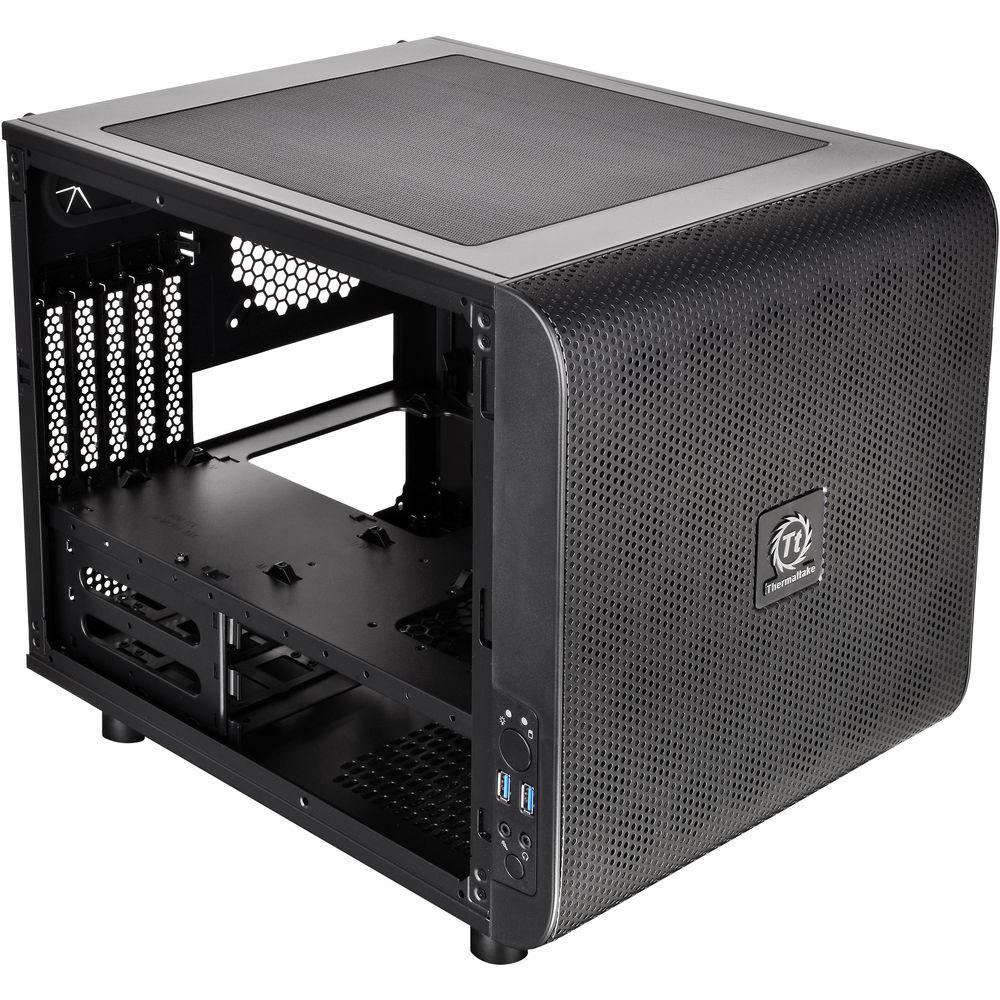

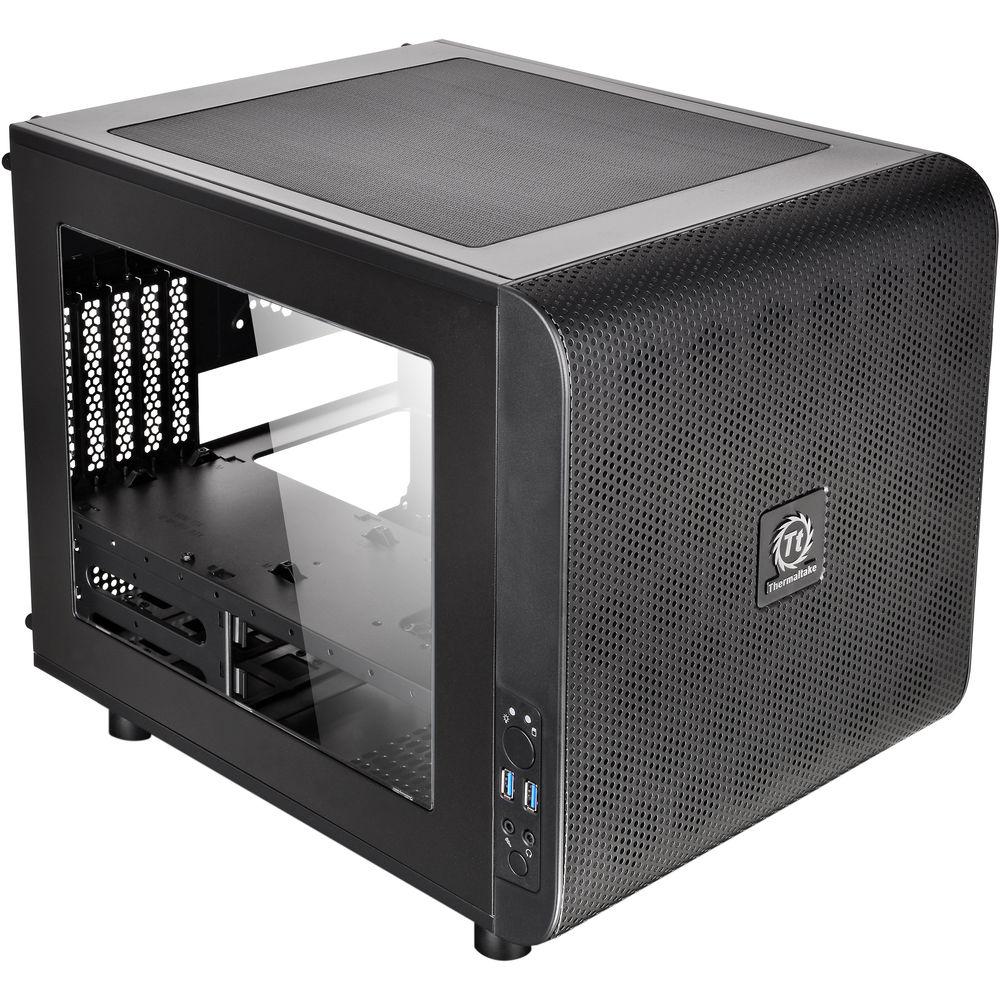

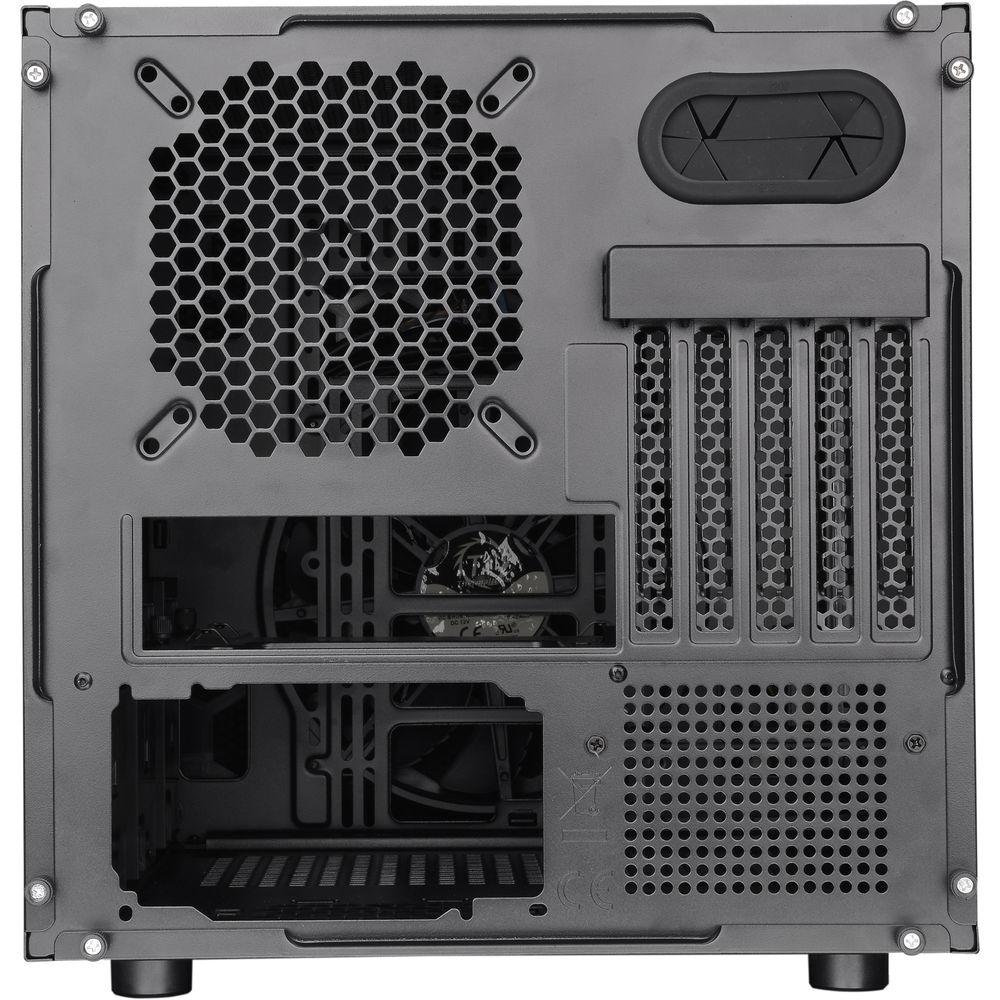

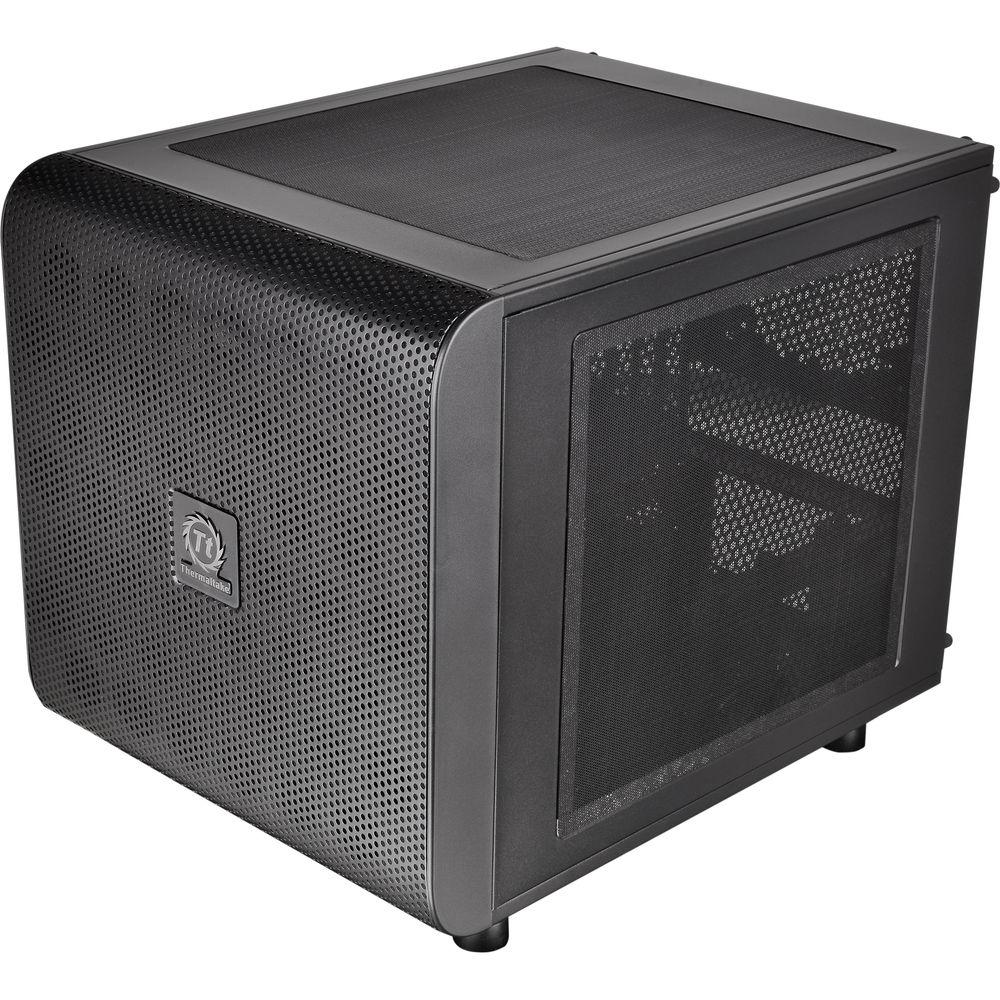

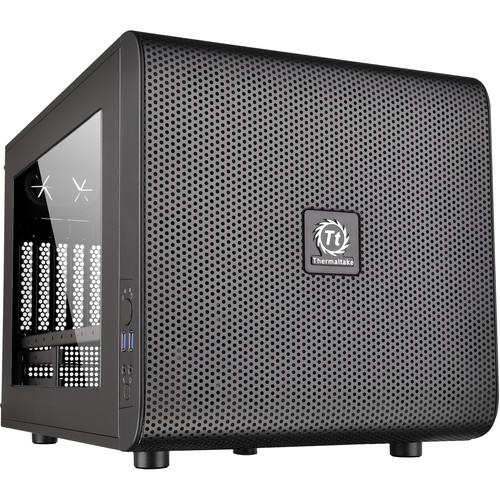

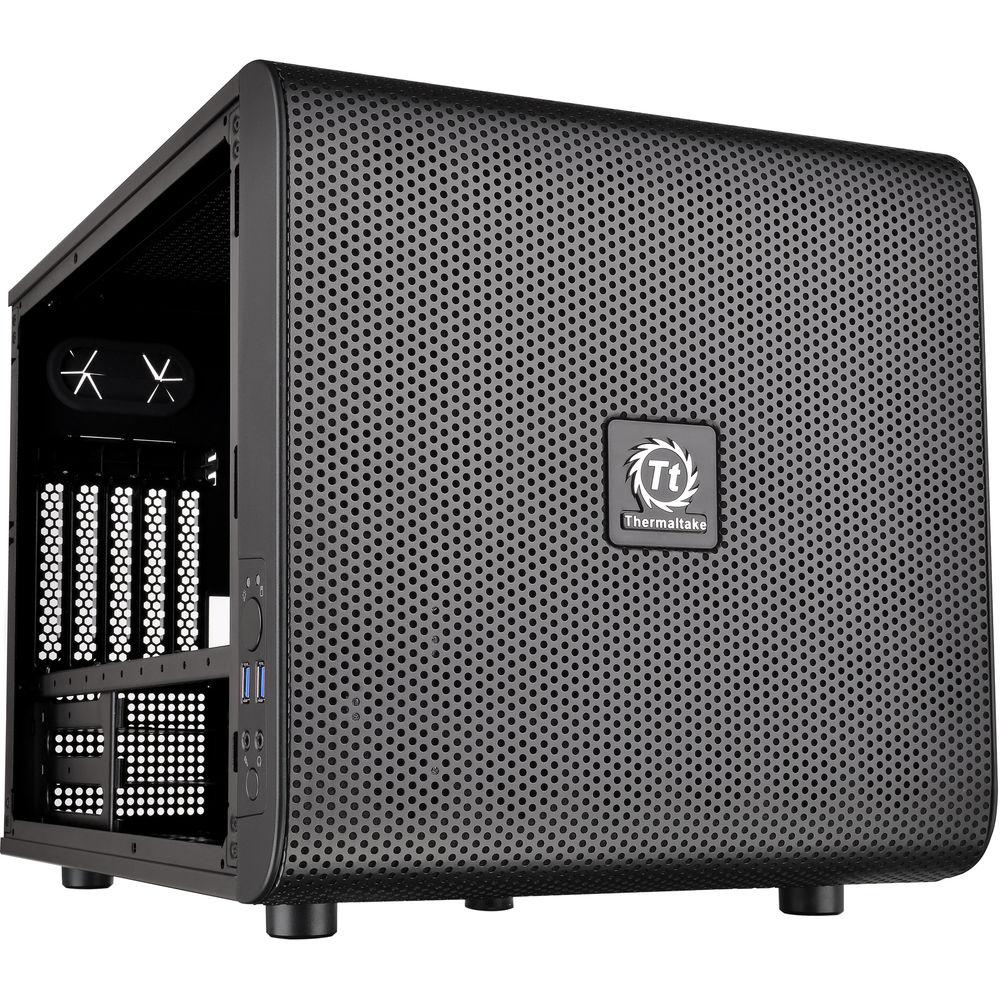

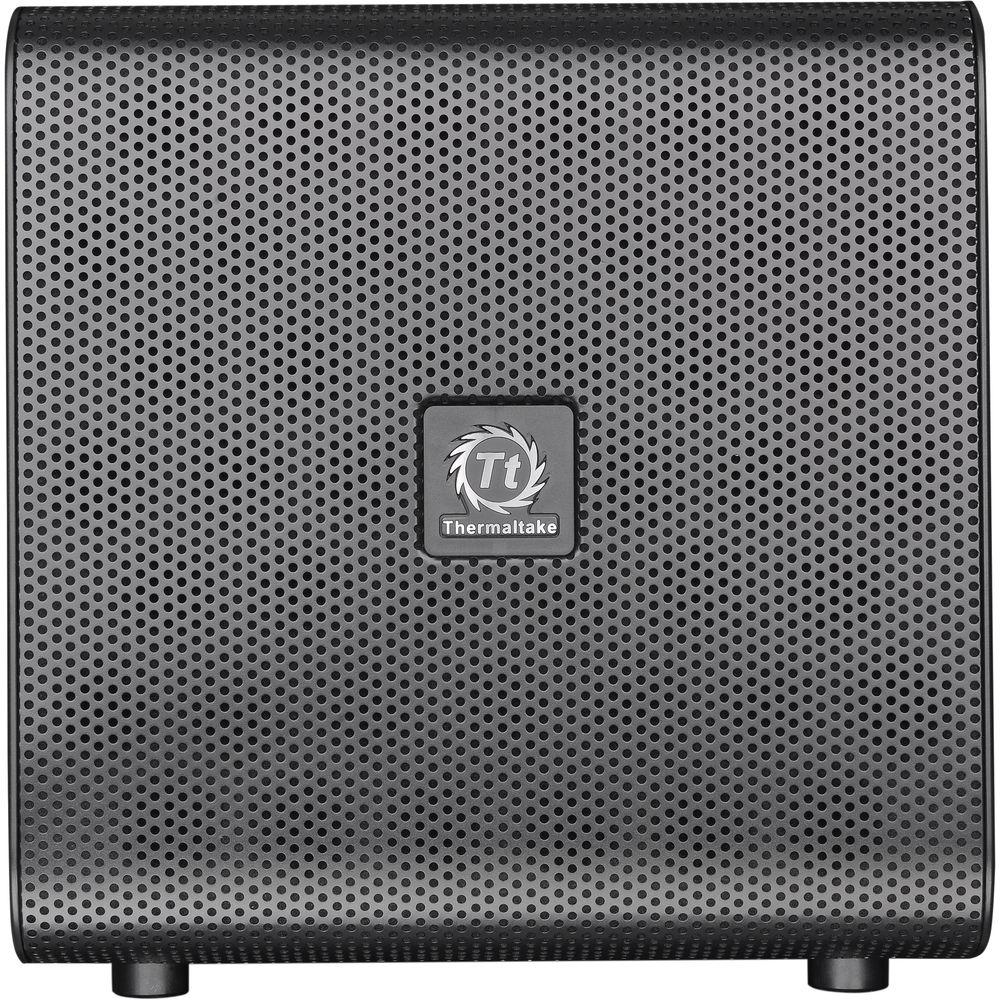

Product description The black Core V21 Micro Chassis from Thermaltake is a quadrate micro M-ATX-based chassis that offers an endless stackable and flexible thermal solution. It allows external modular upgrades to create dual systems. It is designed such that the motherboard can be installed in either a vertical or a horizontal orientation. You can customize the chassis and a 7.9" fan on the front panel ensures that the Core V21 delivers enhanced cooling performance. A removable 2.5"/3.5" drive device rack increases interior space when needed for enhanced cooling performance or liquid systems build. The Core V21 also has the ability to accommodate various overclocking components to boost performance. - Vertical or Horizontal Motherboard Placement
- The Core V21 is designed such that the motherboard can be installed in either a vertical or a horizontal orientation. It allows customization to the chassis ensuring enhanced cooling performance. A removable PSU dust filter is embedded in the bottom panel of the chassis. Additionally, shockproof rubber gaskets on the PSU bracket help to minimize noise during operation.
- Stackable and Flexible Thermal Solution
- This expandable system allows you to incorporate modular upgrades externally. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even create dual systems. The maximum radiator length supported is 23.6" at the front of the stack.
- Expansion
- Designed for high-end gaming system compatibility, the Core V21's modular drive racks allow gamers to easily install up to six data storage devices, a dual expansion slot VGA up to 13.8" in length, and a tower CPU cooler up to 7.3" in height. Even with a high-wattage PSU of up to 7.9" in length, there is still plenty of space available for cable management. Moreover, two 9.4" radiators can be installed on top of the chassis, delivering enhanced cooling performance.
- Optimized Ventilation
- The Core V21 offers various mounting points to support all types of cooling systems, including DIY/AIO liquid-cooling systems and air-cooling units. A large 7.9" fan is preinstalled on the front to guarantee that any type of gaming system can be accommodated.
- Chambers Concept

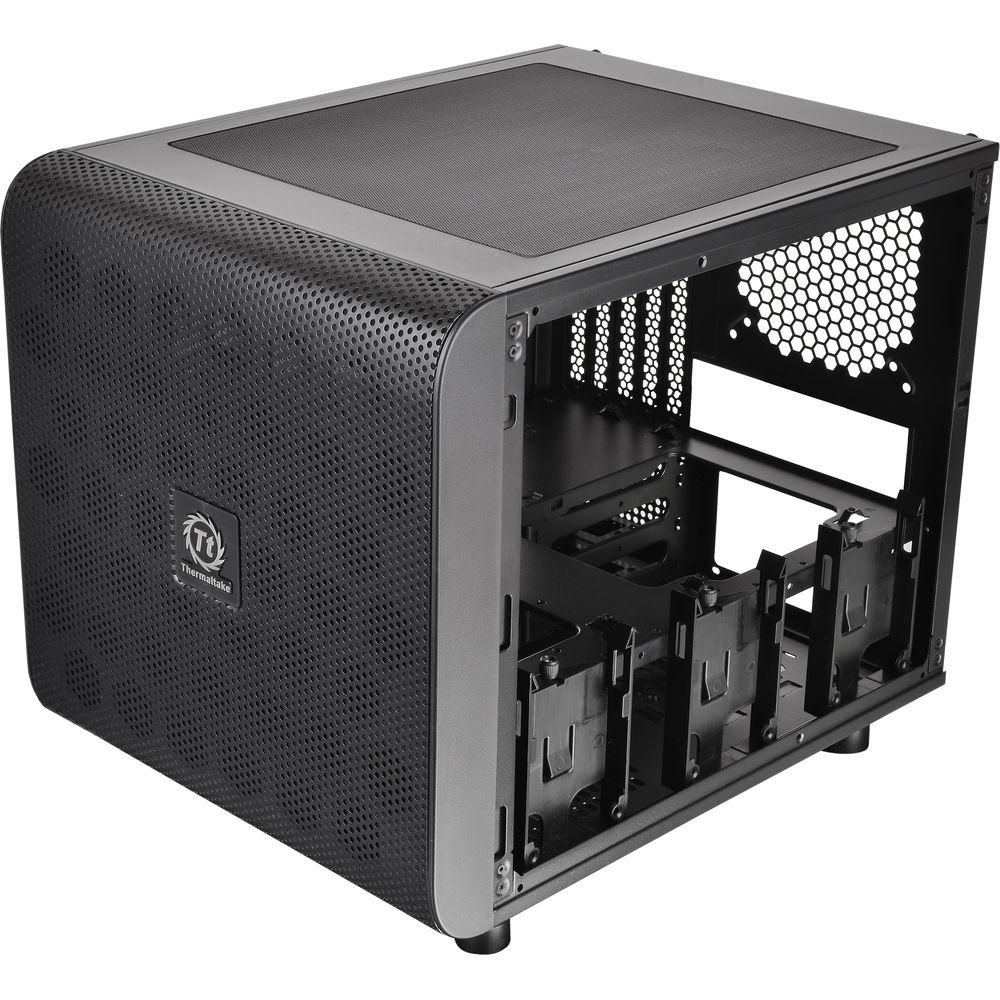

- The Core V21 is optimized for space management. It is divided into two main chambers. The upper chamber is made for cooling performance and efficiency, while the lower one is made for PSU and drive bays. Removable 2.5"/3.5" drive device racks, means more interior space when needed for advanced cooling performance or liquid systems build.
UPC: 841163060001 In the Box Thermaltake Core V21 Micro Chassis (Black) 4 x Screws # 6-32 x 6mm Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Core V21 Micro Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CA-1D5-00S1WN-00 Specs | | | Motherboard Support | Micro-ATX, Mini-ITX | | Internal Drive Bays | 3 x 2.5"
3 x 2.5" | | Expansion Slots | 5 x Full Height | | Maximum GPU Length | 13.8" / 35.1 cm | | CPU Cooler Height | 7.3" / 18.5 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.9" / 20 cm | | | | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Side) | 2 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Top) | 4 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | 2 x 120 mm
| | Fans Included (Front) | 1 x 200 mm (800 rpm) | | Maximum Radiator Size (Front) | 240 mm | | Maximum Radiator Size (Rear) | 120 mm | | Maximum Radiator Size (Side) | 280 mm | | Maximum Radiator Size (Top) | 480 mm | | Noise Level | 13 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 12.6 x 13.2 x 16.7" / 320.0 x 335.3 x 424.2 mm | | Weight | 14.3 lb / 6.5 kg | | | | Package Weight | 18.4 lb | | Box Dimensions (LxWxH) | 19.528 x 15.748 x 15.512" |
