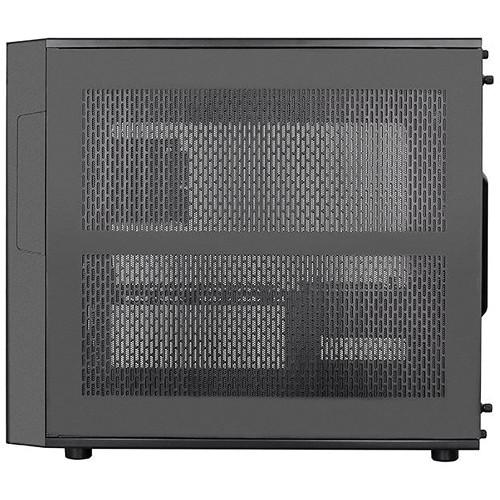

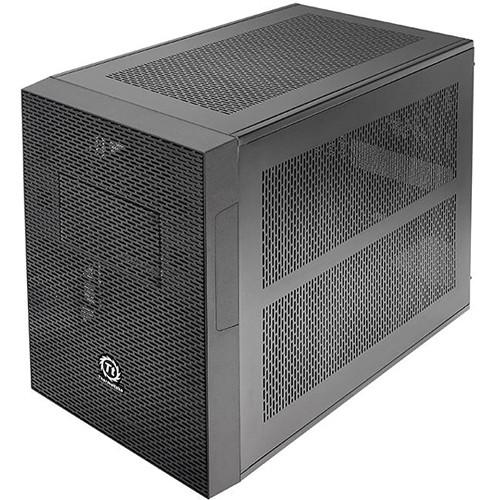

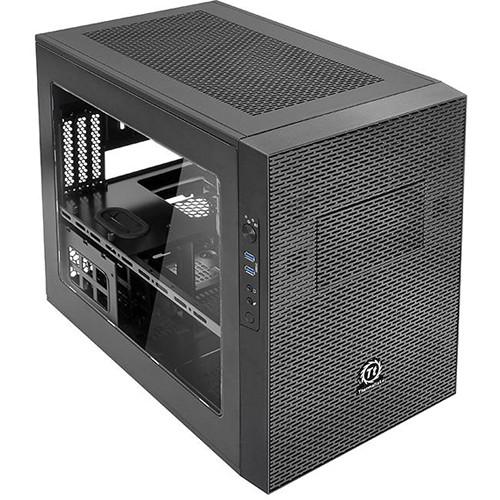

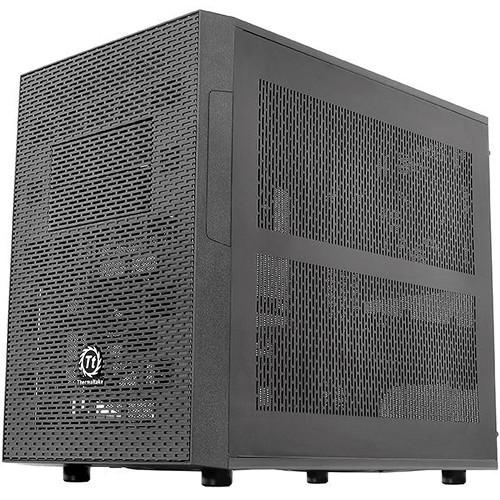

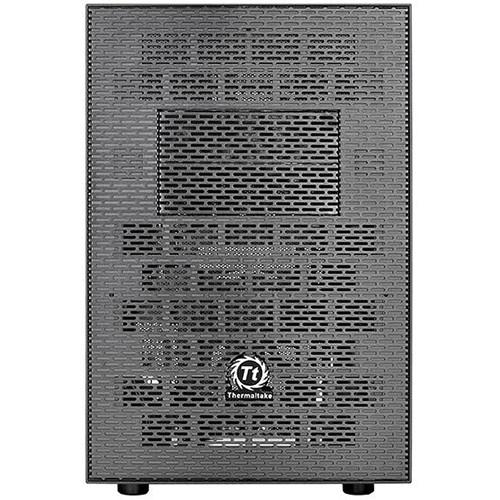

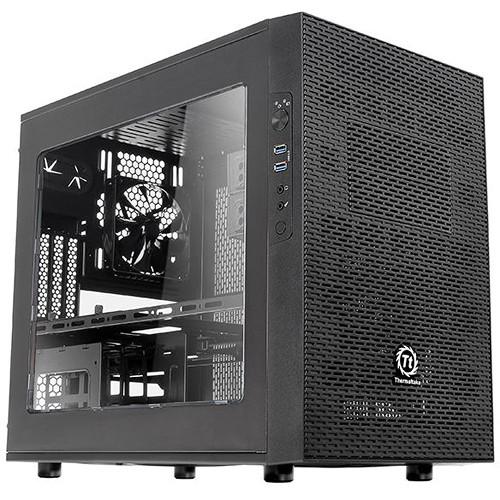

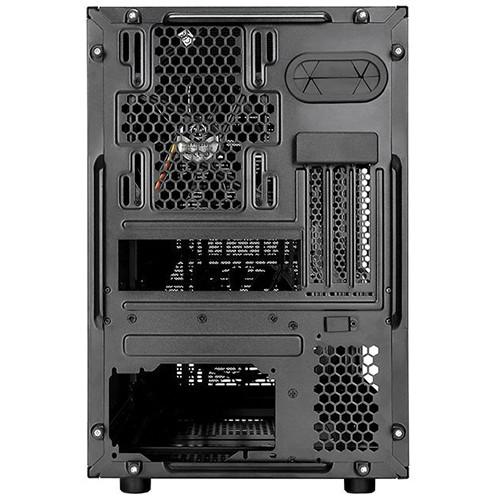

User Manual for Thermaltake Core X1 ITX Cube Chassis Click to enlarge the picture
Contents of the user manual for the Thermaltake Core X1 ITX Cube Chassis
- Product category: Desktop Computer Cases Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Desktop Computer Cases
 |
User manual for the Thermaltake Core X1 ITX Cube Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|
Product description The black Core X1 ITX Cube Chassis from Thermaltake is a cube case offering stackable capacity and expandability to create liquid cooling systems, utilize as a file server, as well as to accommodate dual systems. You can customize the chassis with an interchangeable window and I/O panel design. The Core X1 delivers enhanced cooling performance with compatibility for extensive DIY/AIO LCS and overclocking components. Designed for high-end gaming system compatibility, the Core X1's modular drive racks allow gamers to install up to six data storage devices with triple PCI configuration space. The Core X1's cooling ability offers fan brackets with various mounting points to support any type of gaming system that can be accommodated, including DIY/AIO liquid-cooling systems and air-cooling units. Two 120mm fan are preinstalled on the front and rear to reassure and guarantee the flow of aeration. The fan brackets can either be adjusted for 120mm, 140mm, or 220mm fans on the top panel. - Stackable
- The Core X1 with its stacking design offers an expandable system allowing you to incorporate external modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even create dual systems, thereby enabling a dedicated top/bottom set-up for cooling. When stacked, the maximum radiator length supported is 21.3" on the front side.
- Expansion
- Designed for high-end gaming system compatibility, the Core X1's modular drive racks allow gamers to install up to six data storage devices with triple PCI configuration space, VGA of up to 15.7" in length, and a tower CPU cooler as high as 7.9". Even with a high-wattage PSU stretching to 8.7" in length, it still leaves plenty of space for cable management.
- Ventilation
- The Core X1's cooling ability offers fan brackets with various mounting points to support any type of gaming system that can be accommodated, including DIY/AIO liquid-cooling systems and air-cooling units. Two 120mm fan are preinstalled on the front and rear to reassure and guarantee the flow of aeration. The fan brackets can either be adjusted for 120mm, 140mm, or 220mm fans on the top panel.
- Chambers Concept
- Optimized for space management, the Core X1 is divided into two main chambers, the upper chamber is made for cooling performance and better efficiency, while the lower one is made for PSU and drive bays. With the removable 2.5"/3.5" drive racks, there is plenty of flexibility to gain the maximum interior space when needed for advanced cooling performance or liquid systems build.
- Modular Design
- A "2+4" drive bay concept design for storage devices makes setup easy and flexible. In addition, a customizable 5.25" and 3.5" drive bay feature enables users to interchange the 3.5" hard-drive cages to suit their particular needs.

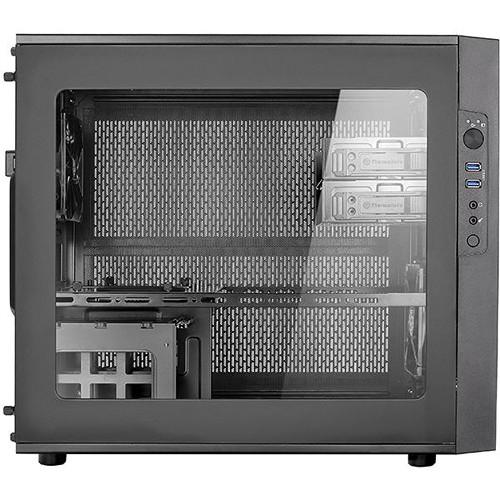

- Interchangeable Window and I/O Panel
- You can customize the chassis for the enhanced viewing presentation with an interchangeable window and I/O panel design.
UPC: 841163060032 In the Box Thermaltake Core X1 ITX Cube Chassis (Black) 4 x＃6-32 x 6mm Screws 2 x PSU Rubbers 16 x＃6-32 x 5mm Screws 16 x M3 x 6mm Screws 4 x Ø5 x 10mm Screws 4 x＃6-32 x 33mm Screws 2 x Optical Disk Drive Plate 4 x Cable Ties 2 x＃6-32 x 15mm Screws 2 x Stacking Gaskets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Core X1 ITX Cube Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CA-1D6-00S1WN-00 Specs | | | Motherboard Support | Mini-ITX | | External Drive Bays | 2 x 5.25" | | Internal Drive Bays | 3 x 2.5" | | Additional Drive Mounting | 1 x 2.5" (Motherboard Tray) | | Expansion Slots | 3 x Full Height | | Maximum GPU Length | 11" / 27.9 cm | | CPU Cooler Height | 7.9" / 20 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 8.7" / 22 cm | | | | Fan Mounting (Front) | 2 x 120 mm
| | Fan Mounting (Top) | 3 x 120 mm
Or
2 x 140 mm
Or
2 x 200 mm
| | Fan Mounting (Bottom) | 1 x 120 mm
| | Fans Included (Front) | 1 x 120 mm (1000 rpm) | | Fans Included (Rear) | 1 x 120 mm (1000 rpm) | | Maximum Radiator Size (Front) | 280 mm | | Maximum Radiator Size (Rear) | 140 mm | | Maximum Radiator Size (Top) | 360 mm | | Noise Level | 16 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 11.0 x 16.8 x 18.5" / 279.4 x 426.7 x 469.9 mm | | Weight | 19.9 lb / 9.0 kg | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 22.4 x 18.9 x 14.5" |
