User Manual for Thermaltake Core X5 Tempered Glass Edition Full-Tower Case Click to enlarge the picture
Contents of the user manual for the Thermaltake Core X5 Tempered Glass Edition
- Product category: Desktop Computer Cases Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Desktop Computer Cases
 |
User manual for the Thermaltake Core X5 Tempered Glass Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|

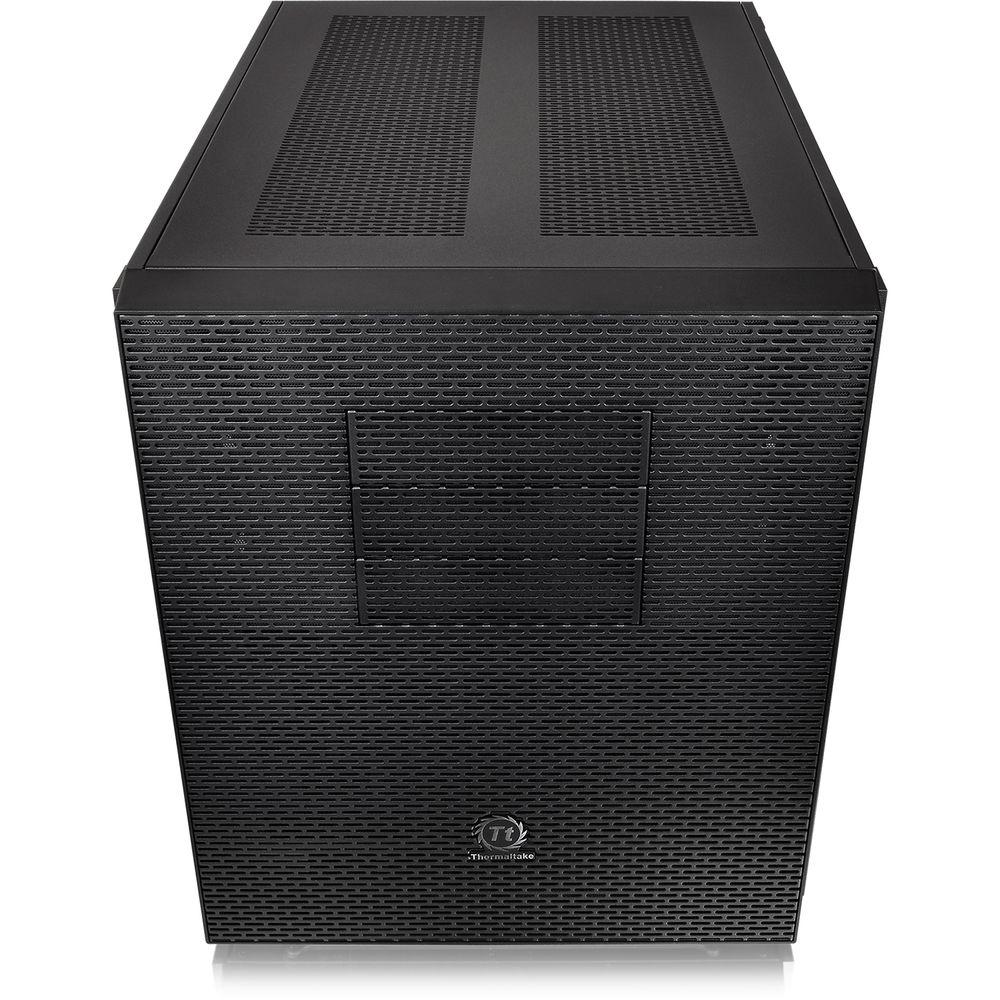

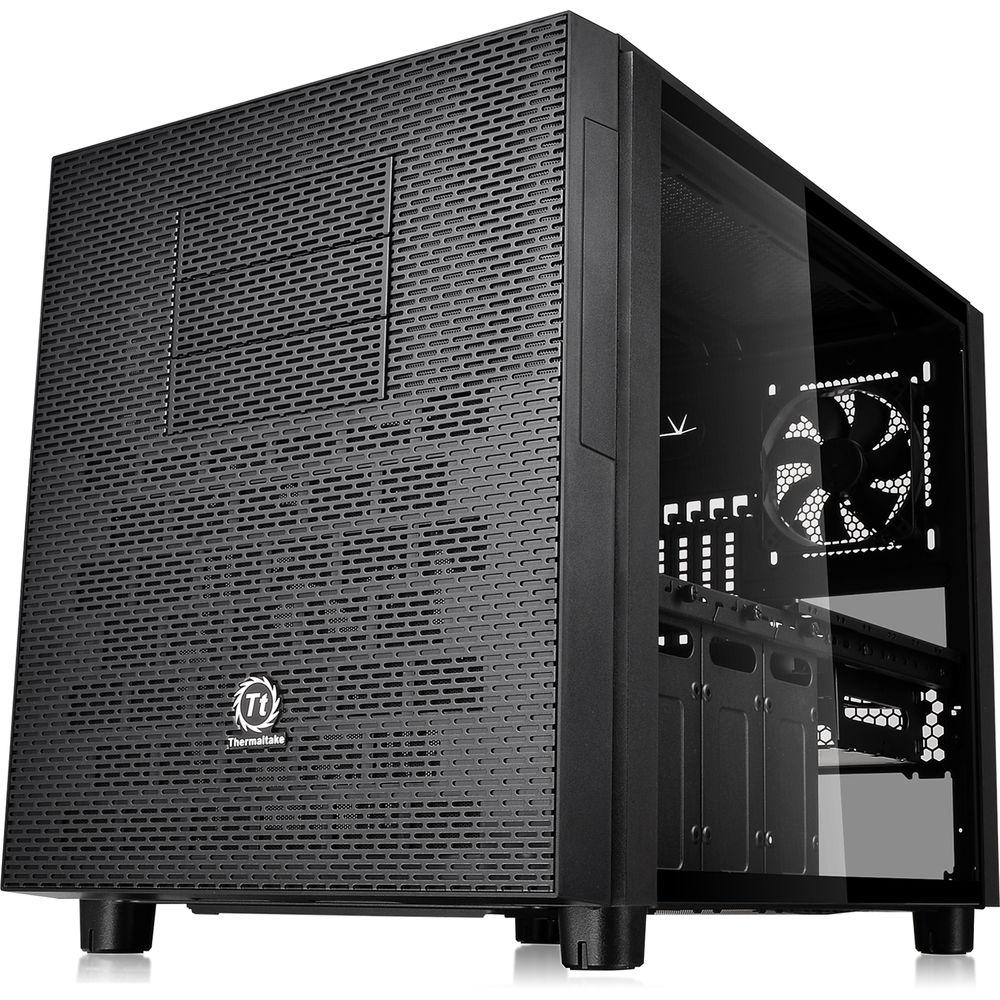

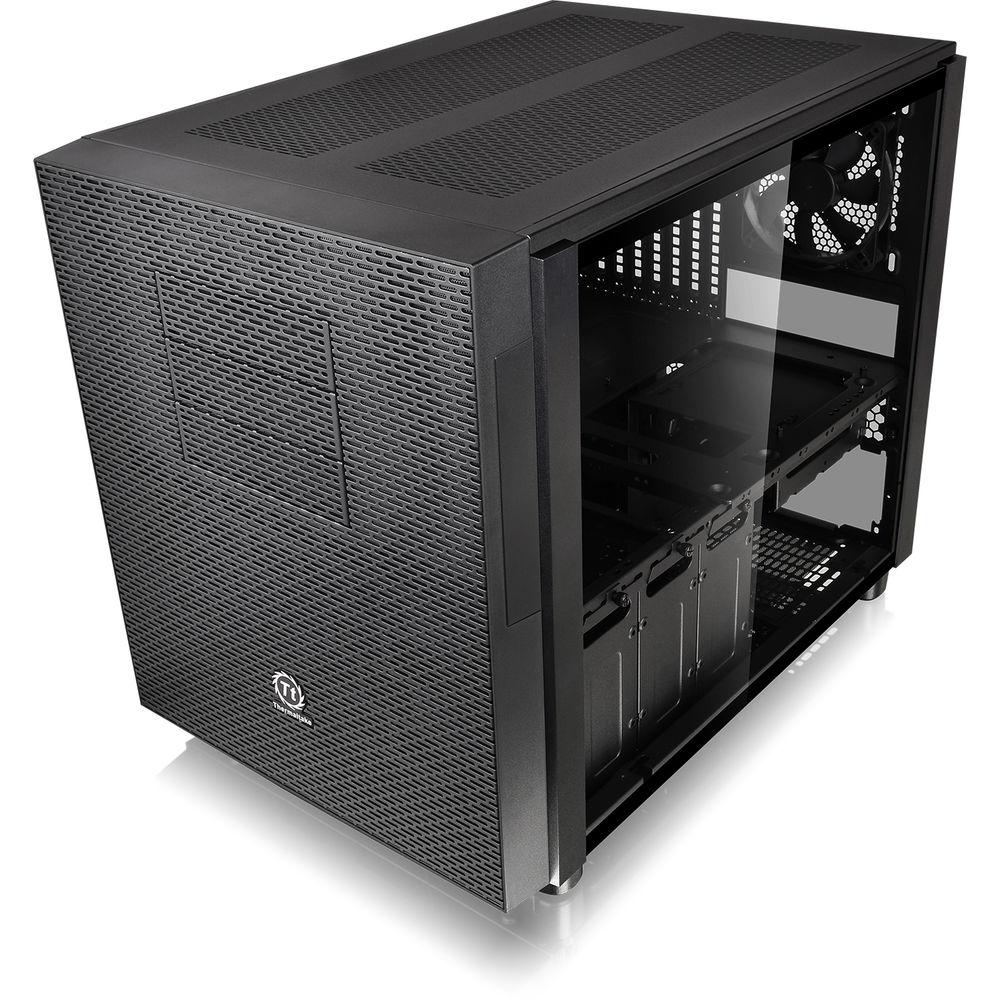

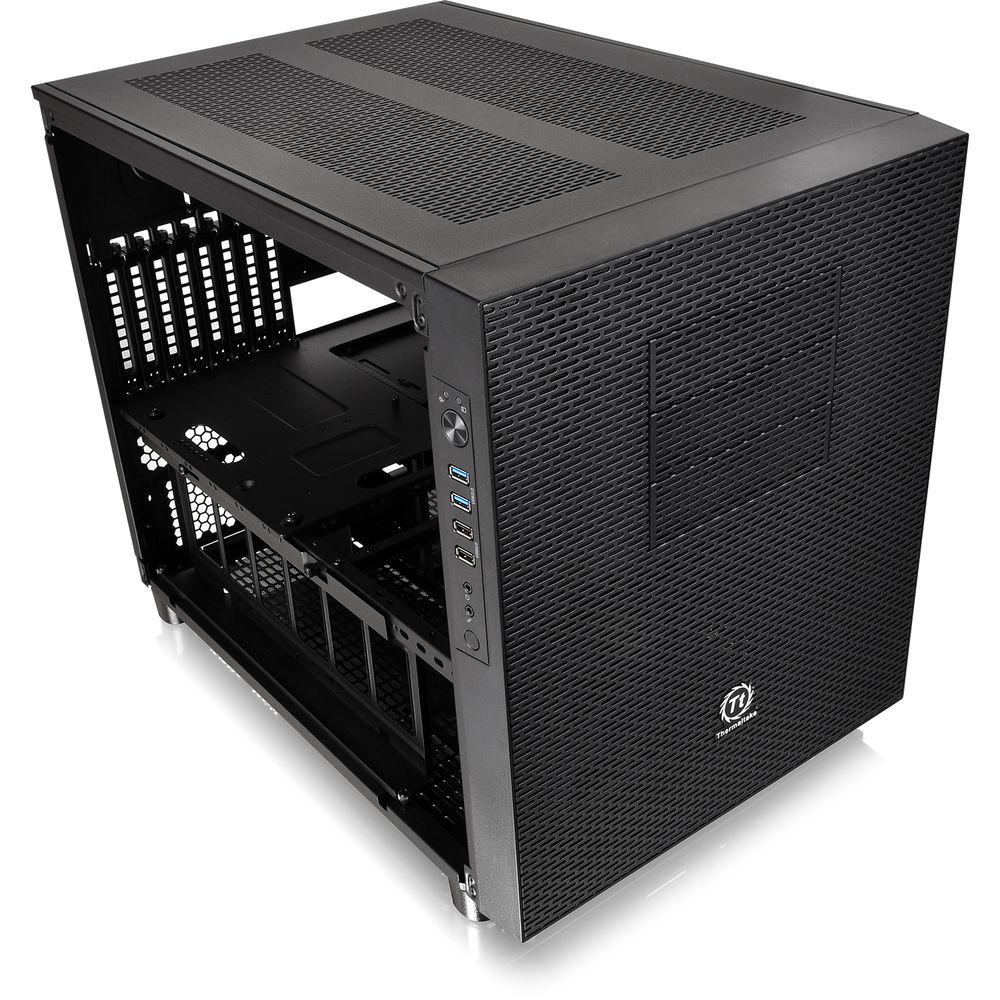

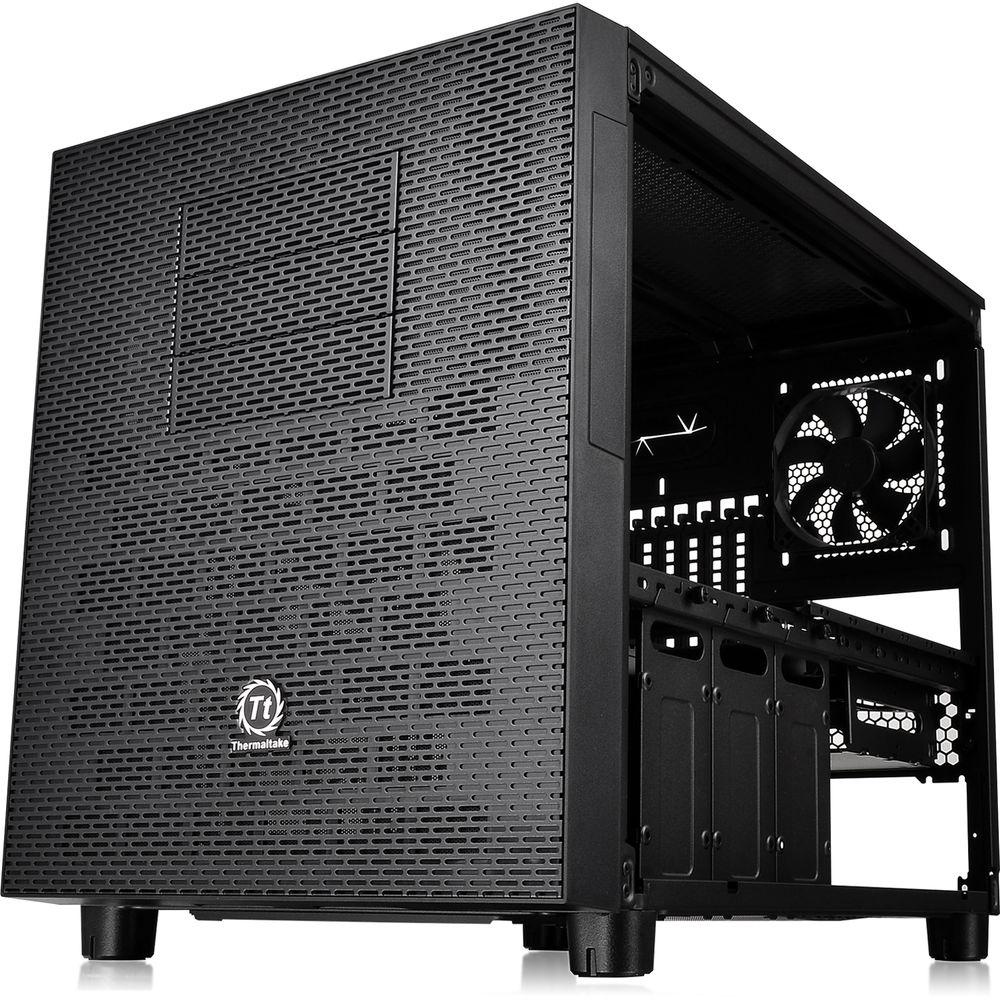

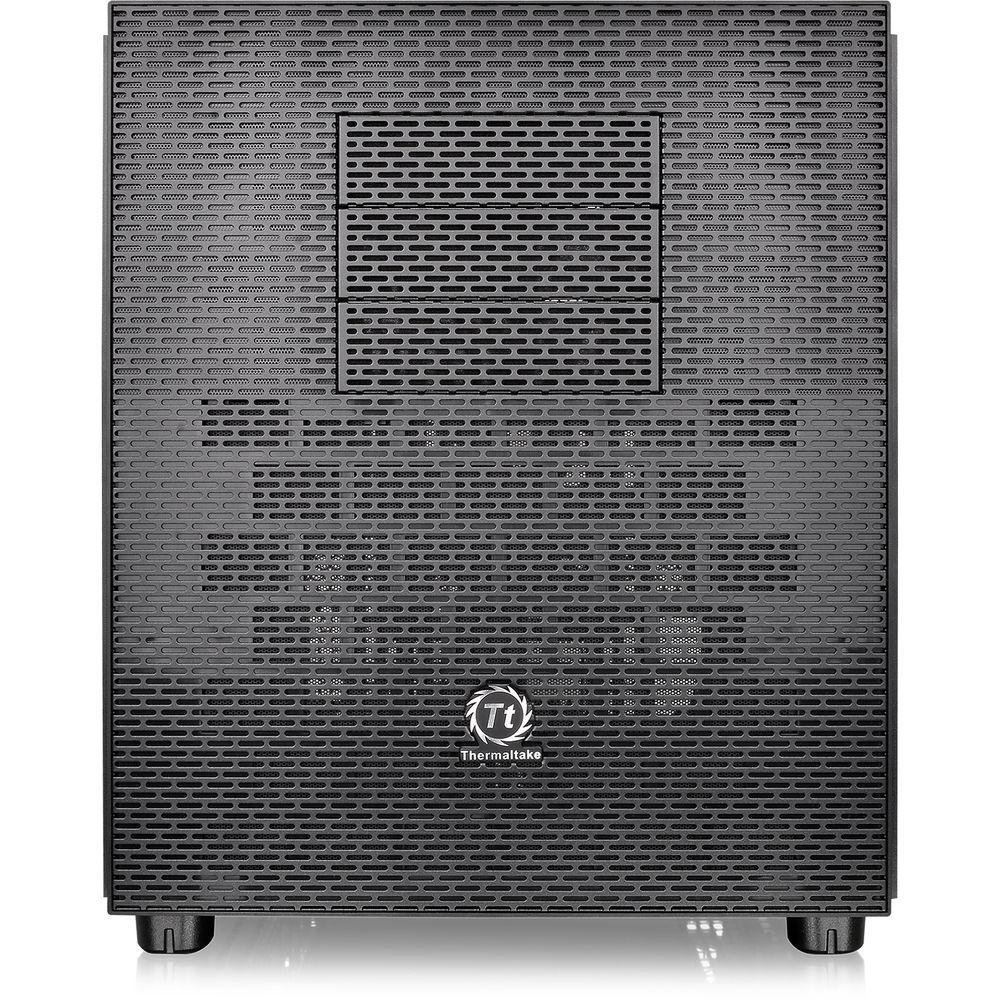

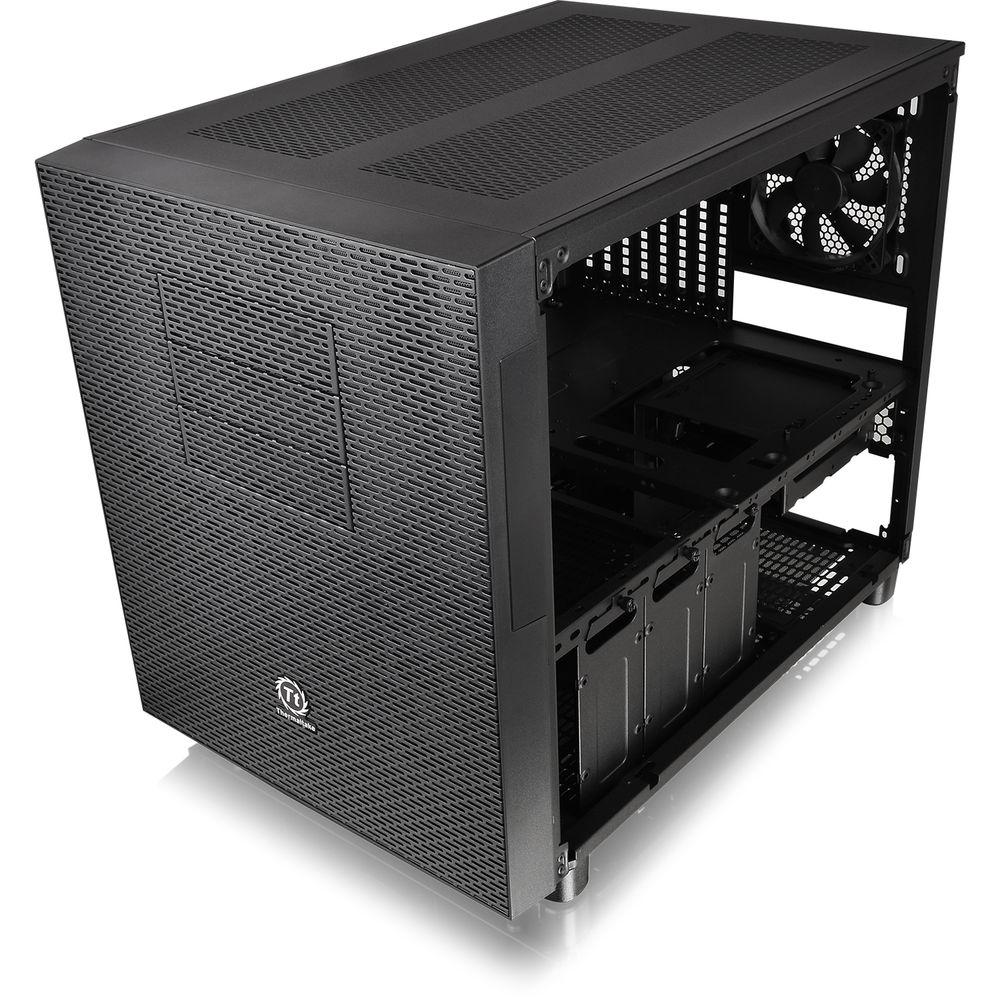

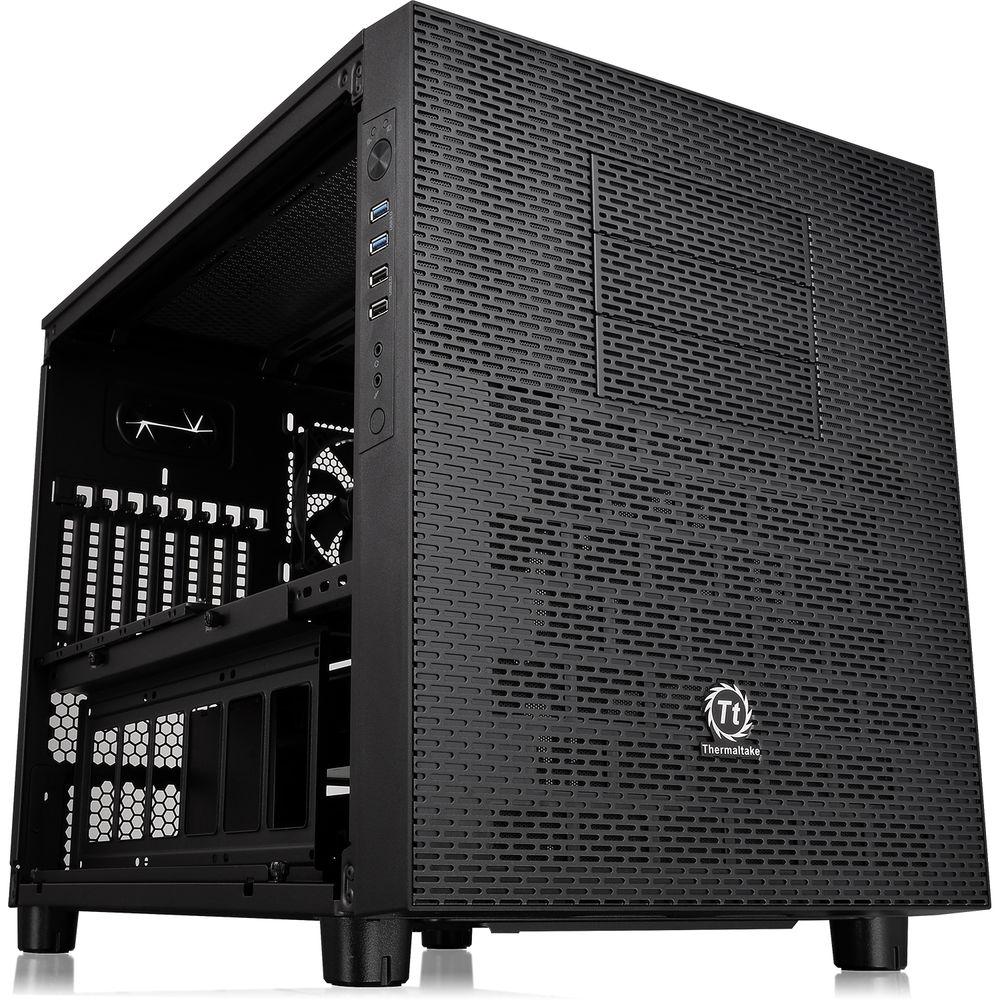

Product description The Core X5 Full-Tower Case from Thermaltake features two tempered-glass side panels that offer a clear view of the chassis' internal components. For cooling your Core X5, Thermaltake includes various mounting points and adjustable brackets for fans ranging from 120, 140, and 200mm in length. Or if you prefer liquid cooling systems, the Core 5 is compatible with AIO/DIY liquid cooling components such as 120mm and 180mm radiators. The Core X5 comes with removable drive bays, capable of holding up to four 2.5" or 3.5" storage drives, while its motherboard tray holds three 2.5" or 3.5" drives.

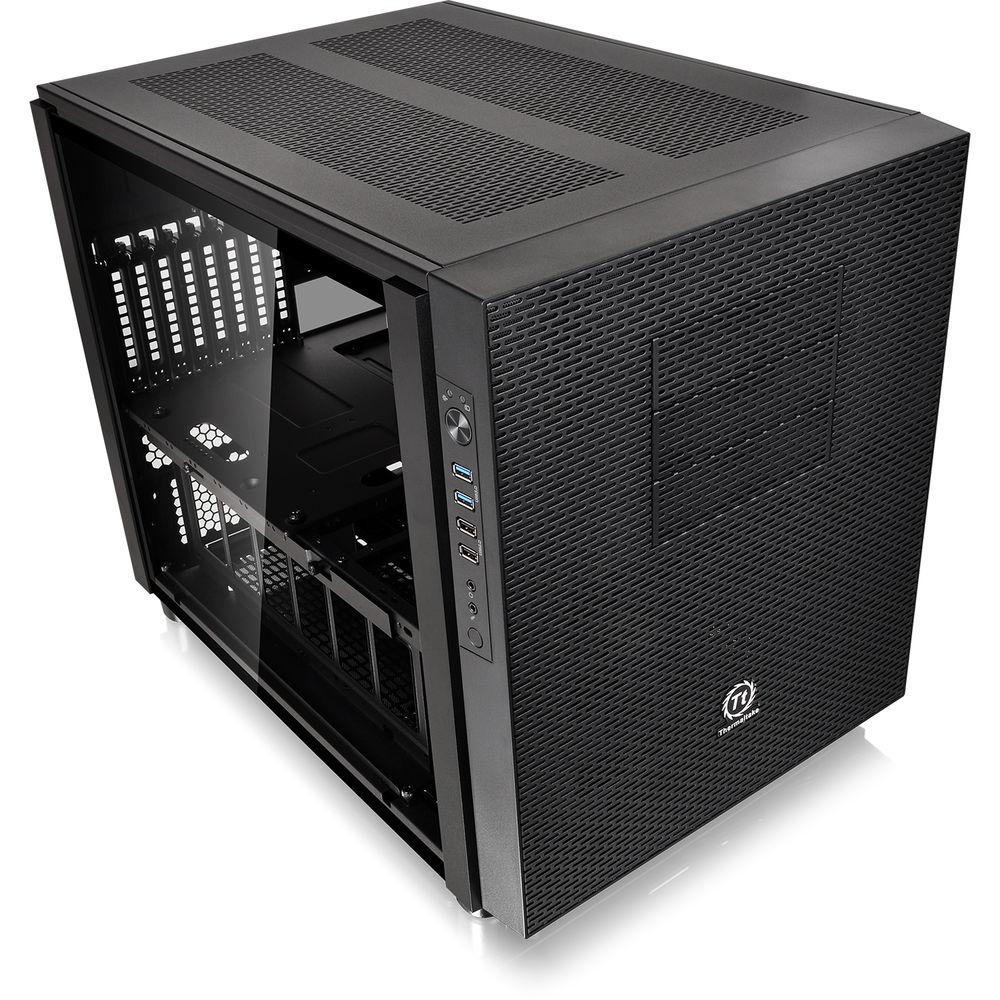

For convenient access to external peripherals like keyboards and computer mice, the Core X5 is equipped with two USB 3.0 and two USB 2.0 ports, as well as a 3.5mm HD audio jack. Moreover, Thermaltake has designed this chassis to support parallel radiator installations alongside the motherboard. - Two Tempered Glass Panels
- Two sides of the Core X5 case feature 4mm tempered-glass panels for a clear view inside the chassis.
- Compatibility
- The Core X5 supports up to E-ATX motherboards and power supplies up to 220mm in length. Furthermore, the drive cage is removable for custom cooling solutions.
- AIO/DIY Liquid Cooling
- Featuring roomy installation space, the Core X5 is capable of running all-in-one or do-it-yourself liquid cooling components. The front can house up to three 120mm or two 180mm radiators, and up to 540mm in length when stacked.
- Advanced Ventilation
- Ventilation grills allow the Core X5 to maximize airflow with various mounting points and fan brackets that are adjustable to 120, 140, and 200mm. The chassis also offers space to attach optional radiators.
- Modular Design
- The Core X5 is a stackable and expandable system that lets users incorporate external modular upgrades. From its panels, racks, brackets, and mounting arrays, the Core X5 supports different build designs with a tool-less drive bay design that allows you to quickly interchange 2.5" and 3.5" hard drives. When stacked together, the chassis can be opened to expand cooling systems or storage solutions.
UPC: 841163066607 In the Box Thermaltake Core X5 Tempered Glass Edition Full-Tower Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Core X5 Tempered Glass Edition Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake Core X5 Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX | | External Drive Bays | None | | Internal Drive Bays | 4 x 2.5/3.5" | | Additional Drive Mounting | 3 x 2.5" (Motherboard Tray) | | Expansion Slots | 8 x Full Height | | CPU Cooler Height | 9.06" / 230 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 8.66" / 220 mm | | | | Fan Mounting (Front) | 3 x 120 mm
Or
2 x 140 mm
Or
1 x 120 mm
| | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Side) | 3 x 120 mm
| | Fan Mounting (Top) | 6 x 120 mm
Or
4 x 140 mm
Or
2 x 200 mm
| | Fan Mounting (Bottom) | 6 x 120 mm
| | Fans Included (Front) | None | | Fans Included (Rear) | None | | Fans Included (Side) | None | | Fans Included (Top) | None | | Fans Included (Bottom) | None | | Maximum Radiator Size (Front) | 1 x 360 mm | | Maximum Radiator Size (Rear) | 1 x 140 mm | | Maximum Radiator Size (Side) | 1 x 360 mm | | Maximum Radiator Size (Top) | 1 x 400 mm | | Maximum Radiator Size (Bottom) | 2 x 360 mm | | Noise Level | 16 to 16 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 2.0)
2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass | | Built-In Lighting | Yes | | Security | None | | Dimensions (W x H x D) | 18.2 x 14.6 x 21.3" / 46.2 x 37.1 x 54.1 cm | | Weight | 29.5 lb / 13.4 kg | | | | Package Weight | 33.95 lb | | Box Dimensions (LxWxH) | 24.5 x 21.0 x 17.6" |
