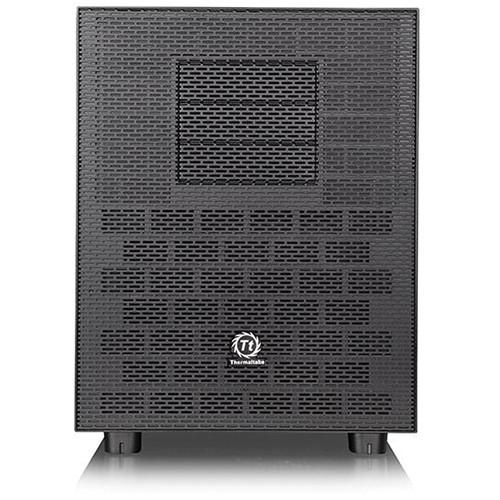

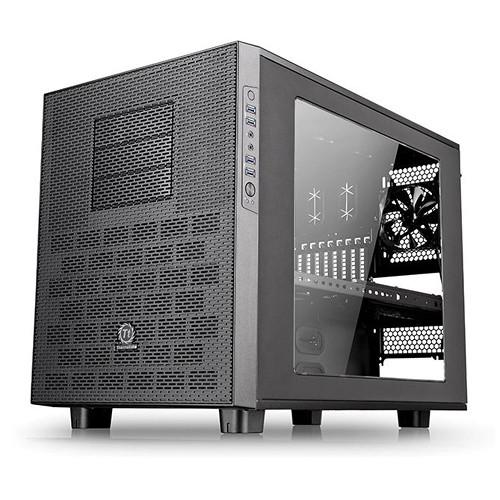

Product description The black Core X9 E-ATX Cube Chassis from Thermaltake is a cube case offering stackable capacity and expandability to create a large liquid cooling system, utilize as a file server, as well as to accommodate dual systems. You can customize the chassis with an interchangeable window and I/O panel design. The Core X9 delivers enhanced cooling performance with compatibility for extensive DIY/AIO LCS and overclocking components. Designed for high-end gaming system compatibility, the Core X9's modular drive racks allow gamers to install up to six data storage devices, a dual expansion slot VGA of up to 23.2" in length, and a tower CPU cooler as high as 9.8". The Core X9's cooling ability offers fan brackets with various mounting points to support any type of gaming system that can be accommodated, including DIY/AIO liquid-cooling systems and air-cooling units. A 7.9" fan is preinstalled on the front panel, and in the rear a 4.7" fan for reliable airflow. The fan brackets can either be adjusted for 4.7", 5.5", or 7.9" fans on the top panel, while there is room for 4.7" and 5.5" fans on the side panel. - Stackable
- The Core X2 with its stacking design offers an expandable system allowing you to incorporate external modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even create dual systems, thereby enabling a dedicated top/bottom set-up for cooling. When stacked, the maximum radiator length supported is 21.3" on the front side.
- Expansion
- Designed for high-end gaming system compatibility, the Core X9's modular drive racks allow gamers to install up to six data storage devices, a dual expansion slot VGA of up to 23.2" in length, and a tower CPU cooler as high as 9.8". Even with a high-wattage PSU stretching to 7.9" in length, it still leaves plenty of space for cable management. In addition, two 18.9" radiators can be installed on top of the chassis, delivering enhanced cooling performance.
- Ventilation
- The Core X9's cooling ability offers fan brackets with various mounting points to support any type of gaming system that can be accommodated, including DIY/AIO liquid-cooling systems and air-cooling units. A 7.9" fan is preinstalled on the front panel, and in the rear a 4.7" fan for reliable airflow. The fan brackets can either be adjusted for 4.7", 5.5", or 7.9" fans on the top panel, while there is room for 4.7" and 5.5" fans on the side panel.
- Chambers Concept
- Optimized for space management, the Core X9 is divided into two main chambers. The upper chamber is made for cooling performance and better efficiency, while the lower one is made for PSU and drive bays. With the removable 2.5"/3.5" drive racks, there is plenty of flexibility to gain the maximum interior space when needed for enhanced cooling performance or liquid systems build.
- Modular Design
- A "3 +9" drive bay concept design for storage devices makes setup easy and flexible. In addition, a customizable 5.25" & 3.5" drive bay feature enables users to interchange the 3.5" hard-drive cages to suit their particular needs.
- Interchangeable Window and I/O Panel
- You can customize the chassis for the enhanced viewing presentation with an interchangeable window and I/O panel design. Side I/O ports include four USB 3.0.
UPC: 841163060056 In the Box Thermaltake Core X9 E-ATX Cube Chassis (Black) 4 x＃6-32 x 6mm Screws 4 x＃6-32 x 6mm Stand-Offs 24 x M3 x 5mm Screws 1 x Nut Setter 10 x＃6-32 x 5mm Screws 28 x M3 x 5mm Screws 4 x Ø5 x 12mm Screws 2 x＃6-32 x 4mm Screws 10 x Cable Ties Buzzer Optical Disk Drive Plate 3 x # 6-32 x 8.5mm Thumb Screws 2 x # 6-32 x 5mm Thumb Screws Case Clamp Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Core X9 E-ATX Cube Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CA-1D8-00F1WN-00 Specs | | | Motherboard Support | E-ATX, ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 3 x 5.25" | | Internal Drive Bays | 6 x 2.5" | | Additional Drive Mounting | 1 x 3.5" (Motherboard Tray)
2 x 2.5" (Motherboard Tray) | | Maximum GPU Length | 15.7" / 39.9 cm | | CPU Cooler Height | 23.2" / 58.9 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 8.7" / 22 cm | | | | Fan Mounting (Front) | 1 x 200 mm
| | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Side) | 4 x 120 mm
Or
3 x 140 mm
| | Fan Mounting (Top) | 8 x 120 mm
Or
6 x 140 mm
Or
2 x 200 mm
| | Fan Mounting (Bottom) | 3 x 120 mm
| | Fans Included (Front) | 1 x 200 mm (800 rpm) | | Fans Included (Rear) | 1 x 120 mm (1000 rpm) | | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 140 mm | | Maximum Radiator Size (Side) | 480 mm | | Maximum Radiator Size (Top) | 2 x 480 mm | | Maximum Radiator Size (Bottom) | 480 mm | | Noise Level | 13 to 16 dBA | | Fan Controller Included | No | | | | Connections | 4 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 15.0 x 19.8 x 25.2" / 381.0 x 502.9 x 640.1 mm | | Weight | 37.5 lb / 17.0 kg | | | | Package Weight | 44.2 lb | | Box Dimensions (LxWxH) | 29.0 x 21.0 x 18.0" |
