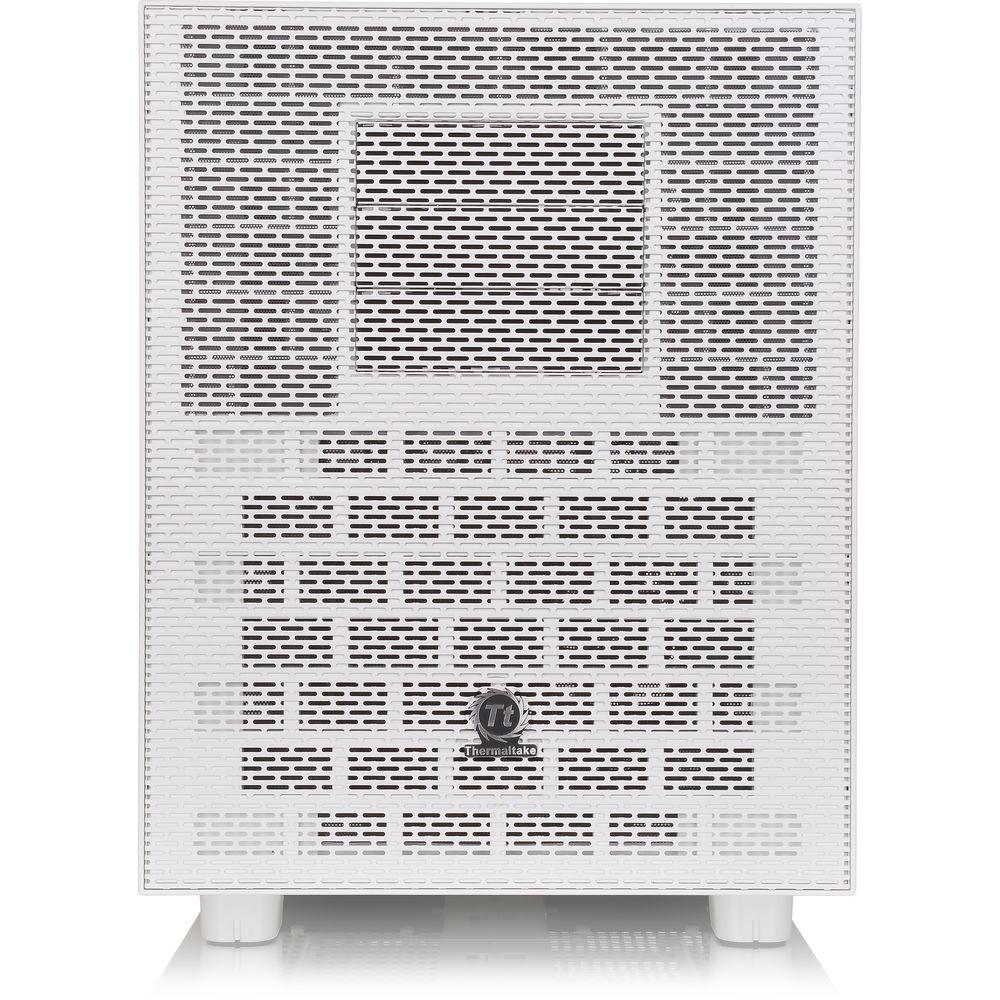

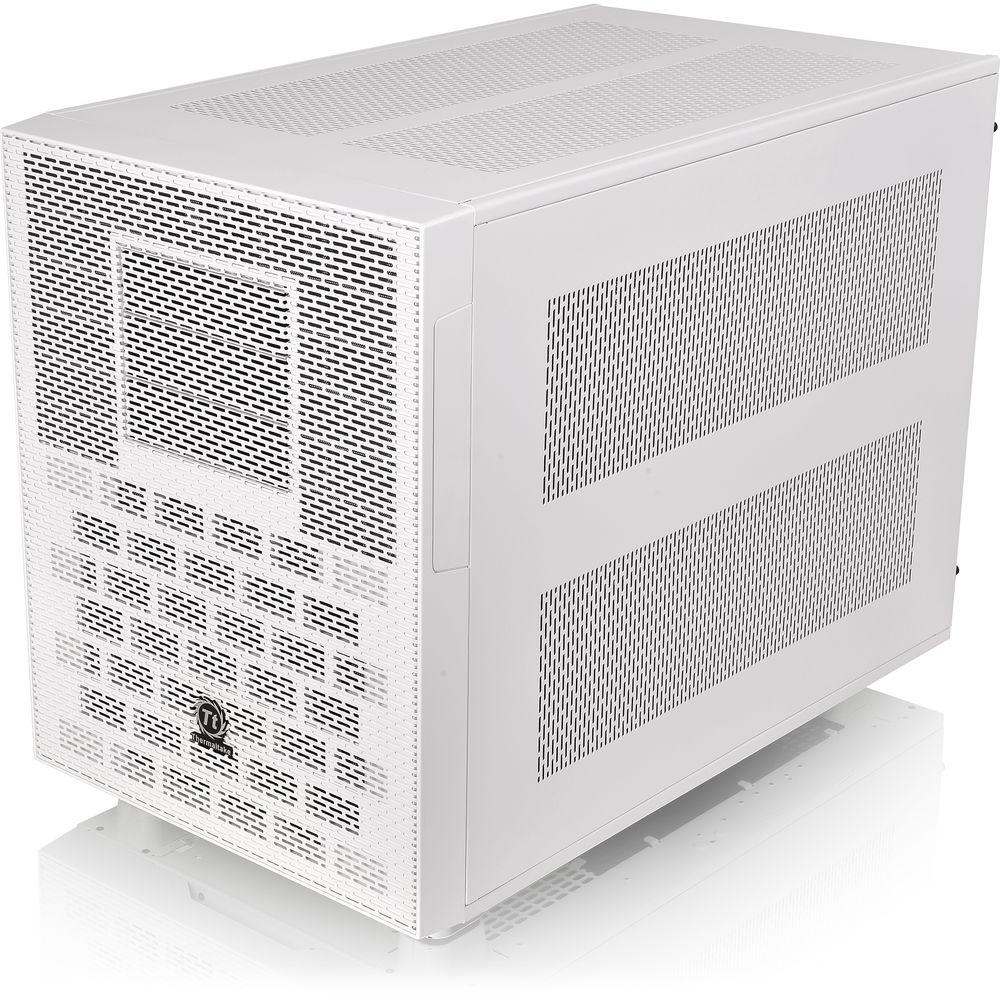

User Manual for Thermaltake Core X9 Snow Edition Cube Case Click to enlarge the picture
Contents of the user manual for the Thermaltake Core X9 Snow Edition Cube
- Product category: Desktop Computer Cases Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Desktop Computer Cases
 |
User manual for the Thermaltake Core X9 Snow Edition Cube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|
Product description Designed for high-end gaming system compatibility and optimized for space management, the Core X9 Snow Edition Cube Case from Thermaltake features a stacking design that allows users to expand the liquid cooling system, storage solutions, or even create dual systems. With support for E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards, its steel case has a transparent window and is equipped with three 5.25" drive bays, six 3.5"/2.5" drive bays, one 3.5" drive bay, and two 2.5" drive bays. The case is cooled using one 200mm front (intake) fan that operates at 800 rpm with a noise level of 13 dBA and a 120mm rear (exhaust) fan that operates at 1000 rpm with a noise level of 16 dBA. There is also support for additional front and rear fans, as well as top and bottom fans. This case is also equipped with mounts for front, top, rear, left/right, and bottom radiators, and it is compatible with 0.5, 0.375, and 0.25" water tubes for liquid cooling.
The Core X9 Snow Edition is equipped with four USB 3.0 ports and one HD audio port. It has eight expansion slots, supports GPU units up to 23.2" long, CPU coolers up to 9.8" high, and standard PS2 power supply units up to 8.7". Please bear in mind that the power supply is not included. The Core X9 Snow Edition Cube Case is protected by a limited 3-year parts and labor warranty. - Stackable
- With its stacking design, the Core X9 Snow Edition enables virtually limitless possibilities and offers an expandable system allowing enthusiasts to incorporate externally modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system and storage solutions or even create dual systems, thereby enabling a dedicated top/bottom set-up for pure cooling. When stacked, the maximum radiator length supported is 600mm on the front side
- Expansion
- Designed for high-end gaming system compatibility, the Core X9 Snow Edition's modular drive racks allow gamers to easily install up to six data storage devices, a dual expansion slot VGA of up to 23.2" / 590mm in length, and a tower CPU cooler as high as 9.8" / 250mm. Even with a high-wattage PSU stretching to 7.9" / 200mm in length, it still leaves plenty of space for cable management. Moreover, two 480mm radiators can be installed on top of the chassis, delivering improved cooling performance
- Ventilation
- The Core X9 Snow Edition's cooling ability offers fan brackets with various mounting points to support almost any type of gaming system that can be accommodated, including DIY/AIO liquid-cooling systems and air-cooling units. A large 200mm fan is pre-installed on the front side and a rear 120mm fan helps reassures the flow of aeration. The fan brackets can either be adjusted for 120mm, 140mm, or 200mm fans on the top panel, while there is room for 120mm and 140mm fans on the side panel

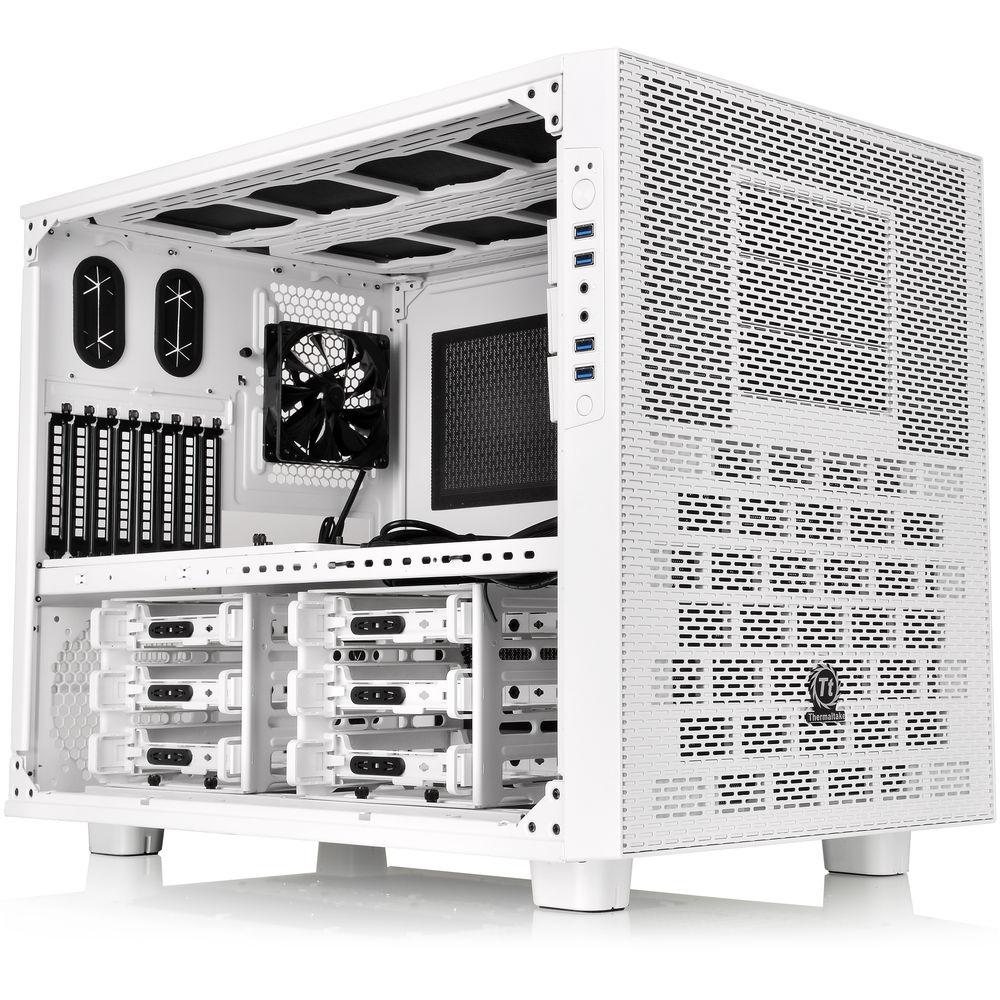

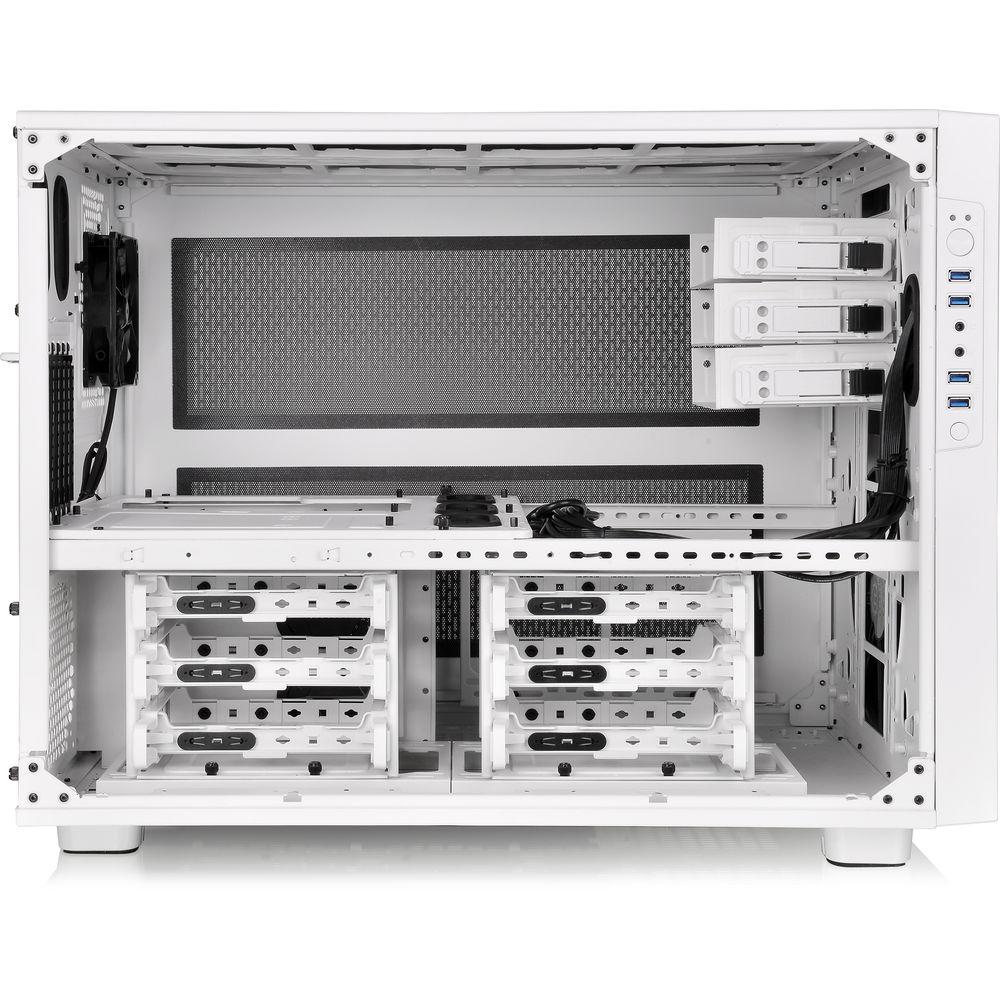

- Chambers Concept
- Optimized for space management, the Core X9 Snow Edition is divided into two main chambers: the upper chamber is made for cooling performance and improved efficiency, while the lower one is made for the PSU and drive bays. Thanks to the removable 2.5"/3.5" drive device racks, there is plenty of flexibility to gain greater interior space when needed for advanced cooling performance or liquid systems build

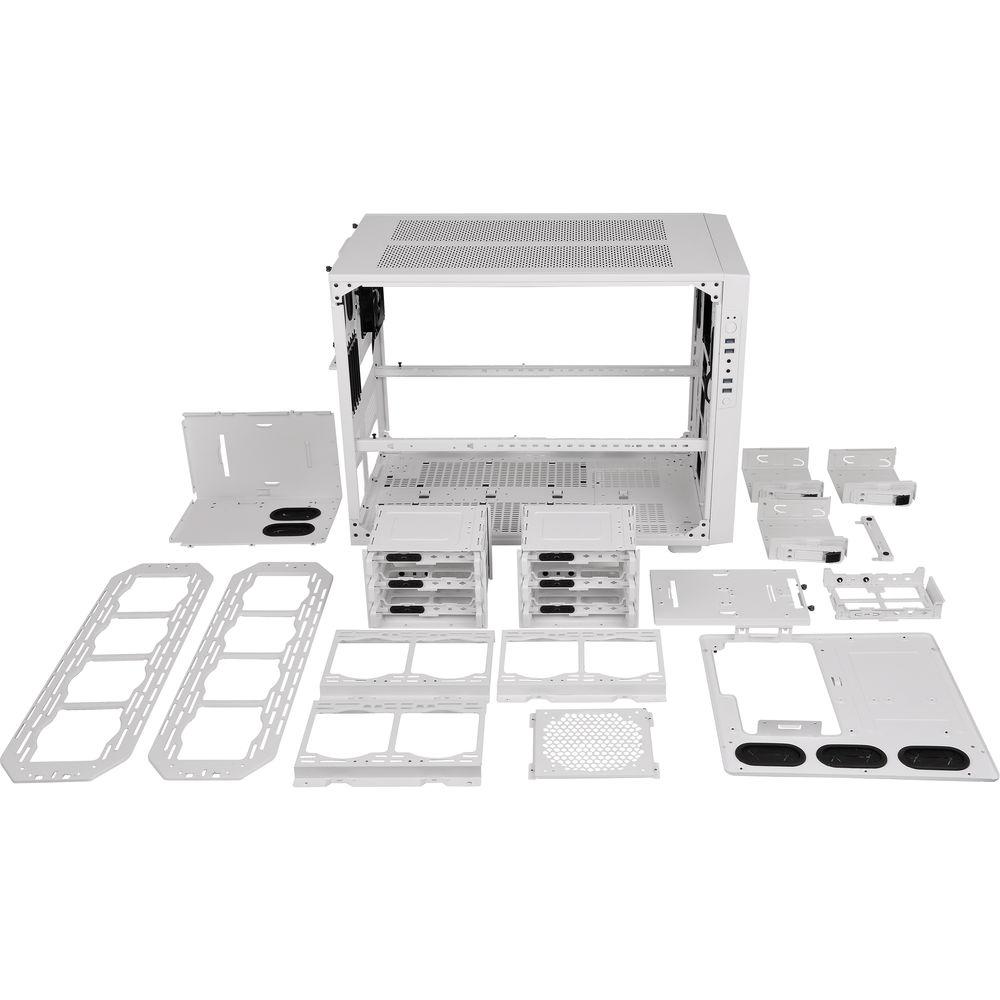

- Fully Modular Design
- The drive bay concept design for accessory and storage devices makes setting up the this storage solution easy and flexible. In addition, a customizable 5.25" & 3.5" drive bay feature enables users to freely interchange the 3.5" hard-drive cages to suit their particular needs

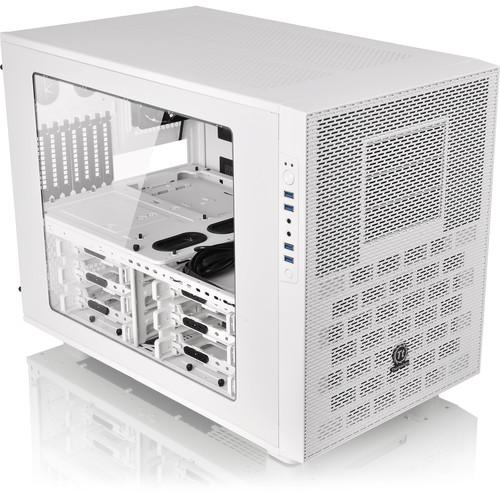

- Interchangeable Window and I/O Panel
- Users can customize the chassis for different viewing presentations with an interchangeable window and I/O panel design. Side I/O ports include four USB 3.0 ports
- Tt LCS Certified
- Tt LCS Certified is a Thermaltake certification applied to only products that have been tested to be most compatible with extreme liquid cooling configurations
UPC: 841163061473 In the Box Thermaltake Core X9 Snow Edition Cube Case Limited 3-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Core X9 Snow Edition Cube Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CA-1D8-00F6WN-00 Specs | | | Motherboard Support | E-ATX, ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 3 x 5.25" | | Internal Drive Bays | 6 x 2.5" | | Additional Drive Mounting | 1 x 3.5" (Motherboard Tray)
2 x 2.5" (Motherboard Tray) | | Maximum GPU Length | 23.2" / 59 cm | | CPU Cooler Height | 9.8" / 25 cm | | Maximum PSU Length | 8.7" / 22 cm | | | | Fan Mounting (Front) | 1 x 200 mm
| | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Side) | 4 x 120 mm
Or
3 x 140 mm
| | Fan Mounting (Top) | 8 x 120 mm
Or
6 x 140 mm
Or
2 x 200 mm
| | Fan Mounting (Bottom) | 3 x 120 mm
| | Fans Included (Front) | 1 x 200 mm (800 rpm) | | Fans Included (Rear) | 1 x 120 mm (1000 rpm) | | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 140 mm | | Maximum Radiator Size (Side) | 480 mm | | Maximum Radiator Size (Top) | 2 x 480 mm | | Maximum Radiator Size (Bottom) | 480 mm | | Noise Level | 13 to 16 dBA | | Fan Controller Included | No | | | | Connections | 4 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 19.8 x 15.0 x 25.2" / 502.9 x 381.0 x 640.1 mm | | Weight | 37.5 lb / 17.0 kg | | | | Package Weight | 44.5 lb | | Box Dimensions (LxWxH) | 28.8 x 22.0 x 18.3" |
