User Manual for Thermaltake Frio Silent 14 CPU Cooler Click to enlarge the picture
Contents of the user manual for the Thermaltake Frio Silent 14 CPU Cooler
- Product category: Fans & CPU Coolers Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Fans & CPU Coolers
 |
User manual for the Thermaltake Frio Silent 14 CPU Cooler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|

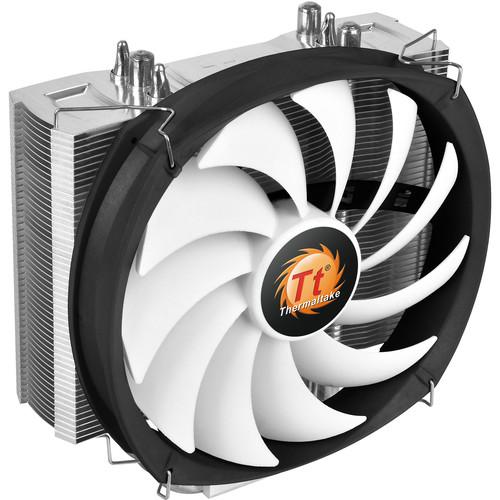

Product description Built with a non-interference cooling design that is optimized for use with high-performance RAM and motherboards, the Frio Silent 14 CPU Cooler from Thermaltake uses a 140mm fan to help enhance your system's airflow to help maintain performance. It also uses aluminum fins to aid in heat dissipation, while solid copper heat pipes also help to dissipate heat and allow maximum heat conductivity. Although this cooler has fan speeds of up to 1200 rpm, a Low Noise Cable (LNC) can help reduce the noise level from 19.3 dBA to 12 dBA. The Frio Silent 14 CPU cooler provides 165W of cooling power, has an air flow of 71.24 CFM, a lifespan of 50,000 hours, is compatible with Intel and AMD platforms, and is protected by a limited 3-year warranty. - Non-Interference Cooling Design
- The Frio Slient 14 helps solve a co-existing problem on high-performance RAM and CPU coolers by achieving RAM clearance, allowing user to install high-end, overclockable RAM alongside their CPU cooler
- Performance Optimized Design

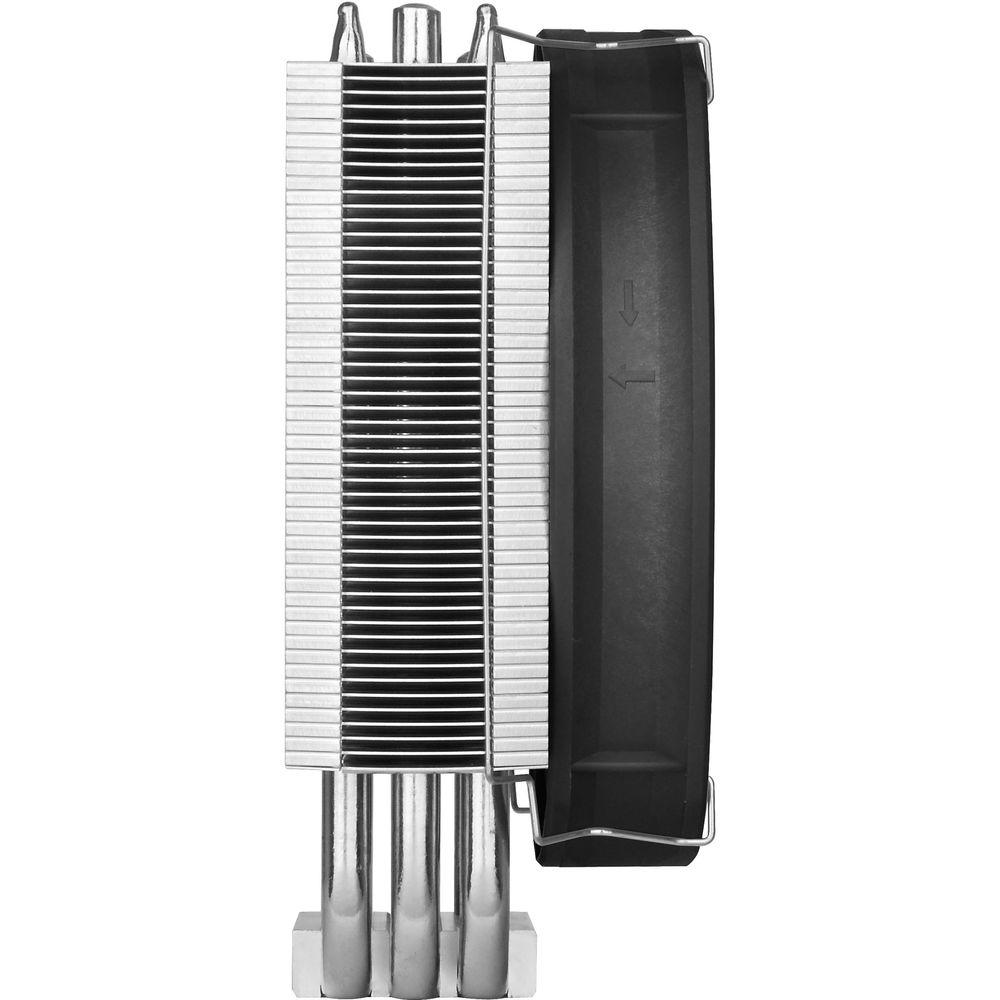

- Optimized aluminum fins help aid in rapid heat dissipation. A tower side-flow design also helps to optimize the cooling performance
- Heat Conductivity

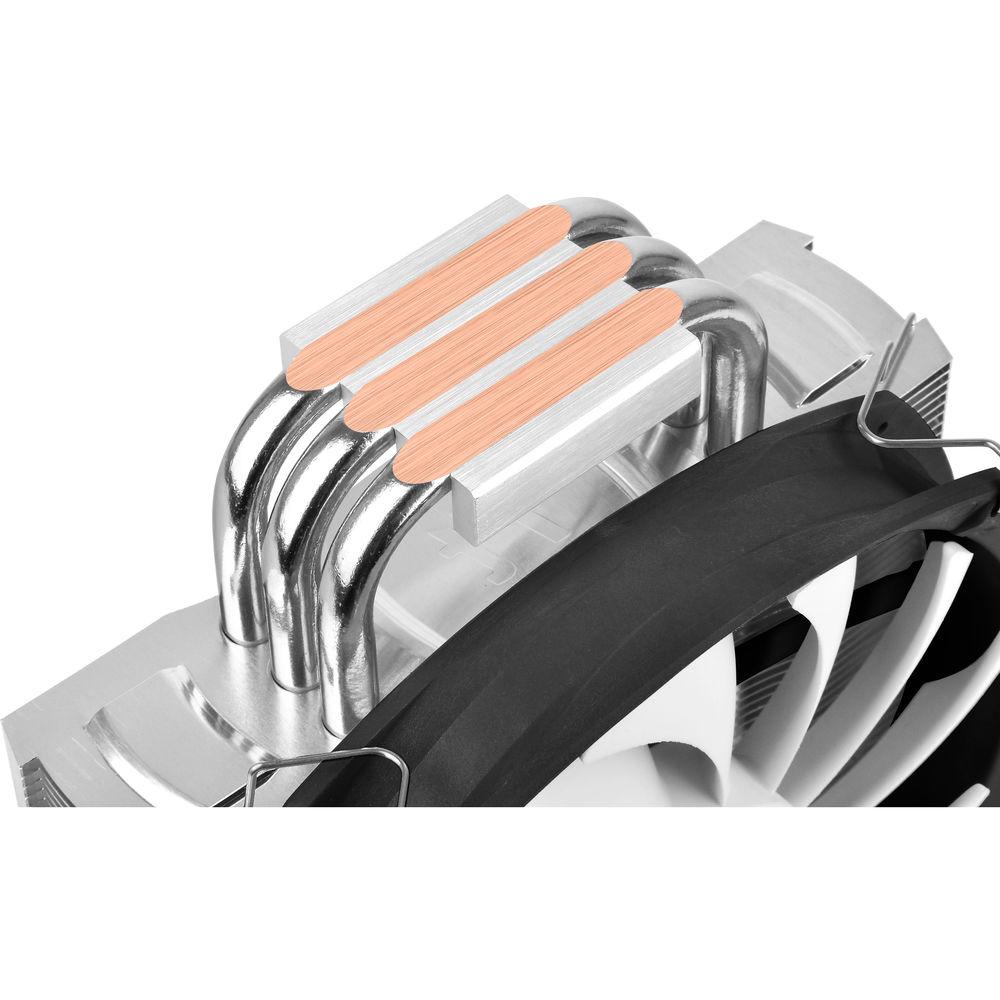

- Copper heat-pipes dissipate heat effectively, allowing maximum heat conductivity. Heat-pipes are in direct contact with the CPU to help ensure fast and efficient heat dissipation
- PWM and LNC in One
- A 140mm PWM fan is fitted to help enhance air flow with fan speeds up to 1200 rpm. An LNC (Low Noise Cable) can reduce the noise level by up to 38%, from 19.3 dBA to 12 dBA
- Socket Compatibility
- Supports Intel and AMD platforms, including Haswell LGA1150 sockets

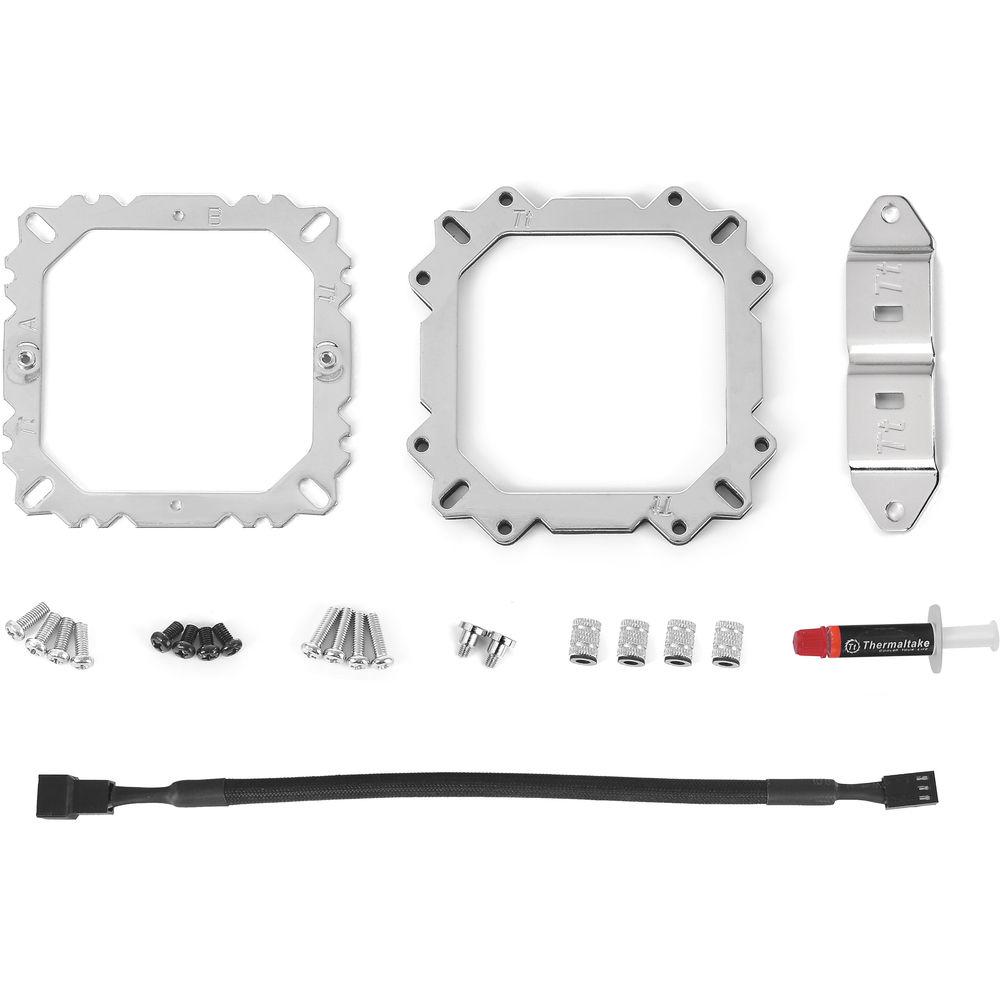

UPC: 841163055403 In the Box Thermaltake Frio Silent 14 CPU Cooler Limited 3-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Frio Silent 14 CPU Cooler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CL-P002-AL14BL-B Specs | Cooler Type | CPU Air Cooler | | Connectors | 4-Pin | | Control Method | PWM (Pulse Width Modulation) | | Fan Size | 140 mm | | Fan Speed | 500 to 1200 rpm | | Fan Speed (LNC) | 300 to 700 rpm | | Noise Level | 19.3 dBA | | LED | None | | Maximum Airflow | 71.24 CFM | | Power Consumption | 5.76 W | | Dimensions (W x H x D) | 5.5 x 5.5 x 1.0" / 140.0 x 140.0 x 25.0 mm | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 6.9 x 6.3 x 4.0" |
