User Manual for Thermaltake Riing 12 LED 120mm Radiator Fan Click to enlarge the picture
Contents of the user manual for the Thermaltake Riing 12 LED 120mm Radiator
- Product category: Fans & CPU Coolers Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Fans & CPU Coolers
 |
User manual for the Thermaltake Riing 12 LED 120mm Radiator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|

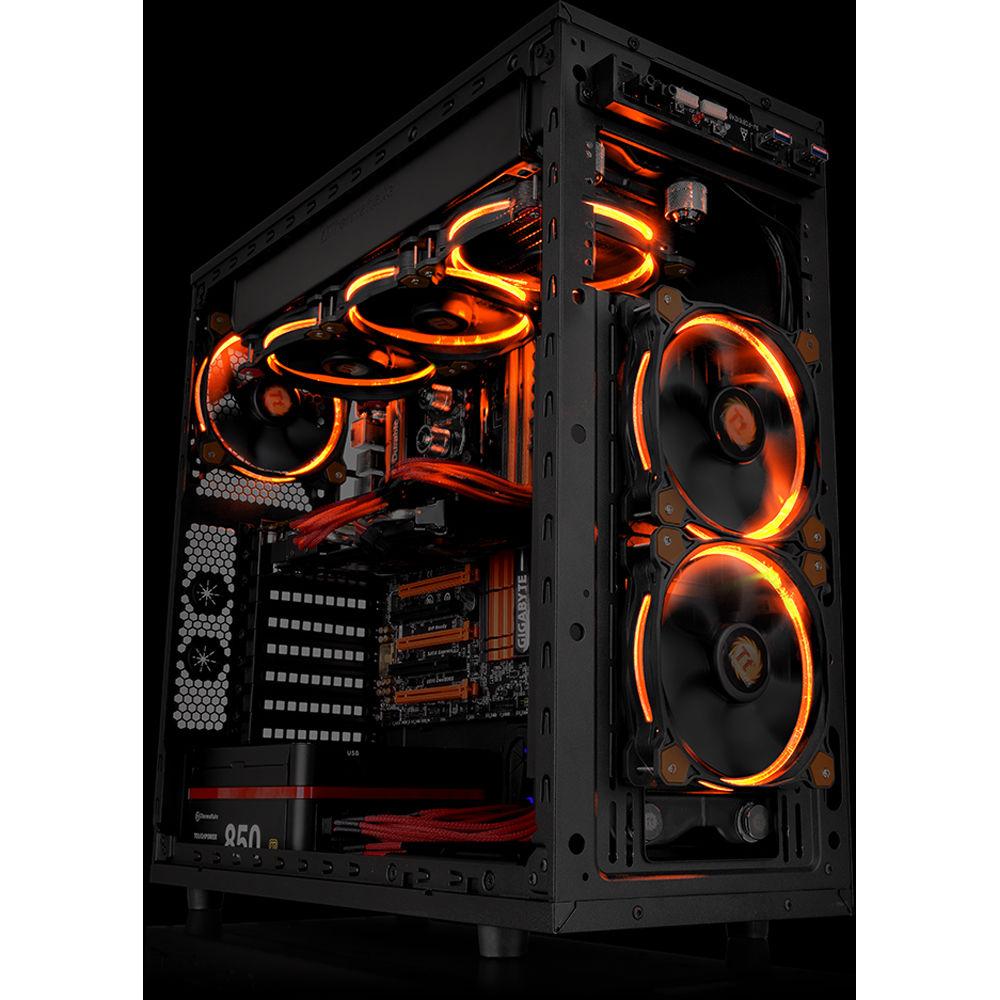

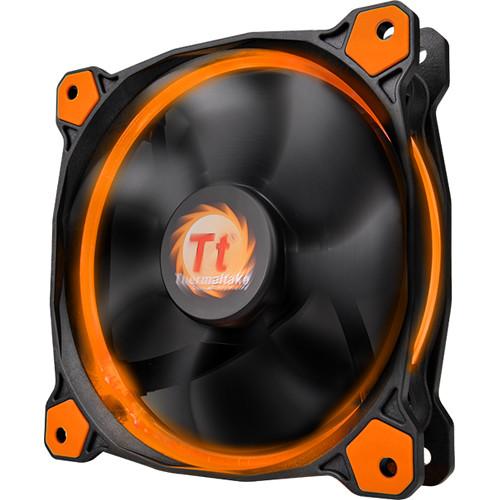

Product description The Thermaltake Riing 12 LED 120mm Radiator Fan is designed for use in high-static pressure applications such as cooling the radiator in a liquid cooling solution. It features an orange LED ring that is visible from all sides and angles and spins at 1500 rpm, producing an airflow of 40.6 CFM and a noise level of 24.6dBA. It is outfitted with a Concentrated Compression fan blade, which directs air from the weaker inner circle outwards, and a Wind Blocker frame, creating a compression effect and blocking any pressure from escaping. The Riing also features a hydraulic bearing and anti-vibration pads, and comes with a low-noise cable that can decrease noise even more by lowering the rpm. - Concentrated Compression Blades
- Designed for high-static pressure requirements of demanding applications such as radiators, the Concentrated Compression Blade (CCB) is engineered to focus the inner weaker circle of air outwards, allowing the outer section to pressurize and compress the air.
- Wind Blocker Frame
- To achieve maximum static pressure in all applications, the wind blocker frame is designed to work with the Concentrated Compression Blade's pressure mechanism to direct airflow towards the middle section of the blade. This design creates a compression effect and blocks any pressure from escaping. Additionally, the frame reduces the blade's noise and vibration.
- Hydraulic Bearing with Low-Noise Design
- The hydraulic bearing self-lubricates with a high quality, friction-reducing liquid that lowers operating noise and improves efficiency. The seal cap prevents leakage of the lubricant and improves the lifespan of the unit. Moreover, the low-noise cable can reduce noise levels by decreasing the fan's rpm.
- Anti-vibration Mounting System
- In all four corners, Thermaltake has equipped the Riing with in-mold injection anti-vibration rubber pads that provide hassle-free usage and reduce vibrations between the fan and chassis.
UPC: 841163061749 In the Box Thermaltake Riing 12 LED 120mm Radiator Fan (Orange) Low Noise Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Riing 12 LED 120mm Radiator Fan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CL-F038-PL12OR-A Specs | Cooler Type | Case Fan | | Bearing Type | Hydro | | Connectors | 3-Pin | | Fan Size | 120 mm | | Fan Speed | 1500 rpm | | Fan Speed (LNC) | 1000 rpm | | Noise Level | 24.6 dBA | | LED | Orange | | Maximum Airflow | 40.60 CFM | | Power Consumption | 2.40 W | | Dimensions (W x H x D) | 4.7 x 4.7 x 1.0" / 120.0 x 120.0 x 25.0 mm | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.1 x 4.9 x 1.1" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
