User Manual for Thermaltake Riing 12 RGB Multi-Colored LED 120mm Case Fans Click to enlarge the picture
Contents of the user manual for the Thermaltake Riing 12 RGB Multi-Colored LED
- Product category: Fans & CPU Coolers Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Fans & CPU Coolers
 |
User manual for the Thermaltake Riing 12 RGB Multi-Colored LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|

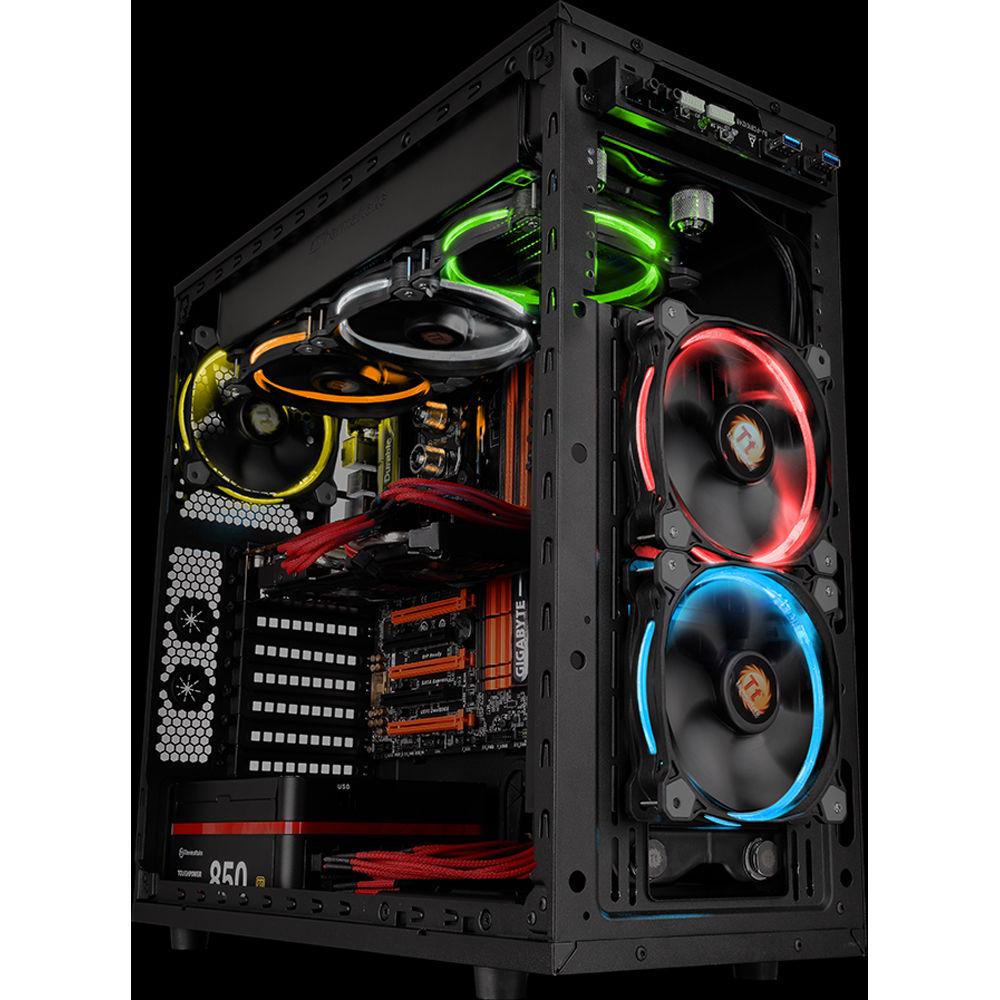

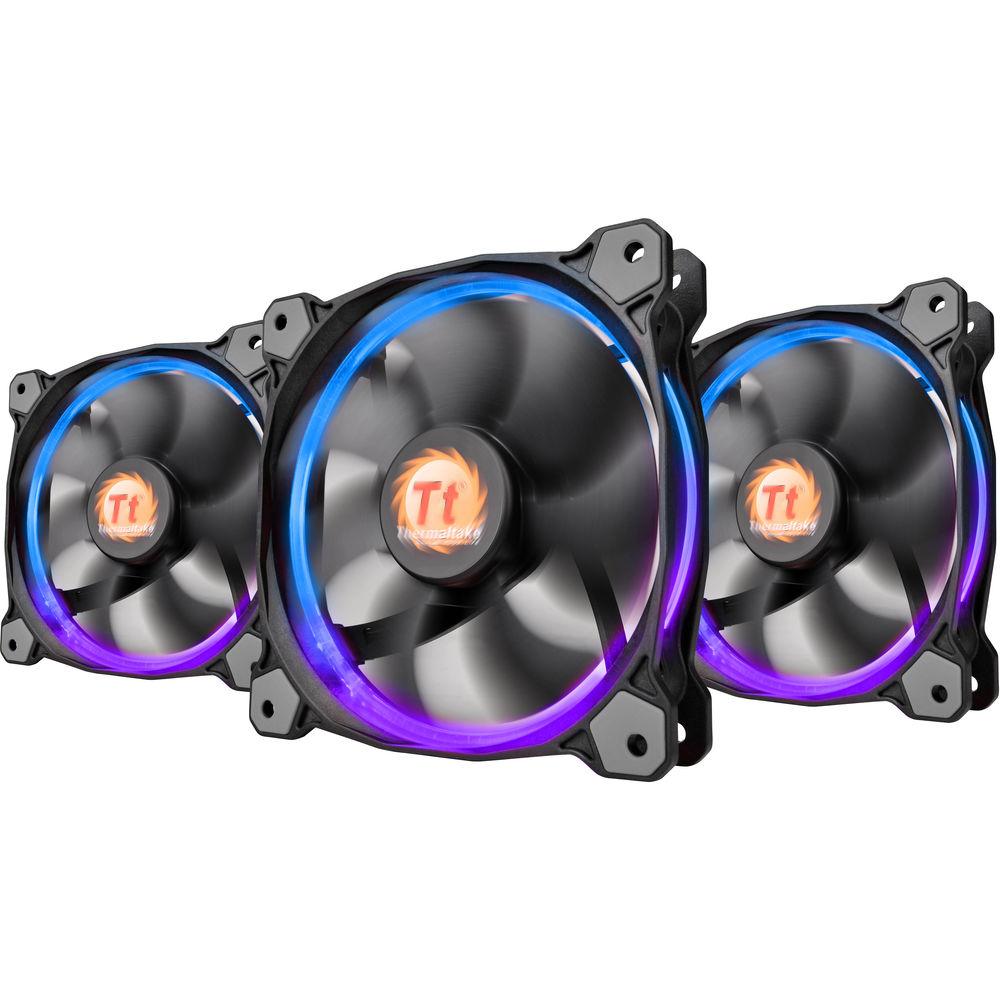

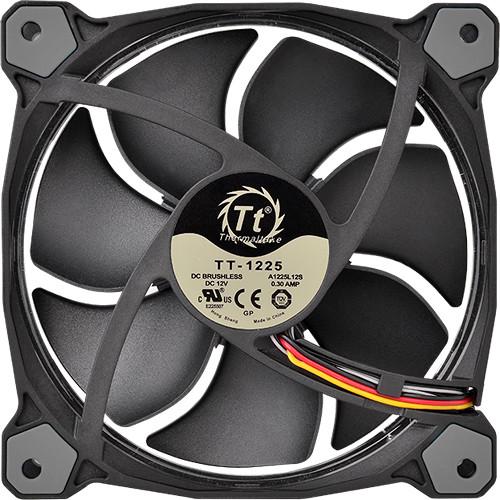

Product description Thermaltake has included three Riing 12 RGB Multi-Colored LED 120mm Case Fans for cooling your desktop's internal components. The 120mm fans are mounted inside your computer case and spin at a rate between 400 to 1500 rpm. For cooling performance, the fan's concentrated compression blades are designed to produce a maximum air pressure of 2.01 mmH2O. Each of the fans is outfitted with a hydraulic bearing that self-lubricates with a friction-reducing substance to emit a noise level of 18.5 to 26.4 dBA. To help further reduce the noise level, anti-vibration rubber pads are mounted to each corner of the fan. Other notable features include LED lights that display up to 256 colors and a Smart Fan controller to switch between the five LED light modes and spin speeds of the fans. - Wind Blocker Frame
- To achieve maximum static pressure in all applications, the wind blocker frame is designed to work with the Concentrated Compression Blade's (CCB) pressure mechanism by directing airflow towards the middle section of the blade, thereby creating a compression effect and blocking any pressure from escaping. This reduces the blade's noise and vibration, creating a balance between cooling performance and noise.
- Anti-Vibration Mounting System
- In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners.

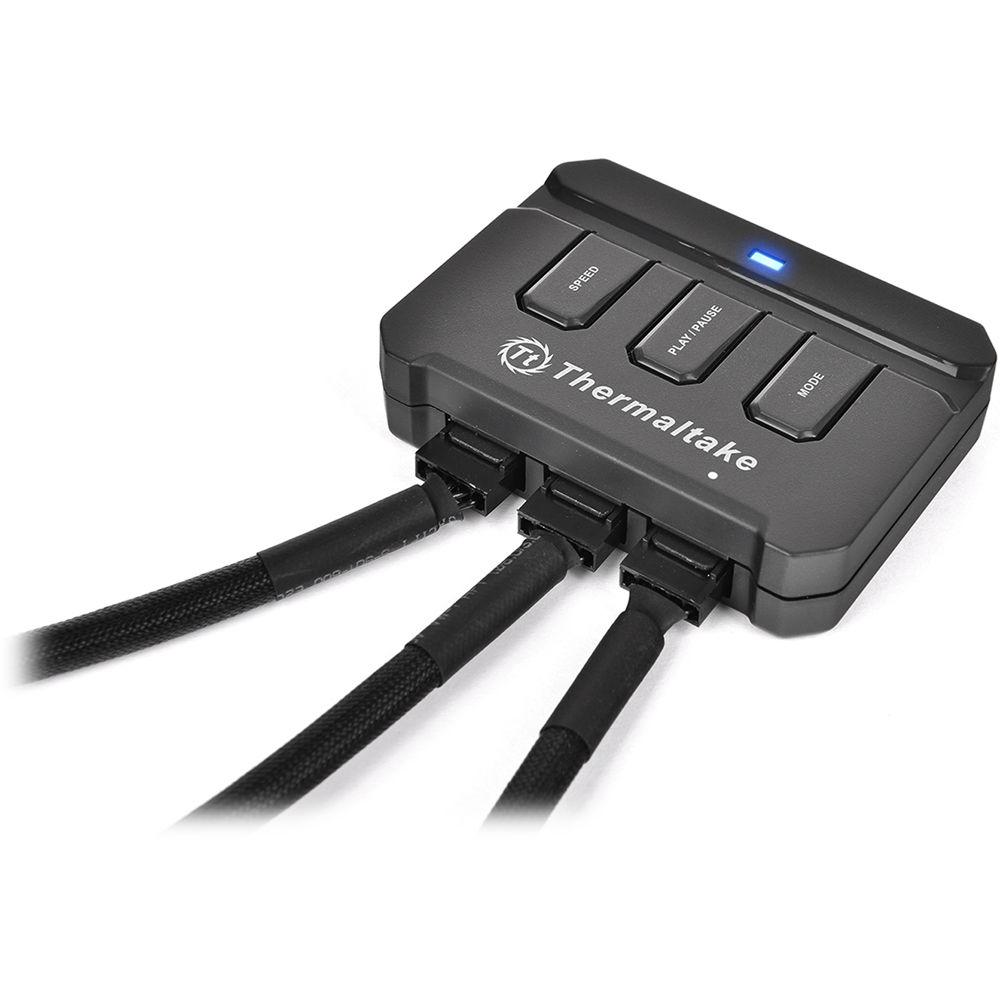

- Smart Fan Controller
- A self-contained fan controller can switch between 5 LED modes in red, blue, white, green, and 256 multicolor. Users can freely choose and set the certain mixed color, which remains unchanged even after the PC has been turned off or rebooted. You may disable the LEDs by switching from ON mode to OFF mode.
- Hydraulic Bearing with Low-Noise Design
- The hydraulic bearing self-lubricates with a friction-reducing substance that lowers operating noise and improves efficiency. The seal cap prevents leakage of the lubricant and improves the lifespan of the unit. By clicking the "SPEED" button on fan controller, the noise level can be reduced by 29%.
- Concentrated Compression Blades
- Custom designed for high static pressure requirements of demanding applications such as radiators, the concentrated compression blade is engineered to focus the weaker, inner circle of air outward, allowing the outer section to pressurize the air.
UPC: 841163062197 In the Box Thermaltake Riing 12 RGB Multi-Colored LED 120mm Case Fans (3-Pack) Controller Cable Controller Package of Screws Touch-Tab Fastener Pad Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Riing 12 RGB Multi-Colored LED 120mm Case Fans in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CL-F042-PL12SW-B Specs | Cooler Type | Case Fan | | Bearing Type | Hydro | | Connectors | 4-Pin, 5-Pin | | Control Method | PWM (Pulse Width Modulation) | | Fan Size | 120 mm | | Fan Speed | 400 to 1500 rpm | | Noise Level | 26.4 dBA | | LED | RGB | | Maximum Airflow | 40.60 CFM | | Power Consumption | 2.52 W | | Dimensions (W x H x D) | 4.7 x 4.7 x 1.1" / 120.0 x 120.0 x 27.9 mm | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 6.8 x 5.1 x 3.3" |
