User Manual for Thermaltake Smart 430W 80 Plus Power Supply Click to enlarge the picture
Contents of the user manual for the Thermaltake Smart 430W 80 Plus Power
- Product category: Power Supplies Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Power Supplies
 |
User manual for the Thermaltake Smart 430W 80 Plus Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|

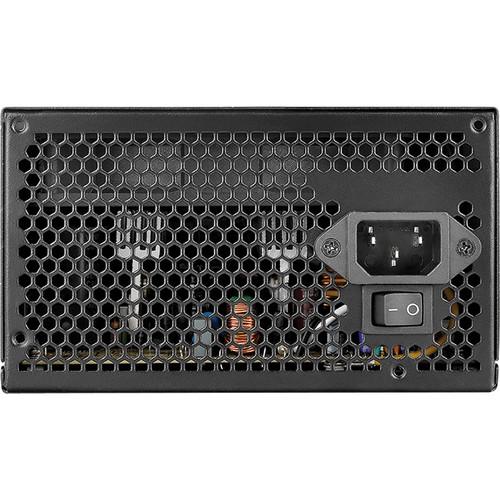

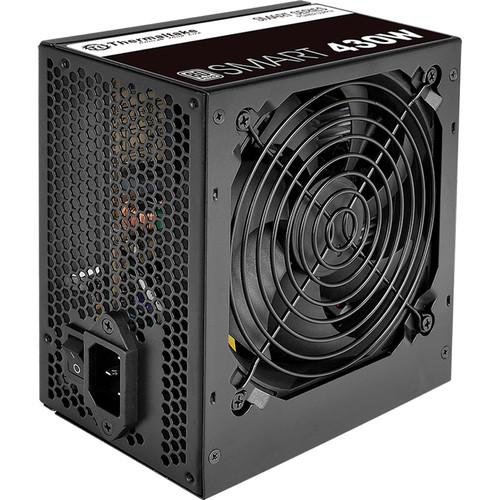

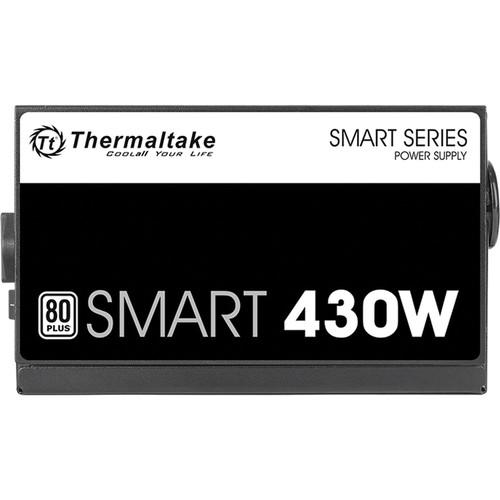

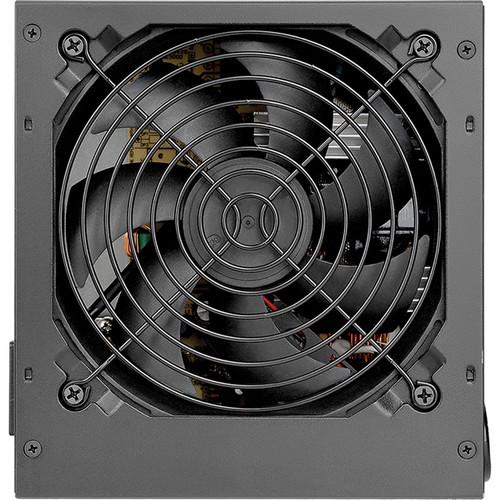

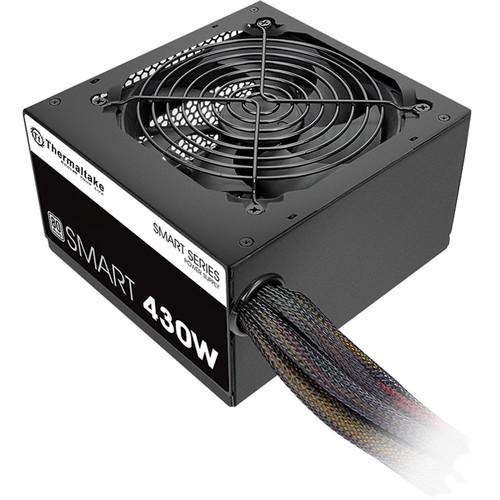

Product description The Smart 430W 80 Plus Power Supply from Thermaltake is designed to deliver 430W of total power output to your PC. Certified to support Intel Kaby Lake CPUs, the Smart 430W Power Supply boasts two PCI-E connectors, four SATA connectors, four 4-pin peripheral connectors, and a 4-pin floppy connector, as well as standard ATX and CPU connectors. The Smart 430W Power Supply has a non-modular design, meaning that all its available cables are attached to the unit, while its embedded 120mm fan comes with intelligent RPM controls to help ensure cool performance and quiet operation. Delivering up to 86% energy efficiency under real-world load conditions, the Smart 430W Power Supply has an 80 Plus efficiency certification. UPC: 841163002285 In the Box Thermaltake Smart 430W 80 Plus Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Smart 430W 80 Plus Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake Smart Series 430W Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin ATX
4 x 4-Pin SATA
2 x 6+2-Pin PCIe
4 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | PCIe Connector Distances | 19.7" / 500 mm
23.6" / 600 mm | | SATA Connector Distances | 19.7" / 500 mm
23.6" / 600 mm
27.6" / 700 mm
31.5" / 800 mm | | Peripheral Connector Distances | 19.7" / 500 mm
23.6" / 600 mm
27.6" / 700 mm
31.5" / 800 mm | | Floppy Connector Distances | 35.4" / 900 mm | | ATX Connector Distance | 21.7" / 550 mm | | | | Total Wattage | 430 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 384 W | | Max Load for +12 V | 32 A | | Combined Power for +3.3/+5 V | 100 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 13 A | | Max Power for +5 Vsb | 13 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 6 W | | Max Load for -12 V | 0.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 8 A | | | | Efficiency Rating | 80 PLUS | | Efficiency | 82 to 86% at 20 to 100% Load | | Hold up Time | 16 ms at 80% Load | | Power-Good Signal | 100 to 500 ms | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 20 to 85% | | Storage Temperature | -40 to 131°F / -40 to 55°C | | Storage Humidity | 10 to 95% | | | | Form Factor | ATX | | Compliance | ATX 12 V v2.3 | | Protection | Over-Power Protection, Over-Voltage Protection, Short-Circuit Protection | | Certifications | CE, FCC, TUV, UL, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 3.4 x 5.9 x 5.5" / 86.0 x 150.0 x 140.0 mm | | Weight | 3 lb / 1.4 kg |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
