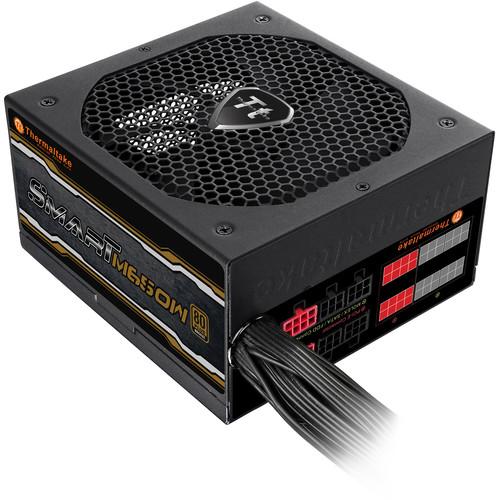

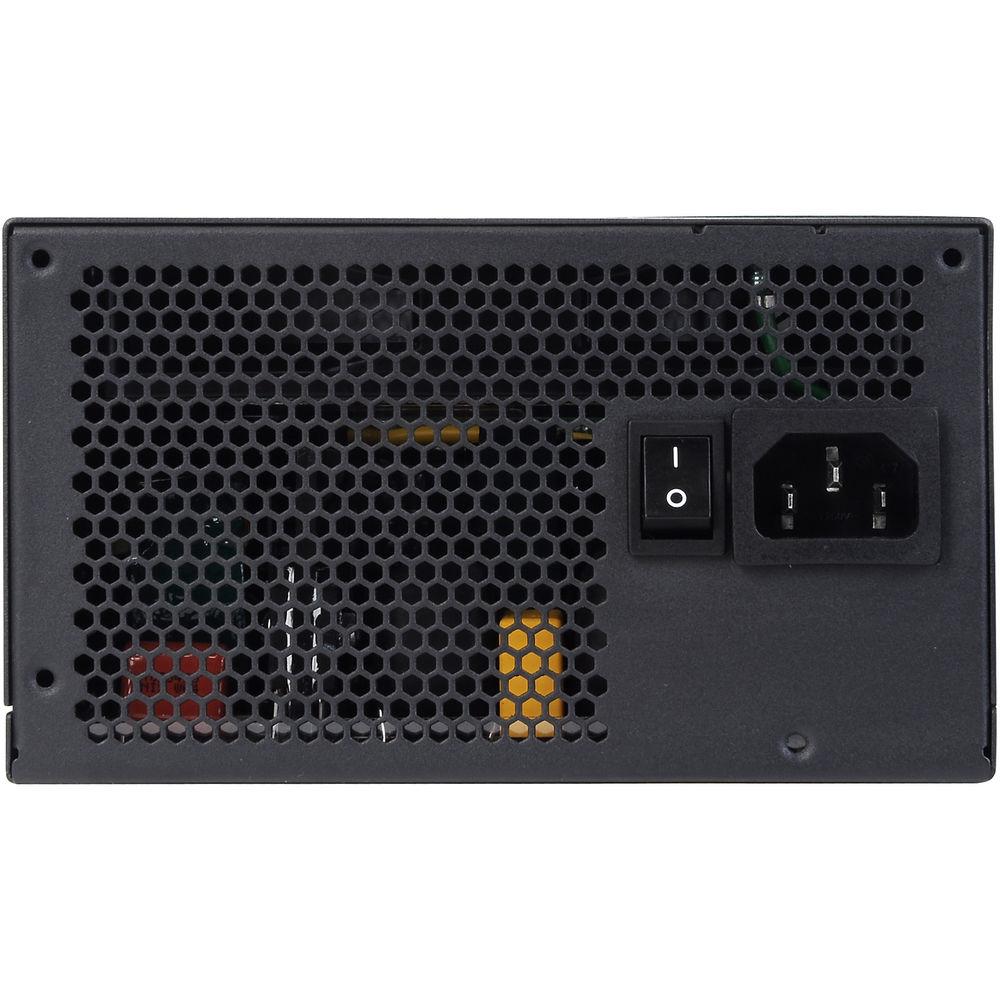

Product description The black Smart M650W Power Supply Unit from Thermaltake is an 80 PLUS Bronze certified Power Supply Unit (PSU) that offers 82 to 88% efficiency at 20 to 100% load. This PSU uses Japanese capacitors for high performance and reliability. The quiet 140.0mm cooling fan delivers airflow at low noise level. The PSU features high current cable management and supports multiple core high-end graphic cards and CPUs such as NVIDIA SLI and ATI CrossFire. This power supply unit supports ATX 12V V2.3 and EPS 12V standards and delivers 650W continuous output at 104°F operating environment. It features active PFC with universal AC input and flat, low-profile modular cables for easy cable routing and increased airflow. This PSU also features heavy-duty protection circuitry (over-current, over-voltage, under-voltage, over-power, and short-circuit) to protect components from damage. - 80 PLUS Bronze Certified
- The 80 Plus Bronze certified PSU offers 82 to 88% energy efficiency at 20 to 100% load conditions
- Japanese Capacitors
- The PSU uses Japanese capacitors for performance and reliability
- Built-In Protection
- The PSU features built-in protection, such as over-current, over-voltage, under-voltage, over-power, and short-circuit, for protecting components from damage

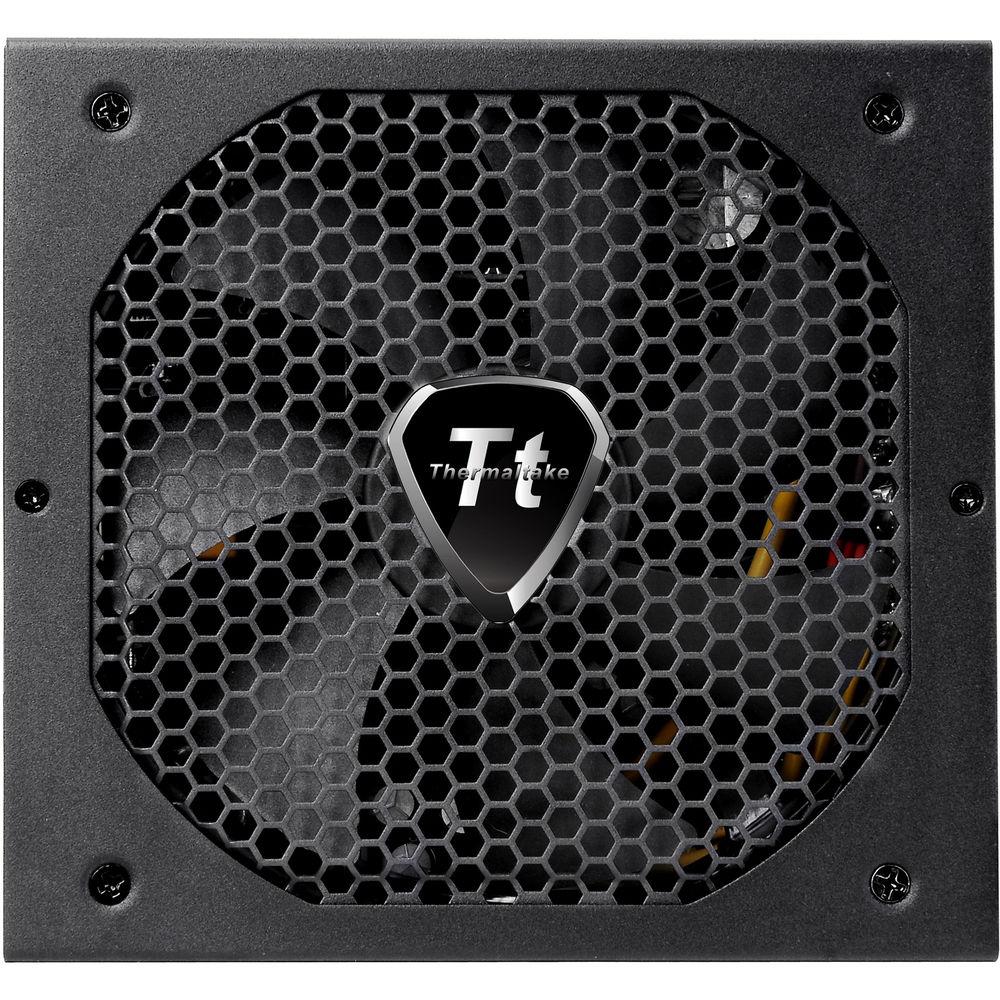

- 140.0mm Quiet Fan
- It has a 140.0mm cooling fan with rpm control for cool performance and silent operation

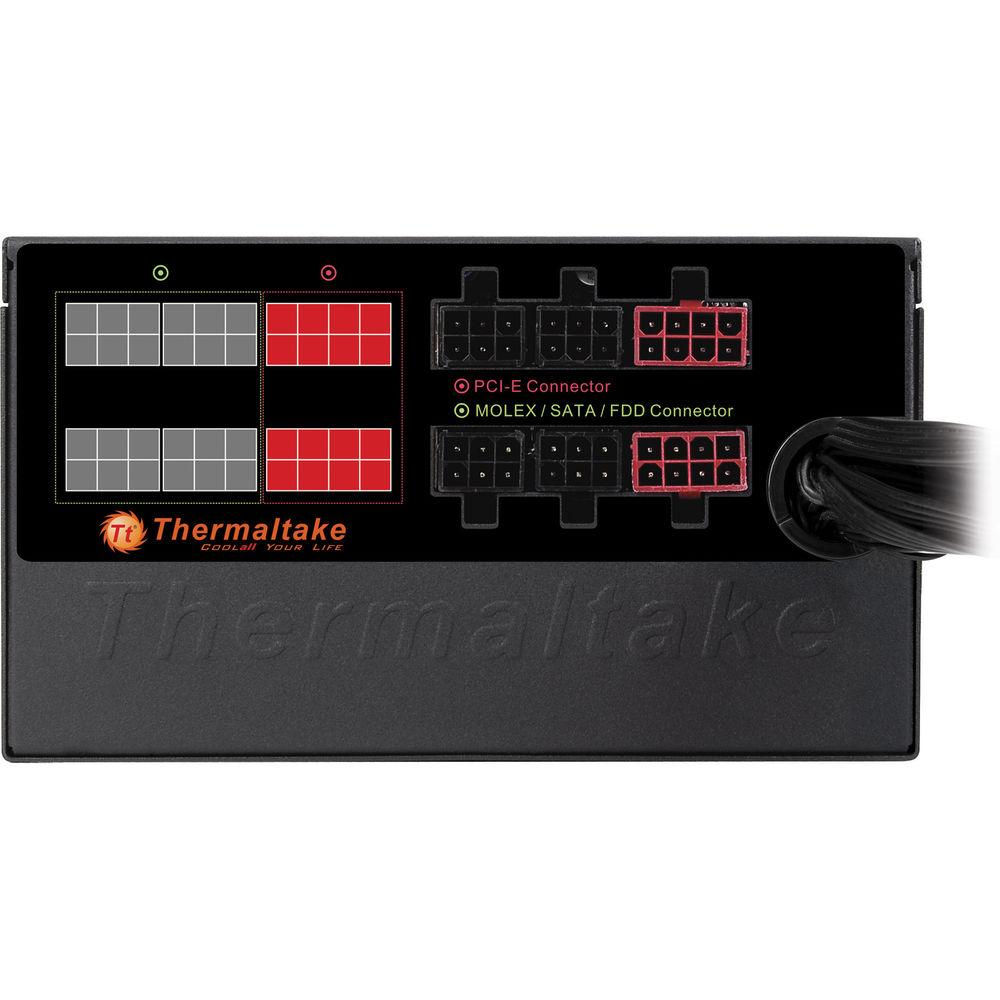

- Flat Modular Cables
- This PSU has flat modular cables that eliminate cable clutter within the system and take up less space for better airflow
- ErP Ready
- It meets the EU guidelines for ErP (Energy-related Products)
- ENERGY STAR 5.0 Standard
- It is designed for use in Energy STAR-compatible computers
- Intel Deep Power Down C6 Status
- It saves processor state for the cores and turns off the caches and puts the cores in low power state. This significantly reduces processor power consumed in idle mode and extends battery life.
- Eco-Friendly Design
- This power supply unit meets WEEE and RoHS requirements to maintain green facilities

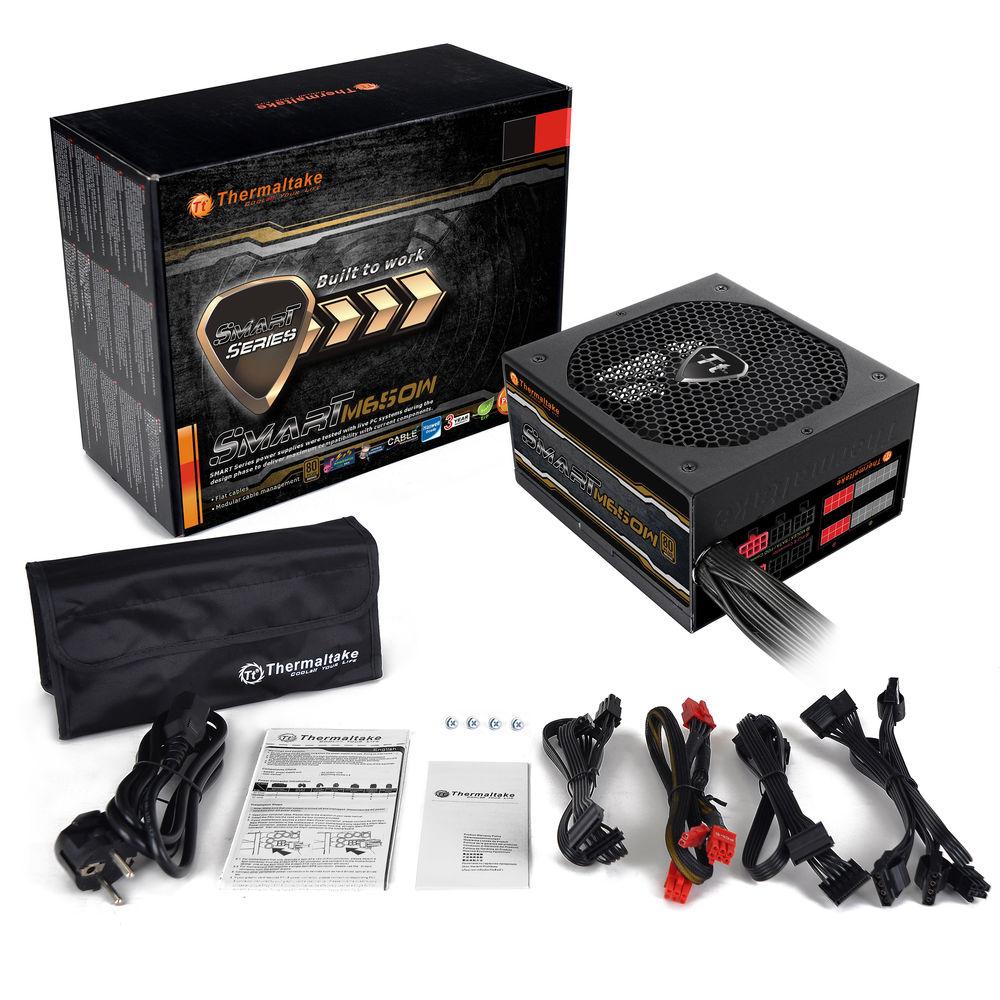

UPC: 841163043066 In the Box Thermaltake Smart M650W Power Supply Unit (Black) AC Power Cord 4 x Mounting Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Smart M650W Power Supply Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake SP-650M Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin ATX
4 x 6+2-Pin PCIe
6 x 15-Pin SATA
4 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | PCIe Connector Distances | 19.7" / 500 mm
25.6" / 650 mm | | SATA Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
31.5" / 800 mm | | Peripheral Connector Distances | 19.7" / 500 mm | | Floppy Connector Distances | 5.9" / 150 mm
11.8" / 300 mm
17.7" / 450 mm
23.6" / 600 mm | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 21.7" / 550 mm | | | | Total Wattage | 650 W | | Combined Power for +12 V | 624 W | | Max Load for +12 V | 52 A | | Combined Power for +3.3/+5 V | 120 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 24 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 6 W | | Max Load for -12 V | 0.5 A | | Peak Power | 715 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | Voltage Protection Range | +3.3 V: 2 to 4.1 V
+5 V: 3.3 to 6.5 V
+12 V: 9.5 to 14.5 V | | | | Efficiency Rating | None | | Efficiency | 82 to 88% at 20 to 100% Load | | Hold up Time | 16 ms at 80% Load | | Power-Good Signal | 100 to 500 ms | | | | Fan Size | 140 mm | | Fan Speed | 1800 rpm | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 20 to 90% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 5 to 95% | | | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.9 x 3.3 x 6.2" / 150.0 x 86.0 x 160.0 mm | | | | Package Weight | 5.95 lb | | Box Dimensions (LxWxH) | 11.0 x 8.6 x 4.9" |
