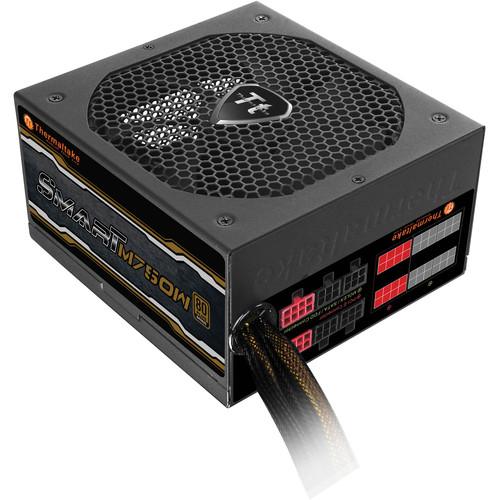

User Manual for Thermaltake SMART M750W 80 Plus Bronze Modular Power Supply Click to enlarge the picture
Contents of the user manual for the Thermaltake SMART M750W 80 Plus Bronze
- Product category: Power Supplies Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Power Supplies
|
User manual for the Thermaltake SMART M750W 80 Plus Bronze contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|
Product description Built to support multi-core high-end graphic cards & processors, the SMART M750W 80 Plus Bronze Modular Power Supply from Thermaltake features a 750W maximum output capacity, a 900W peak output capacity, a single +12V rail, and an 80 PLUS; Bronze certification that delivers up to 82-98% efficiency. Its 140mm fan not only helps to provide cooling, but also operates at 2300 rpm. Other built-in features include a modular cable management, flat modular cables, and Japanese capacitors.
This PSU is compatible with Intel ATX12V V2.3 & EPS12V. It operates using 100-240 VAC at 50-60 Hz and has a minimum MTBF of 100,000 hours. The SMART M750W 80 Plus Bronze Modular Power Supply is protected by a limited 5-year parts and labor warranty. - Japanese Main Capacitors
- Japanese Main Capacitors
- Industrial-Grade Protection
- Built in industrial-grade protections: Over-Current, Over-Voltage, Under-Voltage, Over-Power, and Short-Circuit
- 140mm Fan
- The SMART Modular Bronze series uses a 140mm cooling fan with intelligent rpm control to help guarantee cool performance and quiet operation
- Flat Modular Cables
- The SMART Modular Bronze series uses flat modular cables not only eliminate cable clutter within the system, but to also improve airflow
- High Efficiency Circuit Design
- Maximum efficiency up to 88% under wide load ranges
- Modular Cable Management
- The cable management design helps improves internal airflow and reduce clutter
- ECO Design
- The SMART Modular Bronze series saves energy through its high energy efficiency of up to 85% and is 80 PLUS Bronze certified.
ErP Ready: The SMART series fulfills the EU guidelines for ErP (Energy-related Products)
Supports Energy Star 5: The SMART Modular Bronze Series is suitable for use in Energy Star-compatible computers
Supports Intel Deep Power Down C6 Status: The SMART Modular Bronze Series helps your system operate more efficiently in terms of power requirements
Corresponds to the EU Directives on WEEE and RoHS: The SMART Modular series meets WEEE & RoHS requirements UPC: 841163043660 In the Box Thermaltake SMART M750W 80 Plus Bronze Modular Power Supply Limited 5-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake SMART M750W 80 Plus Bronze Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake SP-750MPCBUS Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin EPS
4 x 6+2-Pin PCIe
9 x 15-Pin SATA
6 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | PCIe Connector Distances | 19.7" / 500 mm
25.6" / 650 mm | | SATA Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
31.5" / 800 mm | | Peripheral Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
31.5" / 800 mm | | Floppy Connector Distances | 5.9" / 150 mm | | ATX Connector Distance | 23.6" / 600 mm | | EPS Connector Distances | 23.6" / 600 mm | | | | Total Wattage | 750 W | | Combined Power for +12 V | 744 W | | Max Load for +12 V | 62 A | | Combined Power for +3.3/+5 V | 130 W | | Max Load for +3.3 V | 25 A | | Max Load for +5 V | 25 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 9.6 W | | Max Load for -12 V | 0.8 A | | Peak Power | 900 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5 to 10 A | | Voltage Protection Range | +3.3 V: 2 to 4.3 V
+5 V: 3.3 to 7 V
+12 V: 8.5 to 15.6 V | | | | Efficiency Rating | None | | Efficiency | 82 to 88% at 20 to 100% Load | | Hold up Time | 16 ms at 80% Load | | Power-Good Signal | 100 to 500 ms | | | | Fan Size | 140 mm | | Fan Speed | 2300 rpm | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 5 to 95% | | | | Compliance | ATX 12 V v2.3 | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 3.4 x 5.9 x 6.3" / 86.0 x 150.0 x 160.0 mm | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 11.102 x 8.74 x 4.882" |
