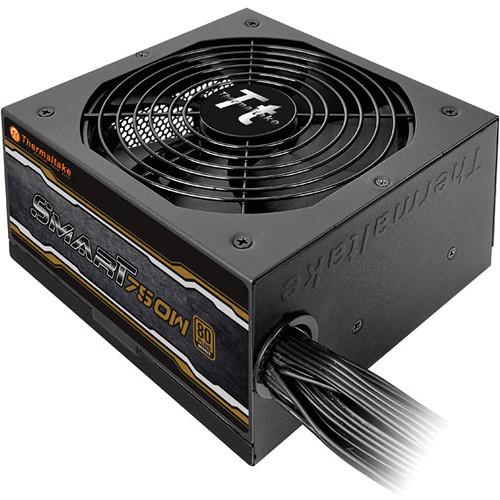

User Manual for Thermaltake Smart Series Standard 750W Power Supply Unit Click to enlarge the picture
Contents of the user manual for the Thermaltake Smart Series Standard 750W Power
- Product category: Power Supplies Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Power Supplies
|
User manual for the Thermaltake Smart Series Standard 750W Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|
Product description The black Smart Series Standard 750W Power Supply Unit from Thermaltake is ideal for you to build a stable home or office system for 24/7 use. It is 80 Plus Bronze certified and offers up to 88% energy efficiency at 20 to 100% load under real world load conditions. The unit features flat and low-profile cables that increase the airflow. It is equipped with a pure single +12V rail to provide better compatibility for your PC. The quiet smart temperature controlled fan can automatically detect power load and adjusts fan speed. - 750W Bronze Power Supply
- Featuring 750W, the power supply unit is stable and reliable and can be used for any mainstream system build.
- 80 Plus Bronze Certified
- The 80 Plus Bronze certified power supply offers up to 88% energy efficiency at 20 to 100% load conditions and prevents power losses.
- Flat and Low-Profile Cables
- The power supply features low-profile flat modular cables that help increase the airflow, improve chassis thermal performance, and allow for effortless cable routing.
- Massive and Dedicated +12V Output
- The power supply unit is equipped with a pure single +12V rail to provide compatibility for your PC.
- Japanese Capacitor
- The power supply uses a Japanese capacitor that delivers superior performance with low impedance characteristics and offers stability, reliability, and durability.
- Smart Temperature Control Fan
- The 4.7" (120.0mm) cooling fan, built-in with intelligent temperature control device can automatically detect the power load and adjusts fan speed accordingly.
UPC: 841163046487 In the Box Thermaltake Smart Series Standard 750W Power Supply Unit (Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Smart Series Standard 750W Power Supply Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake SP-750P Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin EPS
4 x 6+2-Pin PCIe
8 x 15-Pin SATA
4 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | | | Total Wattage | 750 W | | Combined Power for +12 V | 744 W | | Max Load for +12 V | 62 A | | Combined Power for +3.3/+5 V | 130 W | | Max Load for +3.3 V | 25 A | | Max Load for +5 V | 25 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 9.6 W | | Max Load for -12 V | 0.8 A | | Peak Power | 900 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | | | Efficiency Rating | None | | Efficiency | 82 to 88% at 20 to 100% Load | | Hold up Time | 16 ms at 80% Load | | Power-Good Signal | 100 to 500 ms | | | | Fan Size | 140 mm | | Fan Speed | 2300 rpm | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 5 to 95% | | | | Compliance | ATX 12 V v2.3 | | Protection | Over-Current Protection, Over-Power Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.9 x 3.3 x 6.2" / 150.0 x 86.0 x 160.0 mm | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 10.2 x 8.8 x 4.6" |
