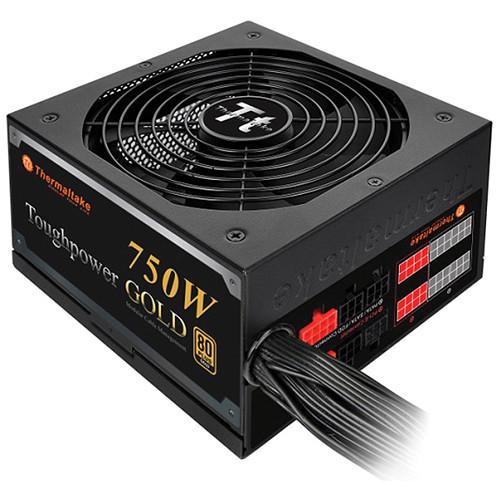

Product description The black Toughpower 750W 80 PLUS Gold Modular Power Supply from Thermaltake is an 80 PLUS Gold certified power supply that uses high quality components for stable performance and power efficiency. To ensure all components of your desktop PC receive power this power supply features a 24-pin main power connector, a 4+4-Pin ATX 12 V connector, 4 6+2-pin PCI-E connectors, 12 5-Pin SATA connectors, 4 4-Pin peripheral connectors, and a FDD connector. A single strong 12V rail flexibly routes the available power to your CPU and graphics card, offering maximized power usage and easy setup. The Toughpower 750W has a modular design to reduce cable clutter, and its ultra-quiet fan delivers silent cooling, thus the entire computer and power supply can operate efficiently. - Silent Cooling Minimizes Noise Levels
- Ultra-quiet 14cm fan has a noise level of around 18dB at typical load to provide silent cooling for your PC.
- 80 PLUS Gold Certified and Haswell Ready
- Deliver up to 87 to 92% efficiency under real world load conditions to ensure low power losses. Toughpower GOLD is prepared for the Intel Haswell processors, to achieve maximum energy savings.
- Flat Modular Cables
- Low profile, flat modular cables increase the airflow, improve the performance of the thermal chassis, and also allow for effortless cable routing.
- Japanese Capacitor
- High quality Japanese capacitor produces high performance with low impedance characteristics. It enhances the reliability, and performance of the power supply.
- Massive and Dedicated 12V Output
- Toughpower 750W is equipped with a single 12V rail to provide the best compatibility for your PC.
UPC: 841163053201 In the Box Thermaltake Toughpower 750W 80 PLUS Gold Modular Power Supply (Black) AC Power Cord 4 x Cable Straps 4 x Mounting Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Toughpower 750W 80 PLUS Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake PS-TPD-0750MPCGUS-1 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin EPS
4 x 6+2-Pin PCIe
12 x 15-Pin SATA
4 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | | | Total Wattage | 750 W | | Combined Power for +12 V | 744 W | | Max Load for +12 V | 62 A | | Combined Power for +3.3/+5 V | 100 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 9.6 W | | Max Load for -12 V | 0.8 A | | Peak Power | 900 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | Voltage Protection Range | +3.3 V: 5.2 V
+5 V: 7 V
+12 V: 16 V | | | | Efficiency Rating | None | | Efficiency | 87 to 92% at 20 to 100% Load | | Hold up Time | 17 ms at 100% Load | | Power-Good Signal | 100 to 500 ms | | | | Fan Size | 140 mm | | Fan Speed | 2400 rpm | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 0 to 95% | | | | Compliance | ATX 12 V v2.3, EPS 12 V v2.92 | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.9 x 3.3 x 5.5" / 15.0 x 8.6 x 14.0 cm | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 11.2 x 8.7 x 4.7" |
