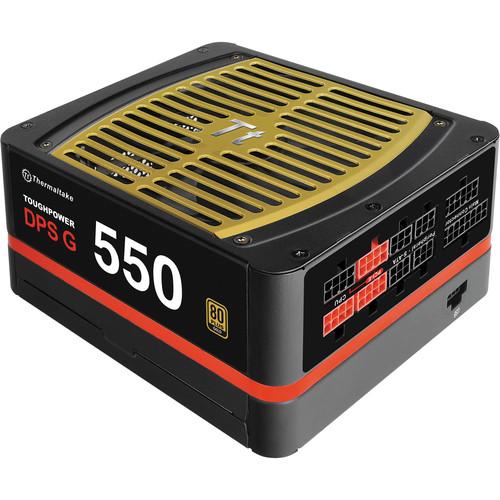

User Manual for Thermaltake Toughpower DPS G Power Supply Click to enlarge the picture
Contents of the user manual for the Thermaltake Toughpower DPS G Power Supply
- Product category: Power Supplies Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Power Supplies
|
User manual for the Thermaltake Toughpower DPS G Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|
Product description The 550 watt TPG-0550D-G Toughpower DPS GP 550 Power Supply from Thermaltake is a digitally-controlled PC power supply unit with a fully modular cable design. It's a powerful, software-controlled PS unit, with 550 true watts of power. This means that users get an intelligent platform that allows you to monitor the electricity cost of your PC, thereby assisting you in managing you expenses. It allows the status of your PC to be recorded, which helps the user to monitor and organize his or her quantitative database. Additionally, data can be shared in the cloud, providing a number of ways of sharing information with colleagues and friends.
The Toughpower DPS G Power Supply is 80 PLUS Gold-certified and Haswell-ready. The Toughpower DPS G Power Supply with DPSApp Software delivers up to 87 - 92% efficiency under real-world load conditions, offering low power losses. Additionally, the DPS G Series 550W has been optimized to work with Intel's new, fourth-generation Haswell processors to achieve maximized energy savings.
The DPSApp software calculates a computer's electricity costs by monitoring the efficiency, wattage and voltage of the power supply using innovative technology. Because the software digitally calculates the PC's electricity cost, it can be helpful as an expense control and management tool. It also computes how much power the computer is using and the efficiency of the computer as engaging in different activities, such as playing games, browsing the internet, checking email, and so on. In addition, users are able to monitor the computer's voltage status. As there are no connecting boundaries, the DPSApp also offers users an easy way to share the power usage results with colleagues through social network applications such as Facebook, Twitter, and Weibo, or by sending reports via e-mail. Additionally, database information can be organized and saved with usage patterns in order to review it in detail. Each database can record up to six hours of usage. - Digitally-controlled PC power supply with fan speed and function control
- Smart DPSApp Software calculates a computer's electricity costs by monitoring the efficiency, wattage and voltage of the power supply using innovative technology
- Fully Modular cable design
- 80 Plus Gold-certified and Haswell-ready
- High temperature 221°F / 105°C Japanese brand capacitors improves durability, stability, and reliability of components
UPC: 841163057216 In the Box Thermaltake Toughpower DPS G Power Supply (550W) Cable Package (see specifications for particular cables) Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Toughpower DPS G Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake PS-TPG-0550DPCGUS-G Specs | | | Total Connectors | 2 x 6+2-Pin PCIe | | | | Total Wattage | 550 W | | Combined Power for +12 V | 546 W | | Max Load for +12 V | 45.5 A | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 9.6 W | | Max Load for -12 V | 0.8 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Efficiency Rating | 80 PLUS Gold | | Hold up Time | 16 ms at 70% Load | | Power-Good Signal | 100 to 500 ms | | | | Fan Size | 140 mm | | Fan Speed | 1500 rpm | | Bearing Type | Ball | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 20 to 90% | | | | Compliance | ATX 12 V v2.31, EPS 12 V v2.92 | | Mean Time Between Failures (MTBF) | 120,000 Hours | | Dimensions | 3.4 x 6.0 x 7.1" / 86.0 x 150.0 x 180.0 mm | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 13.5 x 8.4 x 6.4" |
