User Manual for Thermaltake Tt eSPORTS POSEIDON Z Forged Keyboard Click to enlarge the picture
Contents of the user manual for the Thermaltake Tt eSPORTS POSEIDON Z Forged
- Product category: Keyboards Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Keyboards
 |
User manual for the Thermaltake Tt eSPORTS POSEIDON Z Forged contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|

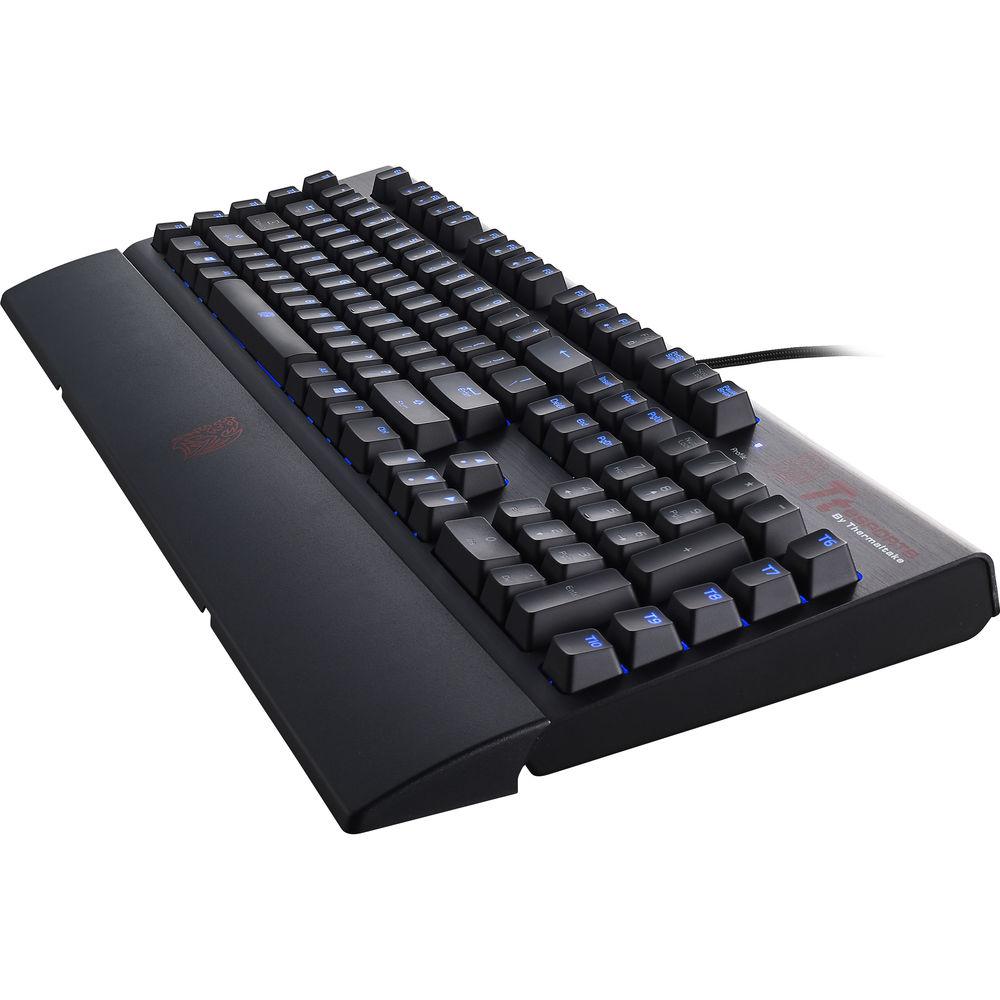

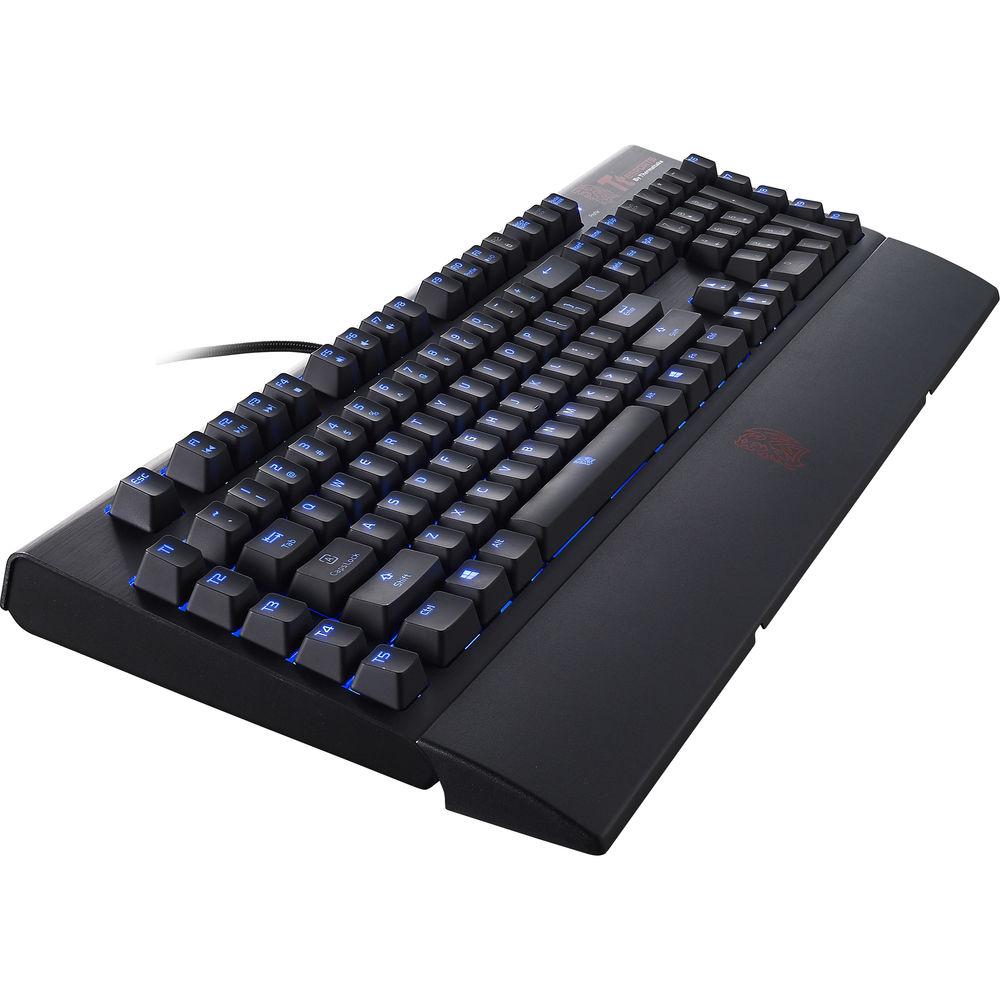

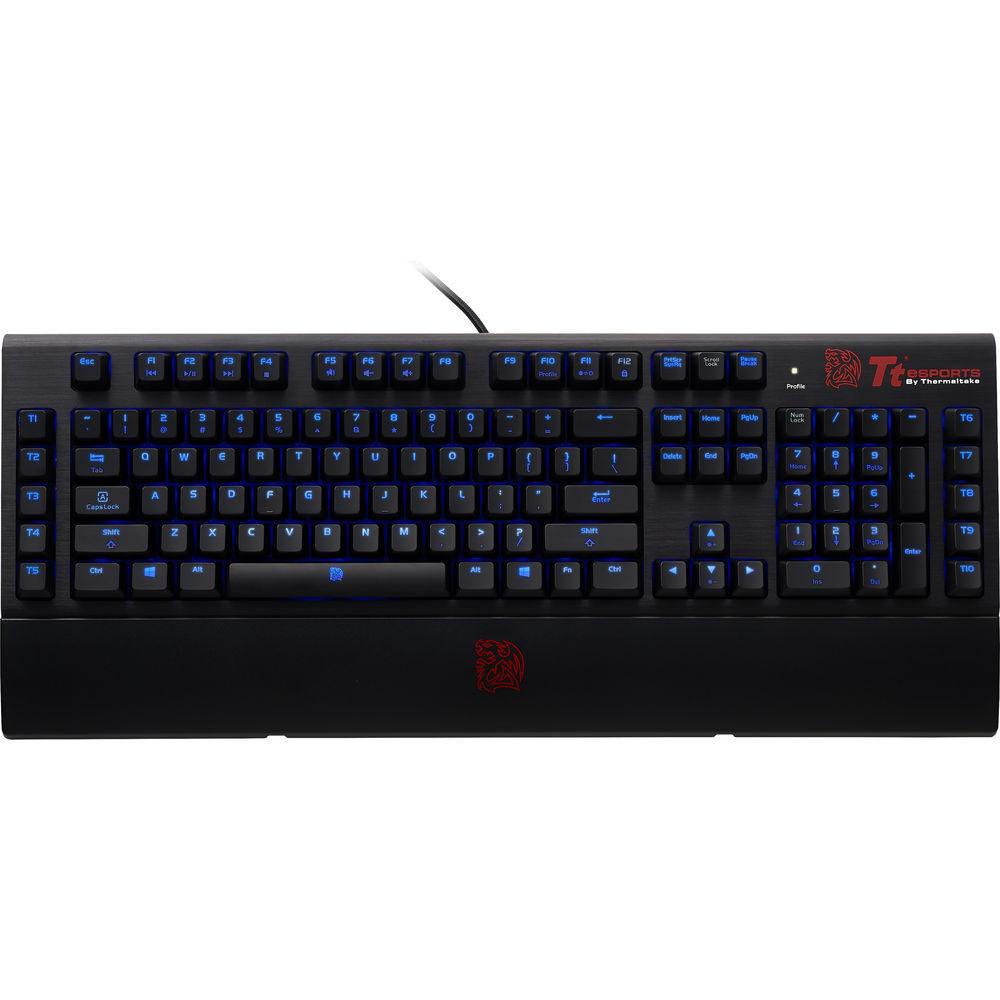

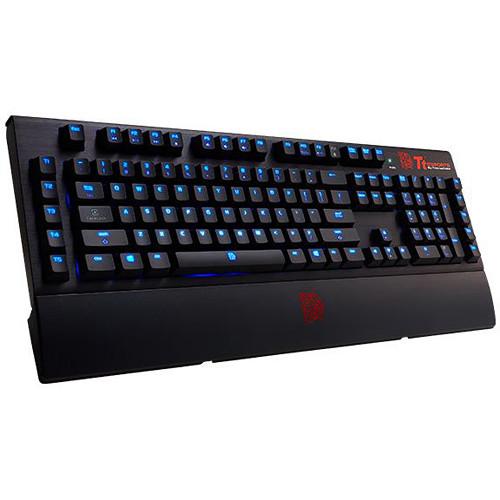

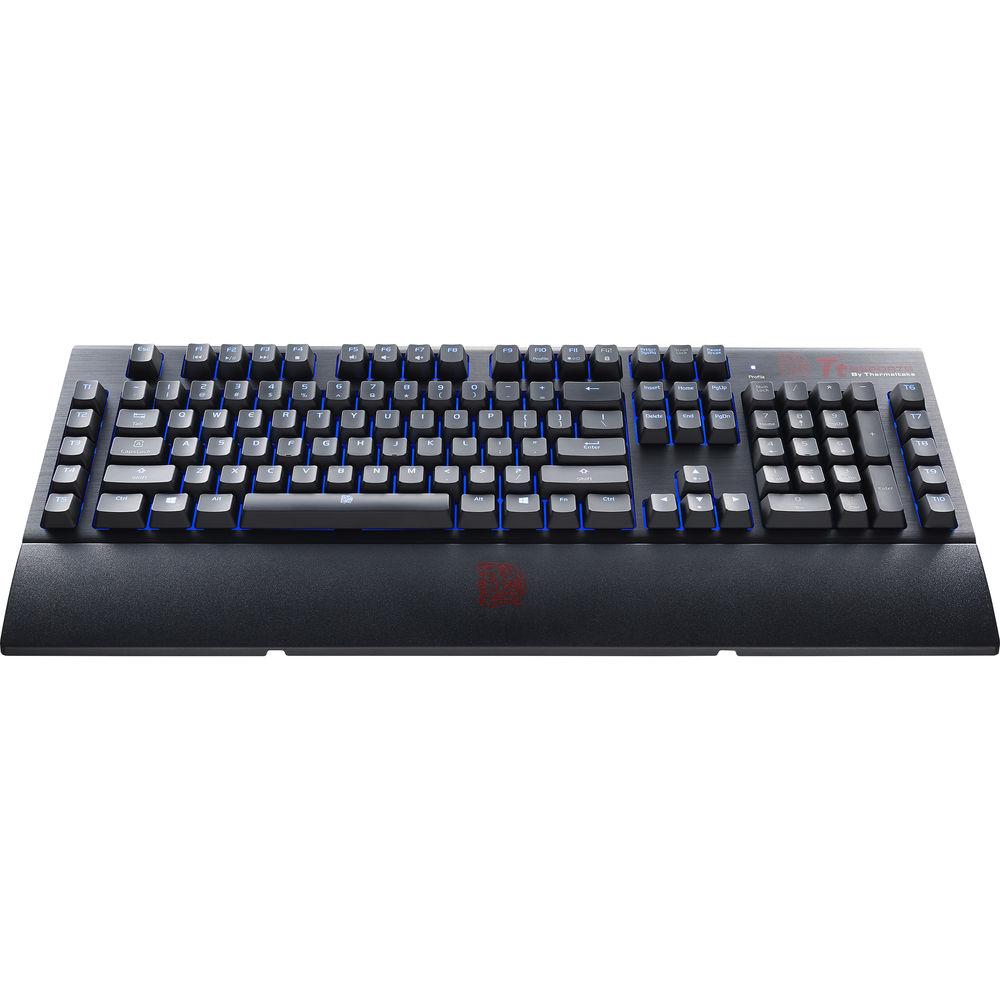

Product description The Tt eSports POSEIDON Z Forged Keyboard (Blue Switch Edition from Thermaltake is an anti-ghosting 104-key mechanical keyboard that is rated for up to 50 million keystrokes. Designed with 64kB of memory and 10 macro keys, this keyboard can store up to up to 50 macros on its normal mode and up to 100 macros when in game mode. Additionally, its DAC Audio Microcontroller Unit (MCU) provides an output sampling rate of 48 kHz/8 kHz, while the mic input operates using 8/16 kHz. An Instant Shift System (I.S.S.) allows users to quickly switch between macros and provides access to all 100 macro keys.
The POSEIDON Z Forged Keyboard is also equipped with two USB ports, a polling rate of 1,000 Hz, a detachable wrist rest, and seven multimedia keys. It is protected by a limited 5-year warranty. - Design
- Black brushed aluminum faceplate with an illuminated design
- Adjustable Glowing Backlighting
- The full 104-key keyboard has a blue metal plate that helps enhances the backlighting. It offering levels of adjustable brightness with an additional pause-break lighting effect, plus pre-configured lighting zone combinations
- Macro Keys
- The POSEIDON Z Forged comes with ten additional macro keys (T1-T10) with five profiles for a total of 50 programmable macros on its normal mode, plus a total of 100 programmable macros on game mode
- Onboard DAC Amplifier USB Audio MCU

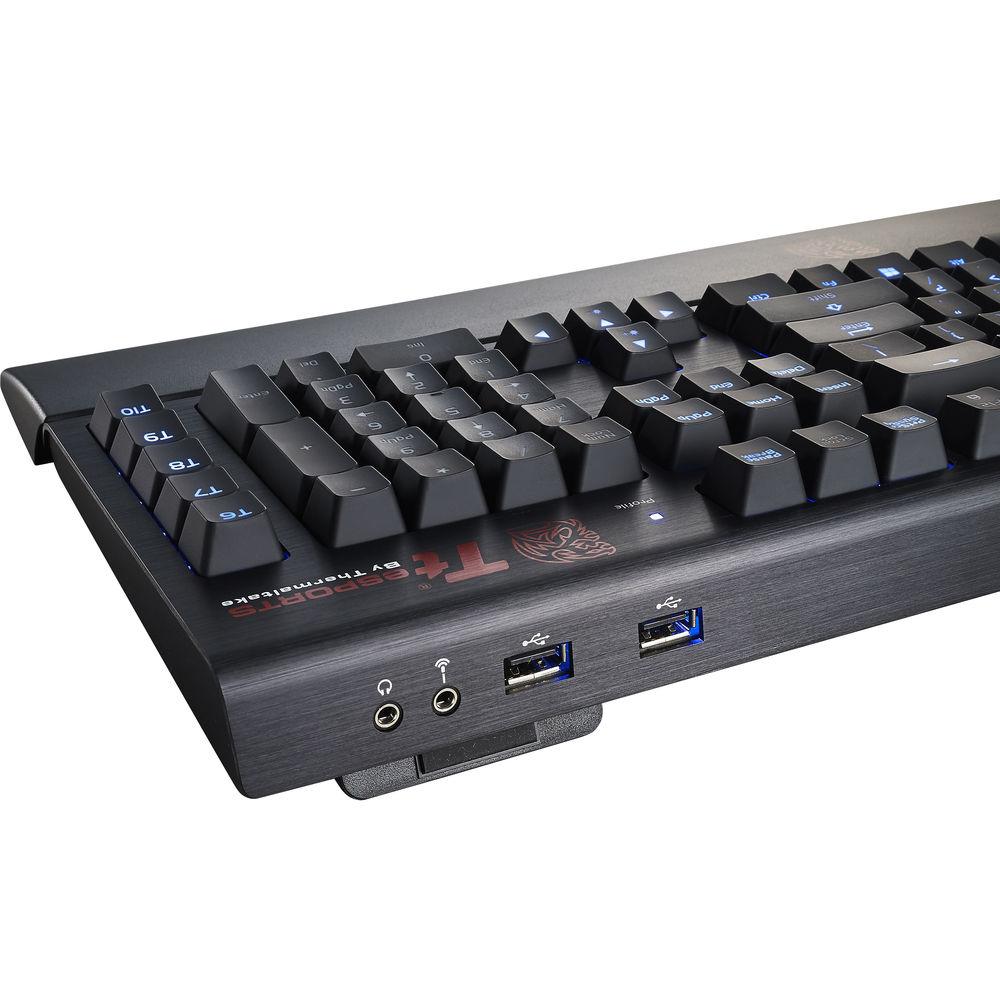

- With the DAC Audio Microcontroller Unit (MCU) containing a digital programmable gain amplifier, audio output quality has a 48 kHz / 8 kHz sampling rate and 16-bit PCM ADC operates at 8/16 kHz for the microphone input. The DAC amplifier gives a deep, powerful, clear, and balanced sound. The built-in ports include a 3.5mm headphone jack, a mic-in jack, and two USB ports
- Instant Shift System (I.S.S.)
- The I.S.S. (Instant Shift System) allows users to use either the Shift, Ctrl, or Alt key to quickly switch between macro groups and get access to all 100 macro keys
- Tt eSPORTS Certified Blue Switches
- The Tt eSPORTS Certified Mechanical Blue switches are built for speed and durability, offering a tactile feel and audible click feedback
- Keyboard Hotkeys
- Fn+F1 - Previous Track
Fn+F2 - Play/Pause
Fn+F3 - Next Track
Fn+F4 - Stop
Fn+F5 - Mute
Fn+F6 - Volume Down
Fn+F7 - Volume Up
Fn+F10 - Change Profile
Fn+F11 - Change Pre-Configured Lighting Zone Combinations
Fn+F12 - Shift to Game Mode
Fn+up - Brightness Up
Fn+down - Brightness Down UPC: 841163055793 In the Box Thermaltake Tt eSPORTS POSEIDON Z Forged Keyboard (Blue Switch Edition) Limited 5-Year Warranty Manual PDF 1.2mbtzerrtebvxvywrfsys Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Tt eSPORTS POSEIDON Z Forged Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake POSEIDON Z Specs | | | Switch Type | Mechanical | | Mechanical Switch Type | Kailh Blue | | Dedicated Multimedia Keys | Yes | | Dedicated Macro Keys | 10 | | Polling Rate | 1000 Hz | | | | LED Colors | Blue | | Onboard Memory | 64 kB | | Built-In Control Device | None | | Wrist Rest | Detachable | | | | Cable Length | 5.9' / 1.8 m | | Cable Type | Detachable | | Dimensions (L x W x H) | 19.8 x 6.1 x 1.7" / 503.0 x 156.2 x 43.0 mm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 21.1 x 9.6 x 2.2" |
