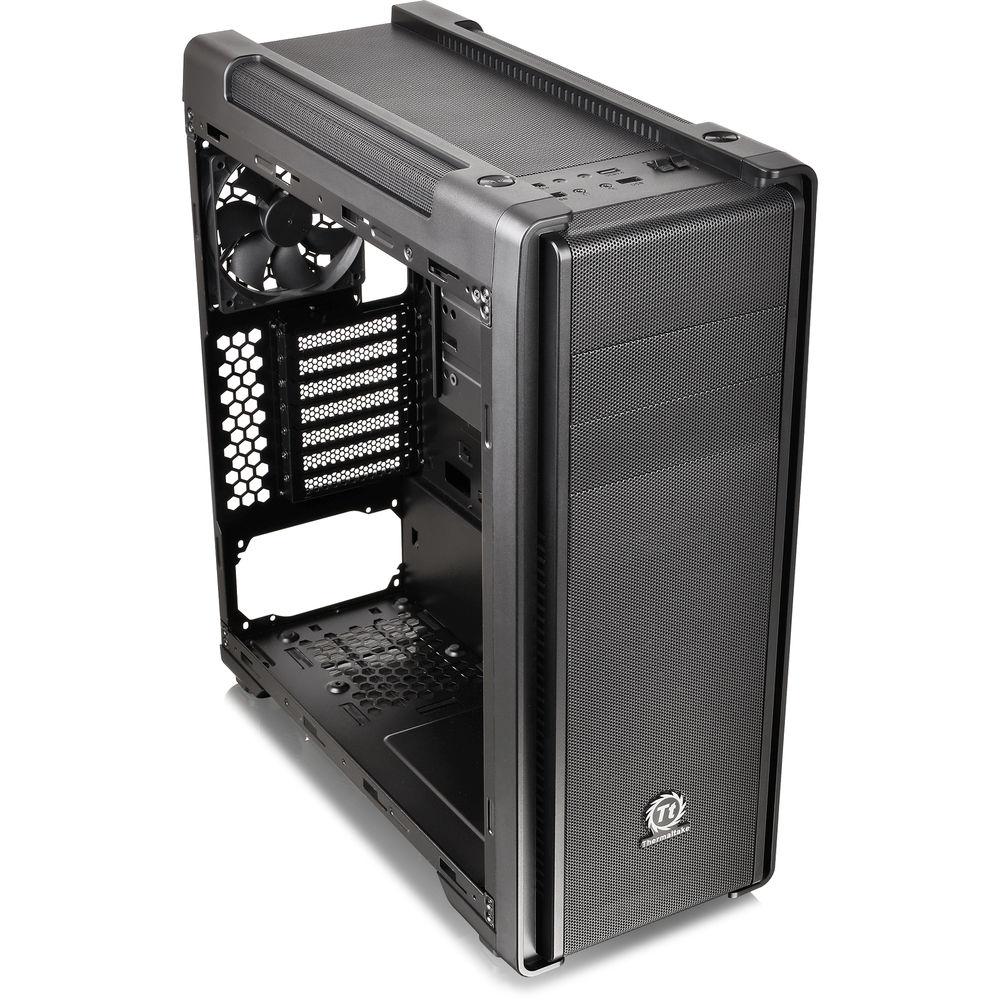

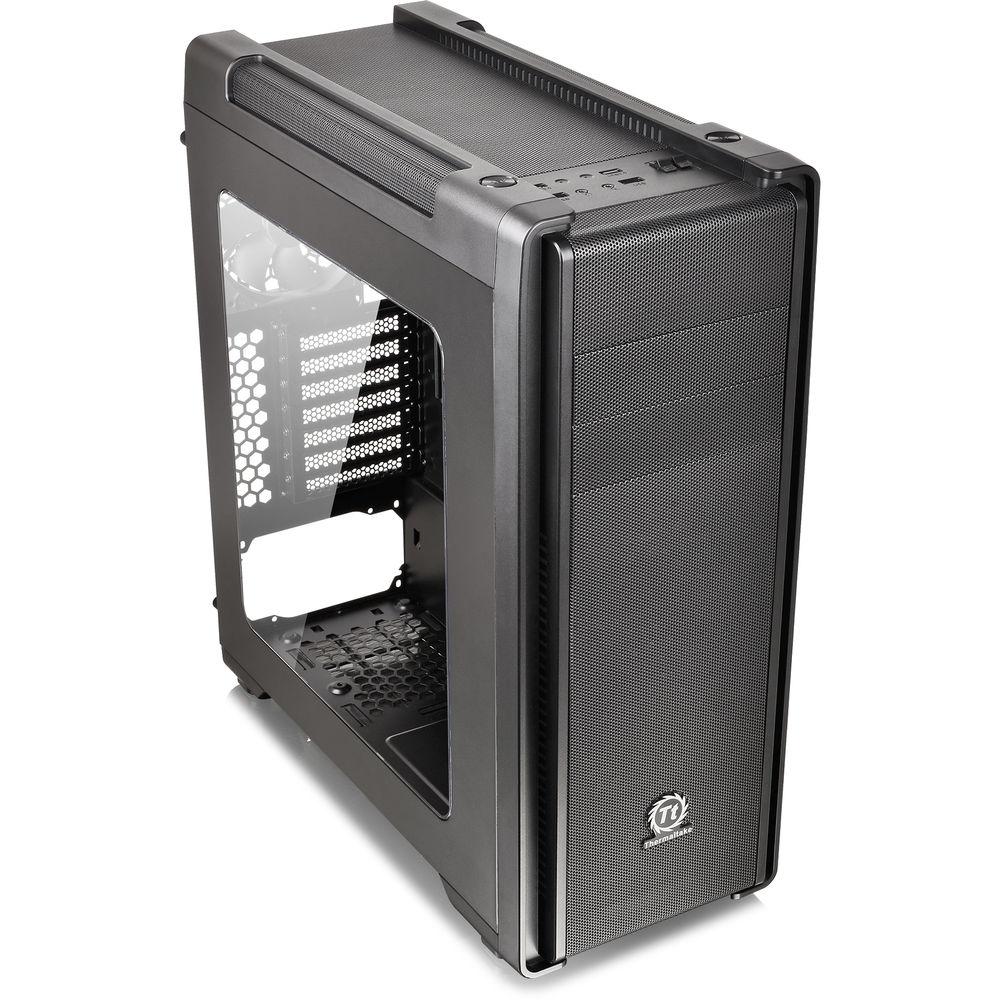

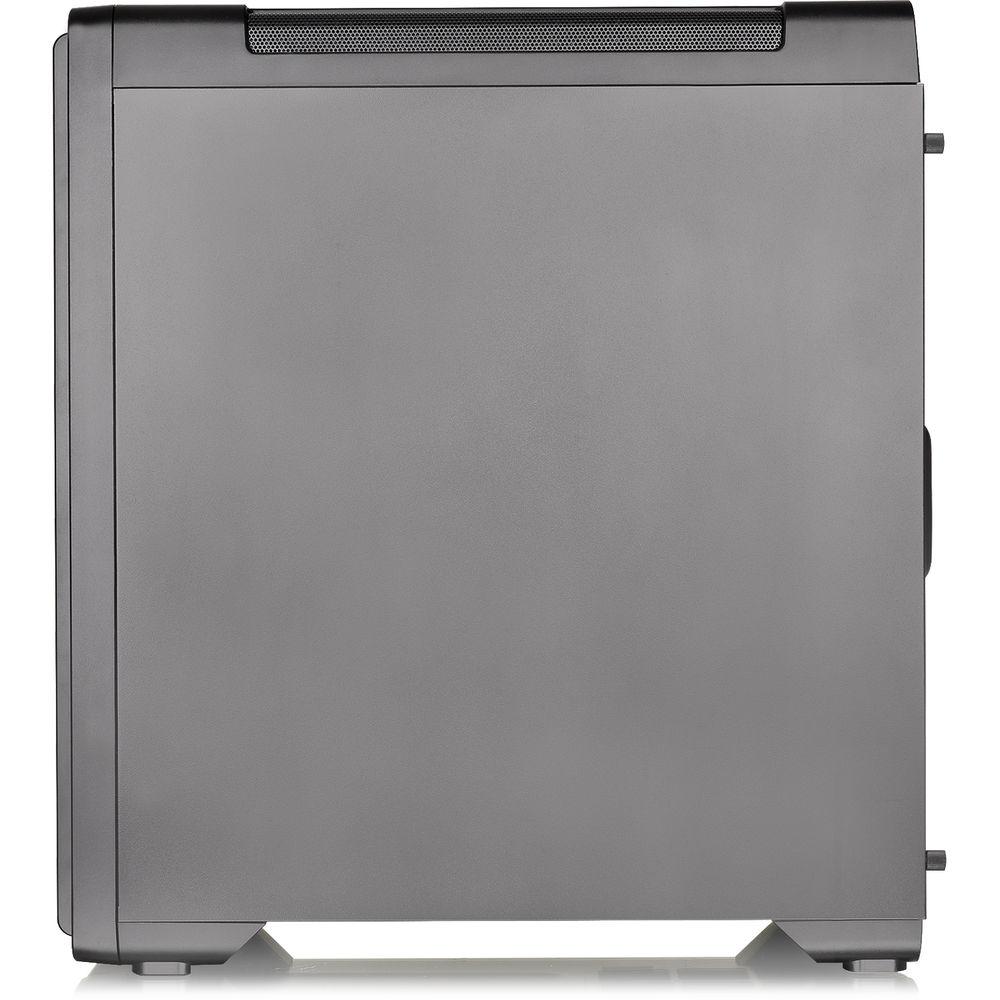

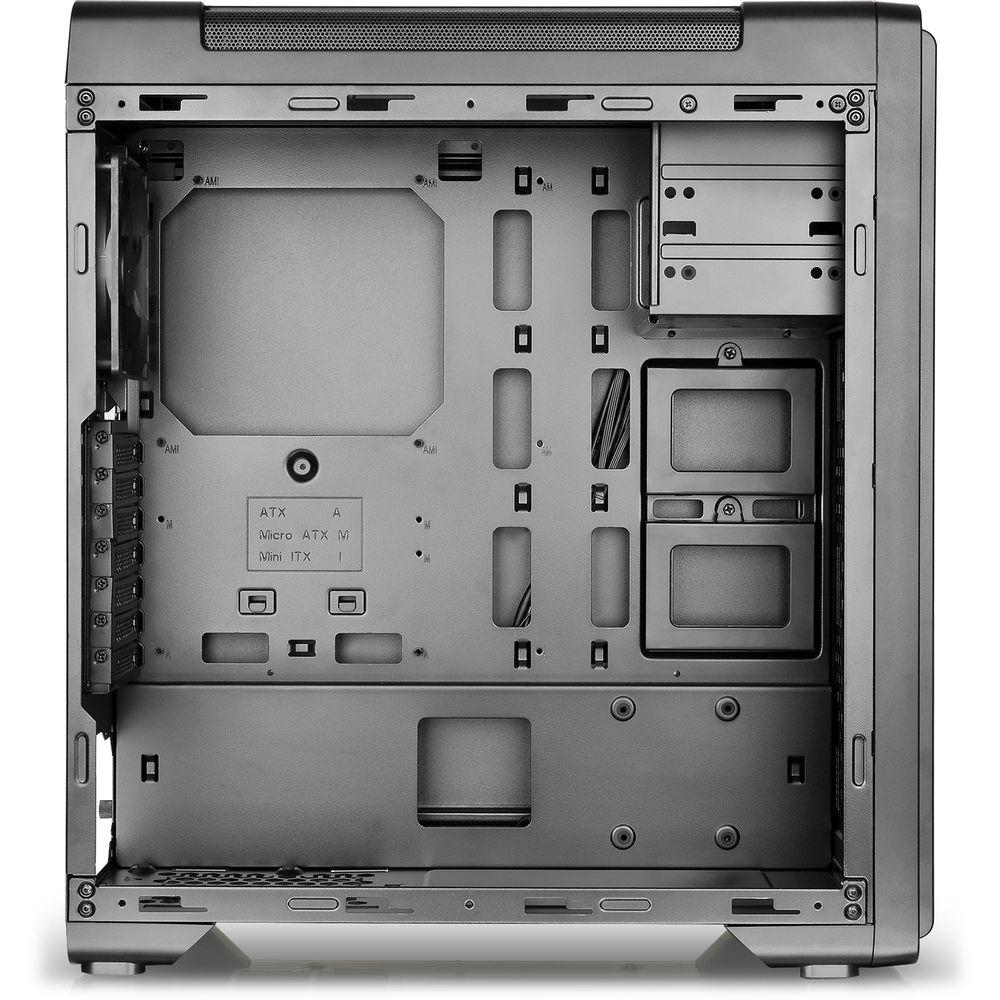

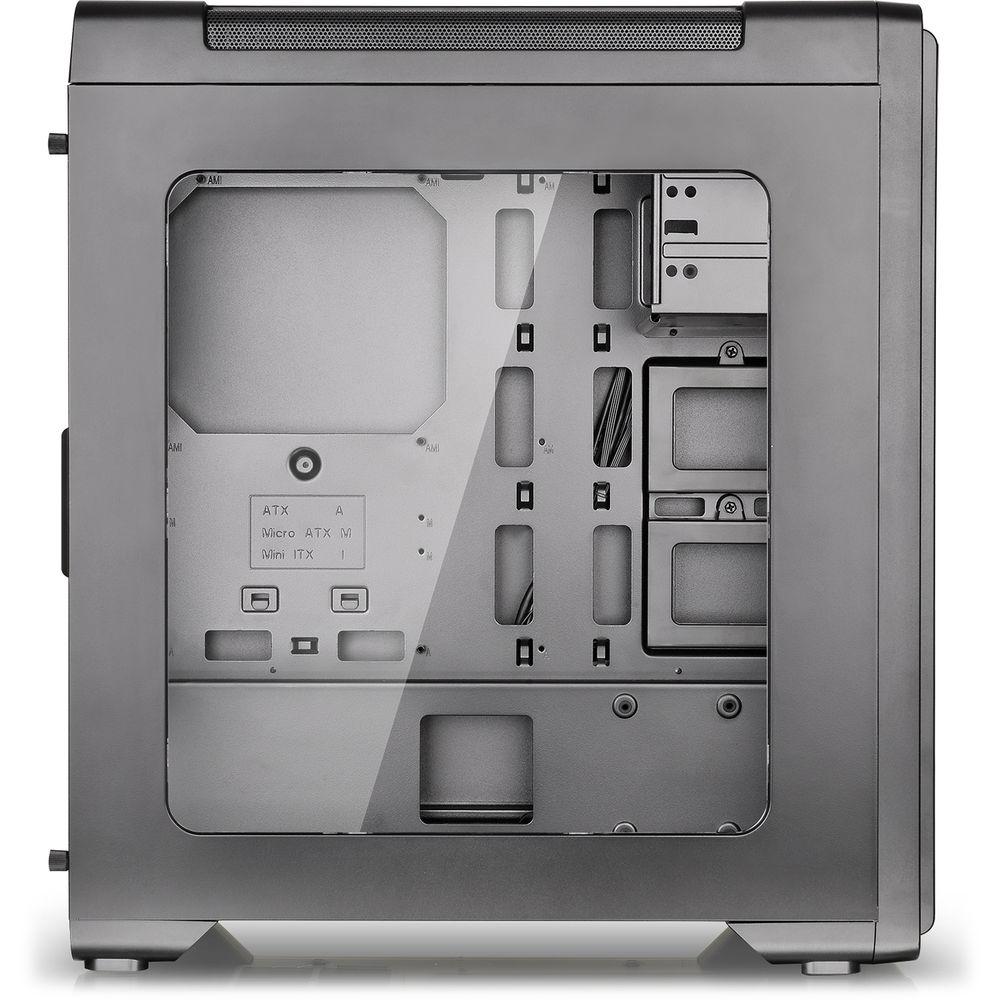

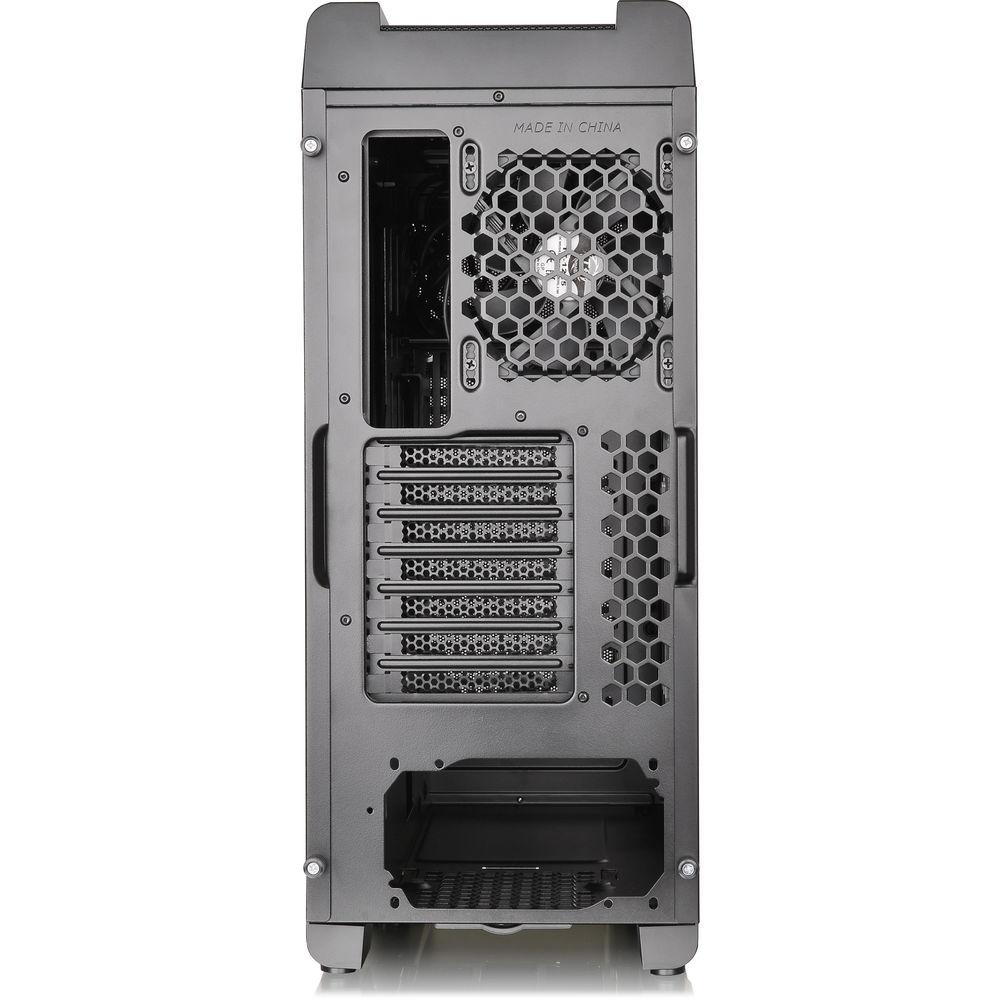

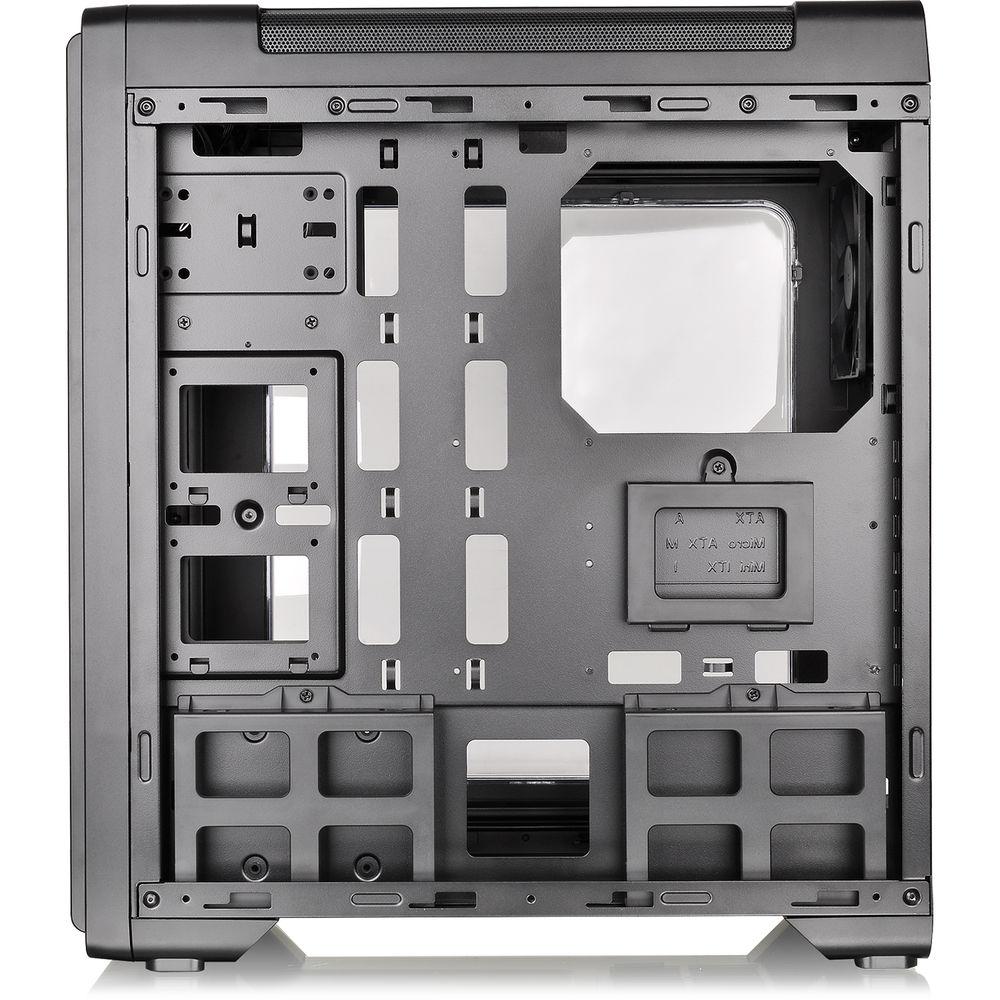

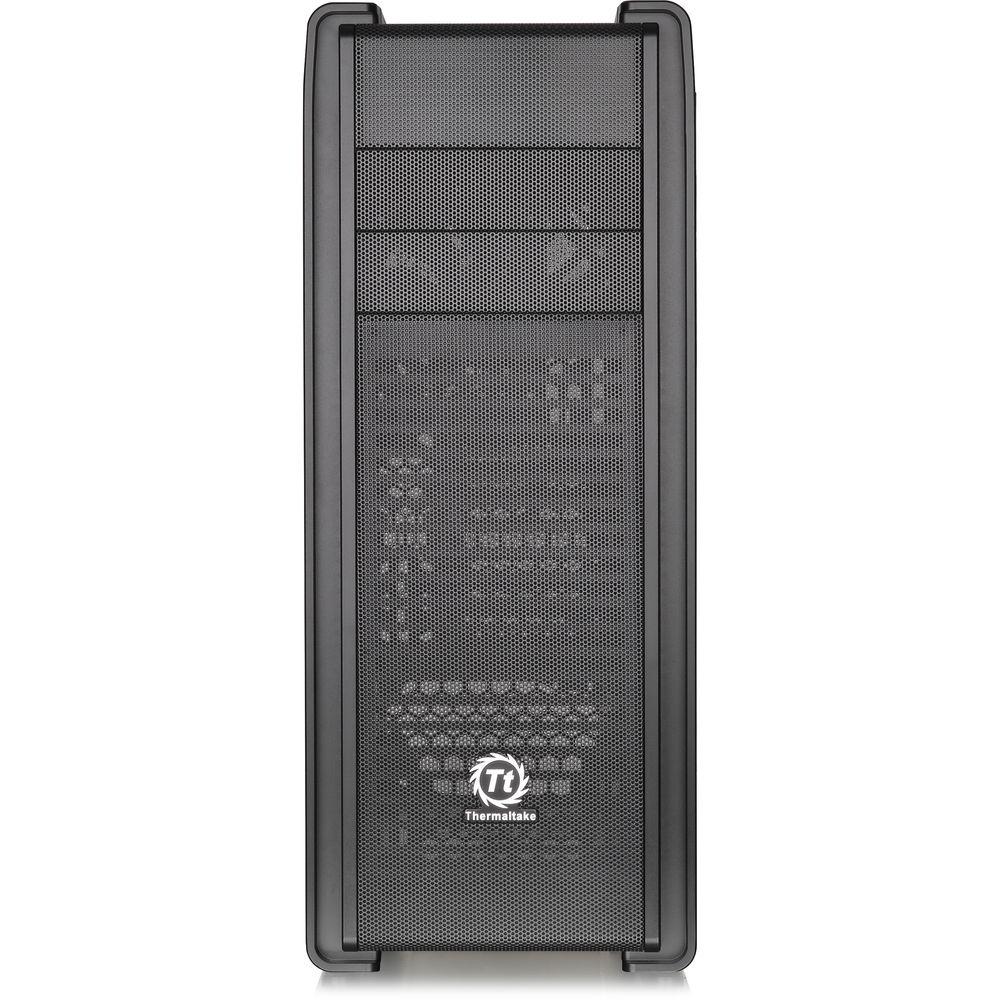

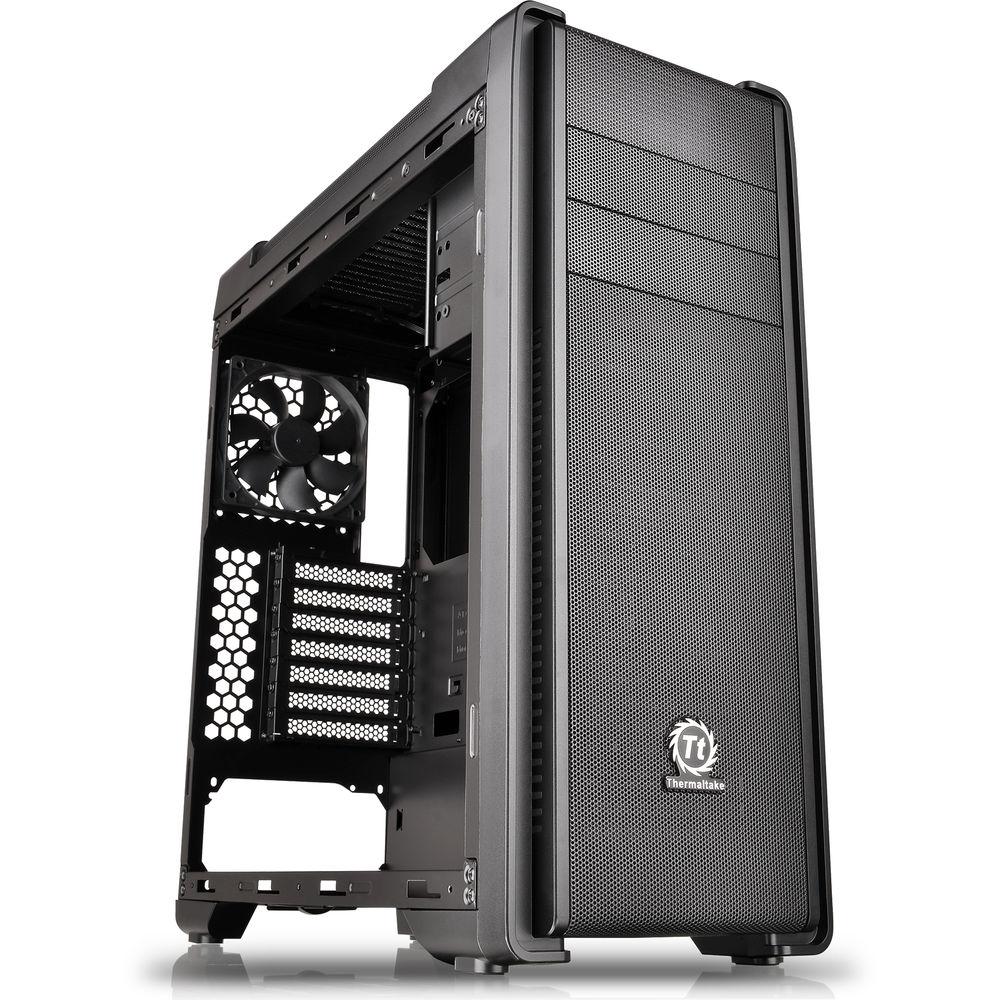

User Manual for Thermaltake Versa C21 RGB ATX Mid-Tower Chassis Click to enlarge the picture
Contents of the user manual for the Thermaltake Versa C21 RGB ATX Mid-Tower
- Product category: Desktop Computer Cases Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Desktop Computer Cases
 |
User manual for the Thermaltake Versa C21 RGB ATX Mid-Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|
Product description Provided by third party: The Versa C21 RGB Mid-Tower chassis is perfectly designed for gamers to build a high-end but stylish gaming system. Featuring stunning RGB LED light, users can add a personal touch with vibrant colors. Additionally, the Versa C21 RGB supports up to a standard ATX motherboard. Most importantly, the spacious interior design offers plenty of space for users to install the latest PC hardware, AIO and DIY liquid cooling solutions.
- Key Features
-
- Tt LCS Certified
- Gorgeous RGB LED Illumination
- Fully Modular Concept
- Handy I/O Ports
- Tt LCS Certified
- Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
- Gorgeous RGB LED Illumination
- With distinctively gorgeous illumination display colors, the Versa C21 RGB is an ideal chassis for those who want to show their style and personality in a subtle manner. The light is visible from all angles. Users can use the LED controller on the top panel to switch between four different lighting schemes, including 7 multicolored mode, breathing light mode, single color mode and blink mode.
- Fully Modular Concept
- The fully modular drive cages minimize the hassles of installation and removal. The drive bay is applied tool-less design that allows users to freely interchange the hard-drives to suit their particular needs.
- Handy I/O Ports
- The top-front panel is designed a USB 3.0 data transfer port along with two standard USB 2.0 ports and a LED controller, to grand direct access when needed. The Versa C21 RGB is also equipped with two fan speed controllers on the top-front panel. Each fan speed controller can control up to two fans.
UPC: 841163065204 In the Box Thermaltake Versa C21 RGB ATX Mid-Tower Chassis (Black) Thermaltake Versa C21 RGB HDD Cage Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Versa C21 RGB ATX Mid-Tower Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CA1G800M1WN00 Specs | | | Form Factor | Mid tower | | Max Mainboard Size | ATX | | Supported Motherboards | ATX, microATX, Mini-ITX | | Specification Compliance | PS/2 | | Internal Bays Qty | 5 | | Front Accessible Bays Qty | 2 | | Product Material | SPCC steel | | Color | Black | | Cooling System | Rear: 120 x 120 x 25 mm fan x 1 / exhaust / 1000 rpm / 16 dBA
Front: 120/140 mm fan mount x 2
Top: 120 mm fan mount x 2 | | CPU Cooler Max Height | 160 mm | | Video Card Max Length | 390 mm | | System Cabinet Features | Windowed side panel, top panel dust filter, fan speed controller, meshed front panel, front dust filter, modular HDD brackets, cable management system, supports 240 mm radiator in front panel, supports 240 mm radiator in top, supports 120 mm radiator in rear, bottom dust filter, toolless design, RGB illumination | | | | Expansion Bays | 2 (total) / 2 (free) x front accessible - 5.25"
2 (total) / 2 (free) x internal - 3.5"
3 (total) / 3 (free) x internal - 2.5" | | Expansion Slots | 7 | | Interfaces | 1 x USB 3.0
2 x USB 2.0
1 x audio line-in
1 x audio line-out | | | | Included Accessories | HDD Cage | | | | Power Device | No power supply | | | | Width | 8.5 in | | Depth | 20.5 in | | Height | 18.5 in | | Weight | 14.99 lbs | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 23.0 x 22.0 x 10.5" |
