Thermaltake Versa C23 Tempered Glass RGB

Search your instruction manual in PDF to download

User Manual for Thermaltake Versa C23 Tempered Glass RGB Edition Mid-Tower Chassis

Click to enlarge the picture
Thermaltake Versa C23 Tempered Glass RGB Edition Mid-Tower Chassis Contents of the user manual for the Thermaltake Versa C23 Tempered Glass RGB
  • Product category: Desktop Computer Cases Thermaltake
  • Brand: Thermaltake
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Thermaltake Desktop Computer Cases

Thermaltake Versa C23 Tempered Glass RGB Edition Mid-Tower Chassis Thermaltake Versa C23 Tempered Glass RGB Edition Mid-Tower Chassis Thermaltake Versa C23 Tempered Glass RGB Edition Mid-Tower Chassis Thermaltake Versa C23 Tempered Glass RGB Edition Mid-Tower Chassis Thermaltake Versa C23 Tempered Glass RGB Edition Mid-Tower Chassis Thermaltake Versa C23 Tempered Glass RGB Edition Mid-Tower Chassis Thermaltake Versa C23 Tempered Glass RGB Edition Mid-Tower Chassis
User manual for the Thermaltake Versa C23 Tempered Glass RGB contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Thermaltake product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!



Product description

The Thermaltake Versa C23 Tempered Glass RGB Edition Mid-Tower Chassis houses your internal computer components and lets you view them through an enlarged tempered-glass windowed side panel and built-in RGB LED lighting. The Versa C23 case supports mini-ITX, micro-ATX, and ATX motherboards and double-width graphics cards up to 15.7" long. Designated spaces and drive trays are available for mounting either six 2.5" drives or four 2.5" drives and two 3.5" drives to the motherboard tray.

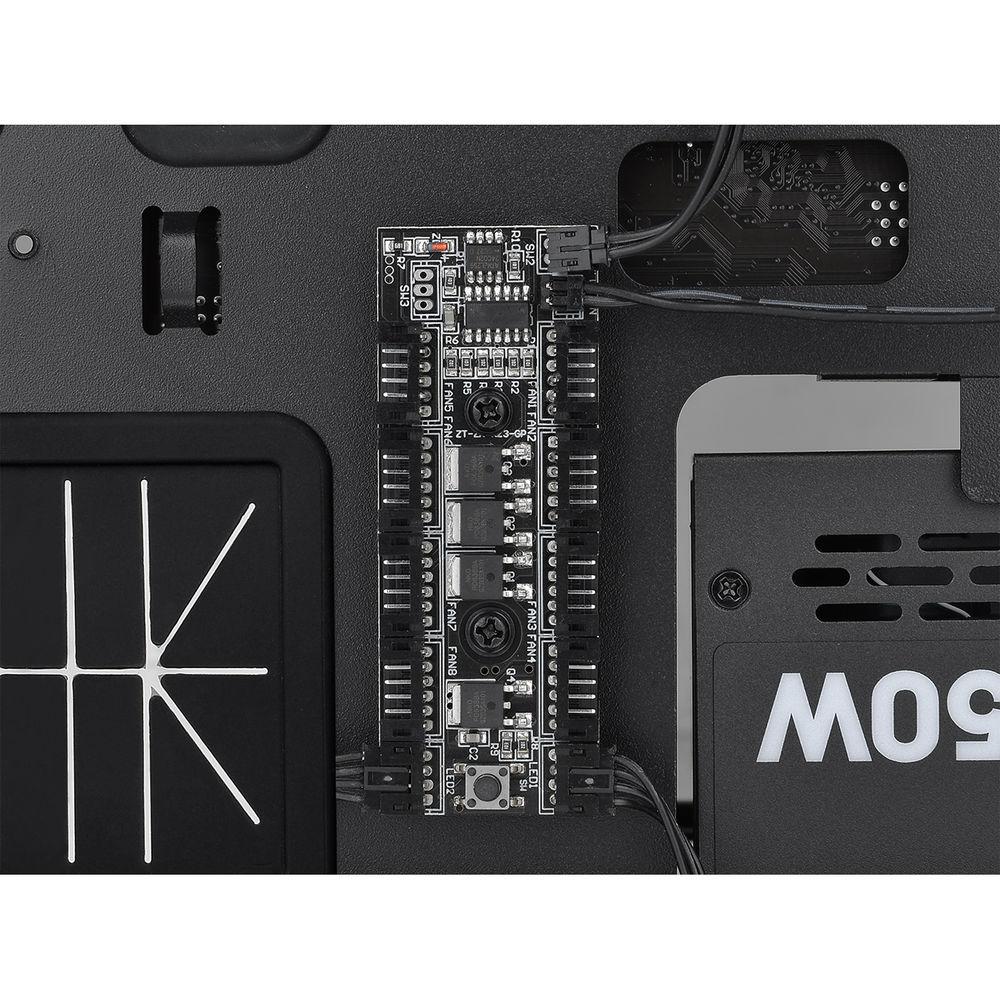

The Versa C23 RGB case is armed with a RGB LED controller on the top panel, close to the front, so you can easily select from 11 lighting modes. In addition to controlling the internal LED lighting, this controller can sync the effects on the included 120mm LED fan. Aside from the LED controller, Thermaltake has armed the case with two USB 3.0 and two USB 2.0 ports. Other notable features include support for liquid-cooling systems and CPU coolers up to 6.1" tall. There's also seven expansion slots for creating a multi-GPU build.
    Aluminum Front and Top Panels

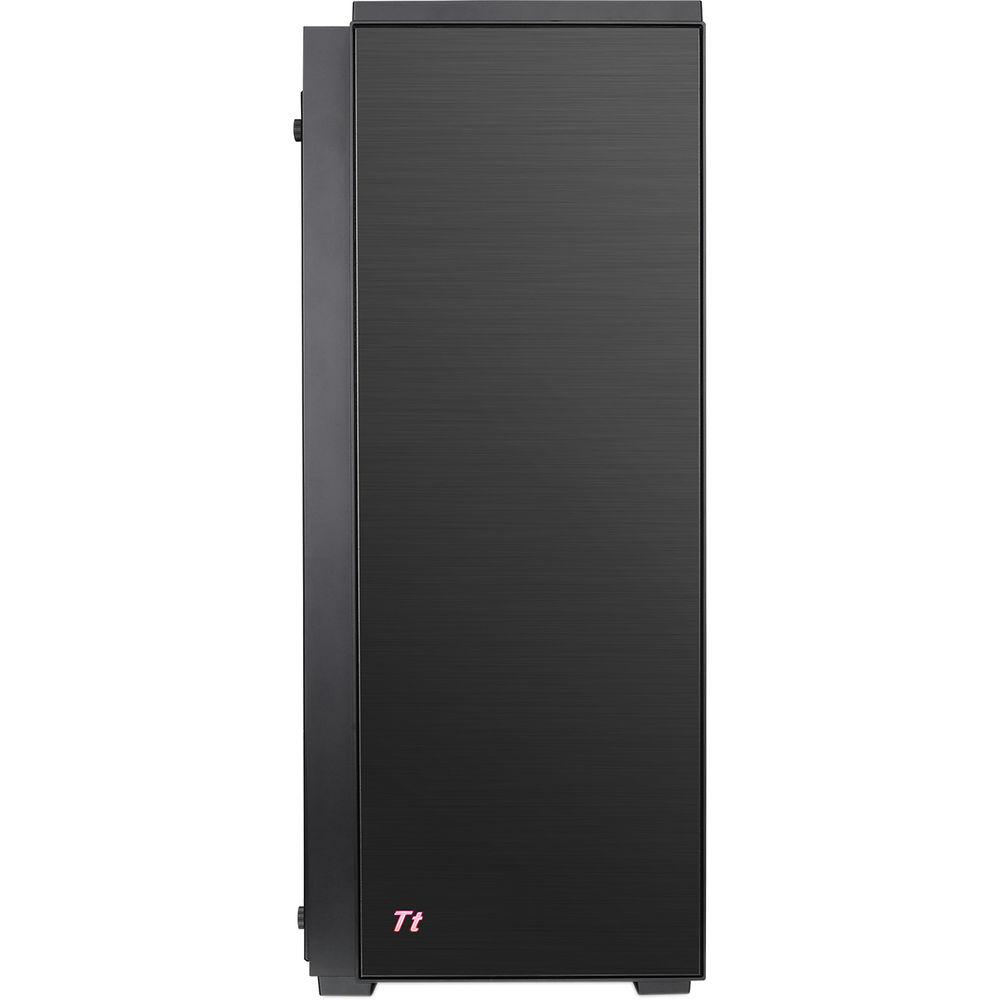

  • Brushed aluminum front and top panels unify the appearance and mask the extrusive drive devices.
    RGB LED Illumination

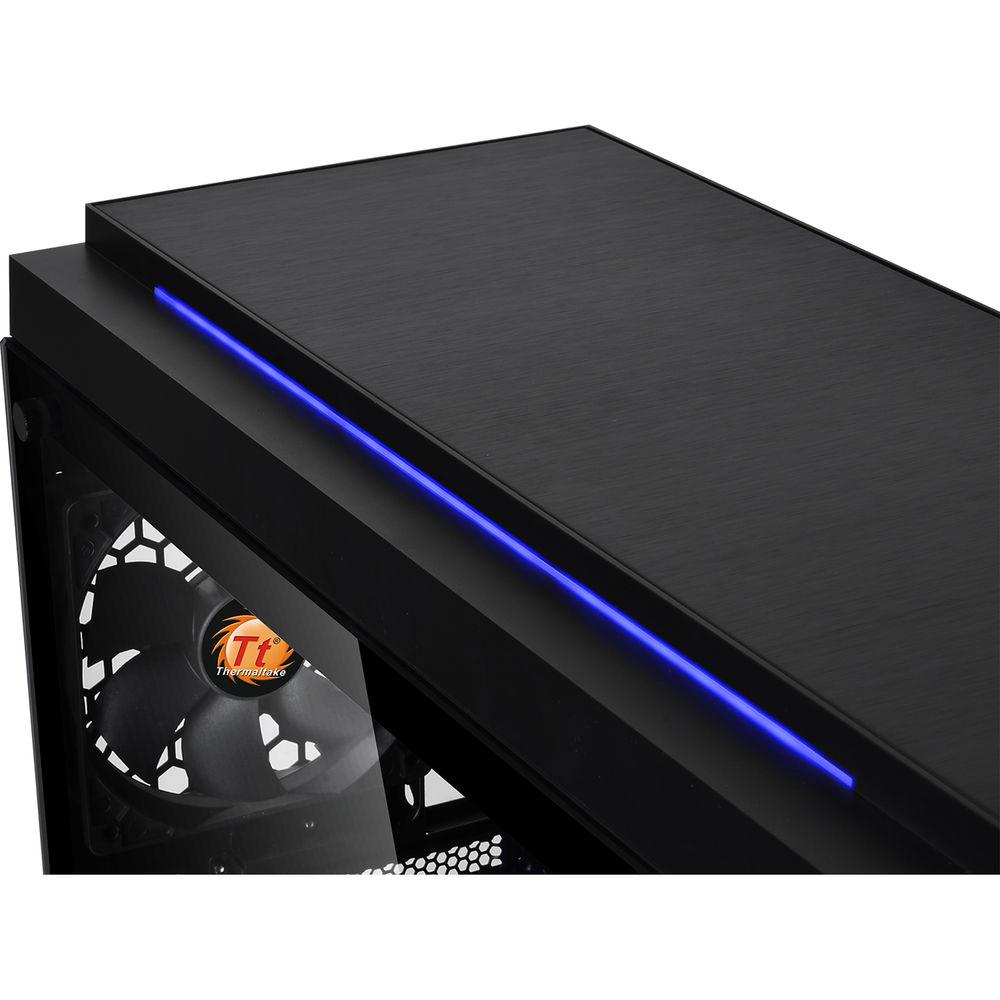

  • The Versa C23 RGB comes with an RGB LED controller on the front-top panel to provide 11 lighting modes, such as static color (red/blue/white/green), RGB spectrum, and RGB breathing.
    Controllable RGB Lights
  • With the integrated RGB LED controller on the front-top panel, the lighting effects of the included Thermaltake Riing 12 RGB fan can be fully synced with the lights of the built-in RGB LED.
    4mm Thick Tempered-Glass Side Panel

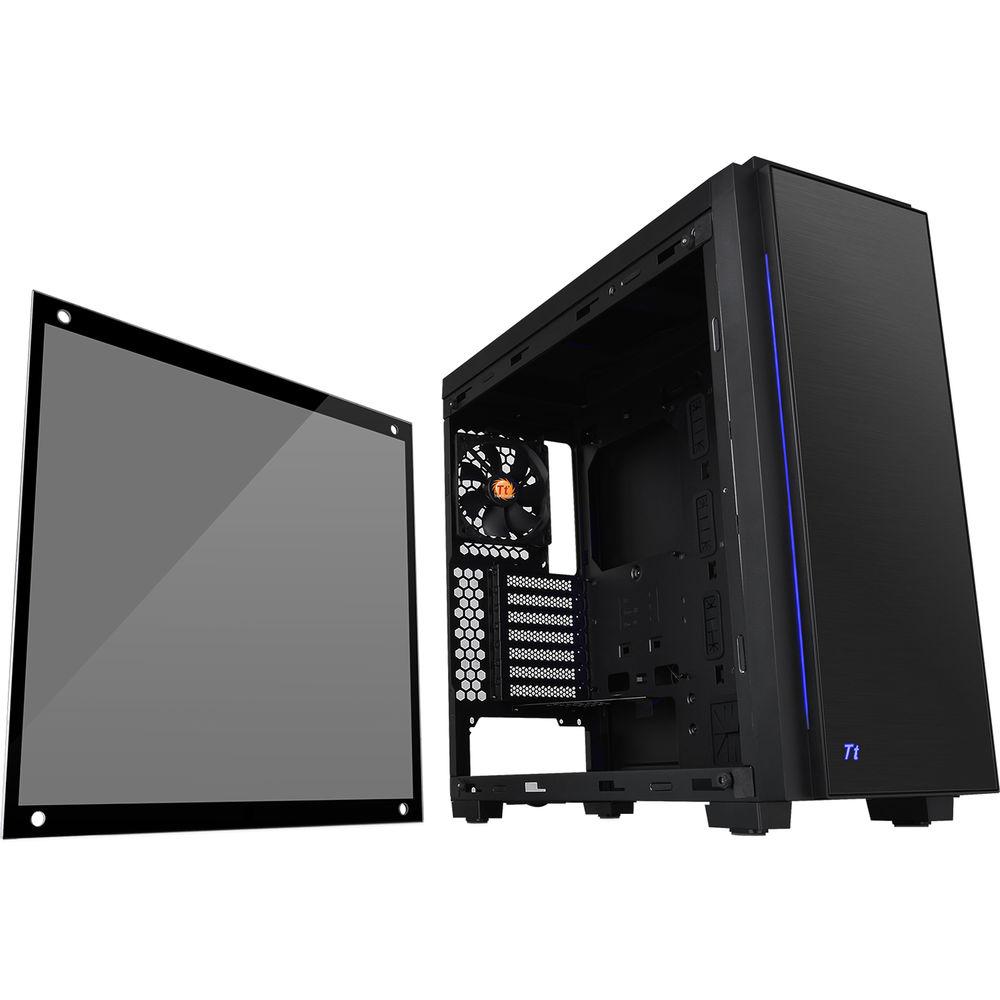

  • The Versa C23 TG RGB adopts a 4mm-thick tempered-glass window that permits users to fully display all of the components an optional liquid-cooling system. The enlarged window design offers greater durability than other windowed panels made of a different material.
    Fully-Modular Concept

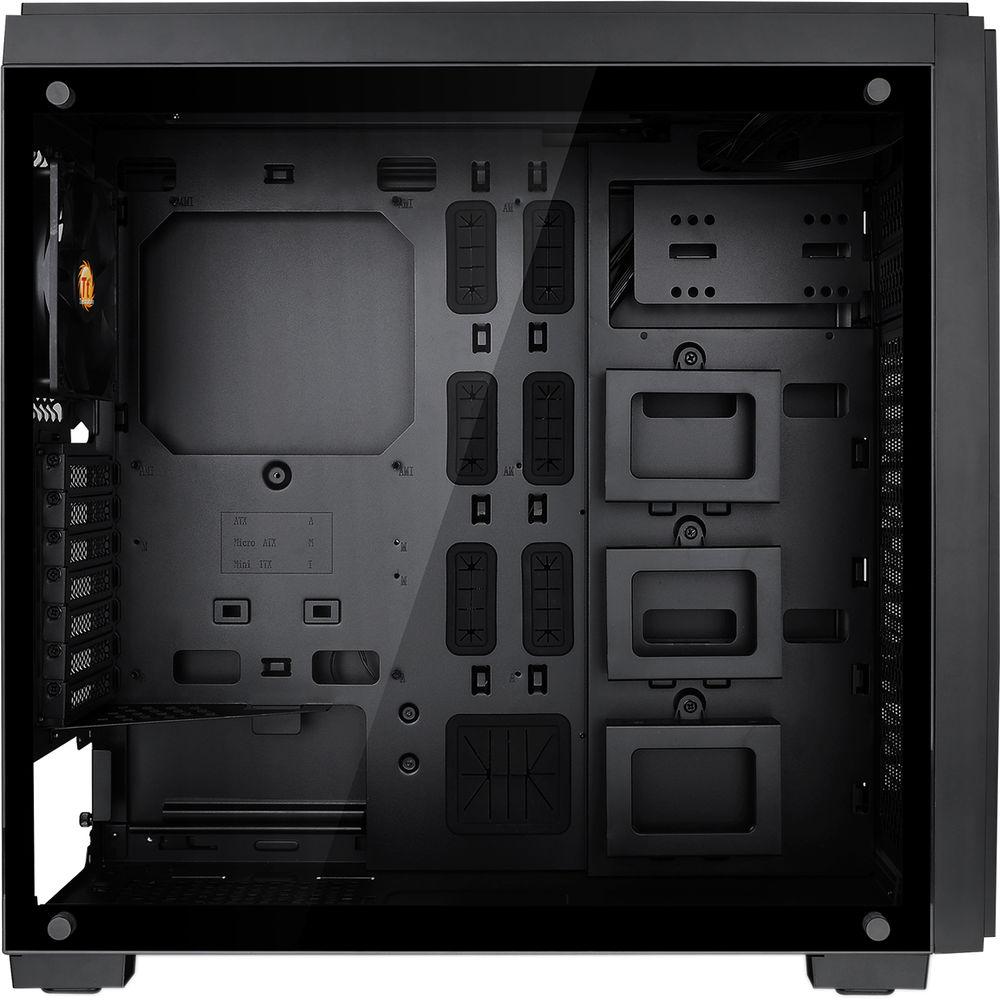

  • The fully modular drive cages minimize the hassles of installation and removal. The 2.5"/3.5" drive bay features a tool-less design that allows users to freely interchange the storage drives to suit their particular needs. The dual-drive bay concept of "2+6" offers a good ratio for accessories and storage devices.
    I/O Ports

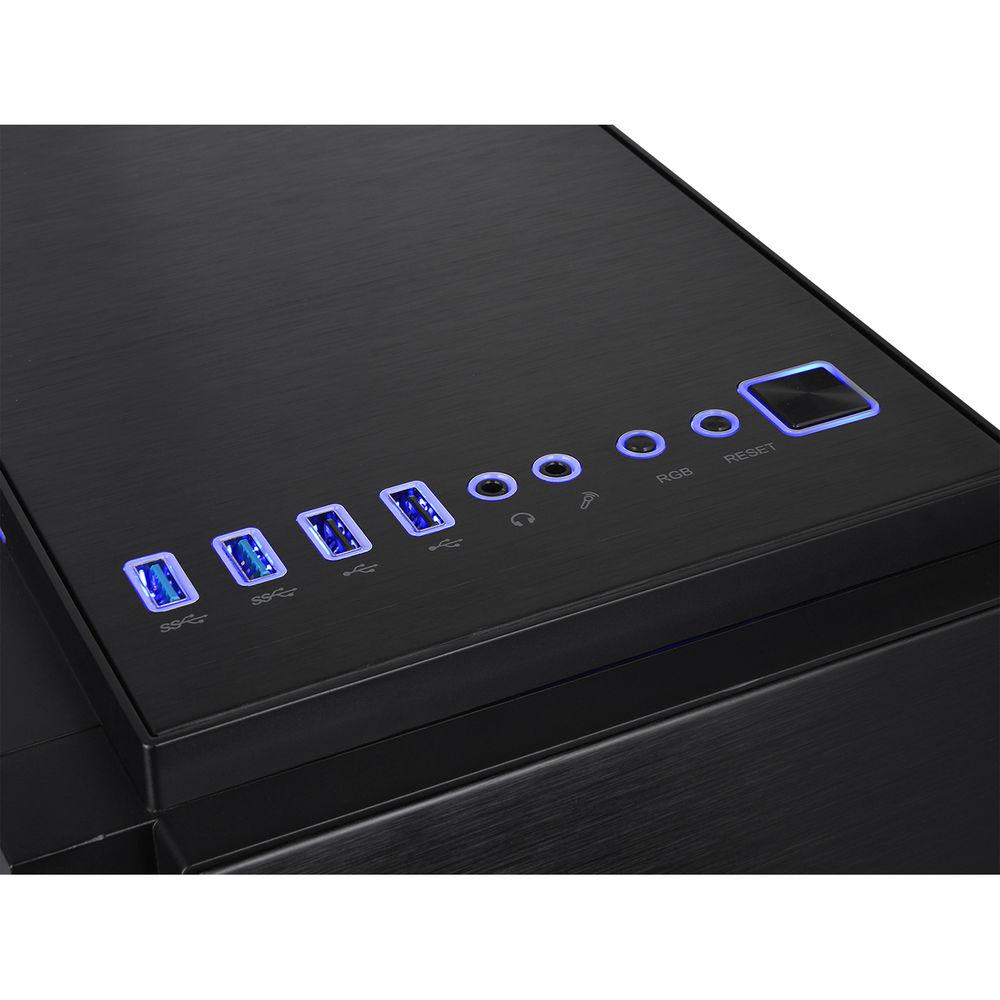

  • The top-front panel has two USB 3.0 and two USB 2.0 ports along with a LED controller for quick direct access.
    Hardware Support
  • The Versa C23 TG RGB supports motherboards up to standard ATX, a tower CPU cooler with maximum height 6.1" (155mm), and a dual-slot graphics card of up to 15.7" (400mm) in length without a front fan installed. Moreover, with the tool-free design, users can easily mount up to two 2.5"/3.5" (with HDD tray) and two 2.5" (with the M/B tray) storage devices into the build at the same time.
    Ventilation

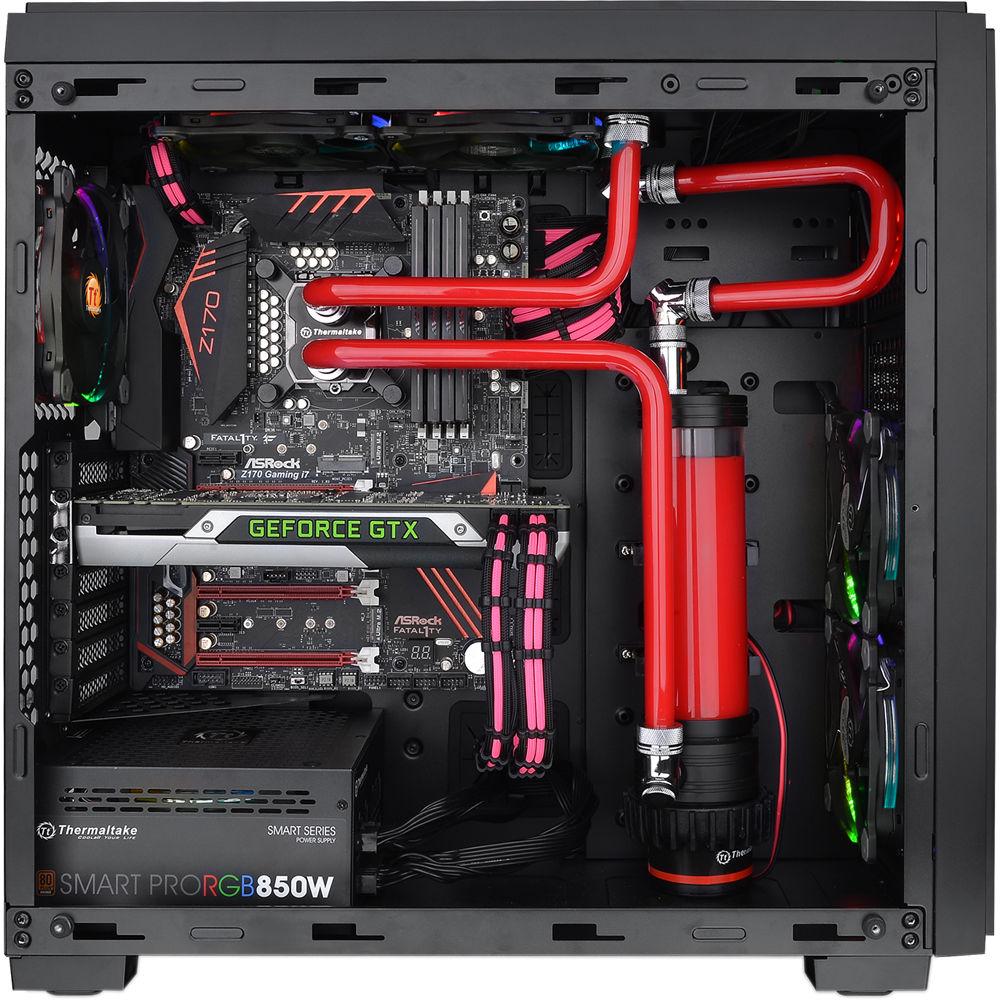

  • The Versa C23 TG RGB sports mounting points to support different types of cooling, including DIY/AIO liquid-cooling systems and air-cooling units. Apart from the built-in 120mm rear fan, users can install a liquid cooling radiator up to 240mm in length or two 120mm fans at the front to optimize system ventilation.
UPC: 841163069714 In the Box Thermaltake Versa C23 Tempered Glass RGB Edition Mid-Tower Chassis
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Thermaltake Versa C23 Tempered Glass RGB Edition Mid-Tower Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Thermaltake CA-1H7-00M1WN-00 Specs

    Motherboard Support ATX, Micro-ATX, Mini-ITX
    External Drive Bays None
    Internal Drive Bays None
    Additional Drive Mounting 2 x 2.5/3.5" (Motherboard Tray)
    4 x 2.5" (Motherboard Tray)
    Expansion Slots 7 x Full Height
    Maximum GPU Length 15.75" / 400 mm
    CPU Cooler Height 6.10" / 155 mm
    Supported PSU Size ATX
    Maximum PSU Length 8.66" / 220 mm
    Fan Mounting (Front) 2 x 120 mm
    Fan Mounting (Rear) 1 x 120 mm
    Fan Mounting (Side) None
    Fan Mounting (Top) 2 x 120 mm
    Fan Mounting (Bottom) None
    Fans Included (Front) None
    Fans Included (Rear) 1 x 120 mm LED (1000 rpm)
    Fans Included (Top) None
    Maximum Radiator Size (Front) 1 x 240 mm
    Maximum Radiator Size (Rear) 1 x 120 mm
    Maximum Radiator Size (Top) 1 x 240 mm
    Fan Mounting (Internal) None
    Noise Level 16 dBA
    Fan Controller Included No
    Filter Locations None
    Connections 2 x USB Type-A (USB 3.0)
    2 x USB Type-A (USB 2.0)
    Audio Connections 1 x 3.5 mm Input
    1 x 3.5 mm Output
    Display Connections None
    Windowed Panel Yes
    Material Aluminum, Tempered Glass, Steel
    Built-In Lighting Yes
    Security None
    Dimensions (W x H x D) 20.1 x 7.9 x 20.0" / 510.5 x 200.7 x 508.0 mm
    Weight 18.7 lb / 8.5 kg
    Package Weight 23.11 lb
    Box Dimensions (LxWxH) 24.0 x 23.0 x 12.0"
