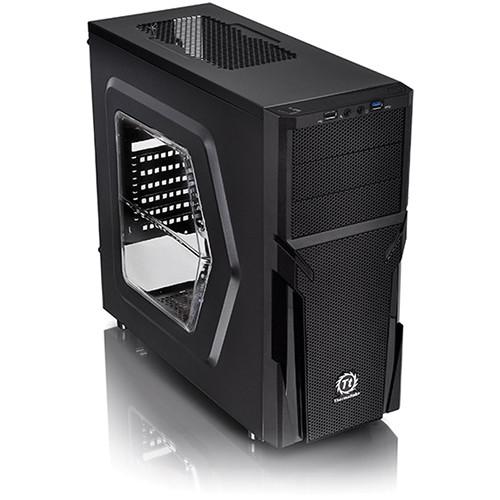

User Manual for Thermaltake Versa H21 Mid-Tower Window Chassis Click to enlarge the picture
Contents of the user manual for the Thermaltake Versa H21 Mid-Tower Window Chassis
- Product category: Desktop Computer Cases Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Desktop Computer Cases
|
User manual for the Thermaltake Versa H21 Mid-Tower Window Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|
Product description The black Versa H21 Mid-Tower Window Chassis from Thermaltake is designed for home-computer builders and gamers, with enough space for hardware and seven expansion slots. The ventilation options, cleanable air filter, and a perforated mesh bezel keep the entire system cool and dust-free. Versa H21 combines a manageable frame size with extensive options to customize your computer or gaming system. It is equipped with one SuperSpeed USB 3.0 port along with one standard USB 2.0 port, an HD microphone and headset jacks. - Design
- Designed for gamers, with perforated metal mesh front and top panel, to allow quick heat dissipation and rapid air intake for maximum ventilation. The heighten foot-stands at the bottom help to enhance airflow. It features a transparent side window to offer a direct view of inner system.
- Tool-Free Installation
- Tool-free drive bay design minimizes the hassles of installing/removing. It supports three 5.25", three 3.5"/2.5", and three 2.5" drive bays for accessory and storage devices.
- I/O Ports
- The perforated front-top panel has implemented one data transfer SuperSpeed USB 3.0 port along with one standard USB 2.0 port, an HD microphone and headset jacks, to grand direct access when needed.
- Optimized Ventilation
- Pre-installed one 120 mm rear exhaust fan, and support for optional two 120 mm intake fans to optimize system ventilation with dust filter.
- Convenient Support
- Pre-mounting holes to support motherboards up to standard ATX and CPU cooler installation. The case supports long graphic card with advanced cable management, and liquid cooling system.
UPC: 841163054239 In the Box Thermaltake Versa H21 Mid-Tower Window Chassis (Black) 3 x #6-32 x 6mm Stand-off 6 x #6-32 x 6mm Screws 15 x #6-32 x 5mm Screws 9 x M3 x 5mm Screws 4 x Cable Ties PCI Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Versa H21 Mid-Tower Window Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CA-1B2-00M1WN-00 Specs | | | Motherboard Support | ATX, Micro-ATX | | External Drive Bays | 3 x 5.25" | | Internal Drive Bays | 3 x 2.5"
3 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 12.4" / 31.5 cm | | CPU Cooler Height | 6.1" / 15.5 cm | | | | Fan Mounting (Front) | 2 x 120 mm
| | Fans Included (Rear) | 1 x 120 mm (1000 rpm) | | Maximum Radiator Size (Rear) | 120 mm | | Noise Level | 16 dBA | | Fan Controller Included | No | | | | Connections | 1 x USB Type-A (USB 3.0)
1 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 8.2 x 16.9 x 18.8" / 209.0 x 429.0 x 480.0 mm | | Weight | 9.3 lb / 4.2 kg | | | | Package Weight | 12.25 lb | | Box Dimensions (LxWxH) | 21.4 x 19.1 x 11.0" |
