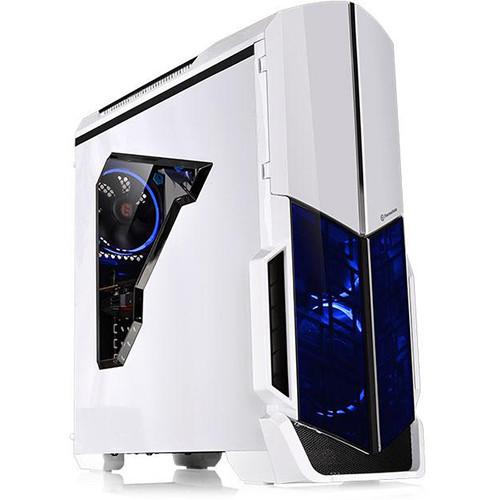

User Manual for Thermaltake Versa N21 Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the Thermaltake Versa N21 Mid-Tower Case
- Product category: Desktop Computer Cases Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Desktop Computer Cases
 |
User manual for the Thermaltake Versa N21 Mid-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|

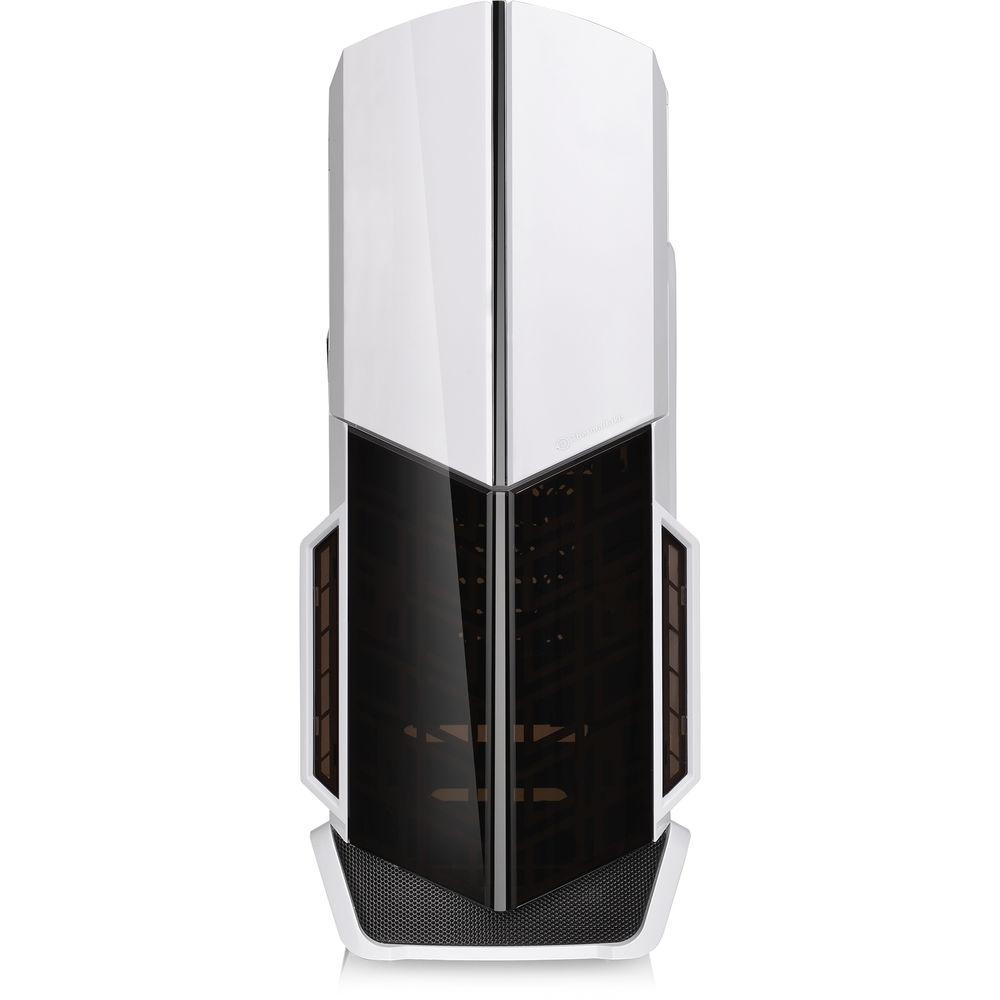

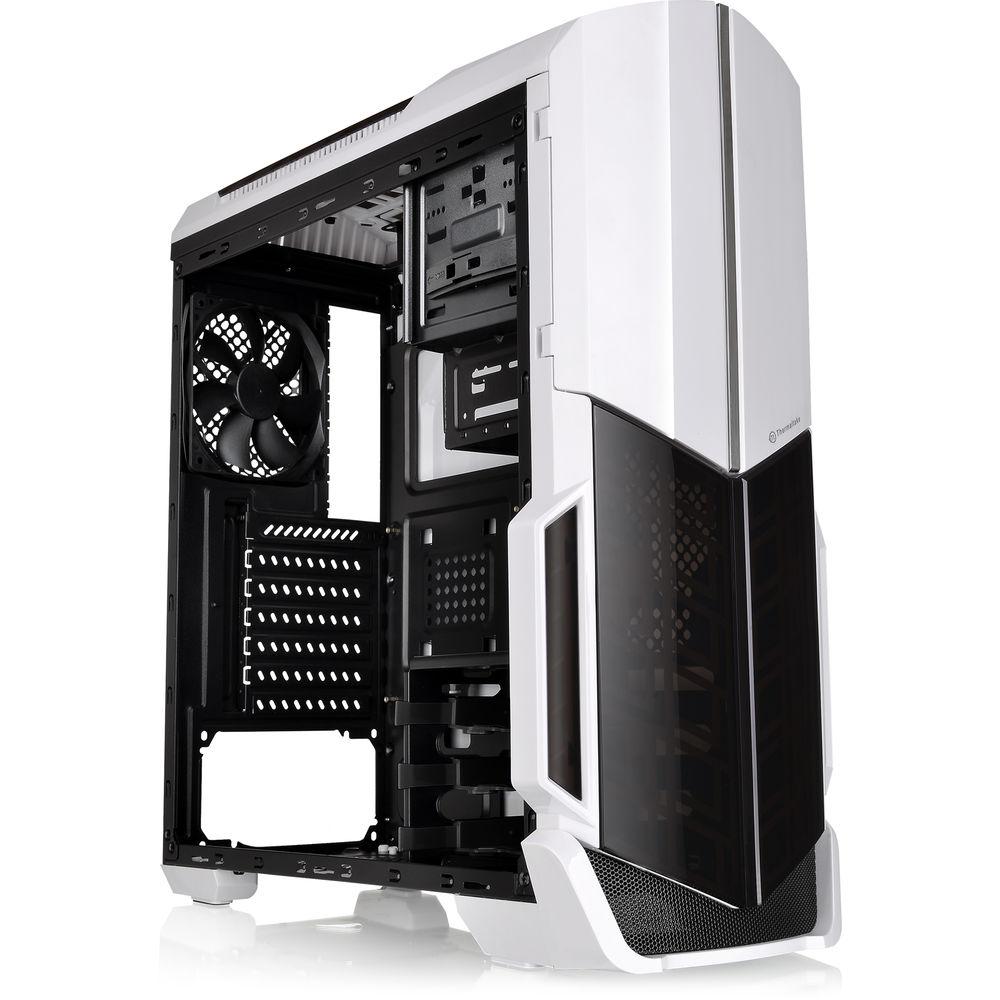

Product description Designed for space-conscious gamers who have high-end hardware and expansion in mind, the white Versa N21 Mid-Tower Case from Thermaltake supports ATX, Micro-ATX, and Mini-ITX motherboards. Its steel case has a windowed side panel and is internally equipped with one 5.25" drive bay, one 3.5" drive bay, three 3.5" or 2.5" drive bays, and one 2.5" drive bay. The case is cooled using an included rear 120mm fan, which has a rotational speed of 1000 rpm and a noise level of 16 dBA. There is also support for additional front, top, and rear fans, as well top and rear radiators.

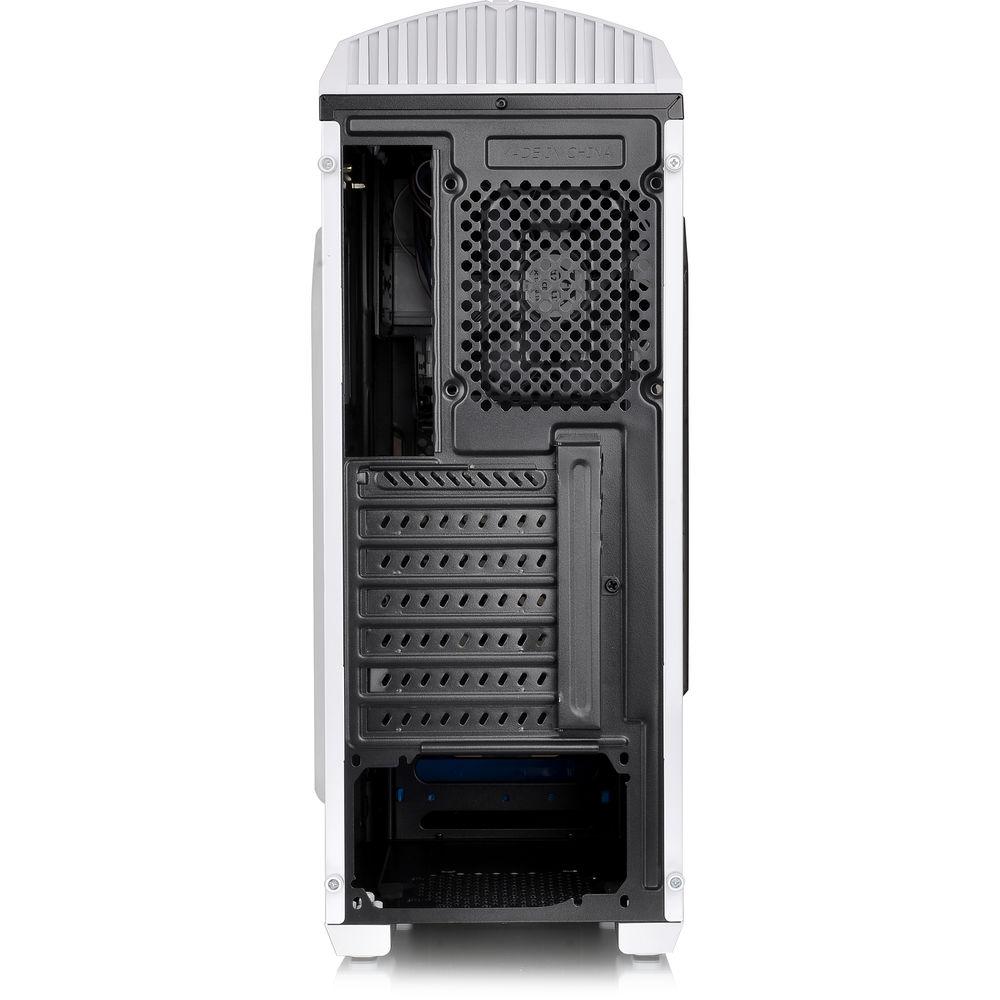

This case is equipped with one USB 3.0 port, two USB 2.0 ports, and audio input and output ports. It also has seven expansion slots, supports GPUs up to 9.8" long and CPU coolers up to 6.3" high, and operates using a standard PS2 power supply (not included). The Versa N21 Mid-Tower Case is protected by a limited 3-year warranty. - Gaming-Oriented Concept

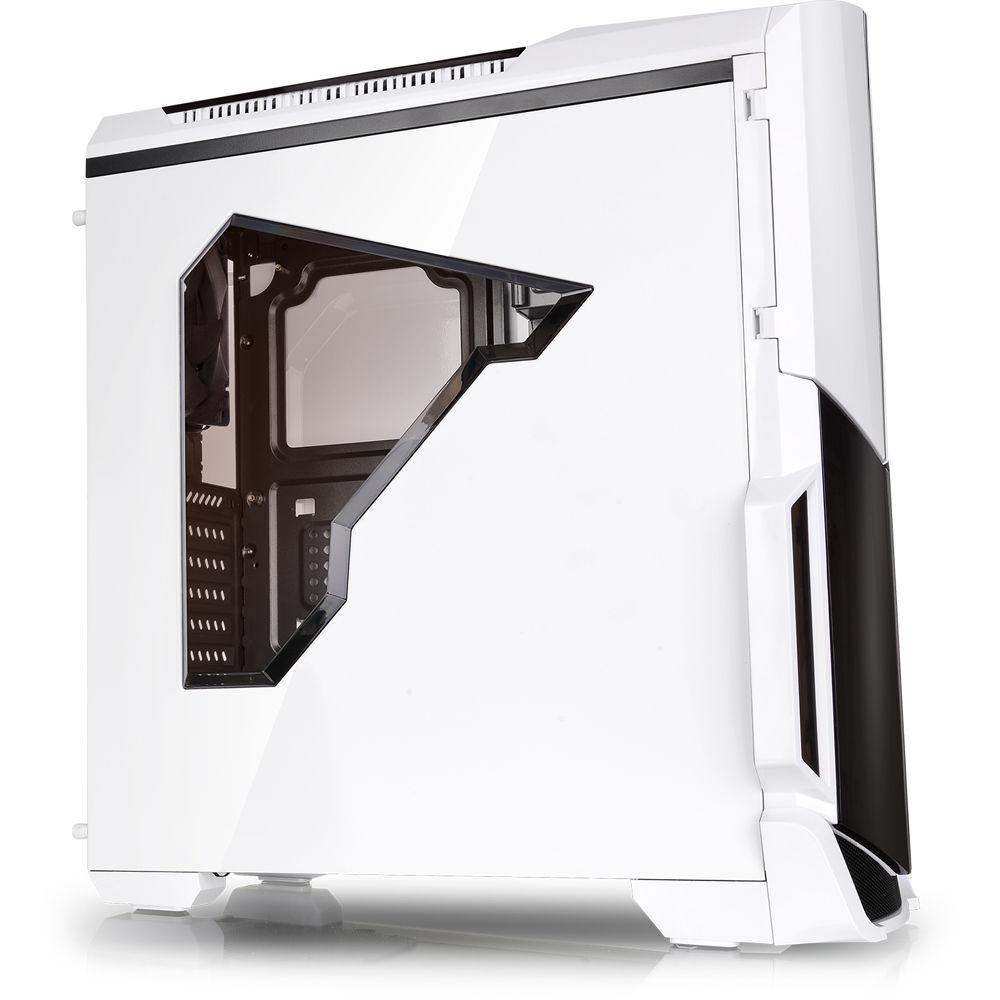

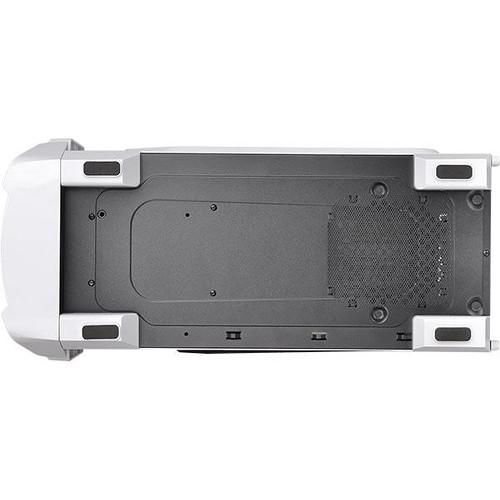

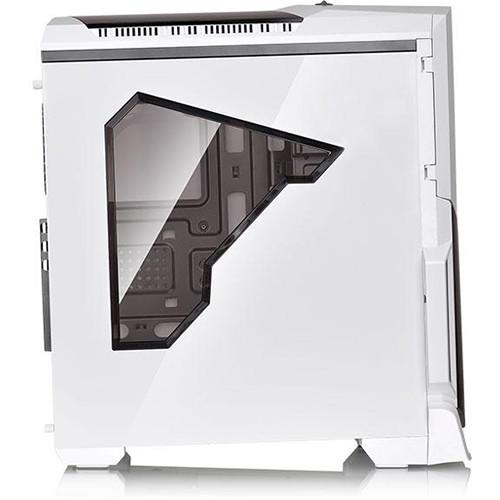

- Designed for gamers, the heightened foot-stands at the bottom help to enhance airflow and a triangular transparent side window offers a direct view of the inner system
- Tool-Free Design

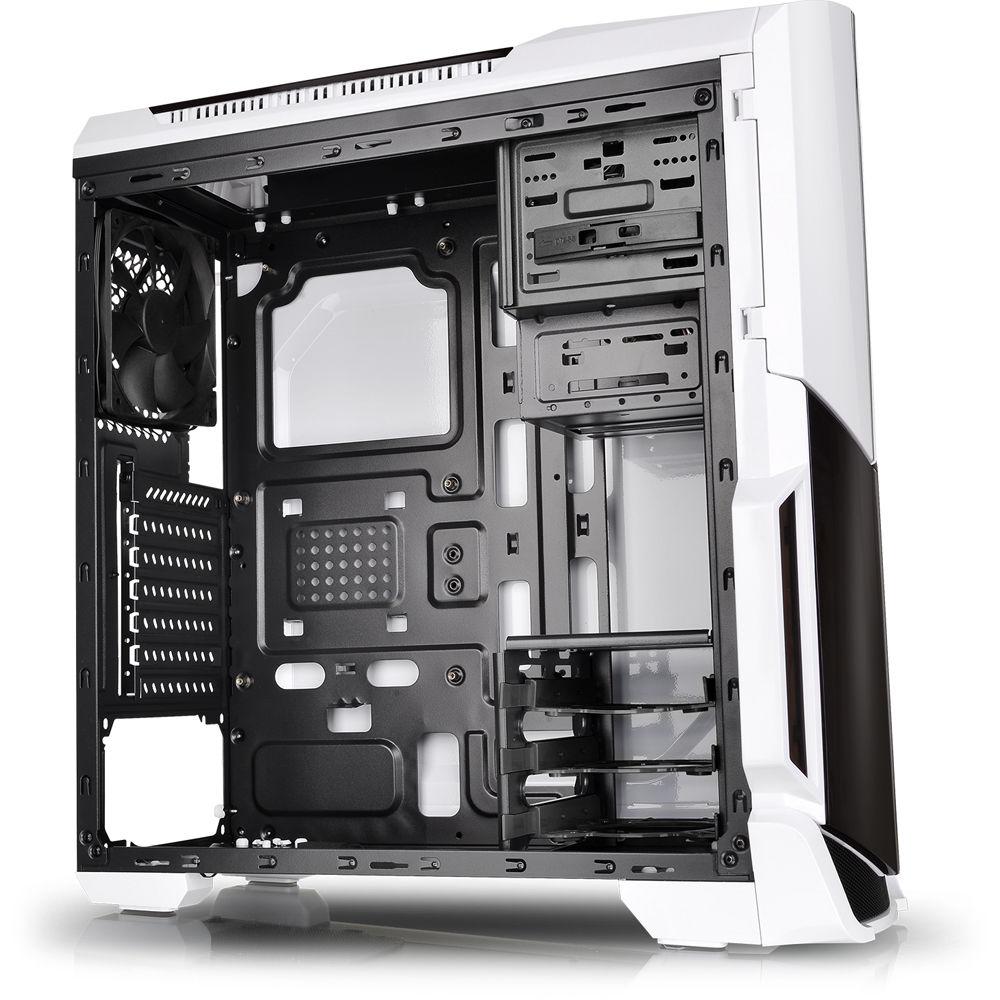

- The 5.25" & 3.5" tool-free drive bay design helps minimize the hassle of installations and removals. The trio drive bay concept of "1 + 4 + 2" offers a good ratio for accessories and storage devices
- Hidden I/O Ports

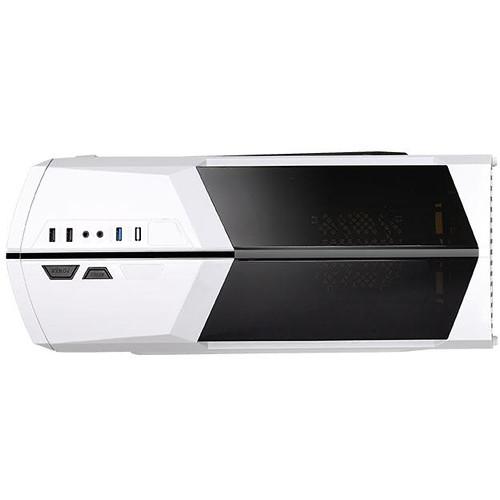

- The top-front panel features one USB 3.0 data transfer port, two standard USB 2.0 ports, and HD microphone and headset jacks
- Ventilation
- A pre-installed 120mm rear exhaust fan and two optional 120mm intake fans with an integrated dust filter help to optimize system ventilation. Pre-mounted holes support ATX, Micro-ATX, and Mini-ITX motherboards, while CPU cooler installations are supported up to 6.3" and graphics cards are supported up to 9.8"
UPC: 841163063330 In the Box Thermaltake Versa N21 Mid-Tower Case (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake Versa N21 Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake CA-1D9-00M6WN-00 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 1 x 5.25"
1 x 3.5" | | Internal Drive Bays | 3 x 2.5"
1 x 2.5" | | Maximum GPU Length | 14.2" / 36 cm | | CPU Cooler Height | 6.3" / 16.1 cm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 2 x 120 mm
| | Fan Mounting (Top) | 2 x 120 mm
| | Fans Included (Rear) | 1 x 120 mm (1000 rpm) | | Maximum Radiator Size (Rear) | 120 mm | | Maximum Radiator Size (Top) | 240 mm | | Noise Level | 16 dBA | | Fan Controller Included | No | | | | Connections | 1 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 20.2 x 8.5 x 18.2" / 513.0 x 216.0 x 462.0 mm | | Weight | 10.2 lb / 4.6 kg | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 23.1 x 21.3 x 9.5" |
