User Manual for Thermaltake View 71 Tempered Glass Edition Full-Tower Case Click to enlarge the picture
Contents of the user manual for the Thermaltake View 71 Tempered Glass Edition
- Product category: Desktop Computer Cases Thermaltake
- Brand: Thermaltake
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thermaltake Desktop Computer Cases
 |
User manual for the Thermaltake View 71 Tempered Glass Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thermaltake product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thermaltake user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thermaltake product will considerably shorten its lifespan!
|

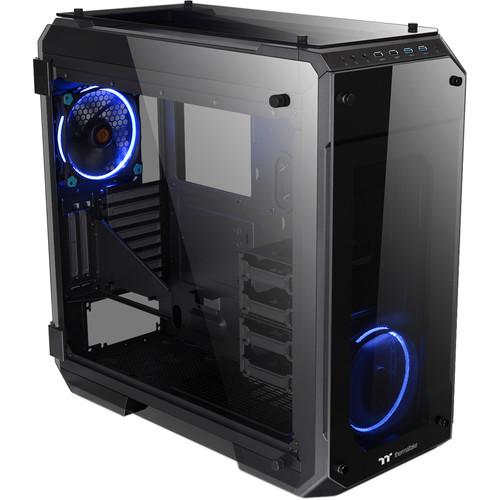

Product description The View 71 Full-Tower Case from Thermaltake features four tempered-glass side panels that offer a clear view of your high-end internal components. For cooling your components, Thermaltake includes two Riing LED fans that produce a blue glow inside and outside of the case. The View 71 comes with removable drive bays, which can hold up to four 2.5" or 3.5" storage drives, while its motherboard tray holds three 3.5" or six 2.5" drives. For convenient access to external peripherals, the case is equipped with two USB 3.0 and two USB 2.0 ports as well as two audio jacks. Furthermore, Thermaltake has designed this case to support installation of graphics cards and radiators parallel to the motherboard, providing spectators a better view than a typical design. - Four Tempered Glass Panels with Swing Door Design

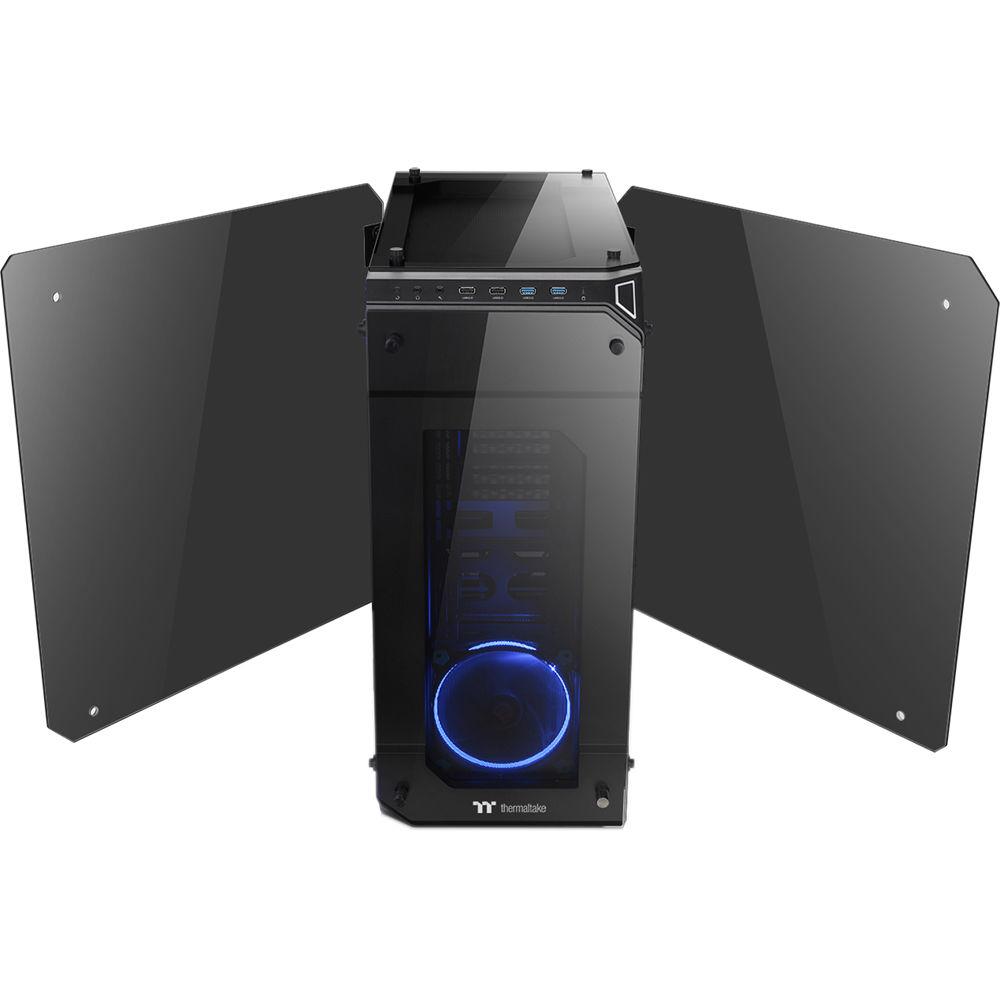

- Four sides of the View 71 case feature tempered-glass panels for a clear view inside the case. The sides of the case come with hinges, which support the windowed panels while you work inside the case, while an easy removal system provides you with full access when needed.
- Modular Design

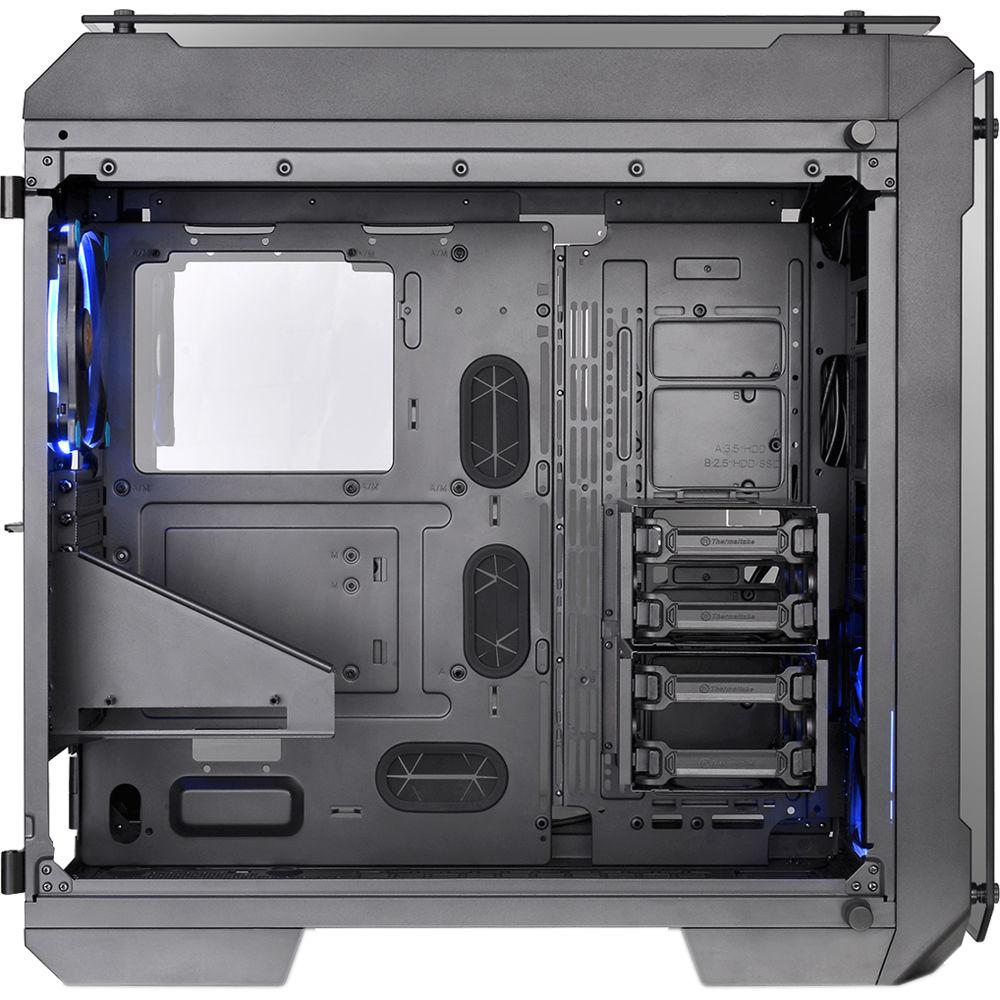

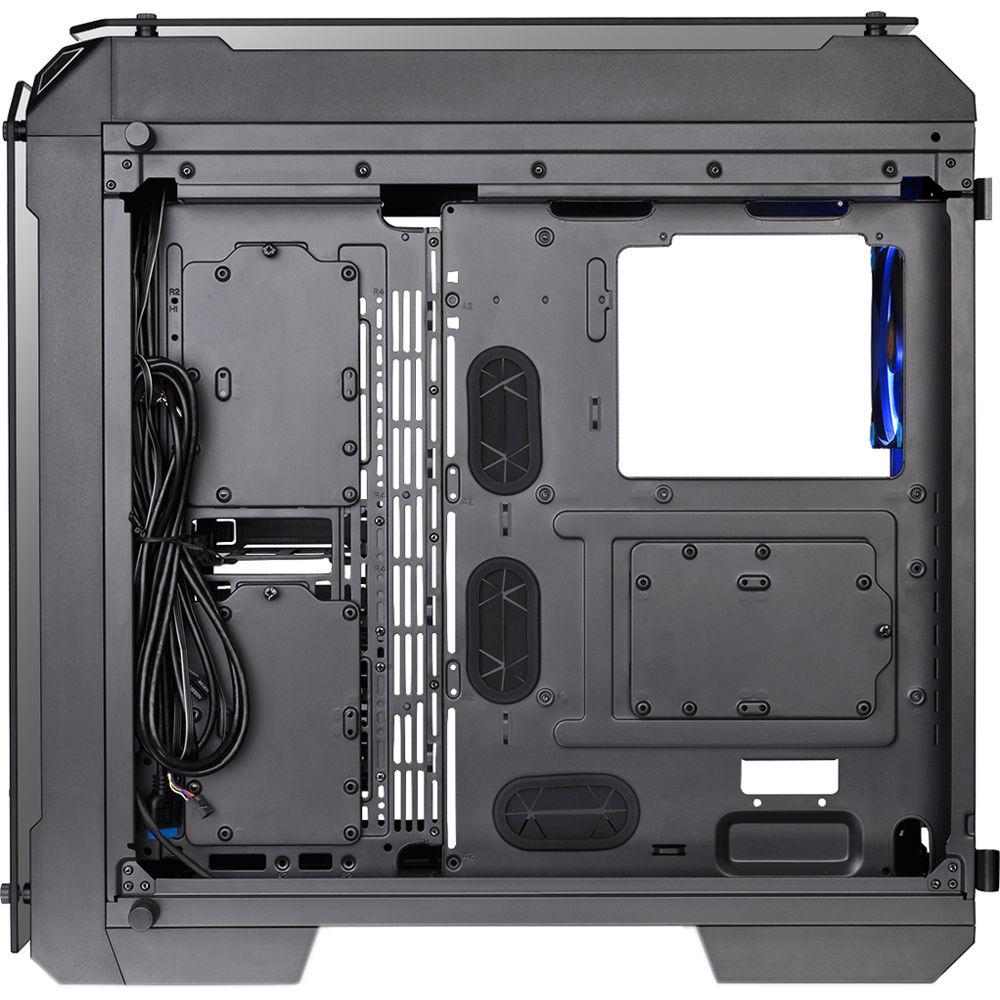

- The View 71 features modular panels, racks, brackets, and mounting arrays to support different build designs. It utilizes a tool-less drive bay design that allows you to quickly interchange 3.5" and 2.5" hard drives.
- Compatibility
- The View 71 supports up to E-ATX motherboards and power supplies up to 220mm length. Moreover, the case's drive cage can be removed to house 16.1" graphics cards or custom cooling solutions.
- Vertical Mounts

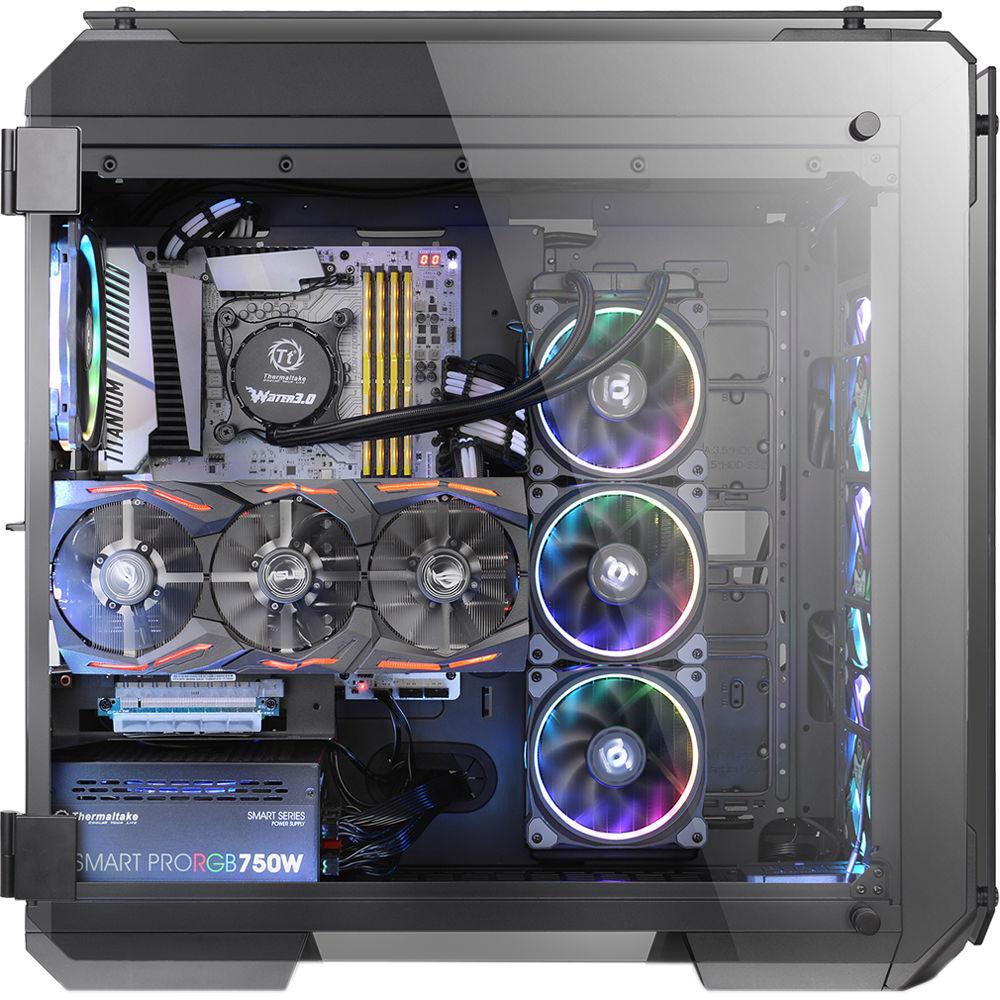

- The View 71 supports a vertical graphic card layout with a dual PCIe slot design. A PCIe riser cable is required and sold separately. The included riser GPU support bracket helps prevent a graphic card from sagging and reduces the weight on the motherboard. You can also mount a radiator and fans to the motherboard tray for a better view of your liquid cooling system.
- AIO/DIY Liquid Cooling

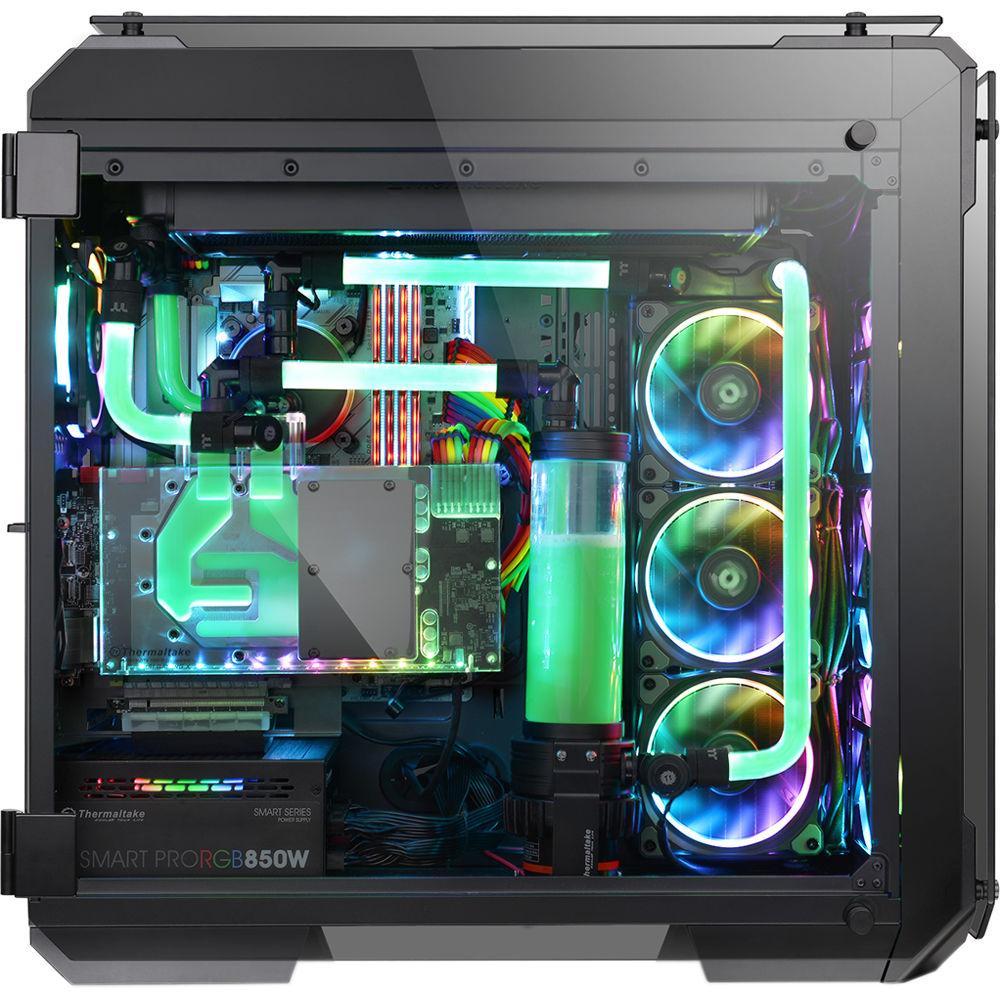

- The View 71 TG Edition features a roomy installation space for AIO/DIY liquid cooling components. It can house up to three 420mm DIY liquid cooling radiators and up to 360mm AIO liquid coolers. In addition, it offers a quick way to access the drain valve without having to turn the case when removing coolant from the loop.
- Advanced Ventilation

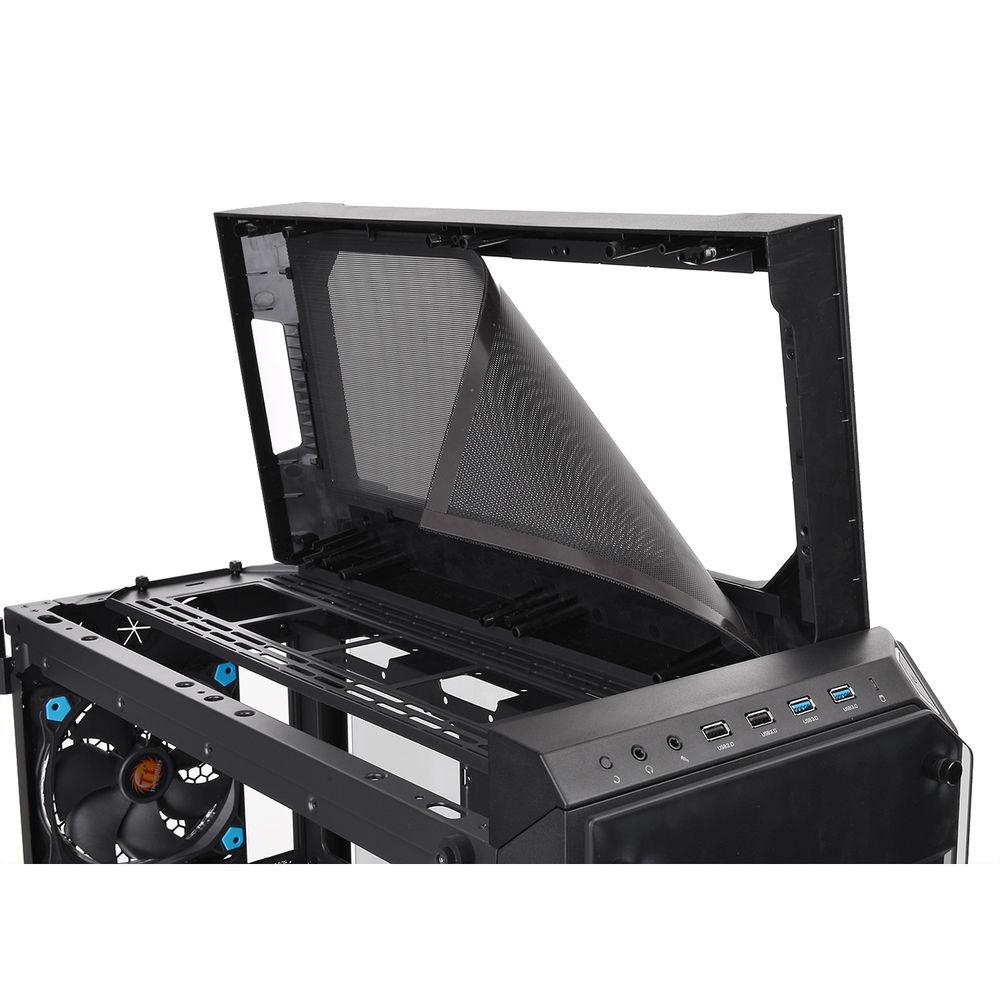

- With wide top-to-bottom side ventilation grills, the View 71 TG Edition maximizes airflow with two 140mm Riing Blue fans. The case also offers space to attach optional fans and radiators.
UPC: 841163000571 In the Box Thermaltake View 71 Tempered Glass Edition Full-Tower Case (Blue LEDs) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thermaltake View 71 Tempered Glass Edition Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThermaltake View 71 Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX | | External Drive Bays | None | | Internal Drive Bays | 4 x 2.5/3.5" | | Additional Drive Mounting | 3 x 3.5" (Motherboard Tray) | | Expansion Slots | 8 x Full Height + 2 | | Maximum GPU Length | 16.14" / 410 mm | | CPU Cooler Height | 7.48" / 190 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 8.66" / 220 mm | | | | Fan Mounting (Front) | 2 x 140 mm
Or
3 x 120 mm

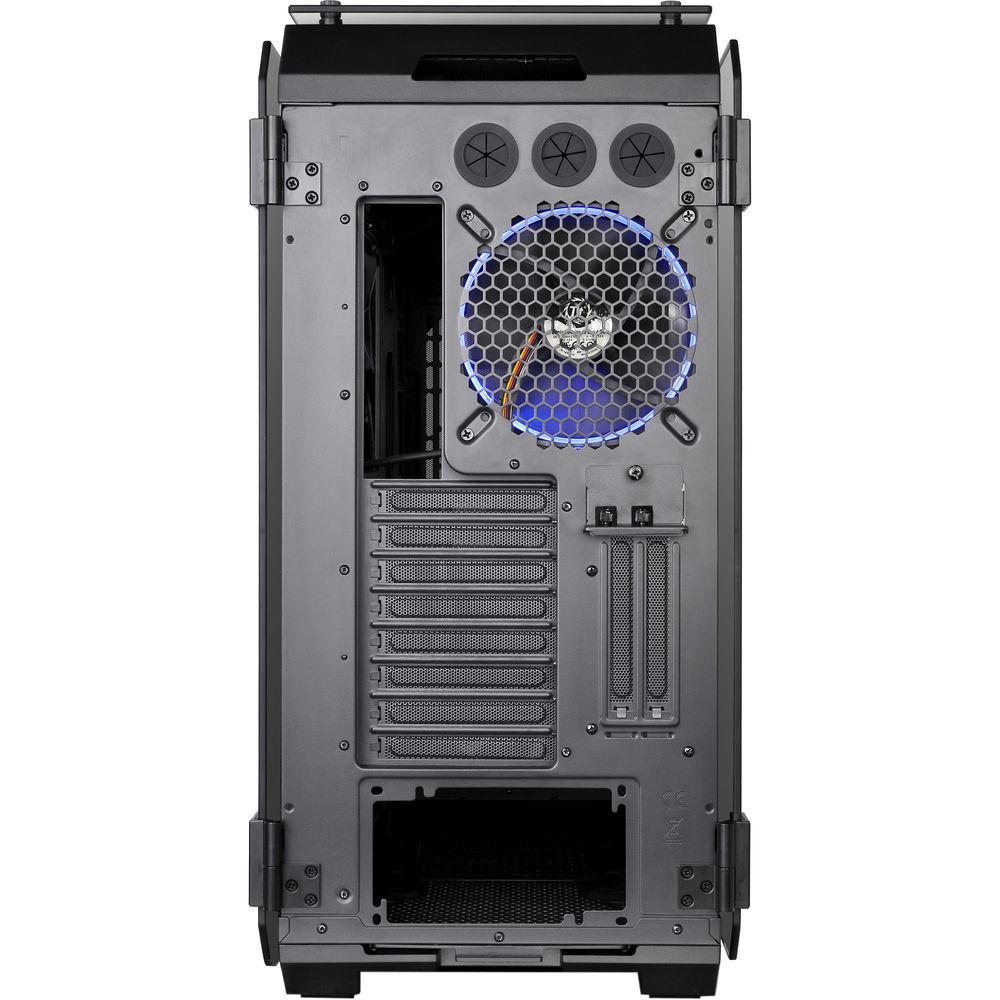

| | Fan Mounting (Rear) | 1 x 140 mm
Or
1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 3 x 140 mm
Or
3 x 120 mm
| | Fan Mounting (Bottom) | 2 x 120 mm
| | Fans Included (Front) | 1 x 140 mm LED (1400 rpm) | | Fans Included (Rear) | 1 x 140 mm LED (1400 rpm) | | Fans Included (Side) | None | | Fans Included (Top) | None | | Fans Included (Bottom) | None | | Maximum Radiator Size (Front) | 1 x 420 mm | | Maximum Radiator Size (Rear) | 1 x 140 mm | | Maximum Radiator Size (Side) | 1 x 420 mm | | Maximum Radiator Size (Top) | 1 x 420 mm | | Maximum Radiator Size (Bottom) | 1 x 240 mm | | Fan Mounting (Internal) | None | | Noise Level | 28 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 2.0)
2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel | | Built-In Lighting | Yes | | Security | None | | Dimensions (W x H x D) | 10.8 x 23.3 x 22.7" / 274.3 x 591.8 x 576.6 mm | | Weight | 41.7 lb / 18.9 kg | | | | Package Weight | 51.65 lb | | Box Dimensions (LxWxH) | 28.0 x 27.5 x 15.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
