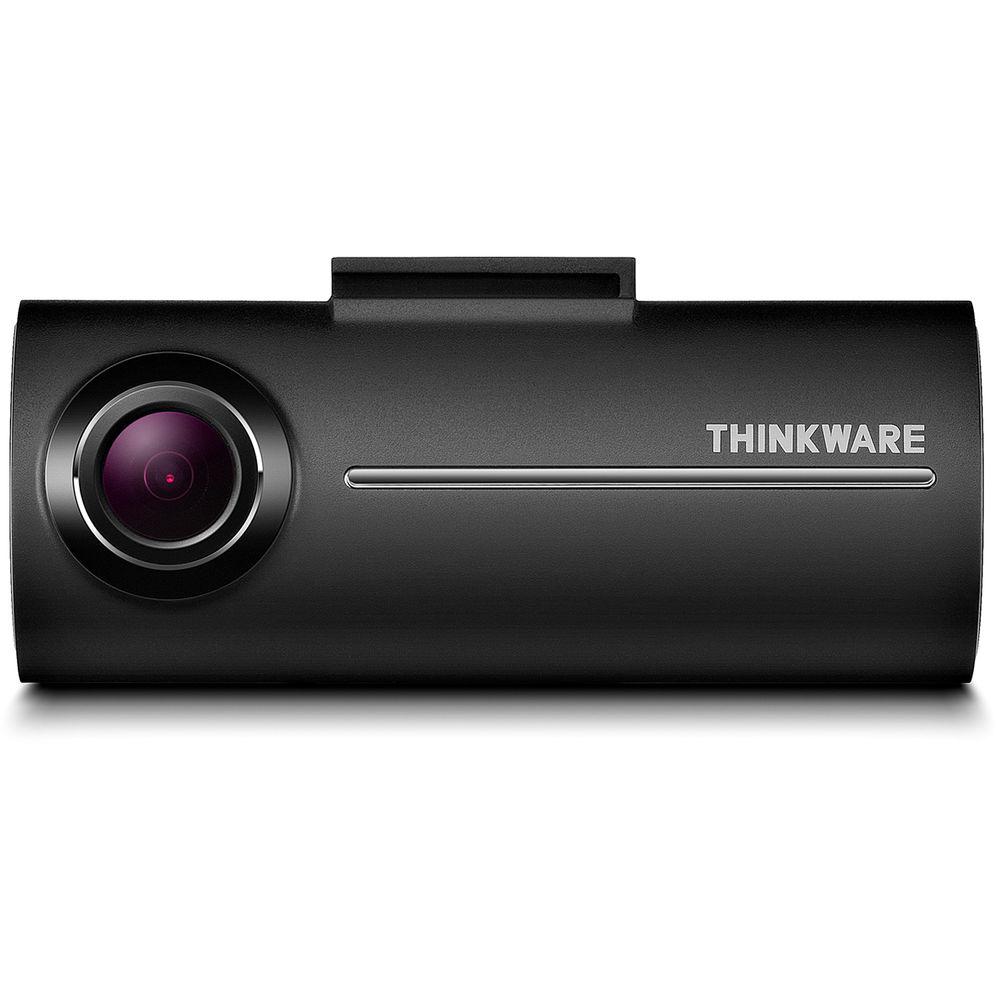

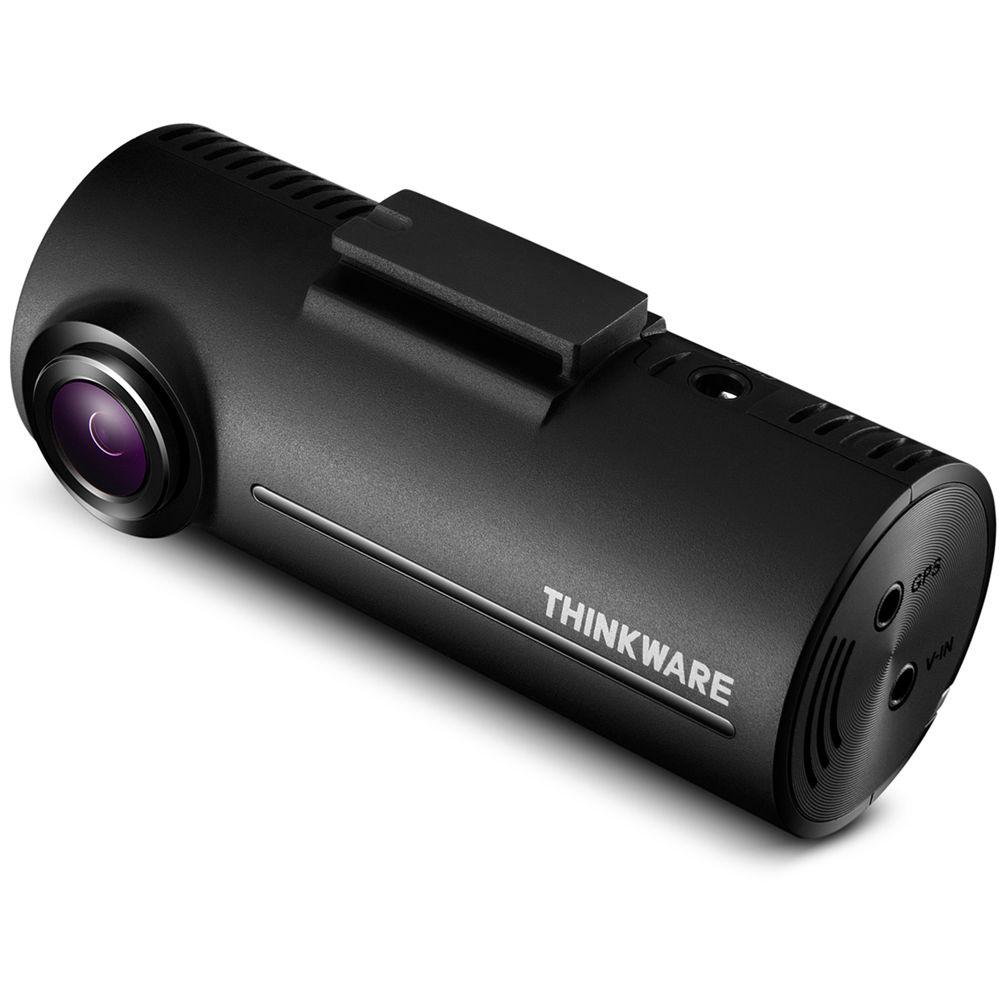

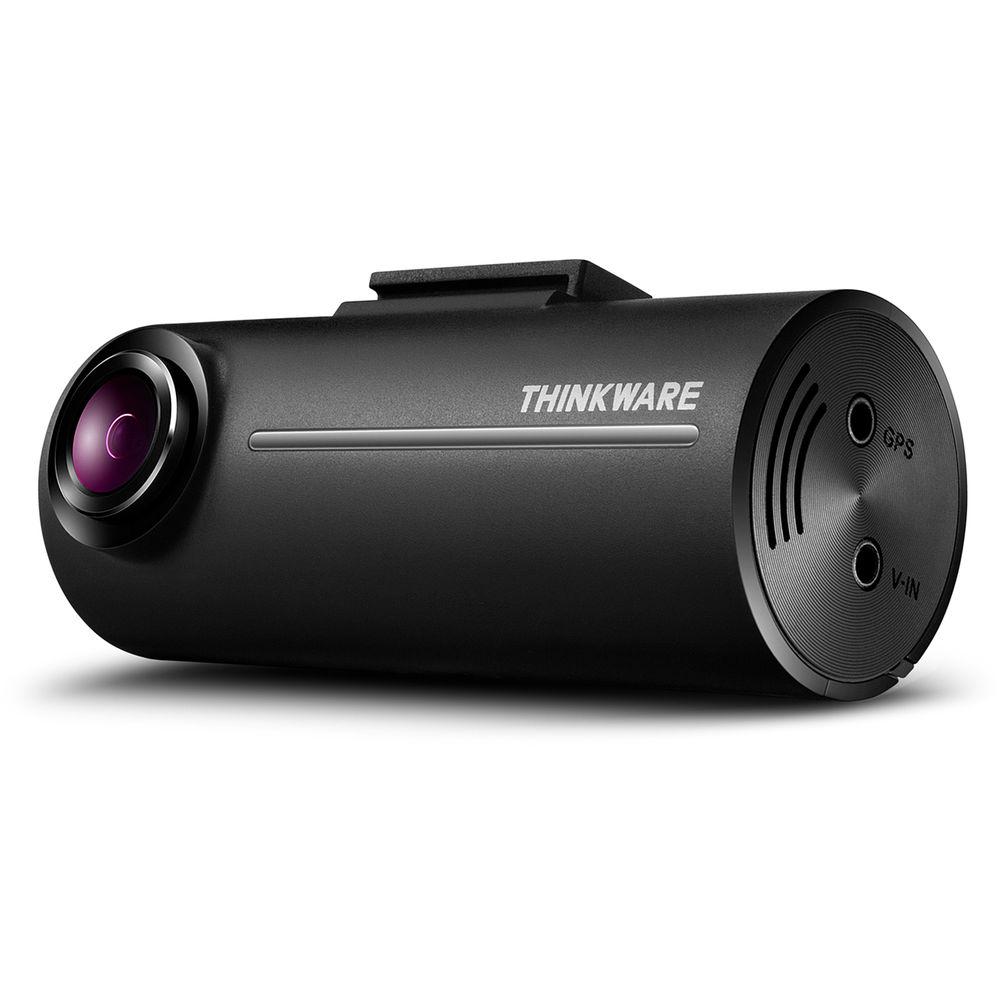

User Manual for Thinkware F100 1080p Dash Cam Click to enlarge the picture
Contents of the user manual for the Thinkware F100 1080p Dash Cam
- Product category: Dashcams Thinkware
- Brand: Thinkware
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thinkware Dashcams
 |
User manual for the Thinkware F100 1080p Dash Cam contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thinkware product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thinkware user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thinkware product will considerably shorten its lifespan!
|
Product description - Thinkware F100 Product Video
- Thinkware 2017 Trailer

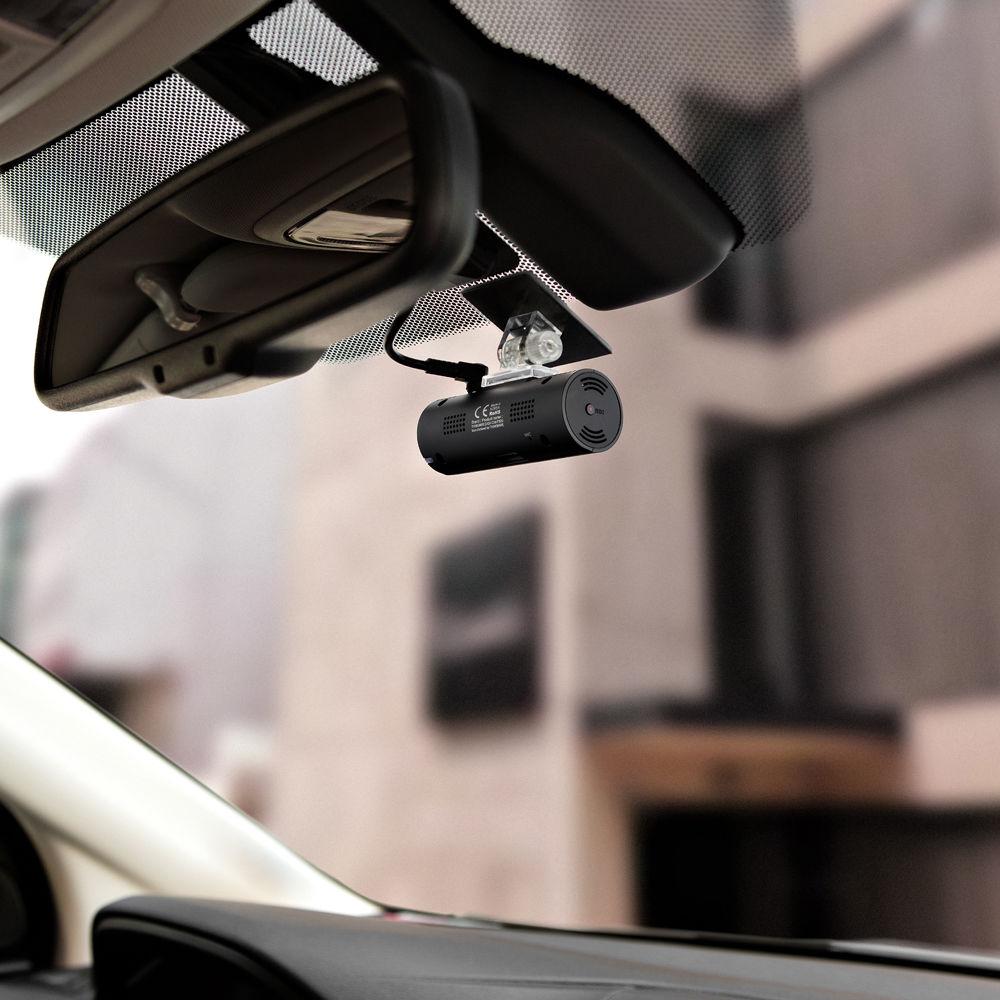

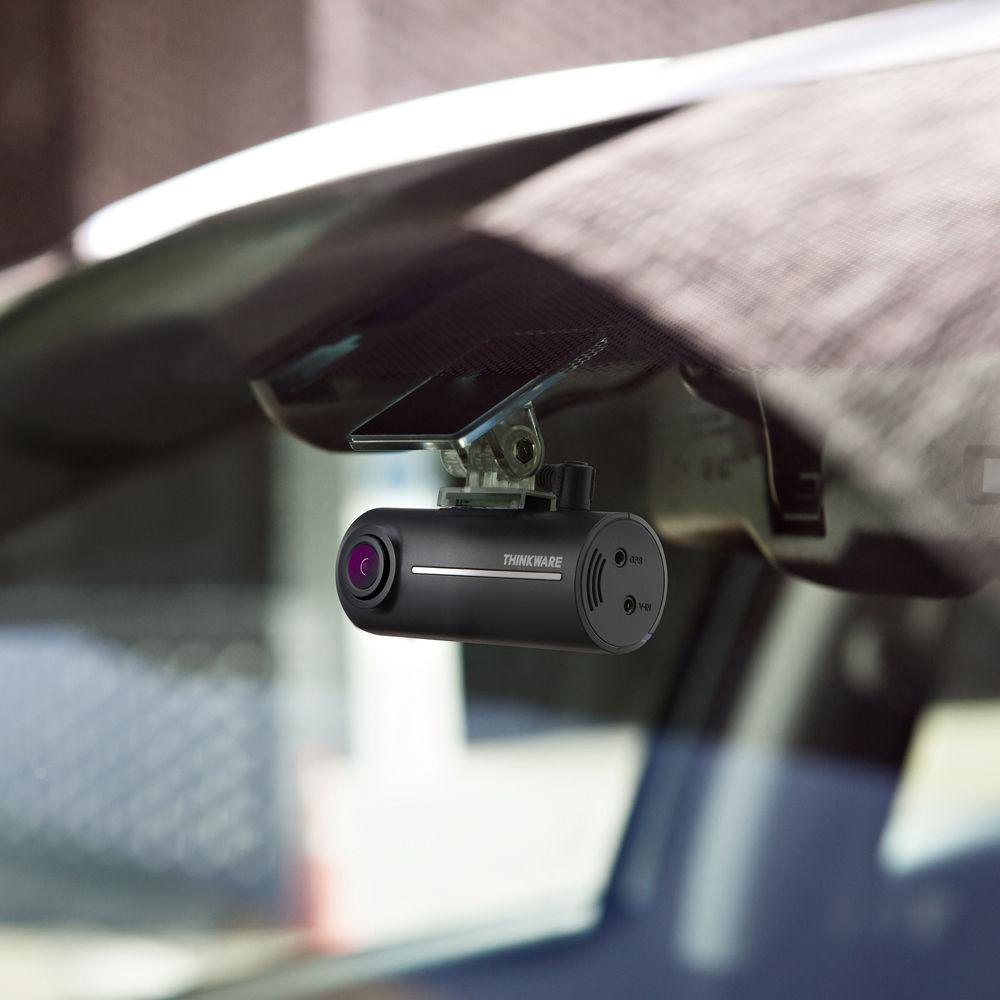

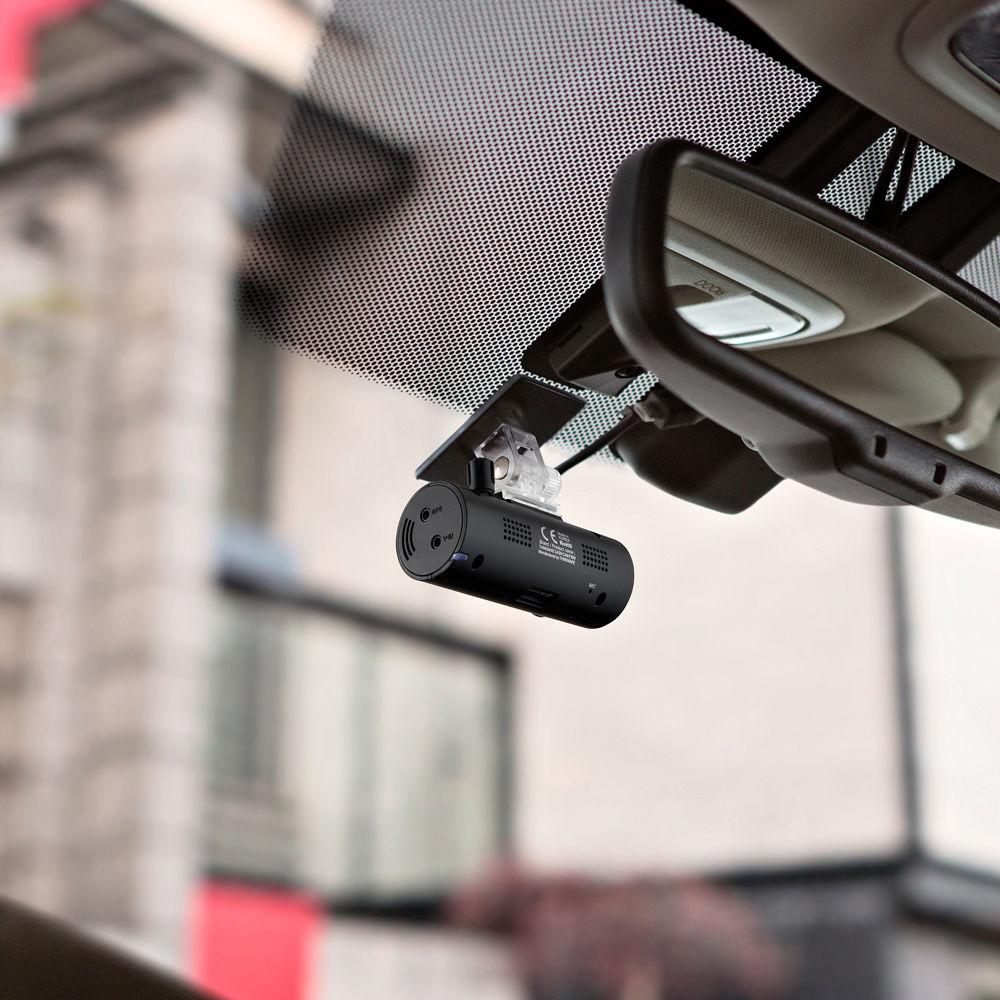

Mount the F100 1080p Dash Cam from Thinkware on your vehicle's windshield to record video on the road. This dash cam has a 2.12MP 1/5.78" Sony CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Additionally, the F100 has a 135° diagonal field of view. Audio is possible thanks to a built-in microphone and speaker. Video data 10 seconds prior to and after a collision or impact is stored in event recording mode, which is registered by the 3-axis G-sensor. Other recording modes include continuous, manual, and parking. Parking mode recording requires hardwiring cable installation which is available separately.
This dash cam is equipped with a supercapacitor that delivers backup power to offer fail-safe recording in the event of power disconnection after an accident. H.264 compression manages file sizes while maintaining the best quality possible. A PC viewer that is compatible with Windows & Mac computers enables you to view your recorded videos, change your dash cam settings, and install updates. An integrated slot supports microSD cards up to 64GB. A 16GB microSD card is included. - Recording modes include continuous, event, manual, and parking (parking mode recording requires hardwiring cable installation which is available separately)
- PC Viewer Compatible with Windows & Mac
- G-sensor with 5 levels of sensitivity adjustment
- Supercapacitor offers fail-safe recording
- Heat discharge construction and a built-in thermal sensor protect the dash cam and its data by automatically shutting off to prevent overheating
- Format free technology eliminates the need to format microSD cards
- Optional GPS tracker available separately

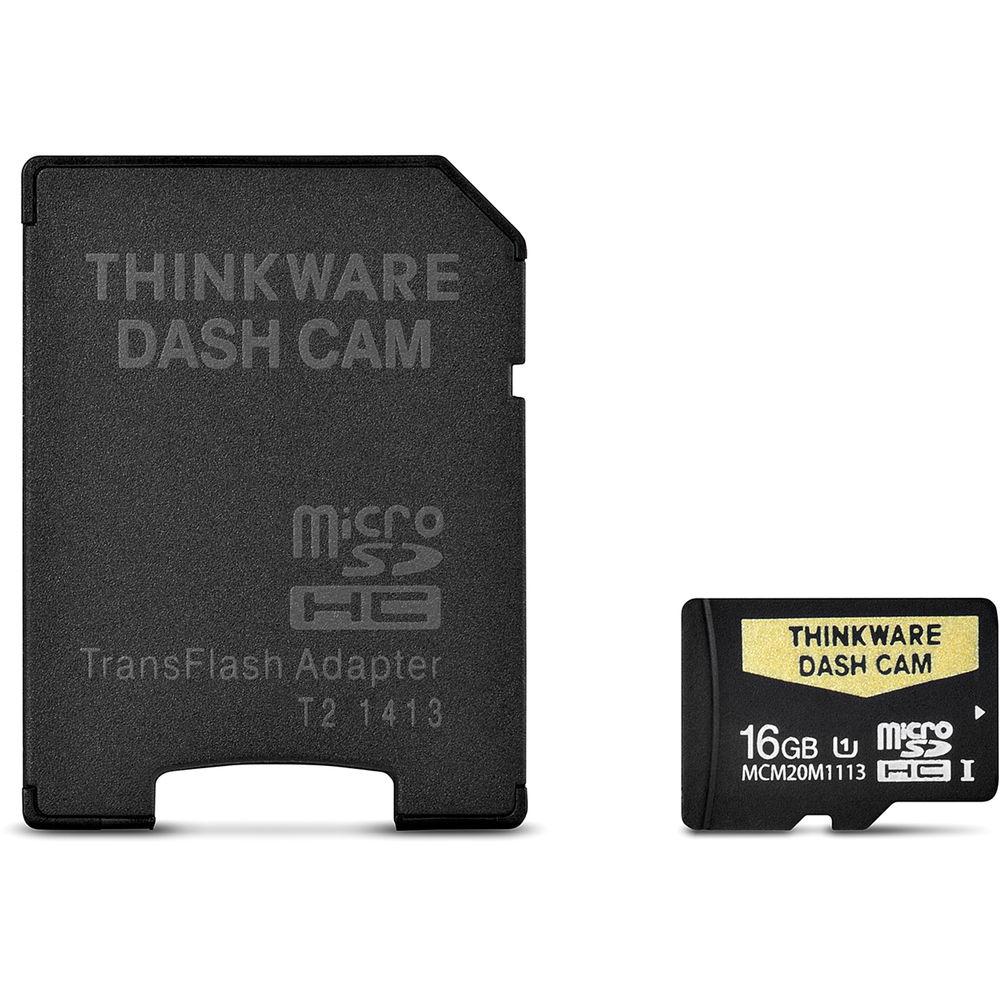

- Includes mount with 3M Tape, cigar jack adapter, adhesive cable holder, and 16GB microSD card with adapter
UPC: 888622002585 In the Box Thinkware F100 1080p Dash Cam Mount with 3M Tape Vehicle Power Adapter Adhesive Cable Holder 16GB microSD Card with Adapter (Consumable) Limited 1-Year Warranty Data Sheet PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Thinkware F100 1080p Dash Cam in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThinkware F100 Specs | Image Sensor | 2.12 MP 1/5.78" Sony CMOS | | Resolution | 1920 x 1080 | | Diagonal Field of View (FOV) | 135° | | Audio | PCM | | Frame Rate | 30 fps max | | Video Compression | H.264 | | File Type | MP4 | | Recording Modes | Continuous recording
Event recording
Manual recording

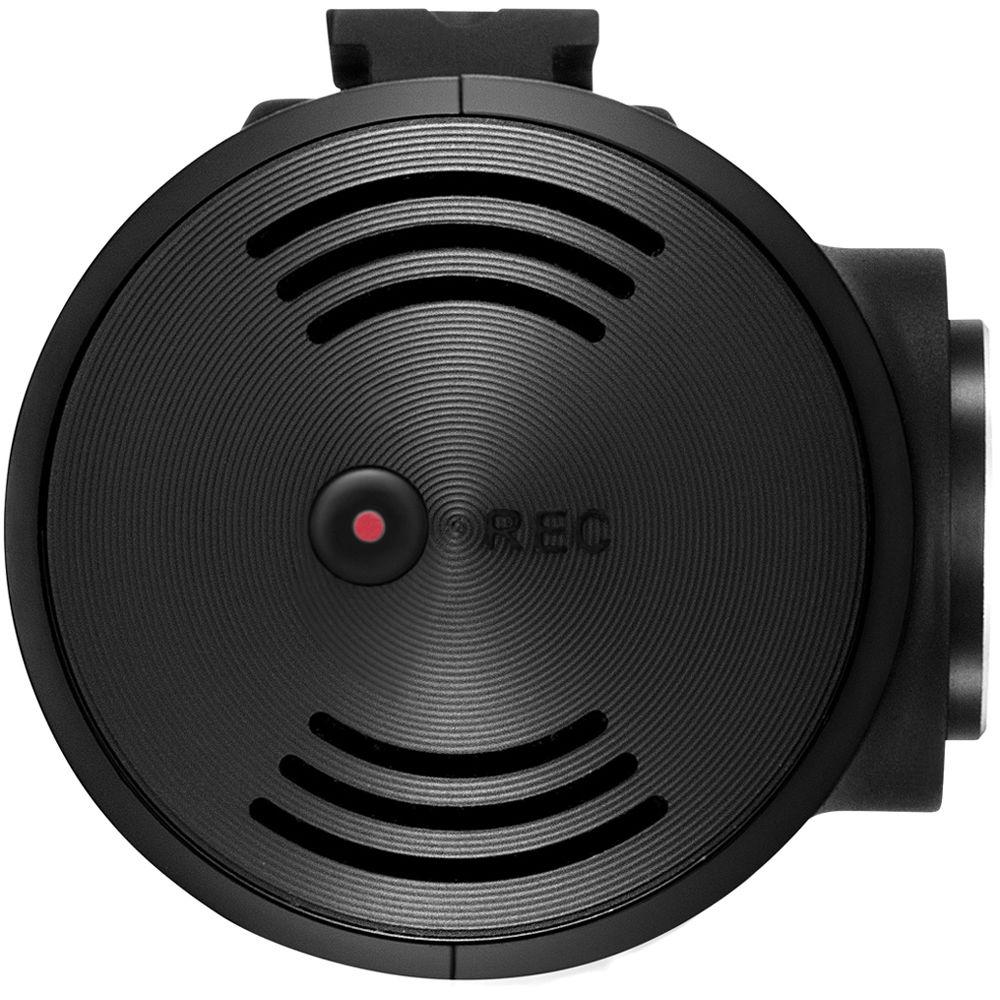

Parking recording, requires hardwiring cable installation which is available separately | | Built-In Microphone | Yes | | Built-in Speaker | Yes | | Buttons | Record | | G-Sensor | Triaxial acceleration sensor (3D, ±3G) | | LED Indicator | Operation status | | Storage | Class 10 microSD cards up to 8 GB, UHS-I microSD cards up to 64 GB (16 GB card included) | | Power | Input Power: 12 VDC / 24 V Supported | | Power Consumption | 2-Channel: 3.25 W
1-Channel: 2.2 W | | Auxiliary | Supercapacitor power unit | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Dimensions | 3.1 x 1.4 x 1.2" / 78 x 34.6 x 31.5 mm | | Weight | 0.1 lb / 42.4 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 6.3 x 5.0 x 2.7" |
