User Manual for Thinkware F70 1080p Dash Cam with 8GB microSD Card Click to enlarge the picture
Contents of the user manual for the Thinkware F70 1080p Dash Cam with
- Product category: Dashcams Thinkware
- Brand: Thinkware
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thinkware Dashcams
 |
User manual for the Thinkware F70 1080p Dash Cam with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thinkware product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thinkware user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thinkware product will considerably shorten its lifespan!
|

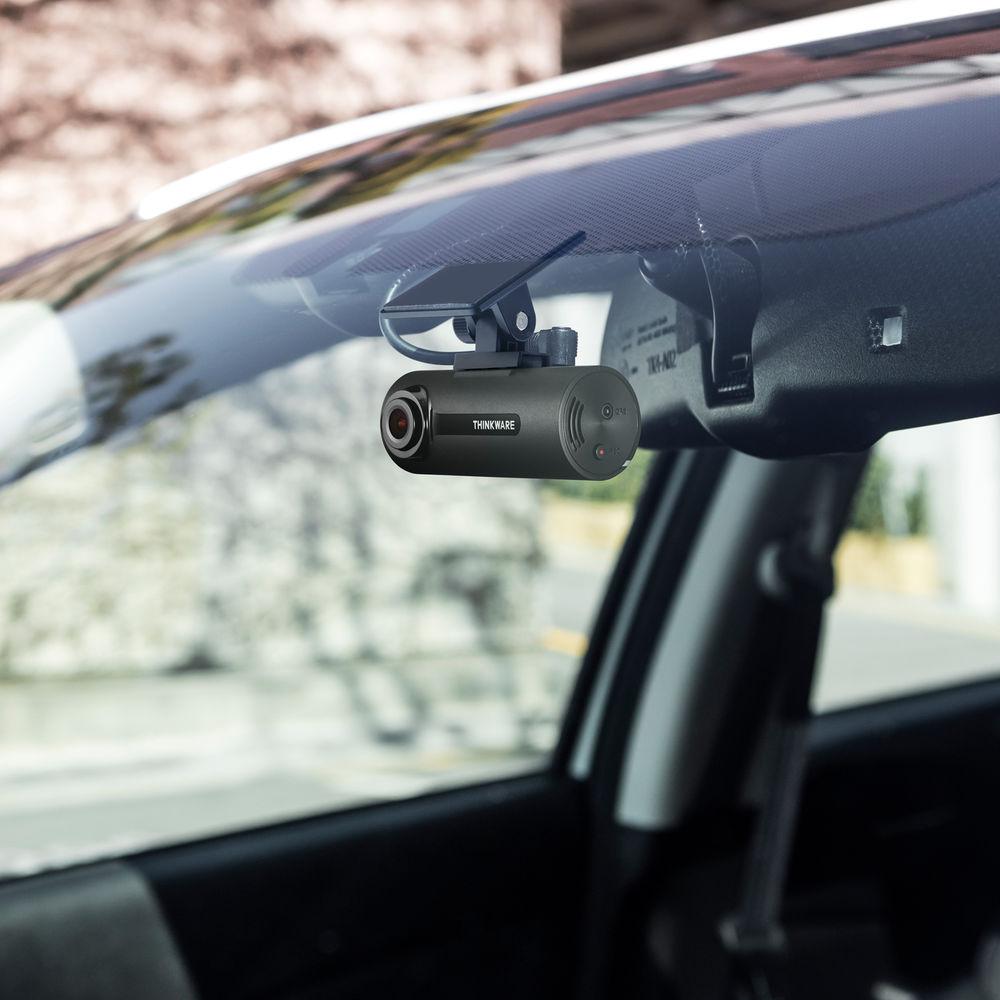

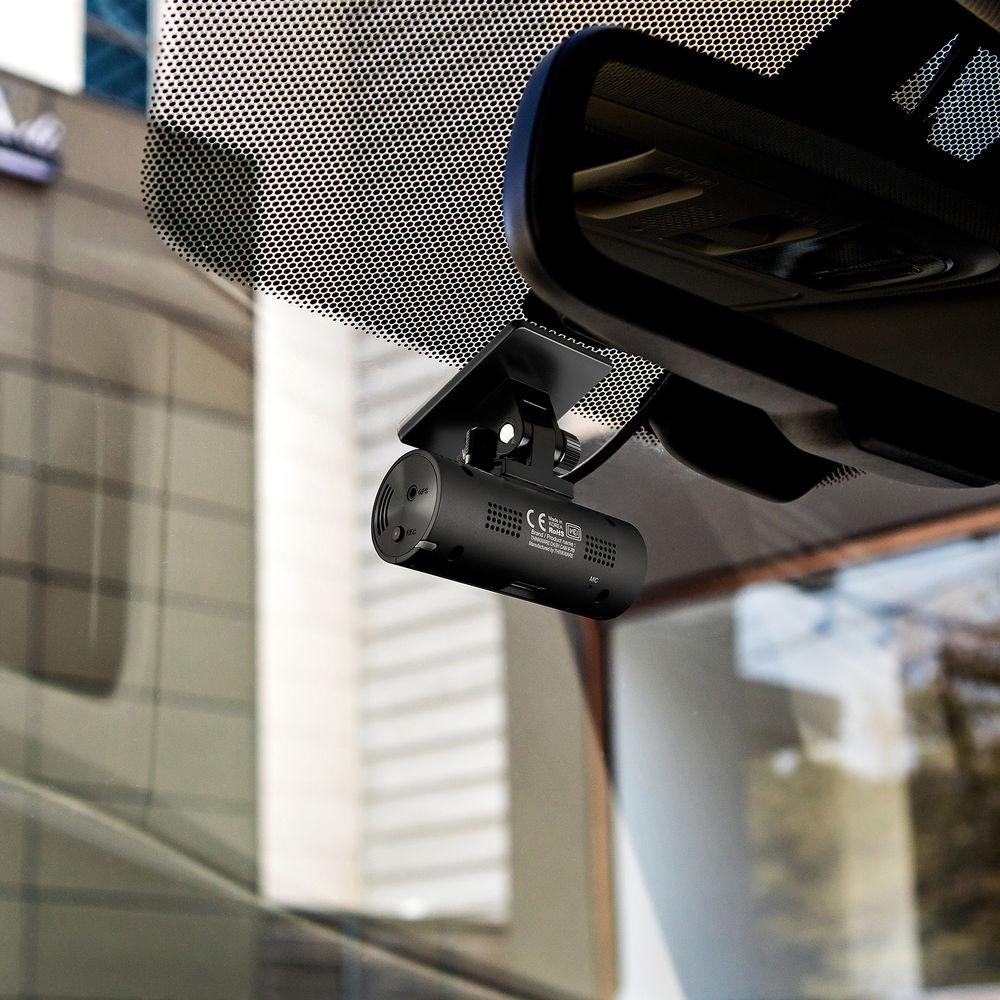

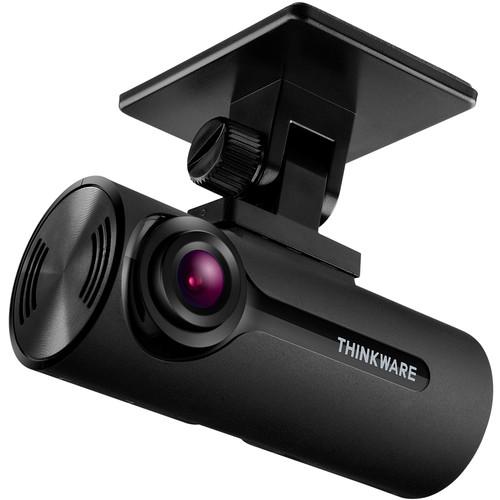

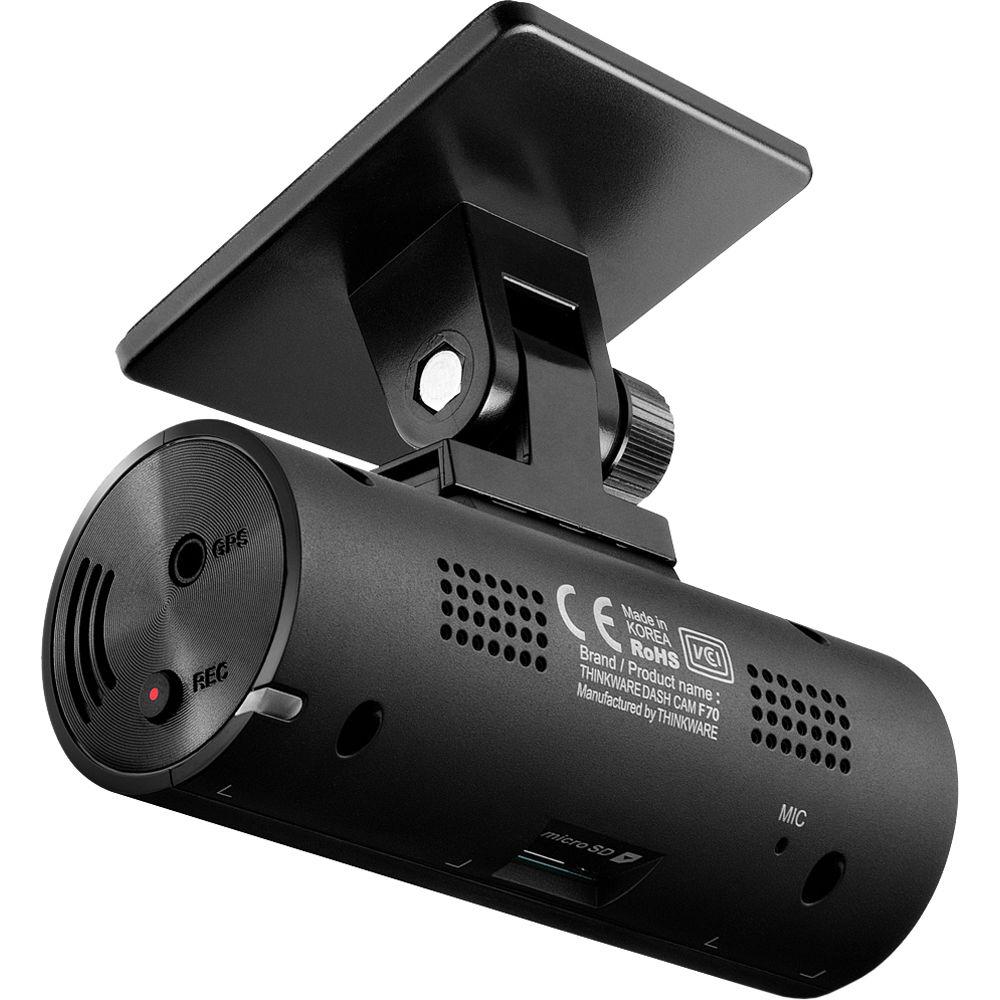

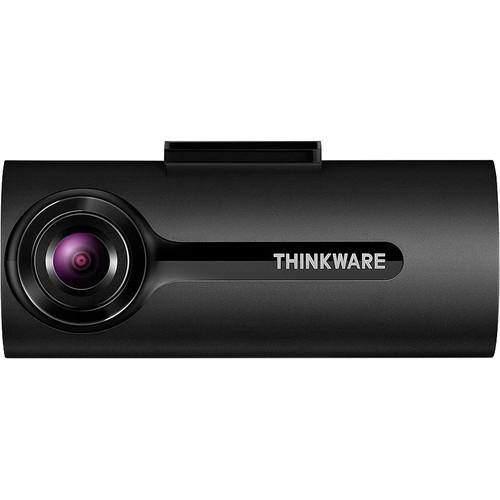

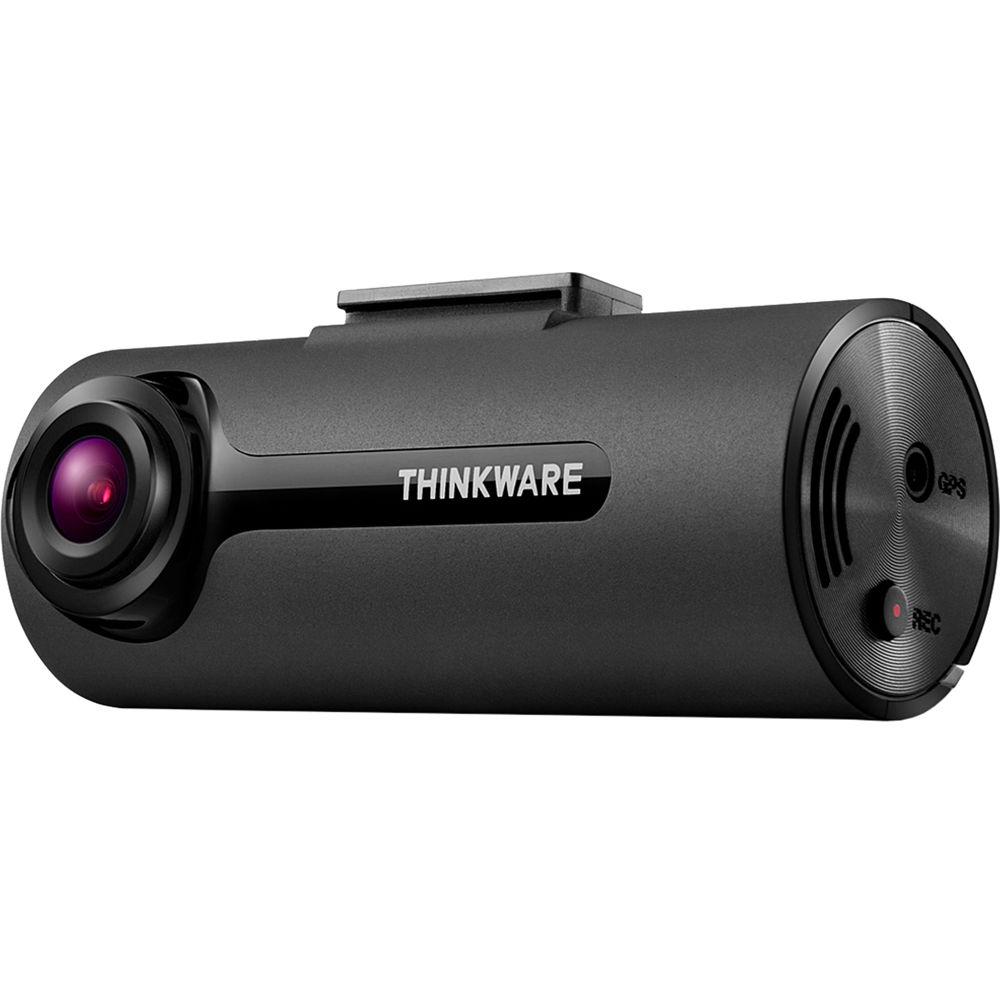

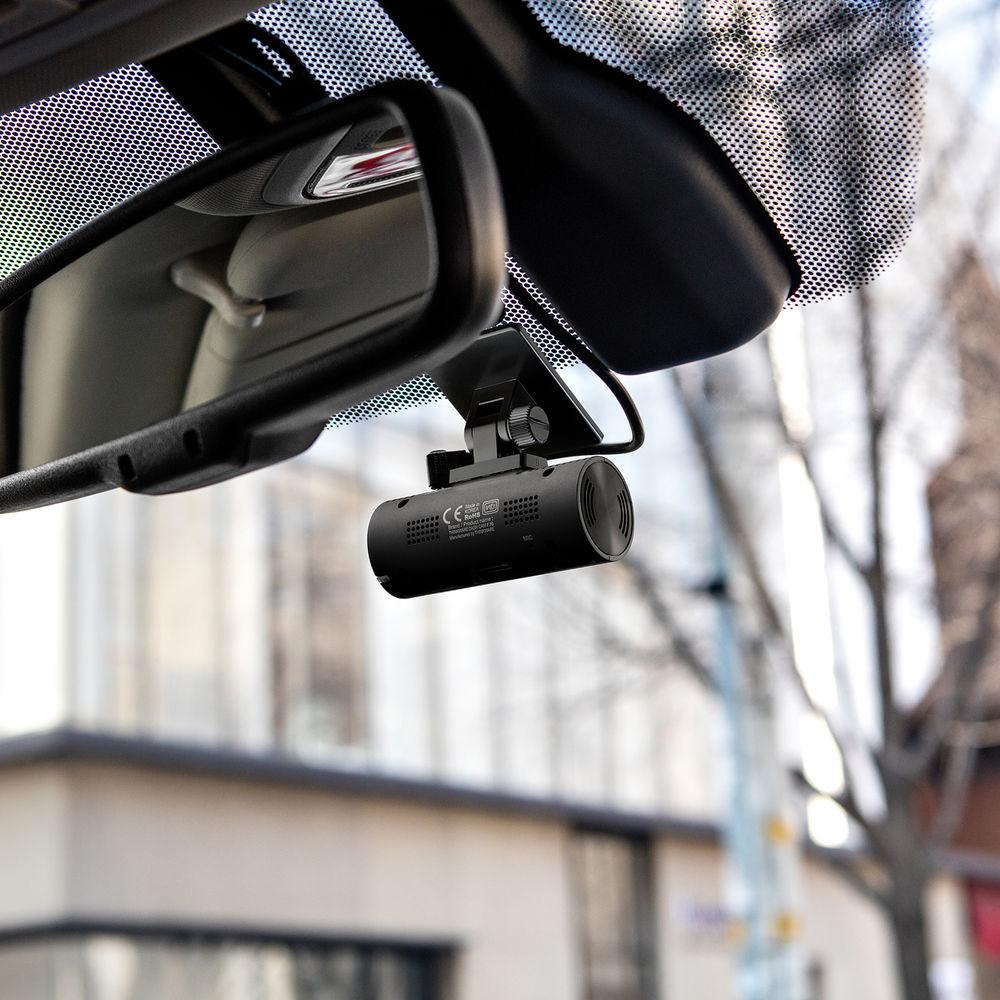

Product description Mount the F70 1080p Dash Cam from Thinkware on your vehicle's windshield to record video of the road ahead. The F70 uses a 1/2.7" CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. A 140° diagonal field of view ensures coverage over a large area. Recording modes include continuous, incident, manual, and parking (parking mode recording requires a hardwiring cable installation, available separately). Audio is possible thanks to a built-in microphone and speaker. A built-in G-sensor offers 5 levels of sensitivity adjustment.

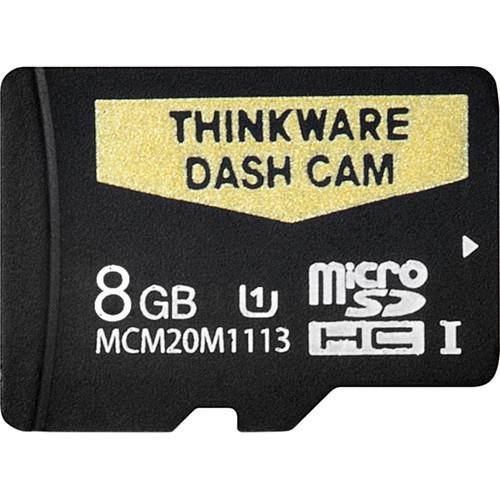

This dash cam is equipped with a supercapacitor that delivers backup power to offer fail-safe recording in the event of power disconnection. An integrated thermal sensor protects the dash cam and its data by automatically shutting off to prevent overheating. PC Viewer software is compatible with Windows & Mac computers so you can view your recorded videos, change your dash cam settings, and install updates. An onboard slot supports microSD cards up to 64GB. An 8GB microSD card is included. - Recording modes include continuous, incident, manual, and parking (parking mode recording requires hardwiring cable installation which is available separately)
- Parking mode offers impact and motion detection, along with an energy-saving mode
- Night time picture quality ensures that video is captured with minimal noise at the correct exposure in low-light conditions
- Wide dynamic range delivers the right exposure and contrast in varying lighting conditions
- PC Viewer compatible with Windows & Mac
- Thinkware mobile app for iOS and Android devices
- Built-in microphone for voice recording
- Built-in speaker offers voice guide and buzzer/notification sounds
- Supercapacitor offers fail-safe recording
- Built-in thermal sensor protects the dash cam and its data by automatically shutting off to prevent overheating
- Optional GPS tracker to view speed, time, and location data is available separately
- Anti-File-Corruption technology prevents data loss and corruption of the captured footage on the memory card
UPC: 888622004671 In the Box Thinkware F70 1080p Dash Cam with 8GB microSD Card Power Cable Mount 8GB microSD Card Adhesive Cable Clips Spare 3M Adhesive Limited 1-Year Warranty Spec sheet PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Thinkware F70 1080p Dash Cam with 8GB microSD Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThinkware F70 Specs | Image Sensor | 2.1 MP 1/2.7" CMOS | | Resolution | 1920 x 1080 | | Frame Rate | Up to 30 fps | | Diagonal Field of View (FOV) | 140° | | Recording Modes | Continuous recording
Incident recording
Manual recording
Parking recording (requires hardwiring cable installation which is available separately) | | File Format | MP4 | | Video Compression | H.264 | | G-Sensor | Triaxial acceleration sensor (3D, ±3 g) | | Wide Dynamic Range | Yes | | Built-In Microphone | Yes | | Built-In Speaker | Yes | | Audio | PCM | | Buttons | Record | | LED Indicator | Status | | Storage | Supports UHS-I microSD cards up to 64 GB (8 GB card included) | | Input Power | 12/24 VDC
Built-in supercapacitor | | Power Consumption | 2 W (mean) / 14 V | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Certifications | CE, RoHS | | Dimensions (W x D x H) | 3.07 x 1.4 x 1.24" / 78 x 35.6 x 31.5 mm | | Weight | 1.5 oz / 42.4 g | | | | Package Weight | 0.68 lb | | Box Dimensions (LxWxH) | 6.4 x 5.0 x 2.6" |
