User Manual for Thinkware F800 PRO Wi-Fi Dash Cam with 64GB microSD Card & Rear View Camera Kit Click to enlarge the picture
Contents of the user manual for the Thinkware F800 PRO Wi-Fi Dash Cam
- Product category: Dashcams Thinkware
- Brand: Thinkware
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thinkware Dashcams
|
User manual for the Thinkware F800 PRO Wi-Fi Dash Cam contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thinkware product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thinkware user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thinkware product will considerably shorten its lifespan!
|

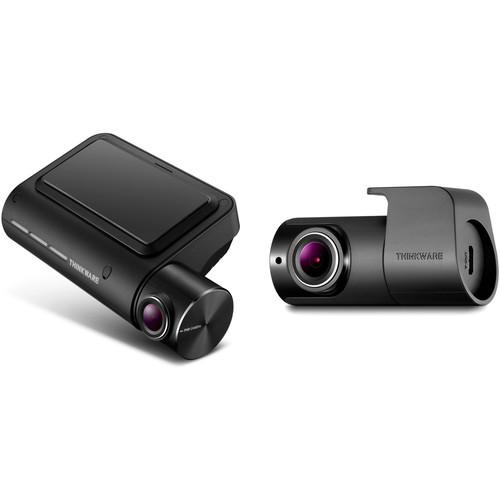

Product description This Kit includes the Thinkware F800 PRO Wi-Fi Dash Cam with 64GB microSD Card and TWA-F800R rear view camera. Using both cameras enables recording through the front and rear windows of your vehicle. A 21' connecting cable is included. - Thinkware F800 PRO Wi-Fi Dash Cam with 64GB microSD Card & Night Vision Mount the F800 PRO Wi-Fi Dash Cam with 64GB microSD Card & Night Vision from Thinkware on your vehicle's windshield to record video on the road. This Wi-Fi dash cam has a 2.13MP 1/2.9" Sony Exmor R STARVIS CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. The F800 PRO has night vision functionality to record video in any lighting situation while driving or parked. In addition, this dash cam has a 140° diagonal field of view. A built-in GPS receiver tracks speed, time, and location data in your videos to provide the most detailed information possible in the event of an incident. You can also track and recall past driving routes. Audio is possible thanks to a built-in microphone and speaker. Video data 10 seconds prior to and after a collision or impact is stored in event recording mode, which is registered by a 3-axis G-sensor. Other recording modes include continuous, manual, audio, and parking. Parking mode recording requires hardwired cable installation which is available separately. Time-lapse functionality will also become available after hardwired installation.
This dash cam is equipped with a supercapacitor to offer fail-safe recording to prevent data loss in the event of power disconnection after an accident. H.264 compression manages file sizes while maintaining the best quality possible. A PC viewer that is compatible with Windows & Mac computers enables you to view your recorded videos, change your dash cam settings, and install updates. An integrated slot supports microSD cards up to 64GB. A 64GB microSD card is included. - Recording modes include continuous, event, manual, audio, and parking (parking mode recording requires hardwired cable installation which is available separately)
- Time-lapse functionality with hardwired cable installation
- G-sensor with 5 levels of sensitivity adjustment
- Supercapacitor offers fail-safe recording
- Lane departure warning system alerts you when you veer off your lane
- Front/urban front collision warning system alerts you if you are about to hit a vehicle in front of you
- Front vehicle departure warning alerts you when the vehicle ahead has started to move
- Dash cam offers built-in thermal self-protection by automatically shutting off to prevent overheating, keeping the dash cam and its data safe
- Locate Vehicle functionality helps drivers find the vehicle's current location
- Night time picture quality correction and automatic exposure delivers properly calibrated and exposed images
- PC Viewer compatible with Windows & Mac
- Thinkware mobile app for iOS and Android devices
- Safety camera alerts lets you know when you're approaching red lights and speed cameras
- Built-in speaker delivers alert/notification sounds
- Includes mount with 3M Tape, car charger, adhesive cable holder, 64GB microSD card with adapter, and USB microSD card reader
UPC: 888622004381 - Thinkware TWA-F800R Rear View Camera Mount the TWA-F800R Rear View Camera from Thinkware on your vehicle's rear window to record video on the road. The TWA-F800R can be added to Thinkware's F800 and F800PRO dash cams. This rear view camera captures 1920 x 1080 resolution video in a wide 140° field of view. A 21' connecting cable and mount with 3M tape are included.
- Offers noise control and clarity in low-light conditions
- Works with Thinkware's F800 and F800PRO dash cams to provide complete surveillance of the front and rear of your vehicle
- Motion detection when F800 or F800PRO dash cams are hardwired
- Included mount with 3M tape ensures secure placement of rear view camera
UPC: 888622003193 In the Box - F800 PRO Wi-Fi Dash Cam with 64GB microSD Card & Night Vision
- Mount with 3M Tape
- Car Charger
- Adhesive Cable Holder
- 64GB microSD Card with Adapter
- USB microSD Card Reader
- Limited 1-Year Warranty
- TWA-F800R Rear View Camera
Table of Contents
|
Upload User Manual
Have you got an user manual for the Thinkware F800 PRO Wi-Fi Dash Cam with 64GB microSD Card & Rear View Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Thinkware F800 PRO Wi-Fi Dash Cam with 64GB microSD Card & Night Vision
| Image Sensor | 2.13 MP 1/2.9" Sony Exmor R STARVIS CMOS | | Resolution | 1920 x 1080 | | Frame Rate | 30 fps | | Diagonal Field of View (FOV) | 140° | | Audio | HE-AAC | | Compression | H.264 | | File Type | MP4 | | Recording Modes | Continuous recording
Event recording
Manual recording
Parking recording, requires hardwiring cable installation which is available separately
Audio Recording | | Built-In Microphone | Yes | | Built-in Speaker | Yes | | Wi-Fi Connectivity | Yes | | G-Sensor | 3-axis acceleration sensor (3D, ±3G) | | GPS Tracking | Built-in | | LED Indicators | Front: Security
Rear: GPS, Recording, Wi-Fi | | Storage | Supports UHS-I microSD cards up to 64 GB, 64 GB card included | | Firmware Upgradable | Yes | | Input Power | 12 VDC / 24 V | | Power Consumption | 2-Channel: 4.2 W
1-Channel: 2.9 W | | Auxiliary | Supercapacitor | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Dimensions | 4.2 x 2.4 x 1.18" / 107 x 60.5 x 30 mm | | Weight | 0.23 lb / 104.5 g | | | | Box Dimensions (LxWxH) | 5.35 x 5.25 x 4.55" | - Thinkware TWA-F800R Rear View Camera
| Compatibility | Thinkware F800 & F800PRO | | Sensor | Sony Exmor STARVIS CMOS | | Resolution | 1920 x 1080 | | Field of View | 140° | | Connecting Cable | 21'/6.4 m | | Dimensions (W x H x D) | 2.4 x 0.98 x 1.2" / 61 x 24.9 x 30.5 mm | | Weight | 0.7 oz / 20 g | | | | Box Dimensions (LxWxH) | 7.5 x 3.7 x 1.95" |
