User Manual for Thinkware FA200 1080p Wi-Fi Dash Cam with Rear View Camera, 16GB microSD Card & Hardwiring Cable Click to enlarge the picture
Contents of the user manual for the Thinkware FA200 1080p Wi-Fi Dash Cam
- Product category: Dashcams Thinkware
- Brand: Thinkware
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thinkware Dashcams
 |
User manual for the Thinkware FA200 1080p Wi-Fi Dash Cam contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thinkware product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thinkware user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thinkware product will considerably shorten its lifespan!
|

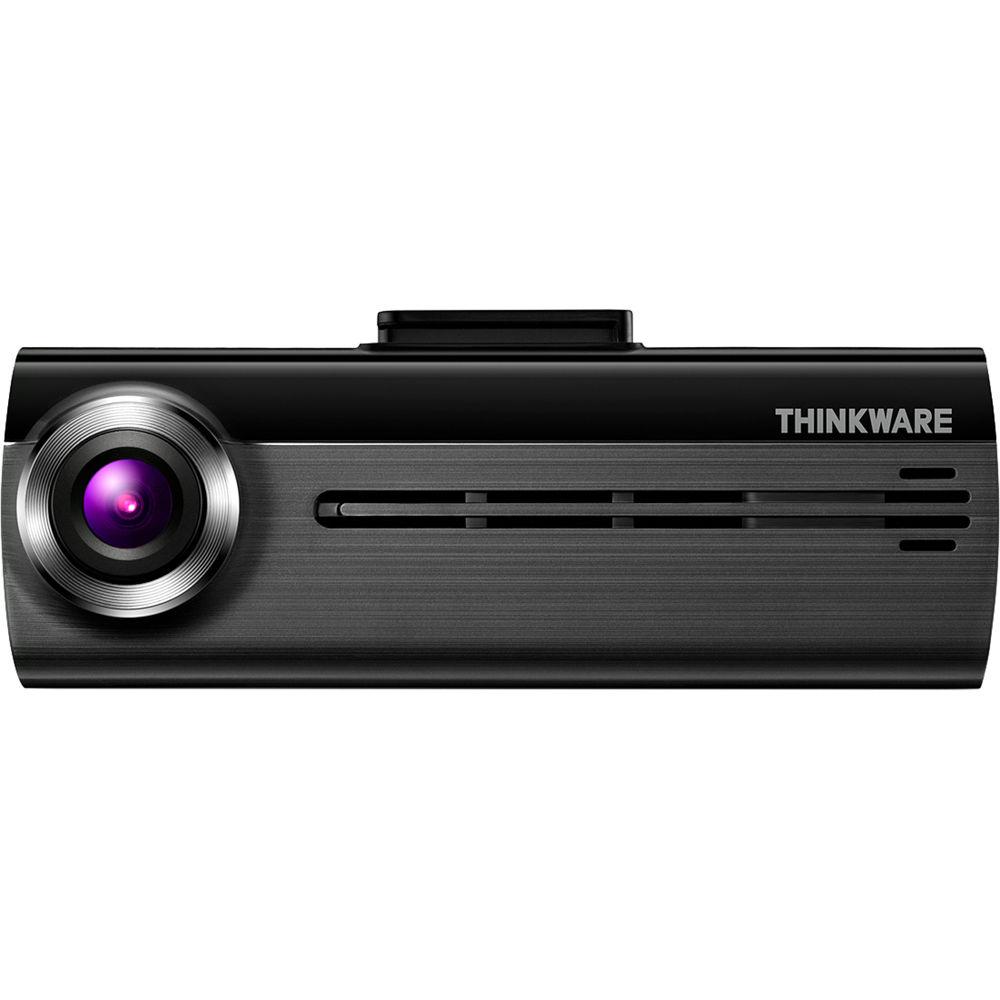

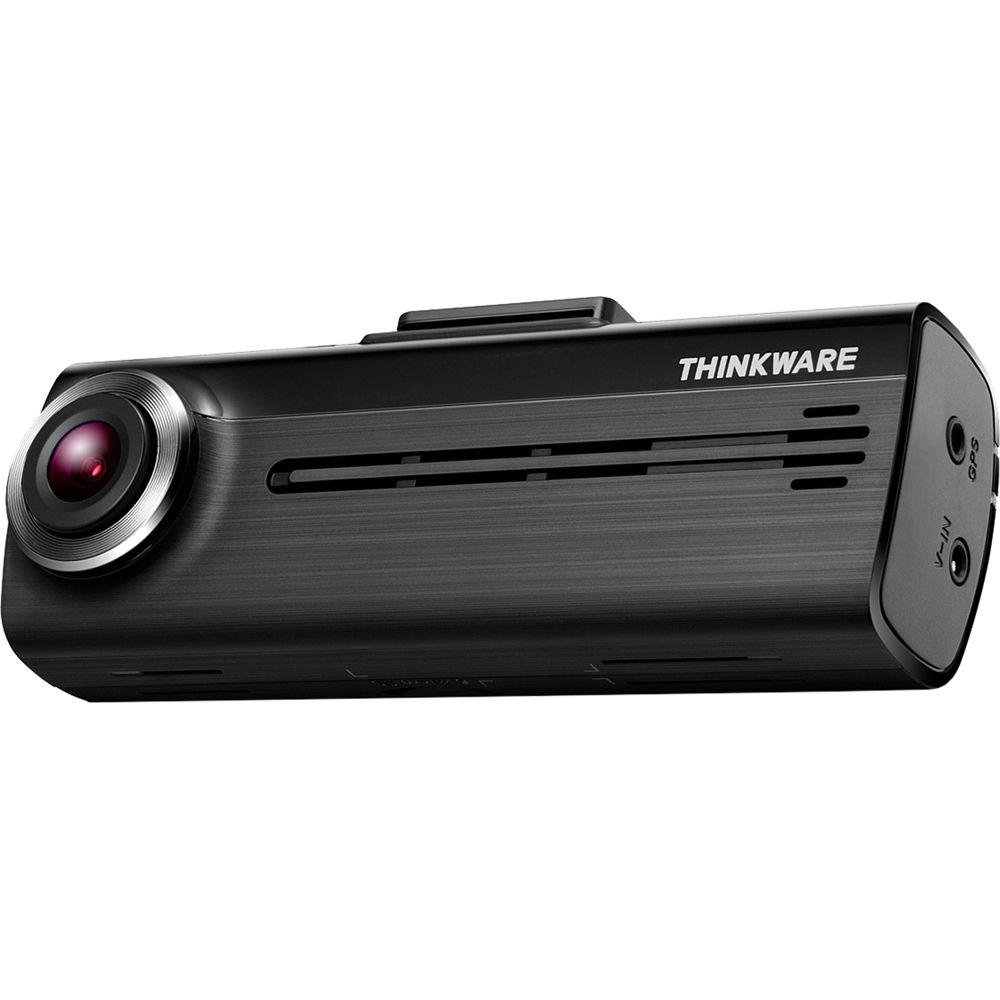

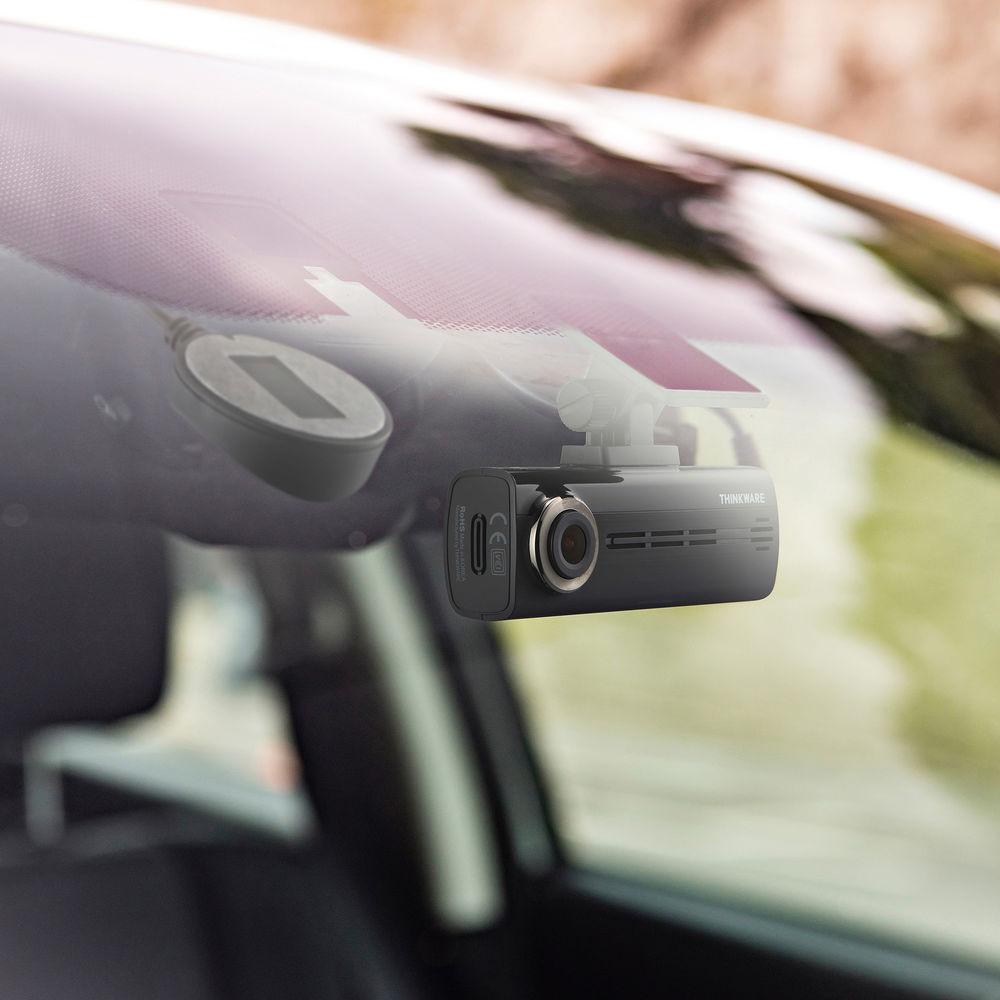

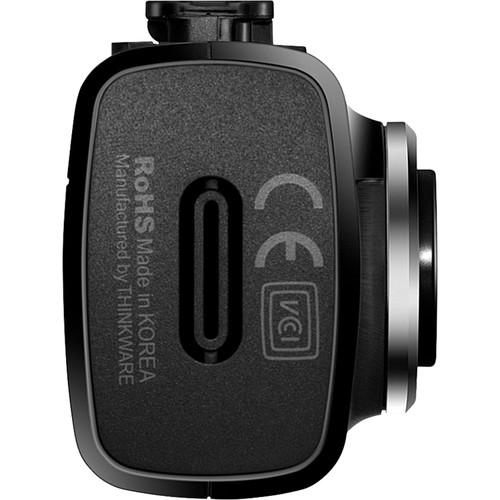

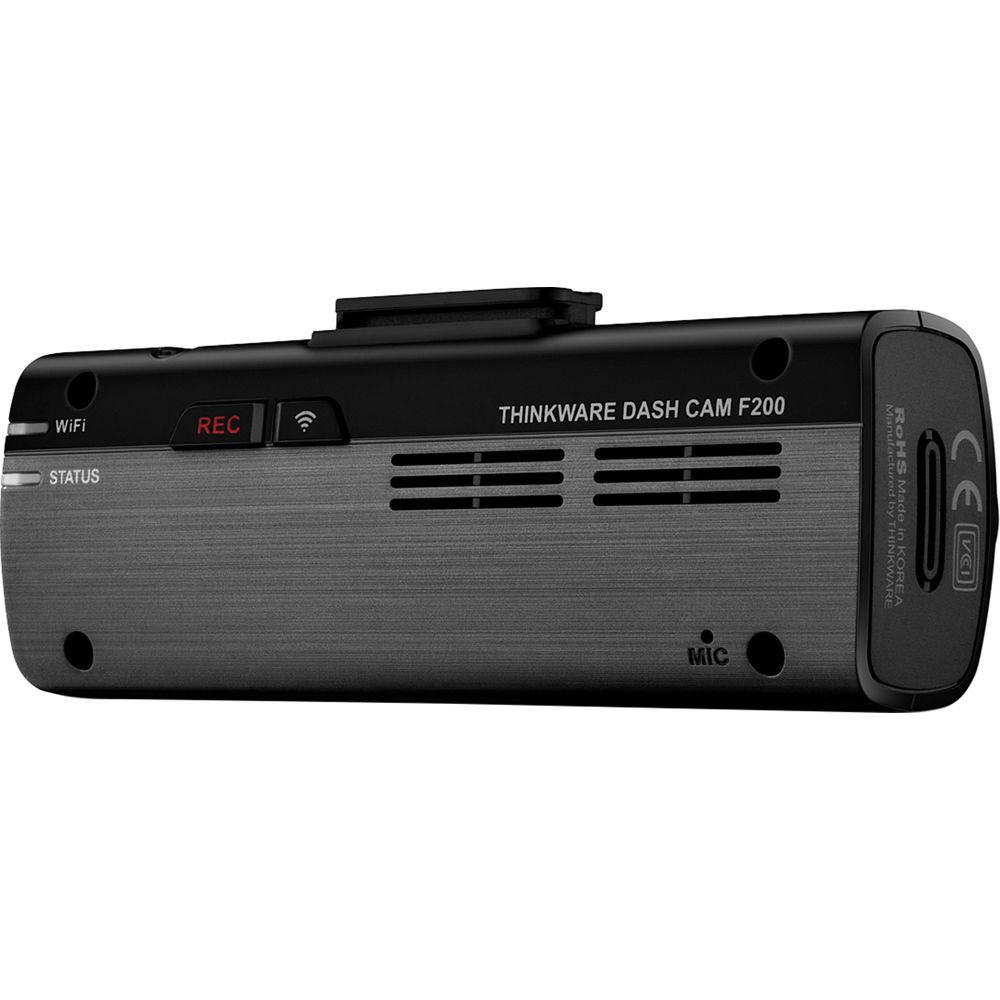

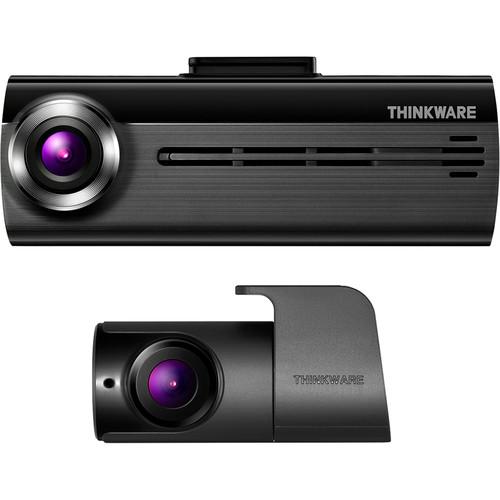

Product description The FA200 1080p Wi-Fi Dash Cam with Rear View Camera from Thinkware enables you to record video of the front and rear of your vehicle while on the road. The front-facing Wi-Fi dash cam uses a 2.1MP CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. It delivers a 140° diagonal field of view to cover the entire road ahead of your car as you drive. The rear-facing camera captures 1280 x 720 resolution video at 30 fps. Audio recording and playback are possible thanks to a built-in microphone and speaker. Video data 10 seconds prior to and after a collision or impact is stored in incident recording mode. Other recording modes include continuous, manual, audio, and parking. The hardwiring cable required for parking mode is included.
This dash cam is equipped with a 3-axis G sensor that offers five levels of sensitivity adjustment, along with a supercapacitor for fail-safe recording in the event of a power disconnection. H.264 compression manages file sizes while maintaining the best quality possible. PC viewer software compatible with Windows & Mac computers enables you to view your recorded videos, change your dash cam settings, and install updates. An onboard card slot supports microSD cards up to 128GB. A 16GB microSD card is included. - Recording modes include continuous, incident, manual, audio, and parking (required hardwiring cable for parking mode recording is included)
- Parking mode offers motion detection, time-lapse, and energy-saving functions (these functions cannot be used simultaneously)
- G sensor with five levels of sensitivity adjustment
- Supercapacitor offers fail-safe recording
- PC Viewer compatible with Windows & Mac
- Thinkware app for iOS and Android devices
- LED indicators for status and Wi-Fi
- Optional GPS tracker available separately

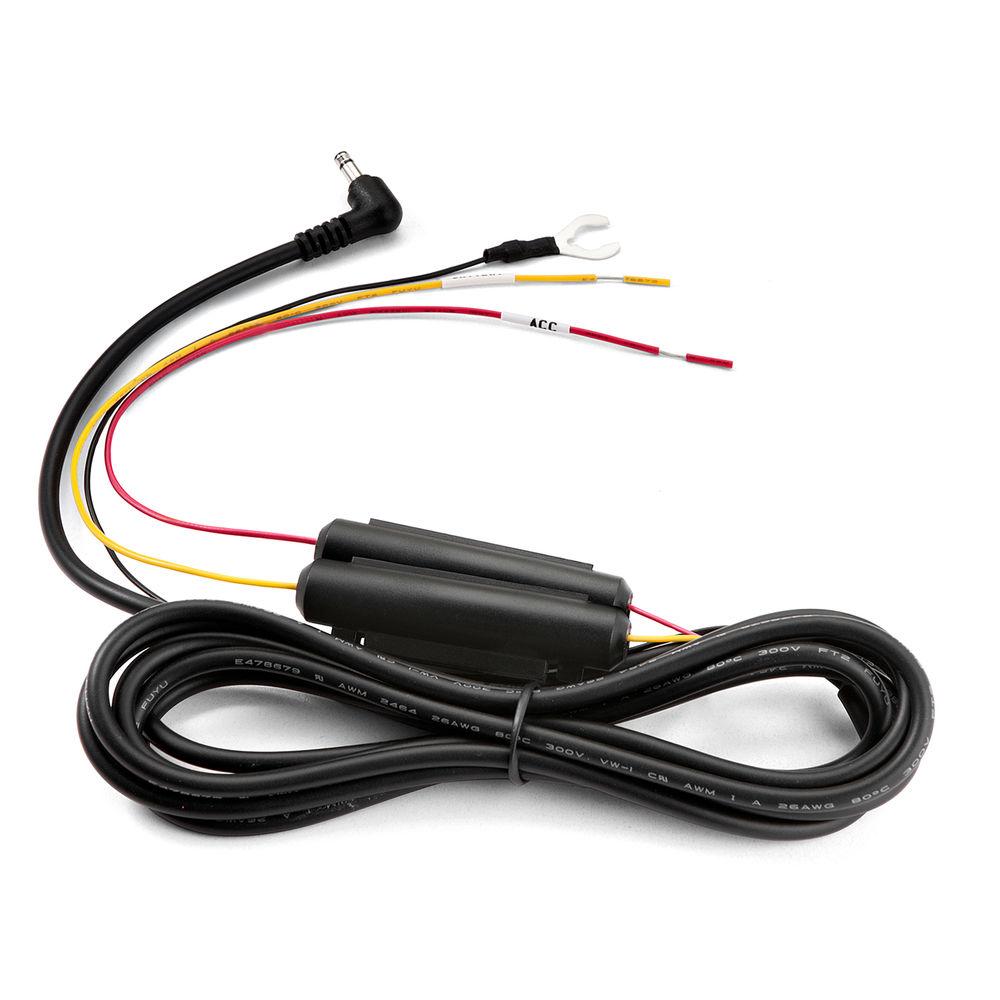

UPC: 888622006514 In the Box Thinkware FA200 1080p Wi-Fi Dash Cam with Rear View Camera, 16GB microSD Card & Hardwiring Cable TWA-SH Hardwiring Cable Mount Power Charger Cable Holder 16GB microSD Card SD Card Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thinkware FA200 1080p Wi-Fi Dash Cam with Rear View Camera, 16GB microSD Card & Hardwiring Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThinkware F200 Specs | Image Sensor | 2.1 MP, ON Semiconductor CMOS | | CPU | Ambarella A12 | | Resolution | Front Camera: 1920 x 1080
Rear Camera: 1280 x 720 | | Frame Rate | Front Camera: 30 fps
Rear Camera: 30 fps | | Diagonal Field of View (FOV) | 140° | | Video Compression | H.264 | | File Type | MP4 | | Audio | PCM | | Built-In Microphone | Yes | | Built-In Speaker | Yes (For Voice Guide and Notification Sounds) | | Wi-Fi Connectivity | Yes, 2.4 GHz | | G Sensor | 3-Axis Acceleration Sensor (3D, ±3 g) | | LED Indicators | Rear: Status, Wi-Fi | | Buttons | Record, Wi-Fi | | Storage | Supports UHS-I microSD Cards up to 128 GB
16 GB Card Included | | Connection Interface | 1 x V-IN Port (For Included Rear Camera) | | Power Input | Front Camera: 12 / 24 VDC
Rear Camera: 3.3 VDC | | Power Consumption | 2-Channel: 3.1 W
1-Channel: 2.3 W (Wi-Fi On)
Continuous Recording:
2-Channel: 3.3 W
1-Channel: 2.7 W
Parking Mode:
2-Channel: 2.5 W
1-Channel: 1.9 W
Parking Mode (Energy Saving)
2-Channel: 1.4 W
1-Channel: 0.9 W | | Auxiliary | Supercapacitor | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Dimensions | Front Camera: 3.9 x 1.3 x 0.9" / 98.5 x 34 x 22 mm
Rear Camera: Not Specified By Manufacturer | | Weight | Front Camera: 1.9 oz / 54 g
Rear Camera: Not Specified By Manufacturer | | | | Package Weight | 0.94 lb | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 4.5" |
