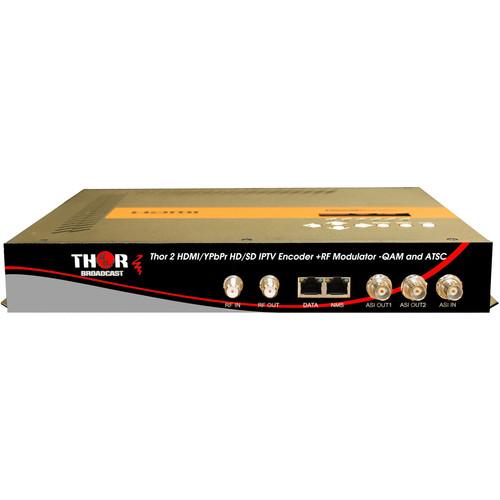

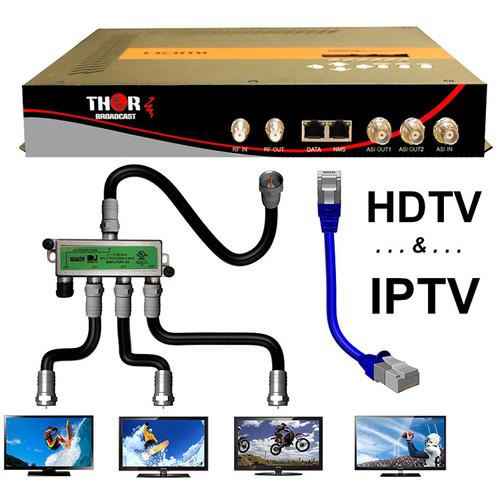

Product description The 2-Channel HDMI/YPbPr/CVBS to Digital RF Encoder Modulator System from Thor integrates encoding (MPEG-2, MPEG-4/AVC H.264) and modulation to convert HDMI/YPbPr/CVBS signals to digital RF output. It is equipped with one ASI input and an output with two ASI ports and one IP port. The signal source could be from satellite receivers, CCTV cameras, Blu-ray players, OTA antennas, and more. The output signals are to be received by TVs, STB, and more with the same corresponding standard. - Suitable for metro, market halls, hotels, stadiums, and more
- MPEG-2 HD and MPEG-4 AVC H.264 HD video encoding
- DD AC3 (2.0), MPEG-4-AAC, MPEG-2-AAC, MPEG-1 layer II audio encoding
- Supports DD AC3 (2.0/5.1/7.1) pass-through
- Supports AC3 dialog normalization

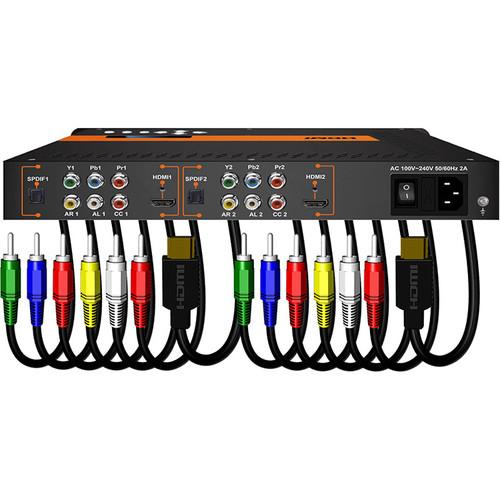

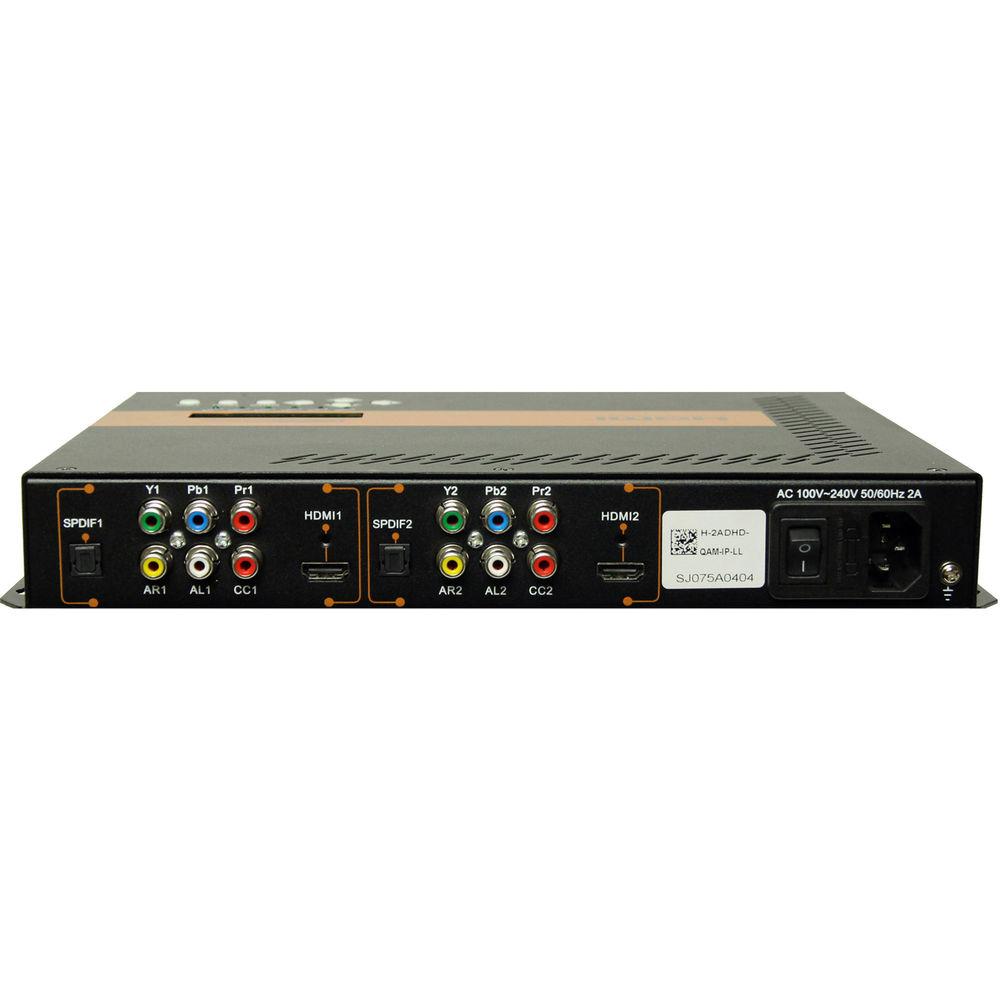

- Two HDMI/YPbPr/CVBS (Pr in) channels input
- ASI input for remux; one RF input for RF mix
- Four DVB-C and four ATSC RF outputs in one device
- Two separate ASI outputs to mirror MPTS or one carrier programs
- IP (two SPTS and one MPTS) output
- Supports CC (closed captioning) EIA608
- Supports LCN (Logical Channel Number) and VCT (Virtual Channel Table)
- LCD display, remote control, and firmware
- Web-based NMS management; updates via Web
UPC: 659682981185 Table of Contents
|
Upload User Manual
Have you got an user manual for the Thor 2-Channel HDMI YPbPr CVBS to Digital RF Encoder Modulator System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThor H-2ADHD-QAM-IPLL Specs | | | Video HDMI | Encoding:
MPEG-2, MPEG-4 AVC/H.264
Interface:
2 x HDMI
Resolutions:
1080p 60/50 (for MPEG-4 AVC/H.264 only)
1080i 60/50
720p 60/50
Low Delay:
Normal, Mode 1, Mode 2, Manual
Aspect Ratios:
4:3, 16:9 | | CVBS | Encoding:
MPEG-2, MPEG-4 AVC/H.264
Interface:
2 x CVBS(RCA)
Resolutions:
576i 50
480i 60 | | YPbPr Interface | Encoding:
MPEG-2, MPEG-4 AVC/H.264
Interface:
2 x YPbPr (RCA)
Resolutions:
1080i 60/50
720p 60/50 | | | | HDMI | Encoding:
MPEG-1 layer II, MPEG-2-AAC, MPEG-4-AAC
DD AC3 (2.0)
DD AC3 (2.0/5.1/7.1) pass-through
Interface:
2 x HDMI
2 x SPDIF
Sample Rate: 48 kHz
Bit Rate: 64/96/128/192/256/320 kb/s | | Audio In (L/R) | Encoding:
MPEG-1 layer II, MPEG-2-AAC, MPEG-4-AAC
DD AC3 (2.0)
DD AC3 (2.0/5.1/7.1) pass-through
Interface:
2 x Stereo
4 x Mono
2 x SPDIF
Sample Rate: 48 kHz
Bit Rate: 64/96/128/192/256/320 kb/s | | | | Standard | J.83A (DVB-C), J.83B, J.83C | | MER | ≥ 43 dB | | RF Frequency | 36 to 960 MHz, 1 kHz step | | RF Output Level | -30 to -10 dBm (77 to 7 dbµV), 0.1 dB step | | Symbol Rate | 5.000 to 9.000 Ms/s adjustable | | RF Output | 4 x DVB-C adjacent carriers, combined output | | Constellation | J.83A: 16/32/64/128/256 QAM
J.83B: 64/256 QAM
J.83C: 64/256 QAM | | Bandwidth | J.83A: 8M
J.83B: 6M
J.83C: 6M | | | | Standard | ATSC A/53 | | Constellation | 8 VSB | | RF Output Level | -30 to -10 dBm (77 to 97 dbµV), 0.1 dB step | | MER | ≥ 42 dB | | RF Frequency | 36 to 960 MHz, 1 kHz step | | RF Output | 4 x ATSC adjacent carriers, combined output | | | | Local Interface Control | LCD and control buttons | | Remote Management | Web NMS | | Stream Output Format | Two separate ASI outputs (BNC type, 100M)
IP (2 x SPTS and 1 x MPTS) over UDP/RTP out (RJ45, 100M) | | Interface | NMS Interface: RJ45, 100M | | Language | English | | | | Power Supply | 100 to 240 VAC | | Operation Temperature | 32 to 113°F / 0 to 45°C | | Dimensions | 13.1 x 9.1 x 1.7" / 33.3 x 23.2 x 4.4 cm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 18.0 x 8.0 x 4.0" |
