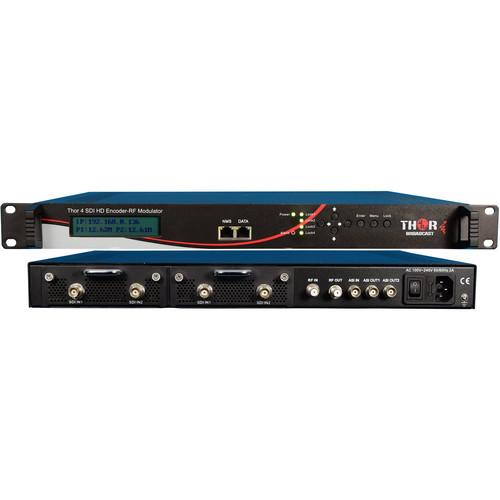

User Manual for Thor 4-Channel HD-SDI to ATSC Encoder, Modulator, and IPTV Streamer Click to enlarge the picture
Contents of the user manual for the Thor 4-Channel HD-SDI to ATSC Encoder,
- Product category: RF Equipment Thor
- Brand: Thor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thor RF Equipment
|
User manual for the Thor 4-Channel HD-SDI to ATSC Encoder, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thor product will considerably shorten its lifespan!
|
Product description Broadcast HD-SDI video over North American ATSC RF tuners and IPTV with the H-4SDI-ATSC-IPLL 4-Channel HD-SDI to ATSC Encoder, Modulator, and IPTV Streamer from Thor. The H-4SDI-ATSC-IPLL can encode, modulate, send via IPTV server individually, or perform all three tasks at the same time. Input up to four 3G-SDI signals via four BNC ports or one 120 Mb/s ASI input, and output via one RF or two muxed 19 Mb/s ASI outputs.
The encoder supports all standard HDTV resolutions, and it's well suited for live events thanks to its low-latency encoding as low as 70 ms. The modulator allows signals to be distributed to ATSC tuners and provides 8VSB (8-level vestigial side band) for the combination of additional, locally integrated carrier content.
The IPTV stream out the RJ45 port supports unicast or multicast IGMP UDP, RTP, and RTSP output, MPEG-2 and H.264 video compression at up to 1080p60 resolution, and 48 kHz MPEG-1/2/4 AAC audio up to 320 kb/s. The H-4SDI-ATSC-IPLL is managed via an HTTP network management system (NMS) via an RJ45 port. Use the GUI to configure input and output encoding, format, bitrate, compression, frequency modulation, sub-channel information, and more.
A power cord and four HD-SDI BNC cables are included. - Combination encoder, modulator, IPTV server, and ASI mux
- Distribute or broadcast any live HD-SDI digital video source as North American ATSC RF antenna and IPTV Channels
- Four HD-SDI inputs support up to 3G-SDI at 1080p60; one ASI input supports SPTS or MPTS up to 120 Mb/s
- Two 1-60 Mb/s ASI outputs, one 30-960 MHz RF output, RJ45 IP streaming out
- Low latency between 70 to 110 ms, suitable for live events
- Encodes with MPEG-2 or H.264 video codecs at 0.5 to 19 Mb/s
- LCD display, HTTP GUI network management system (NMS) on port 80
- Includes power cord and four HD-SDI BNC cables
In the Box Thor 4-Channel HD-SDI to ATSC Encoder, Modulator, and IPTV Streamer 4 x HD-SDI BNC Cables Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thor 4-Channel HD-SDI to ATSC Encoder, Modulator, and IPTV Streamer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThor H-4SDI-ATSC-IPLL Specs | Inputs | 4 x BNC: SDI, 3G-SDI, HD-SDI; 50 Ohms
1 x BNC: ASI, 1 to 120 Mb/s
1 x RF | | Outputs | 2 x BNC: ASI, 1 to 60 Mb/s
1 x RF | | RF Frequency Range | 30 to 960 MHz, 1 kHz Step | | RF Power | 5 to 35 dBm, Adjustable | | Video Resolutions | 1080p: 60/59.94/50 (H.264 Codec ONLY)
1080i: 60/59.94/50
720p: 60/59.94/50 | | Video Codec Support | MPEG-2 HD: 1.5 to 19.5 Mb/s
H.264 HD: 0.8 to 19.5 Mb/s | | Supported Audio Codecs | MPEG-1 Layer II
MPEG-2 AAC
MPEG-4 AAC | | Audio Sample Rate | 48 kHz | | Supported Audio Bit Rates | 64, 96, 128, 192, 256, 320 kb/s | | Management Protocols | HTTP Webserver, Port 80 | | IP Streaming | MPEG-TS MPTS over RTP, RTSP, UDP
Unicast and IGMP Multicast Support | | Power | 100 to 240 VAC, Auto-Switching
20 W | | Operating Temperature | 32 to 110°F / 0 to 43°C | | Dimensions | 19 x 11.8 x 1.7" / 48.2 x 30 x 4.4 cm | | Weight | 7 lb / 3.2 kg |
