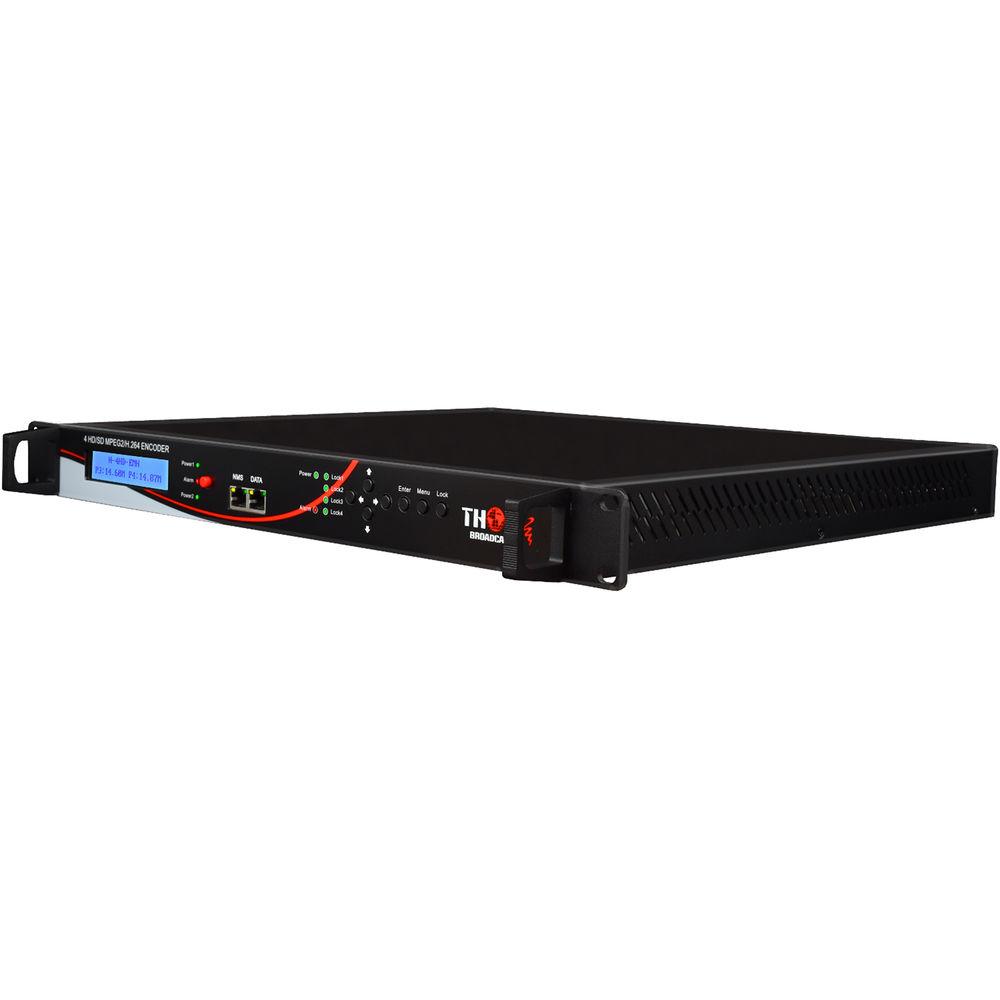

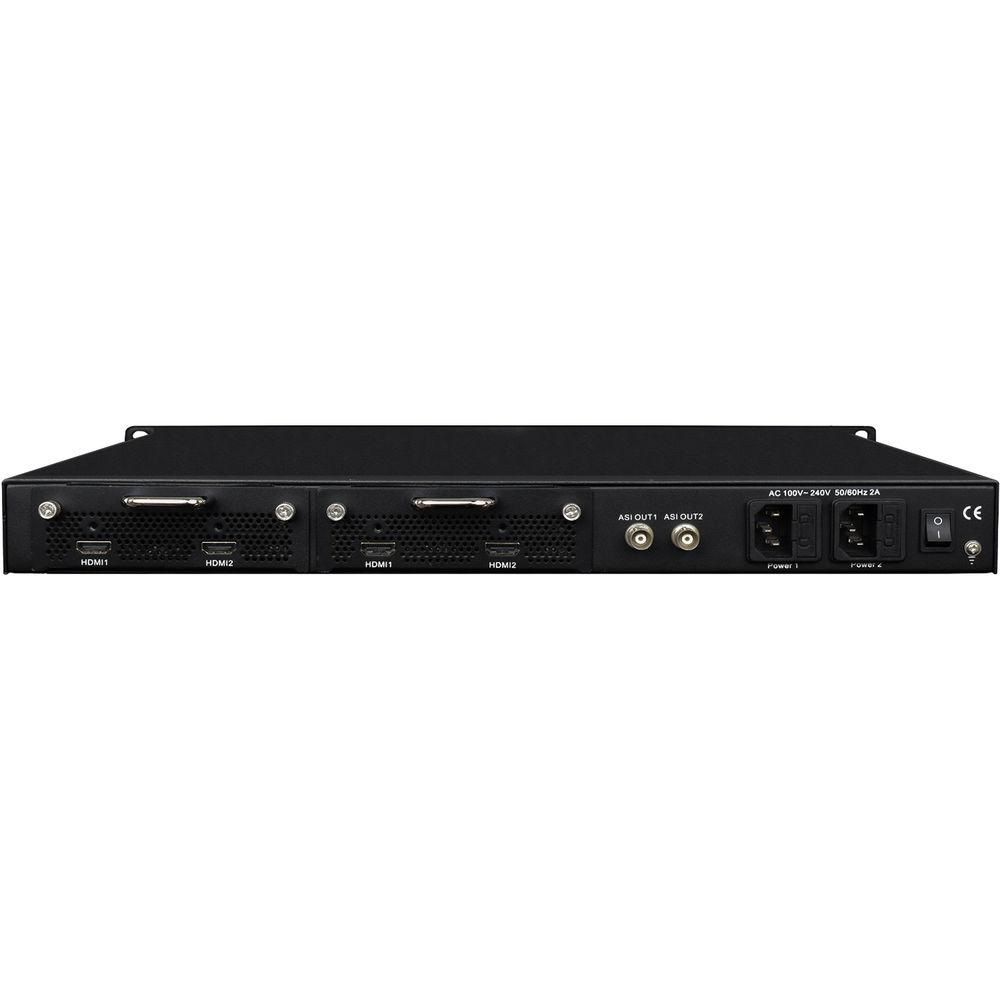

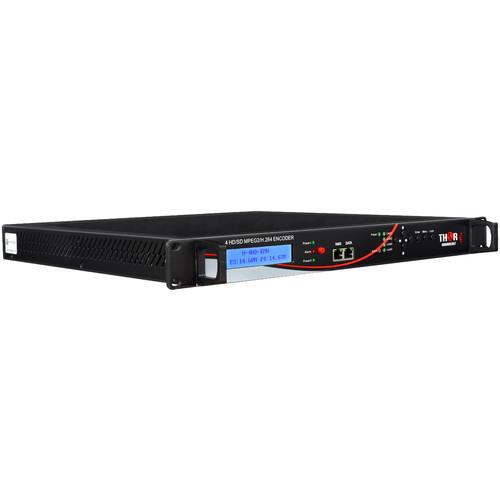

Product description The 4-Channel HDMI Broadcast Encoder with IPTV Streamer from Thor accepts up to four input channels of uncompressed HDMI video. It can be managed through any modern web browser. Each encoder can be independently adjusted for bit rate, codecs, and video image qualities. All four program streams are multiplexed into an ASI MPTS output on mirrored BNC terminals. The ASI output can be directly connected to the ASI input on a QAM-IP digital TV channel modulator, allowing for additional programs to be added to the QAM-IP output channels as additional virtual or sub channels. It will appear as channels 2.1 or 2.2, and each digital channel can carry as many as 20 programs, depending on resolution and encoded bit rate.

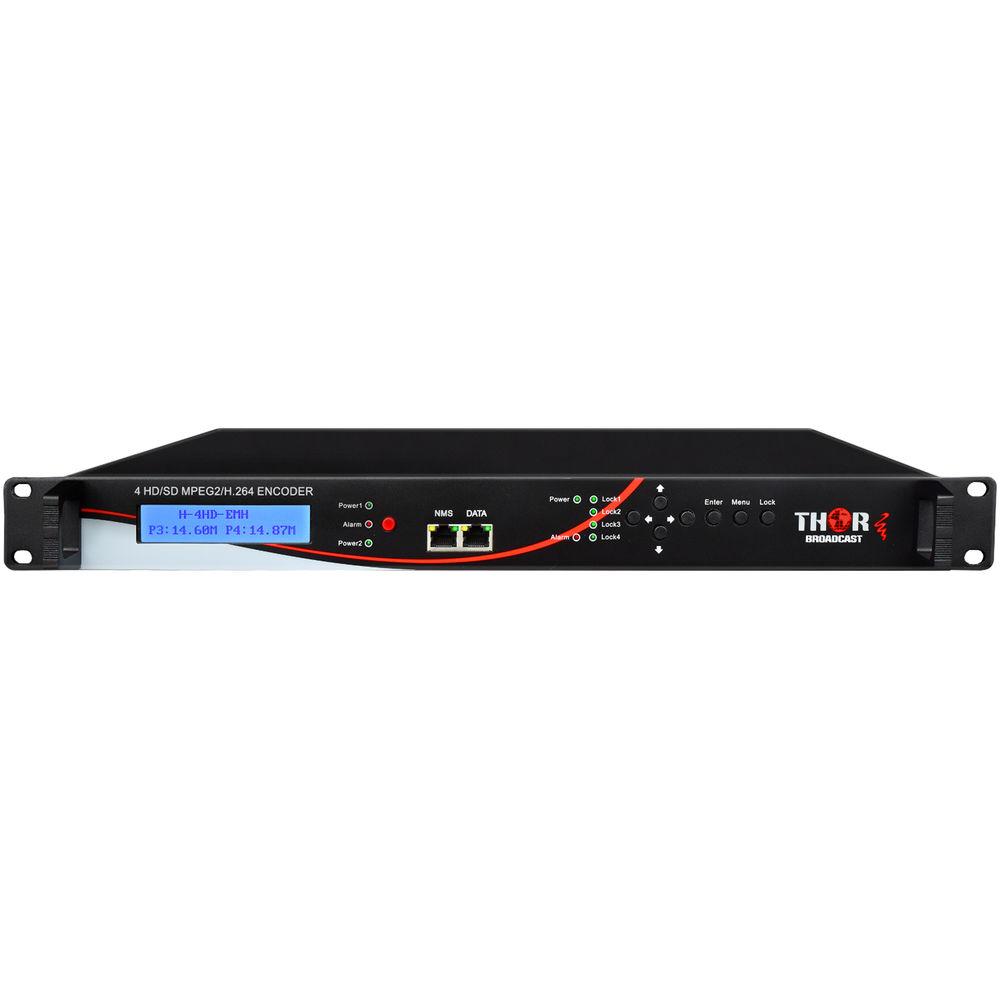

In addition to the ASI output, the program streams are also available as UDP or RTP network video transport streams. This output is fully compliant with IGMP multicast UDP MPEG-TS standards, and can be easily injected into almost any IPTV system. The stream is a universally accepted format, and can easily be viewed in client applications such as VLC. In addition to network management on a dedicated NMS Ethernet port, all settings and menu configuration items can easily be viewed or adjusted from the front panel LCD and keypad. LEDs are also provided for alarm monitoring and input video detection. - Key Features
-
- Encoding support for the MPEG-2 codec
- Real-time MPEG-2/H.264 encoder with low-latency option
- Independent control for encoding parameters on each channel
- Supports Dolby AC-3 audio codec for compliance with US TVs
- Designed to easily add four additional channels to a QAM-IP
- Redundant hot standby power supply
UPC: 659682981840 In the Box Thor 4-Channel HDMI Broadcast Encoder with IPTV Streamer & Dolby AC-3 4 x HDMI Cable Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thor 4-Channel HDMI Broadcast Encoder with IPTV Streamer & Dolby AC-3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThor H-4HD-EMH-AC3 Specs | Input | 4 x HDMI | | Supported Output Resolutions | 1080p 60/59.94/50
1080i 60/59.94/50
720p 60/59.94/50
720i 60/59.94/50 | | Video Codecs | MPEG-2 HL
MPEG-4 AVC/H.264 | | Audio Codecs | MPEG-1 Layer 2
Dolby AC-3
LC-AAC (optional) | | Bit Rate | 0.8 to 19 Mb/s CBR or VBR | | Video Features | Input deinterlacing, noise reduction, and sharpening | | Audio Sampling Rate | 48 kHz, 24-bit resolution | | Audio Bit Rate | 64 to 384 kb/s (each channel) | | IP Streaming | 1 x MPTS
4 x SPTS over UDP, RTP/RTSP (RJ45, 100M) | | ASI | Transport Stream Output: 2 x Multiplexed | | Interface | Web-based browser interface
Front panel LCD interface | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions | 18.9 x 17.9 x 1.8" / 48 x 45.5 x 4.5 cm | | Weight | 7.2 lb / 3.3 kg |
