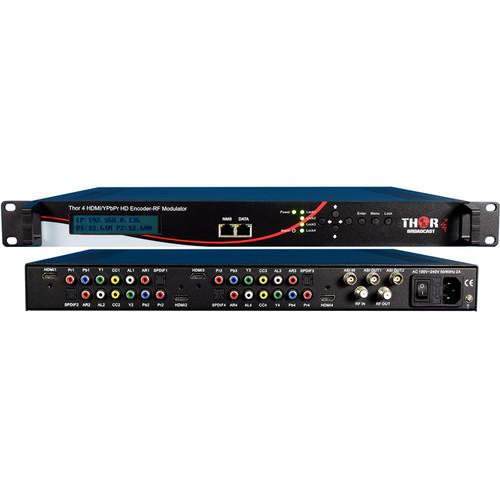

Product description The 4 HDMI and Component HD to Coax Modulator and IPTV Encoder Streamer from Thor provides five full RF carrier outputs for generating channels from content ingested through the ASI input. Encoding in either MPEG-2 or H.264 is provided for four video streams up to 1080p60 each. You can adjust the bit rate from 1.5 to 19 Mb/s. It provides standard audio encoding in MPEG-2 AAC and MPEG-4 AAC, as well as a licensed Dolby AC/3 audio codec. You can select the audio sources from either embedded HDMI or analog RCA ports.
For surround sound, digital audio inputs can be set to "pass-through" mode to preserve 5.1 and 7.1 audio encoded already in Dolby compatible format. Two mirrored ASI outputs are provided for broadcasters for distributing the content generated by the four encoders. Programs input via ASI can also be multiplexed and remapped to the ASI output, adding yet another function to the unit as an ASI multiplexer. All four encoded programs can be mapped to unique IP address outputs and ports in either UDP or RTP format. The IP output can be configured to strip null packets to reduce network bandwidth or preserve the constant bit rate (CBR) packet.
All four channels can be independently configured for either multicast or unicast outputs, while the closed captioning is supported on a dedicated analog 608 CC port with RCA connector. Any 720 or 1080 line standard video signal in either HDMI or component format can be used for each of the four channels. This system can be configured with firmware for either QAM, DVB-C, DVB-T, or ATSC channel format output. - Broadcast over existing coaxial cabling to unlimited televisions with Full HD
- Broadcast live HDMI and component videos as cable TV and IPTV channels
- Licensed HDMI inputs work with any source such as DVD, Blu-ray, or any STB
- Convert HDMI and component HD video to HDTV channels
- 1 to 4 HDMI and component inputs up to 720p/1080i/1080p
- Four HDMI cables included
- HDMI, MPEG-2, and H.264 video encoding
- Supports DD AC3 (2.0 / 5.1 / 7.1) pass-through (for HDMI interface only)
- Support for closed caption EIA608 (from composite input)
- 1 to 4 CATV RF outputs through as many as four adjacent channels
- QAM-256/64, DVB-T, and ATSC formats available
- Full IP control and network management through browser
- LCD on the front panel with local controls
- IPTV output in unicast or multicast IGMP, UDP, or RTP/RTSP
- 70 to 120 ms low latency available
- Dolby AC3 or MPEG-1/MPEG-2 audio encoding
- MPEG-2 or MPEG-4 H.264 video encoding
- Firmware for ATSC, DVB-T, and DVB-S2 available
- VCT (Virtual Channel Table) support for DVB-C and ATSC
- Supports LCN (Logical Channel Number)
UPC: 659682981116 In the Box Thor 4 HDMI and Component HD to Coax Modulator and IPTV Encoder Streamer 4 x HDMI Cable Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thor 4 HDMI and Component HD to Coax Modulator and IPTV Encoder Streamer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThor H-4ADHD-QAM-IPLL Specs | Input | 4 x HDMI
4 x Component, up to 1080p60
4 x Composite, up to 480i | | Supported Resolutions | 1080p: 60/59.94/50
1080i: 60/59.94/50
720p: 60/59.94/50
Composite input supports 480i only | | Video Codecs | MPEG-2 HD: 1.5 to 19.5 Mb/s
H.264 HD: 0.8 to 19.5 Mb/s | | Audio Codecs | MPEG-1 layer II encoding
MPEG-2 AAC encoding
MPEG-4 AAC encoding
AC3 Dolby encoding
Supports DD AC3 (2.0/5.1/7.1) pass-through for HDMI interface only | | Audio Sample Rate | 48 kHz | | Audio Bit Rates | 64, 96, 128, 192, 256, 320 kb/s | | Modulation | QAM - J.83A, J.83B, J.83C
Firmware for ATSC or DVB-T ISDBT available | | RF Frequency Range | 30 to 960 MHz (1 kHz step) | | RF Power | 5 to 35 dBmV adjustable | | DVB-ASI Signal Input | BNC Connector: 1 to 120 Mb/s programs selected by PID programs muxed to all outputs | | Output | BNC Connector: 1 to 60 Mb/s
Muxed MPTS | | IPTV | Output:
MPEG-TS MPTS over UDP, RTP/RTSP unicast, and multicast supported
4 x Separate SPTS
1 x Muxed MPTS | | Closed Captioning | CC 608 via analog input | | Power Input | 100 to 240 VAC, auto-switching
20 W | | Operating Temperature | 32 to 110°F / 0 to 43.3°C | | Dimensions | 19 x 17 x 2" / 48.3 x 43.2 x 5 cm
19" rack-mountable 1 RU high | | Weight | 9 lb / 4 kg |
