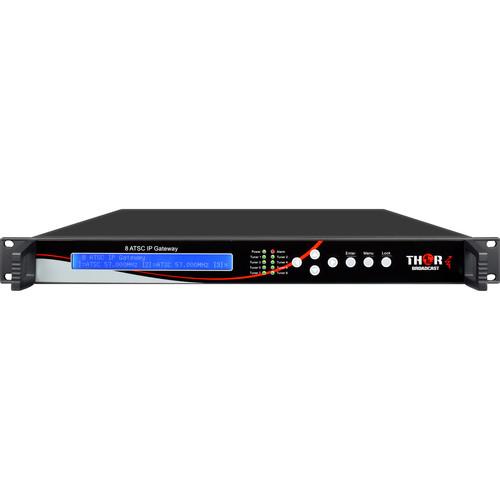

User Manual for Thor 8 x ATSC Antenna Tuners to IPTV and ASI Output Click to enlarge the picture
Contents of the user manual for the Thor 8 x ATSC Antenna Tuners
- Product category: RF Equipment Thor
- Brand: Thor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thor RF Equipment
 |
User manual for the Thor 8 x ATSC Antenna Tuners contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thor product will considerably shorten its lifespan!
|
Product description The 8 x ATSC Antenna Tuners to IPTV and ASI Output from Thor can convert all the TV programs inside the eight frequencies directly to IPTV multicast, unicast, or muxed ASI output. You can output up to 45 SPTS RTP/UDP multicast streams on any computer, tablet, mobile, or IP decoder. - Converts eight antenna RF to IPTV streaming SPTS and ASI
- Output ASI MPTS data mux of selected TV services to feed any modulators/servers/transcoders/ASI inputs
- Supports MPTS over UDP, RTP/RTSP output as mirror of ASI output (RJ45)
- Integrated demodulating and multiplexing functions
- You can select which channels to stream out
- Supports multiplexing one program to all outputs
- Supports closed captioning
- Full IP control and network management through browser
- LCD local control on the front panel
- IPTV output unicast or multicast IGMP UDP
- ASI output with multiplexer cherry picking
- Low latency up to 10-20 ms available
- MPEG2 video or MPEG4 H.264 compression
UPC: 659682982199 In the Box Thor 8 x ATSC Antenna Tuners to IPTV and ASI Output Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thor 8 x ATSC Antenna Tuners to IPTV and ASI Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

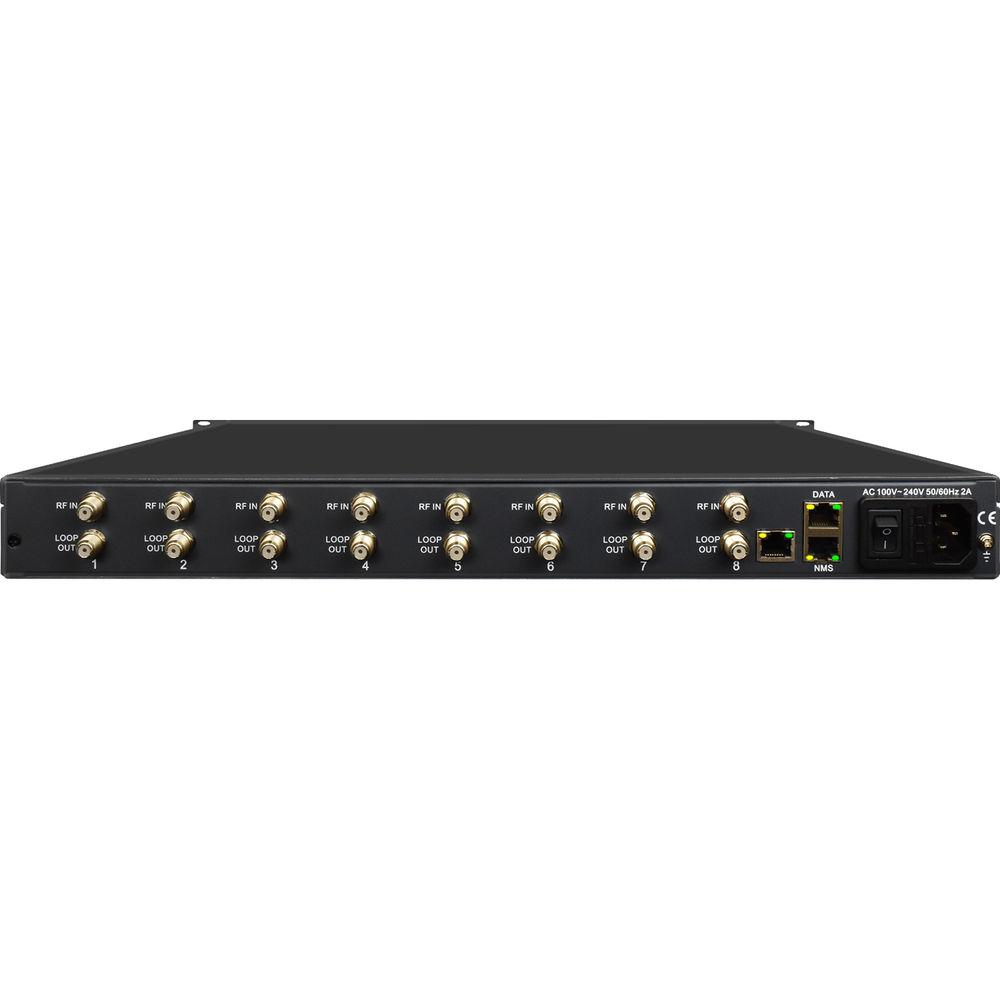

Technical parametersThor H-8ATSC-IP Specs | Input | 8 x ATSC antenna
1 x ASI | | Video Codecs | MPEG-2 HD 1.5-19.5 Mb/s
H.264 HD 0.8-19.5 Mb/s | | Audio Codecs | MPEG-1 layer 2
MPEG-2 AAC
MPEG-4 AAC AC3 Dolby | | Audio Sample Rate | 48 kHz | | Audio Bit Rates | 64, 96, 128, 192, 256, and 320 kb/s | | Modulation | Modulation Standard: ATSC, DVB-C, DVB-S2 | | RF Frequency Range | 30-960 MHz for QAm and ATSC
850-2100 MHz for L-band | | RF Input Power Operating Range | 5-35 dBmV | | DVB-ASI | Output:
2 x BNC (maximum 180 Mb/s)
Input:
BNC (1-120 Mb/s)
Programs selected by PID
Programs muxed to all outputs | | IPTV | Output: MPTS over UDP, RTP/RTPS out as mirror of ASI output (RJ45) | | Power Input | 100-240 VAC auto-switching
20 W | | Operating Temperature | 32 to 110°F / 0 to 43.3°C | | Dimensions | 19 x 17 x 2" / 48.3 x 43.2 x 5.1 cm | | Weight | 9 lb / 4.1 kg |
