User Manual for Thor H-IRD-V3s Fiber Integrated Receiver Decoder System for DVB-S2 ASI IP Click to enlarge the picture
Contents of the user manual for the Thor H-IRD-V3s Fiber Integrated Receiver Decoder
- Product category: RF Equipment Thor
- Brand: Thor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thor RF Equipment
 |
User manual for the Thor H-IRD-V3s Fiber Integrated Receiver Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thor product will considerably shorten its lifespan!
|

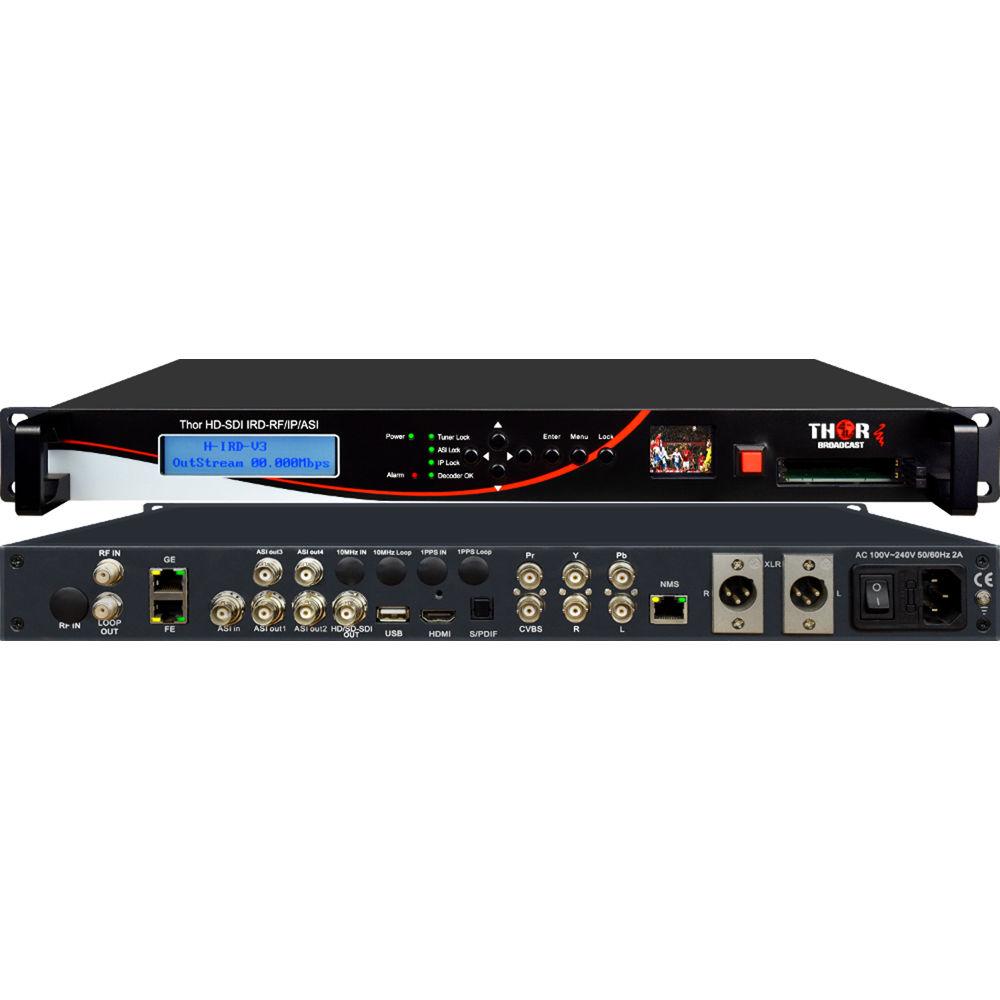

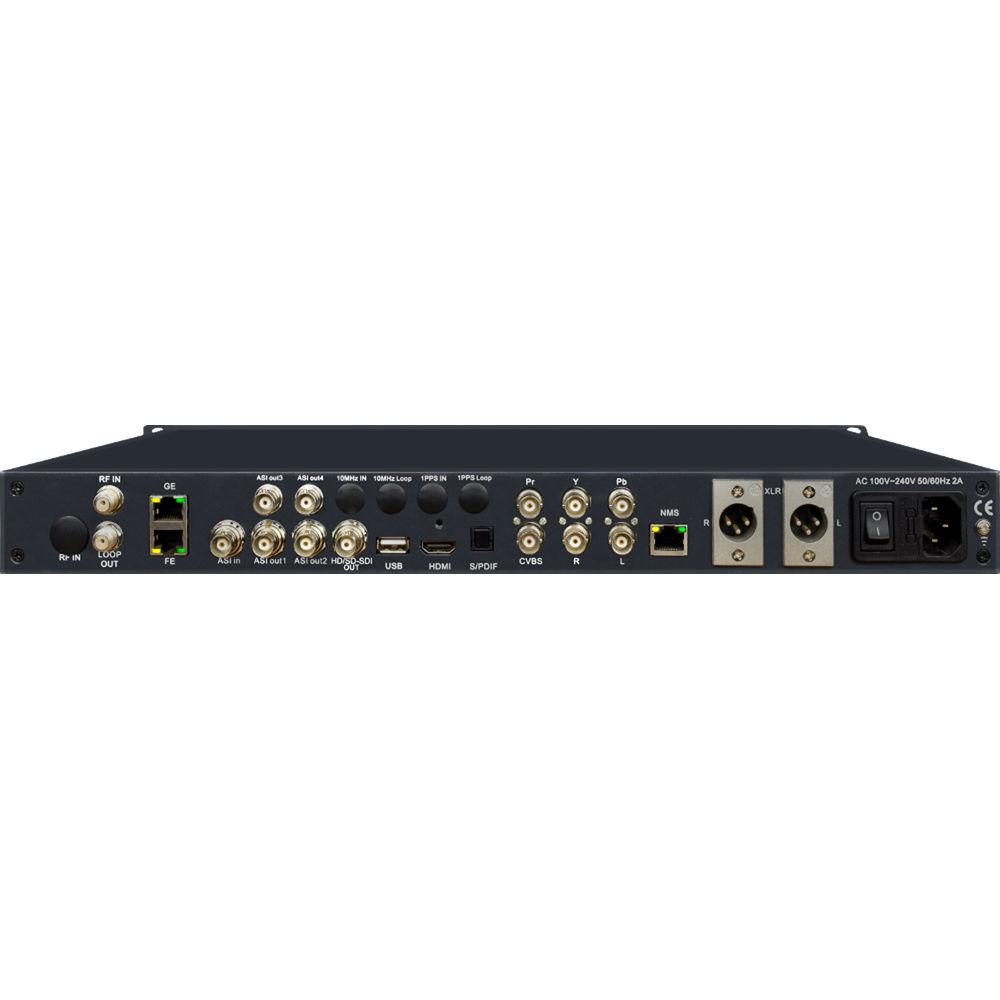

Product description The H-IRD-V3s Fiber Integrated Receiver Decoder System for DVB-S2 / ASI / IP from Thor can be used for converting broadband programming to uncompressed HD video, as well as multiplexing and retransmitting programs to both ASI and IP outputs. Equipped with every major video signal output such as HD-SDI, it can provide HD video to any display or professional video system. It also provides modern digital audio outputs on both optical TOSLINK and XLR connectors. It features standard Dolby AC/3 audio pass-through, and supports closed caption for both 608 and 708 captioning systems.

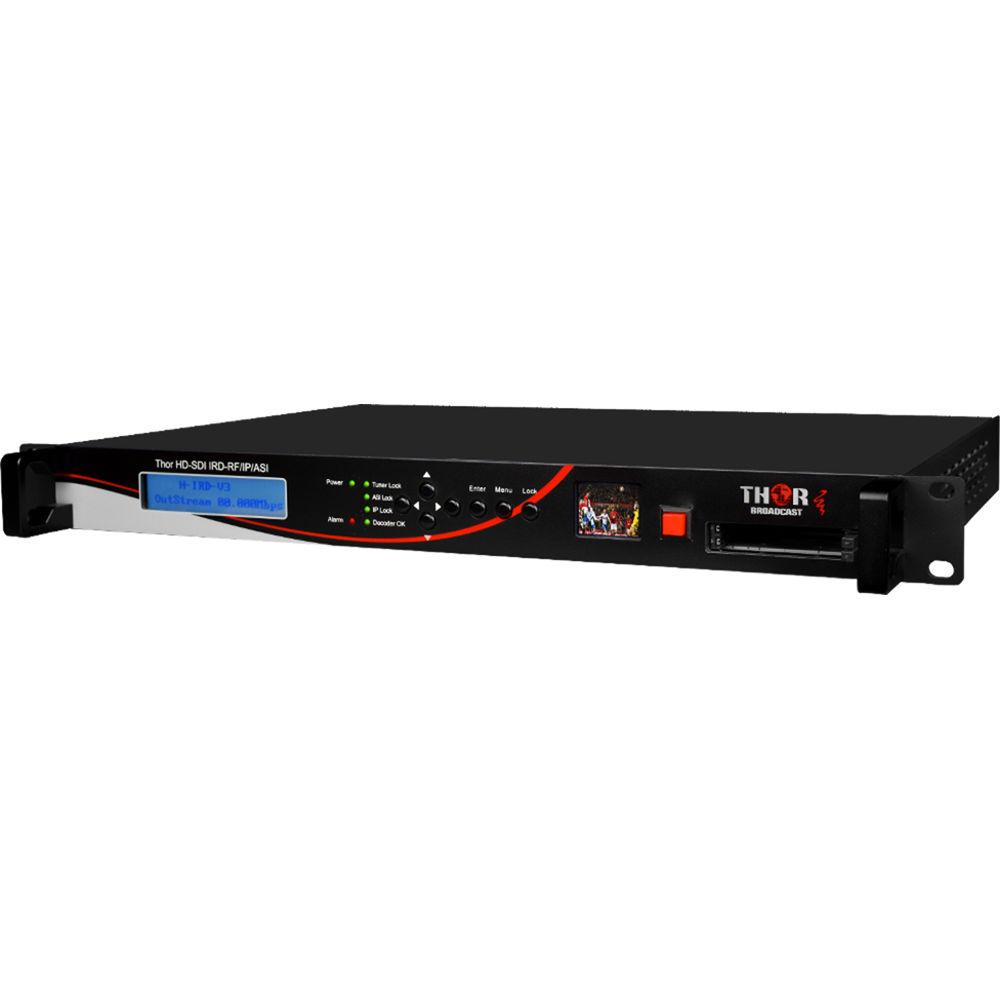

The V3 platform adds a front panel LCD video display for monitoring, as well as an internal program multiplexer for combining content from both ASI and IP sources simultaneously. The web interface displays all available programs and corresponding PID's, where each program can be independently added to either the ASI or IP outputs, and all selected programs are multiplexed into a single MPTS output. Additionally, the IP output can be configured for up to 32 SPTS single program stream outputs, each with different address and port settings. This allows the V3 system to be used as an intelligent ASI to IP, or RF to IP Gateway with add-drop and ASI multiplexing capabilities. The combined multi-program transport streams carried over IP can also be separated into their corresponding single program streams. You can configure the RF tuner for QAM, 8VSB (ATSC), DVB-T, DVB-C, or DVB-S2 signal sources. -
- Broadcast integrated receiver decoder system
- Integrated RF tuner for DVB-S2 satellite TV
- Decodes any IP or ASI program from SPTS or MPTS
- Network managed on dedicated network interface
- Supports 608 closed captions and 708 on HD-SDI out
- Remap PIDs from any TS input to any TS output
- Process, remap, and remultiplex up to 32 streams
- Two CAS card slots allow for decoding of encrypted programming
UPC: 659682981734 Table of Contents
|
Upload User Manual
Have you got an user manual for the Thor H-IRD-V3s Fiber Integrated Receiver Decoder System for DVB-S2 ASI IP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThor H-IRD-V3S Specs | Video Codecs | MPEG-2, H.264 | | Input Type | ASI, IP, RF | | Audio Codecs | MPEG-1/MPEG-2 layer 1 and 2 | | Output Type | Video, ASI, IP | | Supported Video Types | CVBS, YPbPr, HDMI, HD-SDI | | Supported Audio | Baseband analog, AES/EBU | | Access | PCMCIA CAM/CAS | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
