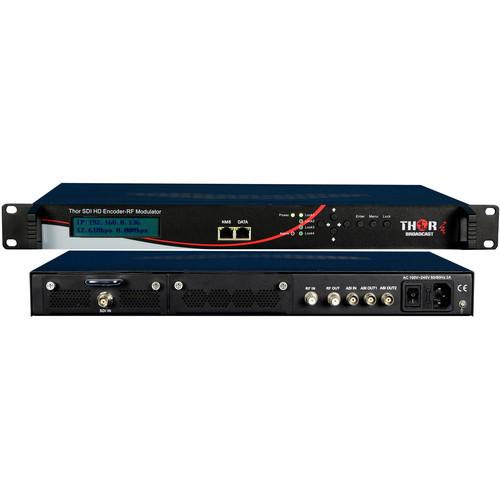

User Manual for Thor SDI to QAM Modulator and IPTV Streaming Encoder Click to enlarge the picture
Contents of the user manual for the Thor SDI to QAM Modulator and
- Product category: RF Equipment Thor
- Brand: Thor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Thor RF Equipment
|
User manual for the Thor SDI to QAM Modulator and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Thor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Thor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Thor product will considerably shorten its lifespan!
|
Product description The one-input SDI to QAM Modulator and IPTV Streaming Encoder from Thor bundles a real-time HD hardware encoder with a managed program stream multiplexer and RF QAM modulator. It can encode one channel of HD-SDI video to MPEG-2 or H.264, and modulate the programs on QAM carrier outputs. The unit can also modulate programs encoded externally via an ASI input. This platform is suitable for corporate MATV systems or in-house HD video distribution from SDI sources.
Quadrant Amplitude Modulation (QAM) is commonly used in cable TV systems due to its high bandwidth. The QAM-IP chassis supports all three primary J.83 QAM standards; ITU-T J.83A, J.83B, and J.83C. Any QAM-IP chassis can be set to output RF carriers under either of these three standards without the need to change firmware. The encoder modules are independent of the modulator chassis system.
The HD-SDI uncompressed digital video is commonly used in broadcasting and professional A/V systems. Serial digital video can be carried over single-conductor coax cables employing common BNC connectors. The low-latency encoding reduces the time delay between video input and encoded program output. - Key Features
-
- Broadcasts live HD-SDI video and ASI as cable TV and IPTV channels
- Broadcasts over the existing coaxial cabling to an unlimited number of televisions with Full HD resolution
- Low-latency encoding
- Encoding latency of approximately 70 to 110 ms
- Any SDI input up to 3G-SDI at 1920 x 1080p60
- ASI input SPTS or MPTS up to 120 Mb/s
- Fully network-managed through browser
- QAM-256/64 RF output
- IPTV output unicast or multicast IGMP UDP, RTP/RTSP
- ASI output with multiplexer cherry picking
UPC: 659682981222 In the Box Thor SDI to QAM Modulator and IPTV Streaming Encoder (1-Input) HD-SDI BNC Cable Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Thor SDI to QAM Modulator and IPTV Streaming Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThor H-1SDI-QAM-IPLL Specs | SDI Input | 1 | | Input | 3G/HD-SDI (BNC, 50 Ohms) | | Supported Resolutions | 1920 x 1080p 60/59.94/50
1920 x 1080i 60/59.94/50
1280 x 720p 60/59.94/50 | | Video Codecs | MPEG-2 HD 1.5 to 19.5 Mb/s
H.264 HD 0.8 to 19.5 Mb/s | | Audio Codecs | MPEG-1 layer II
MPEG-2 AAC
MPEG-4 AAC | | Audio Sample Rate | 48 kHz | | Audio Bit Rates | 64, 96, 128, 192, 256, and 320 kb/s | | Modulation | QAM: J.83A, J.83B, J.83C | | RF Frequency Range | 30 to 960 MHz, 1 kHz step | | RF Power | 15 to 43 dBmV adjustable | | DVB-ASI | Input:
BNC Connector: 1 to 120 Mb/s
Programs selected by PID
Programs muxed to all outputs
Output:
BNC Connector: 1 to 60 Mb/s | | IPTV | Output:
MPEG-TS MPTS over UDP, RTP/RTSP
Unicast and multicast supported | | Power Input | 100 to 240 VAC autoswitching
20 W | | Cable Type | 1 x HD-SDI BNC cable
1 x Power cord | | Operating Temperature | 32 to 110°F / 0 to 43.3°C | | Dimensions | 19 x 12 x 2" / 48.3 x 30.5 x 5.1 cm | | Weight | 9 lb / 4.1 kg |
